| Model NO. | P23 |
| Hardness | Hard Tube |
| Type | Thermosetting Plastic Pipe |
| Color | Color |
| Hollow | Hollow |
| Shape | Round |
| Usage | Drainpipe, Water Supply Pipe |
| Transport Package | Cartons |
| Specification | 20-110 |
| Trademark | TY/OEM |
| Origin | China |
| HS Code | 3917400000 |
PRODUCT DEscriptION
PP compression fittings have been designed for kinds of fluids transport under high pressures, irrigation and other applications. They are fully compatible with all PELD, PEHD, PE40, PE80 and PE100 pipes. The performance standard of PP fittings about working pressure can match ISO14236 or DIN8076, the standard of threads can match ISO7, DIN EN 10226, ASME B1.20, or BS 21. The maximum working pressure of PP compression fittings, which diameter is from 20 to 63, can match PN16, and PN10 can be matched for the diameter, which is from 75 to 110, at 20 degree centigrade.
The clamp saddles have been designed for side outputs on PE and they are available in the large range of sizes, which can be found in the catalogue. The clamp saddles are fit for conveying food fluids because its materials are conform to the domestic and international standards.FEATURES OF PRODUCT
Match with PE Pipe:
PP compression fittings for PE pressure piping networks.
Fast & Reliable Connection:
Split ring opening has been optimized to make pipe insertion even easier. Turning of pipe can be prevented by inner threaded during installation.
Perfect Sealing in all Conditions:
When tightened and due to seat be compacted, o-ring makes pressure against pipe, superior water tightness was provided.FIELDS OF APPLICATION
Piping networks for water supply of public works
Piping networks for underground water supply system of living areas or factories
Piping networks for water treatment systems
Piping networks for irrigation of gardening or farming
SERVICE
1. We are a manufacturer of plastic tubes and fittings. We accept OEM business.

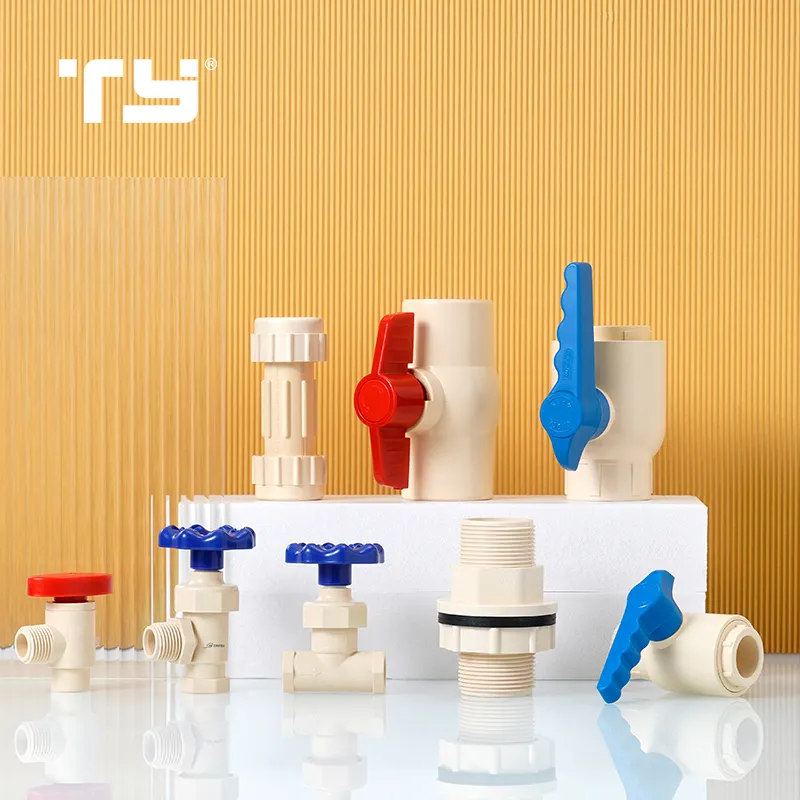

2. We supply stop valve,pipe end cap,equal/reduceing tee,cold hot water ball valve,union ball valve,threaded elbow(plastic or with metal) and so on.
3. We also supply the connectors Accordingly.
4. We can offer you very competitive prices for some pipes.
5. We welcome you to visit our web and our factory. Your visiting will be highly appreciated.
6. It is my pleasure to help you.
7.If you need more customized services and offers,Please Contact Us.
