| Model NO. | 8000170100 |
| Material | Plastic |
| Shape | Equal Tee |
| Lateral | 90°Tee |
| Head Code | Round |
| Wall Thickness | Pn10 |
| Finish | Smooth |
| Technics | Injection Moulding |
| Pressure Rating | Pn10 |
| Standard | GB |
| Certification | ISO, CE |
| Colour | Grey |
| Transport Package | Carton Packing |
| Specification | 110~315 mm |
| Trademark | Huasheng/OEM |
| Origin | Changzhou |
| HS Code | 39174000 |
| Production Capacity | 80, 000 Tons |
COMPANY PROFILE Size (De)
TECHNICAL DATA

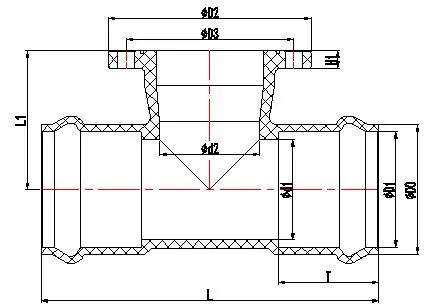

Tee with flanged branch(F/F) Dimension(mm) D0 D1 D2 D3 d1 d2 T H1 L1 L n 110 125.70 111.50 224.00 185.00 108.00 108.00 122.00 19.00 160.00 405.00 8 160 181.50 162.30 284.00 235.00 158.00 158.00 141.00 23.00 195.00 473.00 8 200 225.00 202.50 338.00 300.00 197.00 197.00 152.00 26.00 230.00 540.00 8 225 251.50 227.50 344.00 293.00 221.00 221.00 139.00 29.50 255.00 576.00 8 250 276.50 252.30 394.00 250.00 247.00 247.00 152.00 31.50 280.00 624.00 12 315 347.80 318.30 443.00 398.00 312.00 312.00 198.00 36.00 330.00 788.00 12 160*110 181.50 162.30 224.00 185.00 158.00 108.00 141.00 19.00 192.00 446.00 8 200*110 225.00 202.50 224.00 185.00 197.00 108.00 152.00 19.00 215.00 488.00 8 200*160 225.00 202.50 284.00 235.00 197.00 158.00 152.00 23.00 220.00 500.00 8 225*110 251.50 227.50 224.00 185.00 221.00 108.00 139.00 19.00 233.50 466.00 8 225*160 251.50 227.50 284.00 235.00 221.00 158.00 139.00 23.00 245.00 504.00 8 250*110 276.50 252.30 224.00 185.00 247.00 108.00 152.00 19.00 245.50 500.00 8 250*160 276.50 252.30 284.00 235.00 247.00 158.00 152.00 23.00 257.00 538.00 8 250*200 276.50 252.30 338.00 300.00 247.00 197.00 152.00 26.00 268.50 578.00 8 315*110 347.80 318.30 224.00 185.00 312.00 108.00 198.00 19.00 277.50 592.00 8 315*160 347.80 318.30 284.00 235.00 312.00 158.00 198.00 23.00 288.50 626.00 8 315*200 347.80 318.30 338.00 300.00 312.00 197.00 198.00 26.00 299.00 667.00 8
Tee with flanged branch(F/F) Features
Non-conductive: Good insulation, assuring a safe system
Smooth surface: Small friction coefficient to ensure the cables go through smoothly
Fire resistance: Self-extinguishing, do not support combustion

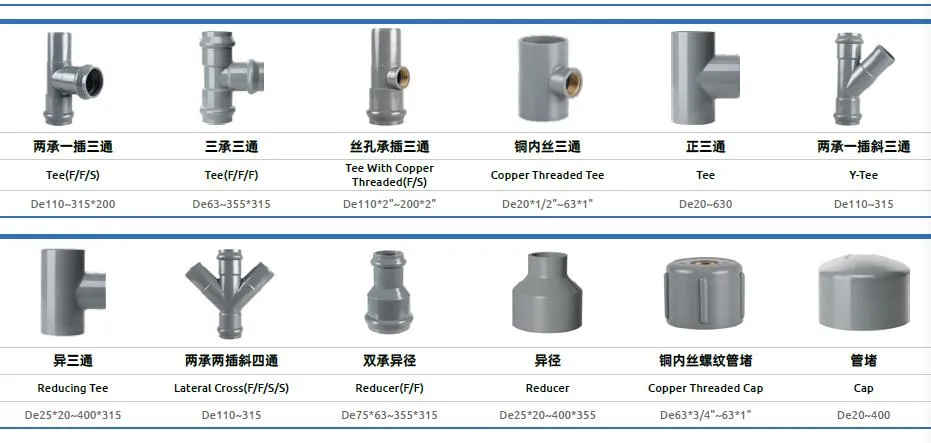

MORE PRODUCTS

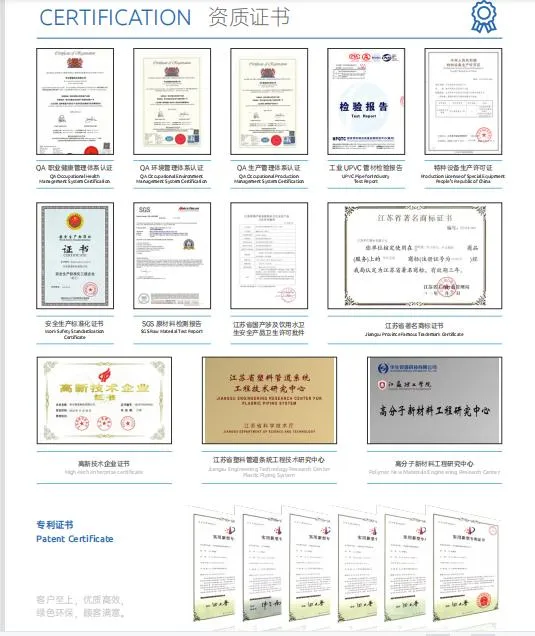

CERTIFICATION

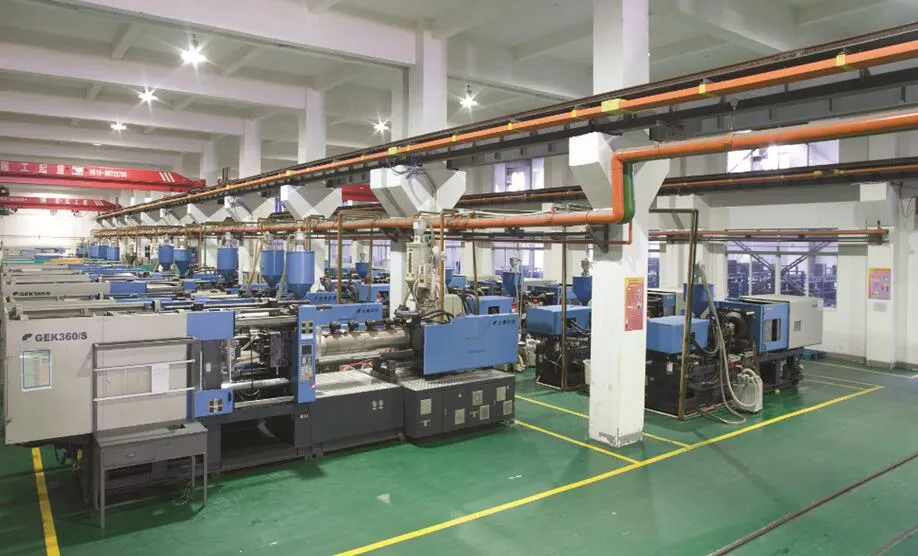

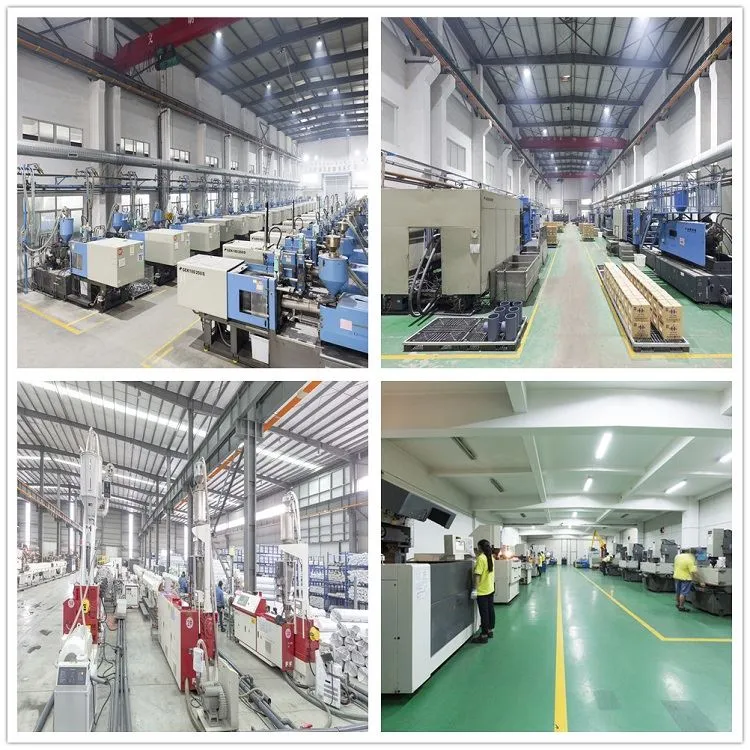

WORKSHOP

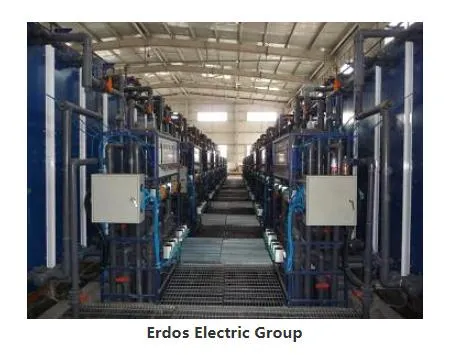

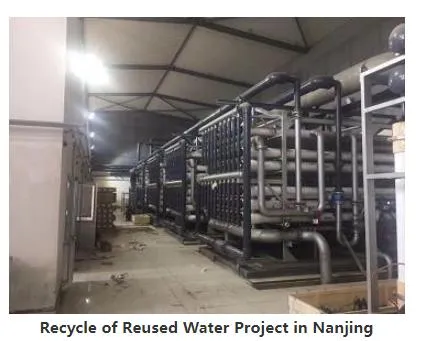

CASES
