| Model NO. | EPL02 |
| Connection | Flange |
| Shape | Equal |
| Head Code | Round |
| Angle | 90 Degree |
| Wall Thickness | 2.0mm |
| Material | Nylon |
| Technics | Injection |
| Certification | CE |
| Color | White |
| O-Ring Color | White ,Green Blue as You Need |
| Fitting Color | White |
| Connect | by Handle |
| Advantage | Light Safe and Cheaper |
| Transport Package | Carton |
| Specification | 16mm -63mm |
| Trademark | OEM |
| Origin | Zhejiang, China |
| HS Code | 3917400000 |
| Production Capacity | 50000PC/Day |
Product Description:
1,Have big size 40mm ,50mm ,63mm .
2.Lower cost: 50% down compared with copper/brass pipe fittings ,But same quality and function.
3.Tolerance to freezing and high temperature: -30°C - 150°C;
4.High tolerance to vibration, with standard operational pressure more than 2.0 MPa;
5.Corrosion resistance without fouling, its sanitary quality meets standard of GB/T17219-1998;
6.Light and convenient for transportation;
7.Easy, rapid, convenient and safe for installation, without process of tapping;
8.Can be directly used in industrial or civil pipeline engineering projects, including transportation pipeline for liquid and gas such as purified water,cool or hot water, solar energy, air conditioner, medical facility, food and chemical industry and so on;
9.Basic material is plastic Nylon (reinforced polyamide) resin, with embedded internal copper sleeve, that has the best flexibility and solidity and long service life.

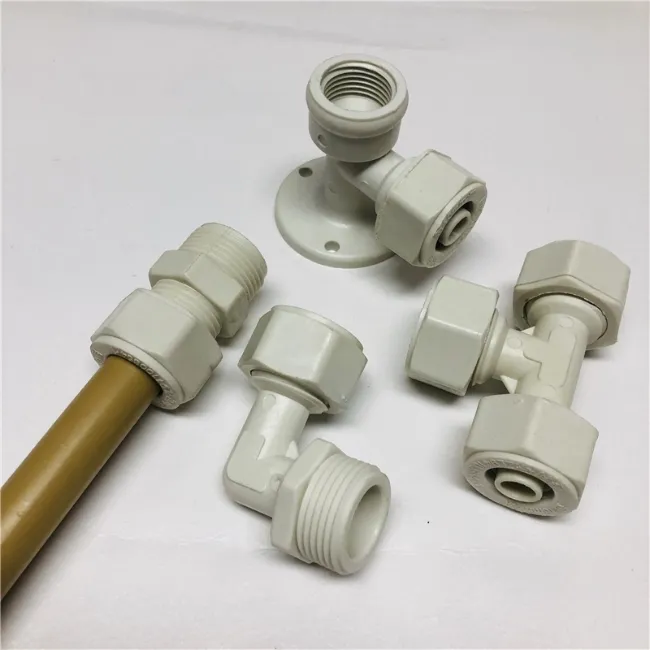

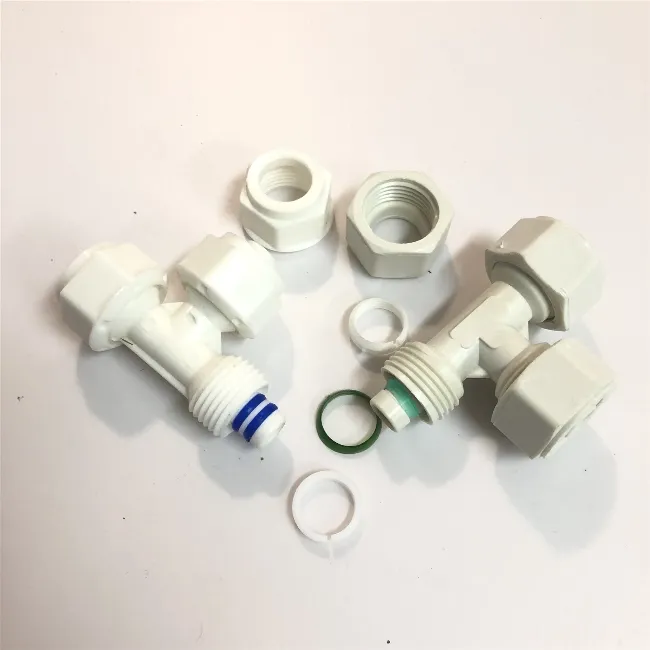

Detail goods:

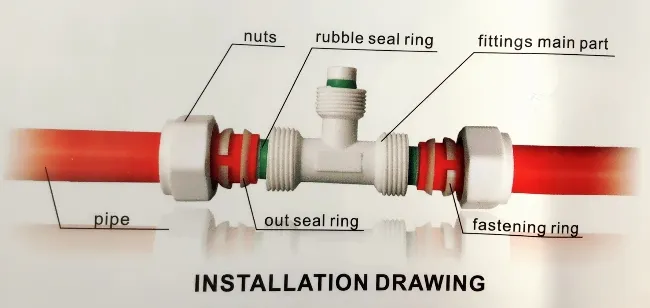

Safety installation drawing :

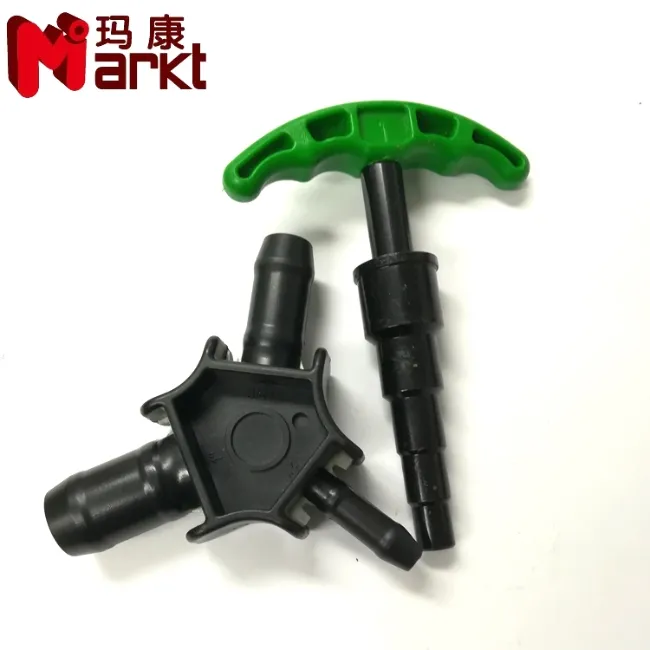

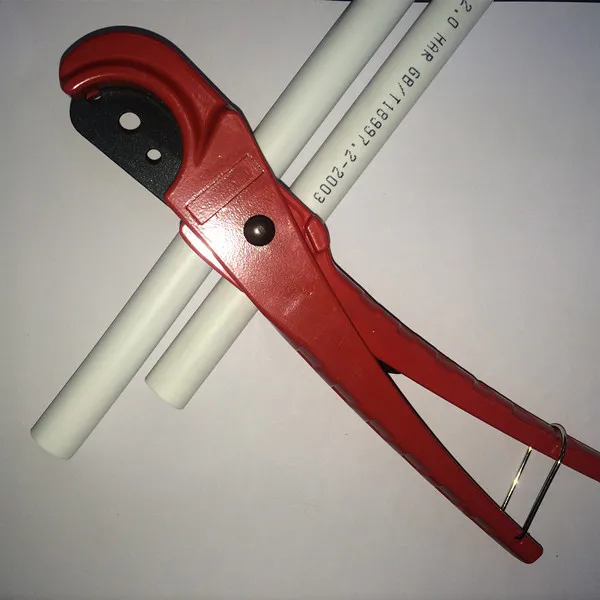

Attention,Please cutter smooth before with Markt pipe cutter and reamer .

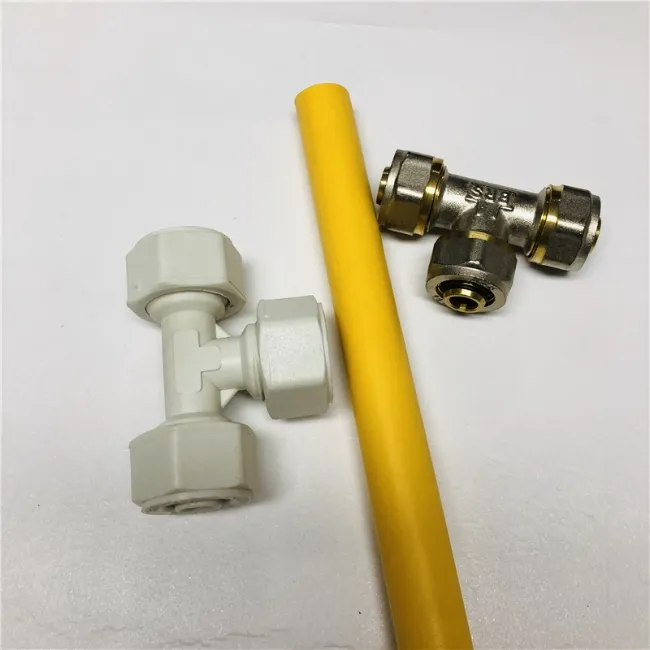

Markt have brass fitting for aluminm pipes also:
We welcome your inquiy and buy !
We are 20 years experience supply pipe and fittings company.
Hope a chance to serivce for your company.
