High Efficiency WPC Flooring/PVC Door Frame Extrusion Machine for Interior Decoration

The PVC Door Frame Extrusion Line from WeCoEx Machinery Co., Ltd. is engineered for the production of high-quality PVC door frames, window profiles, and decorative moldings widely used in interior construction and furniture applications.

This production line combines a high-performance twin-screw extruder, precision vacuum calibration and cooling systems, and automatic haul-off, cutting, and stacking units, ensuring smooth surface finish, accurate profile dimensions, and stable high-output performance.

With optional co-extrusion, surface embossing, and online lamination modules, the line can produce door frames featuring wood-grain textures, marble patterns, or customized colors, perfectly meeting diverse interior decoration styles and market demands.

Specification

The WPC Flooring/PVC Door Frame Extrusion Line is designed for the efficient production of various PVC profiles, including door and window frames, decorative moldings, and interior finishing components. With a stable extrusion process and fully customizable mold design, this line meets the diverse architectural and furniture requirements found in residential, commercial, and industrial projects.

PVC door frames produced by this line combine the natural appearance of wood with superior durability, offering low maintenance, excellent weather resistance, and long-term dimensional stability. These advantages make PVC profiles a preferred solution in modern interior decoration and construction industries.

Key Configurations

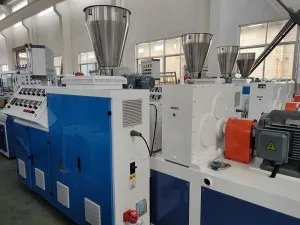

Twin Screw Extruder: Stable extrusion with precise temperature and speed control.
Mould (Die Head): High-precision alloy die for smooth and accurate profiles.
Vacuum Calibration Table: Dual vacuum pumps for perfect shape and surface.
Cooling Tank: Efficient spray cooling for uniform finish.
Haul-off & Cutting Unit: Synchronized traction and servo cutting for accuracy.
Stacker: Automatic collection and stacking of finished profiles.
Control System: Siemens PLC + touch screen for full automation.

High Precision & Smooth Finish
Advanced twin-screw extrusion and precise vacuum calibration ensure every door frame has perfect dimensions, glossy surface, and tight fit, ready for high-end interior decoration.

Flexible Decoration Options
Supports co-extrusion, embossing, and film lamination, allowing easy production of wood-grain, marble, or color-surface frames to match different design styles.

Energy-Efficient & Fully Automatic
The entire line adopts PLC + touch screen control, delivering stable output, low power consumption, and easy operation with just 2–3 operators.

Technical Specifications

(Custom configurations available upon request.)

Model

Product Width (mm)

Product Height (mm)

Extruder Type

Max Output (kg/h)

Total Power (kW)

Production Speed (m/min)

PVC-65

≤120

≤80

SJSZ-65/132

180–220

90

2–6

PVC-80

≤180

≤120

SJSZ-80/156

250–350

130

3–8

PVC-92

≤240

≤150

SJSZ-92/188

400–500

180

4–10

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
