PVC Pipe Production Line / PVC Pipe Extrusion Making Machine

Produce process :
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator → vacuum forming machine → haul off machine → cutting machine → stacker

Main Composition

ItemQuantity 1.SJSZ-XXX conical twin screw extruder (Equipped with automatic feeding unit)One set 2.Die and MoldOne set 3.Vacuum calibration unitOne set 4.Haul-off unitOne set 5.Cutter UnitOne set 6.StackerOne set Optional auxiliary machines for your choice  1.PrinterOne set 2.MixerOne set 3.CrusherOne set 4.Milling machineOne set 5.PVC pipe belling machineOne set

Technical parameter

Diameter(mm)16-40dual20-63dual20-6375-200160-315315-630 Extruder modeSJZ51/105SJZ65/132SJZ51/105SJZ65/132SJZ80/156SJZ92/188 Extruder power (kw)18.5AC37AC18.5AC37AC55AC110DC Max lineal speed (m/min)0.5-100.5-150.5-100.5-80.5-60.5-4 Max capacity (kg/h)12025080-120180-250280-350500-600 Installation area  24*2.8*2.0m30*2.8*2.2m35*3.0*2.4 m36*3.0*2.4 m

1. SJSZ-XXX conical twin screw extruder (Equipped with automatic feeding unit)

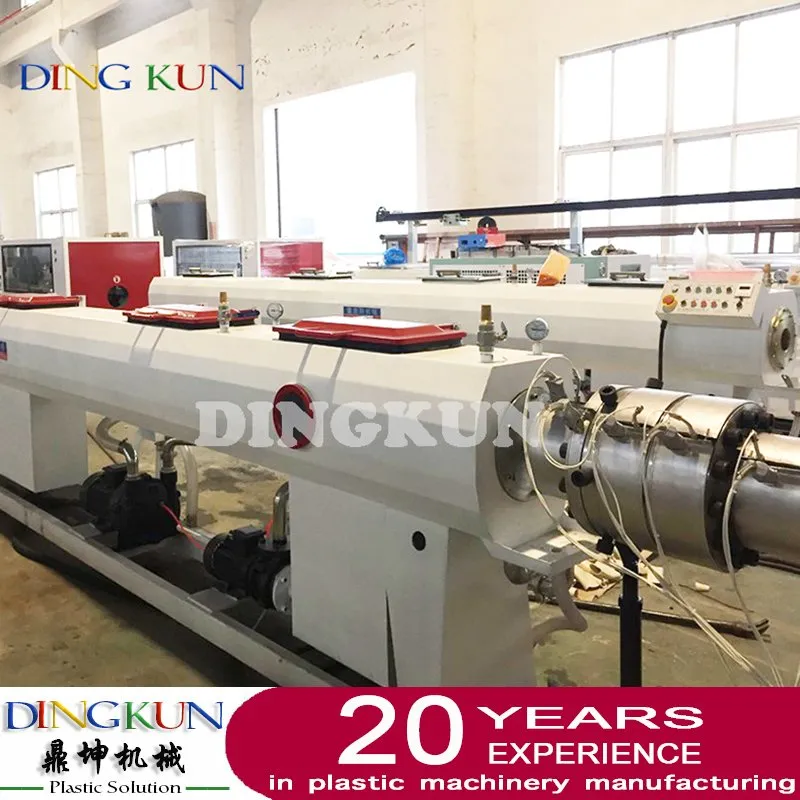

2. Vacuum calibration unit

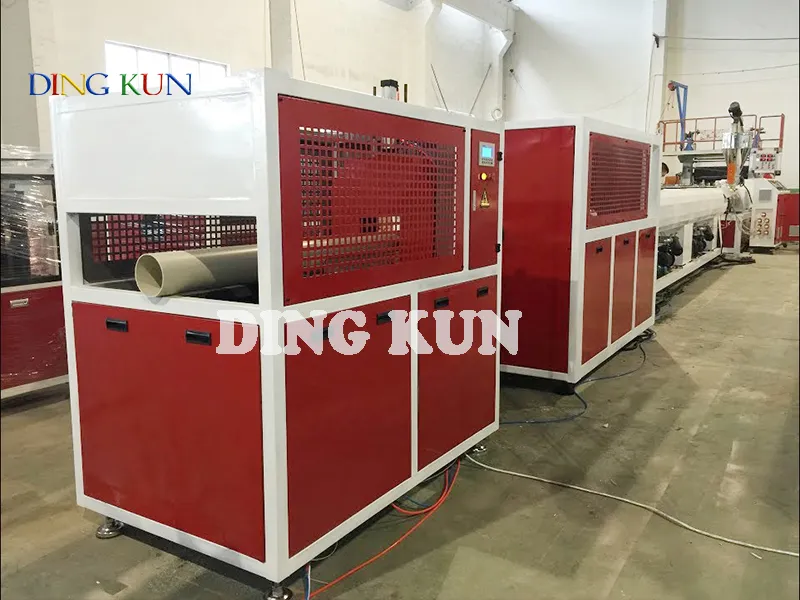

3. Haul-off unit + cutter unit

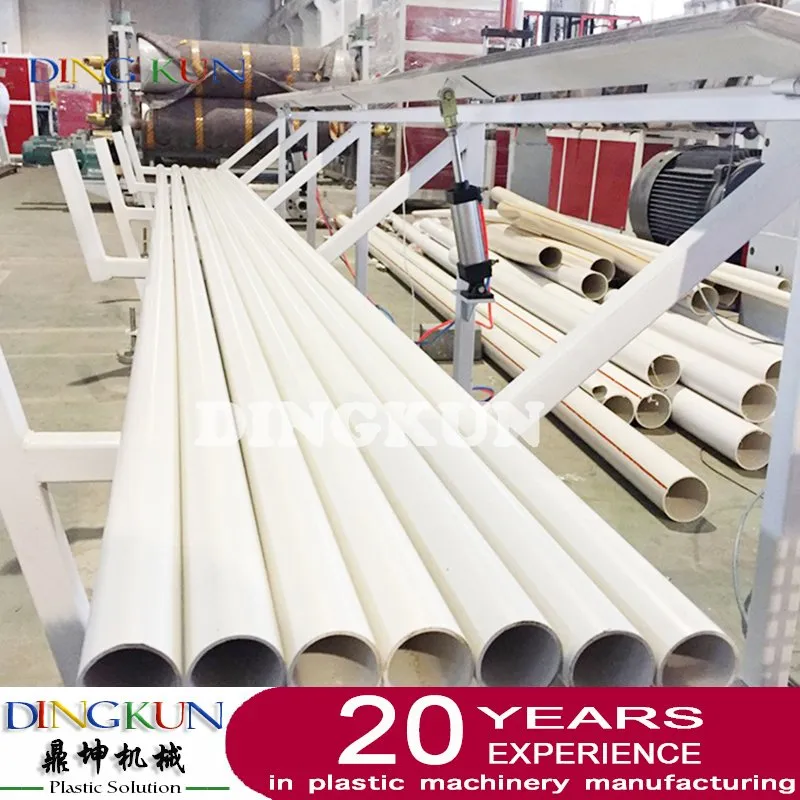

4. Stacker

SJSZ80/156 PVC PIPE MACHINE FOR 160-250mm / 160-315mm Pipe


PVC DOUBLE PIPE MACHINE

Loading Container & Delivery

Execellent Service-Turnkey Project (Pre-Sale and After-Sale Service)

DINGKUN is committed to providing full support for its local and international clients and dealers and will always provide a prompt response to customer enquiries.

1. Provide all the machines for the complete production according to customer's requirements.
2. Provide complete service for factory layout and other information to help customer to build the factory.
3. Provide the raw material to the customer if need.
4. Provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Provide after-sell service for all the life, except one year quality guarantee,
6. Provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
