Type	Thermosetting Plastic Pipe
Color	Color
Hollow	Hollow
Shape	Round
Usage	Drainpipe, Water Supply Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe
Pressure	0.1~0.15MPa
Lifespan	Over 50 Years
Model No.	HDPE Pipe
Certificate	ISO
Length	6 Meters or as Request
Characteristic	Good Flexibility, Corrosion Resistance, Excellent
Main Application	Water Supply, Irrigation, and Dredge System
Standard	GB/T13663-2000, ISO 4427-1:2007
Application	Agriculture Irrigaiton
Connection	Hot Melt, Butt Fusion, Electro Fusion
Welded	Hot Melt Welding, Heating Connection
Transport Package	Customized
Specification	6m, 12m or as Required
Trademark	ZF
Origin	China
HS Code	8430419000
Production Capacity	50000piece/Year

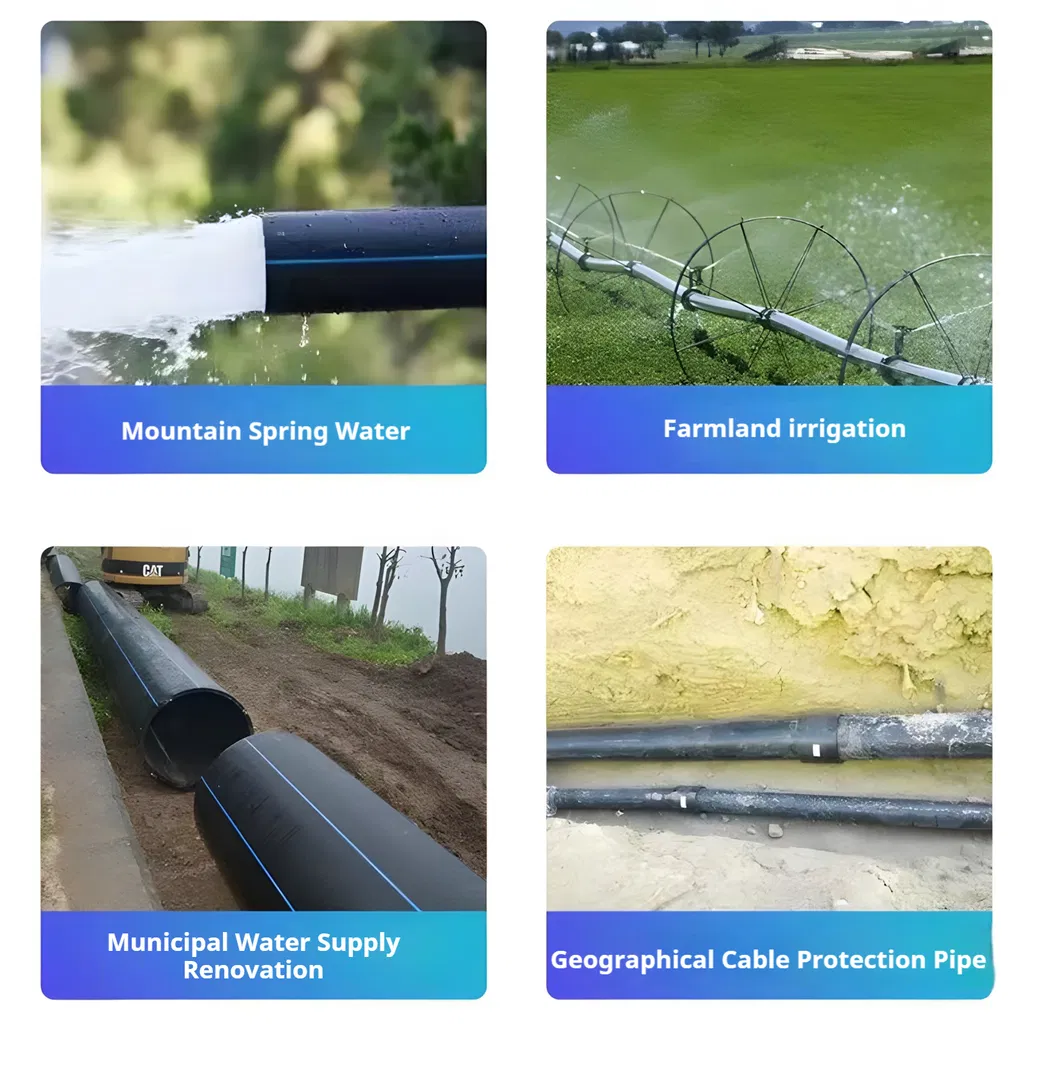

Our HDPE pipes offer superior strength, flexibility, and corrosion resistance, making them ideal for diverse applications,including water supply, drainage, mining, and cable protection. Designed for durability, they feature heat-fused joints, UV stability, and exceptional abrasion resistance,lasting over 50 years even in harsh environments. Lightweight and easy to install using trench or trenchless methods, our HDPE pipes deliver reliable performance with low maintenance, reduced pressure loss, and cost-efficient operation across industrial, municipal, and agricultural projects.

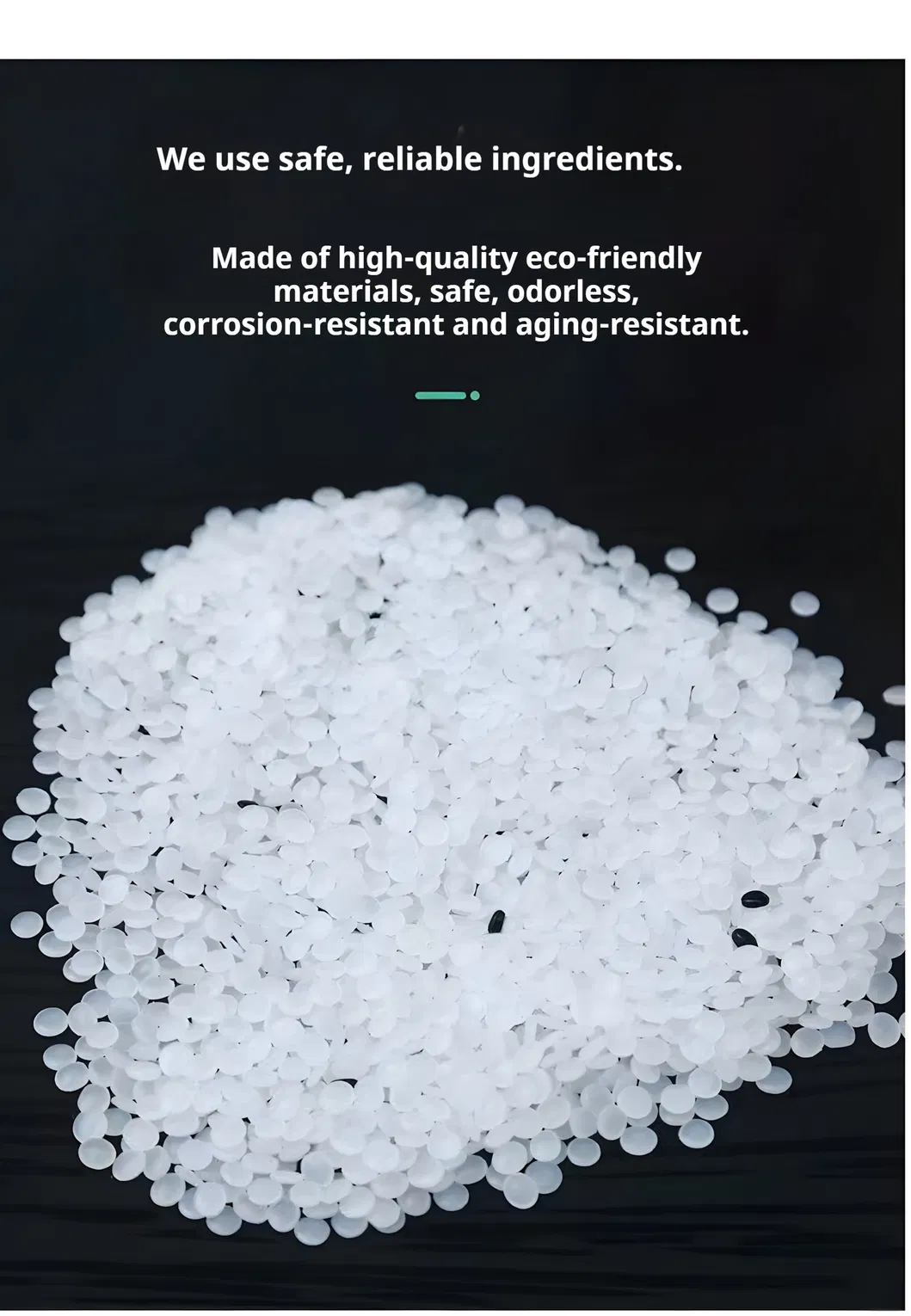

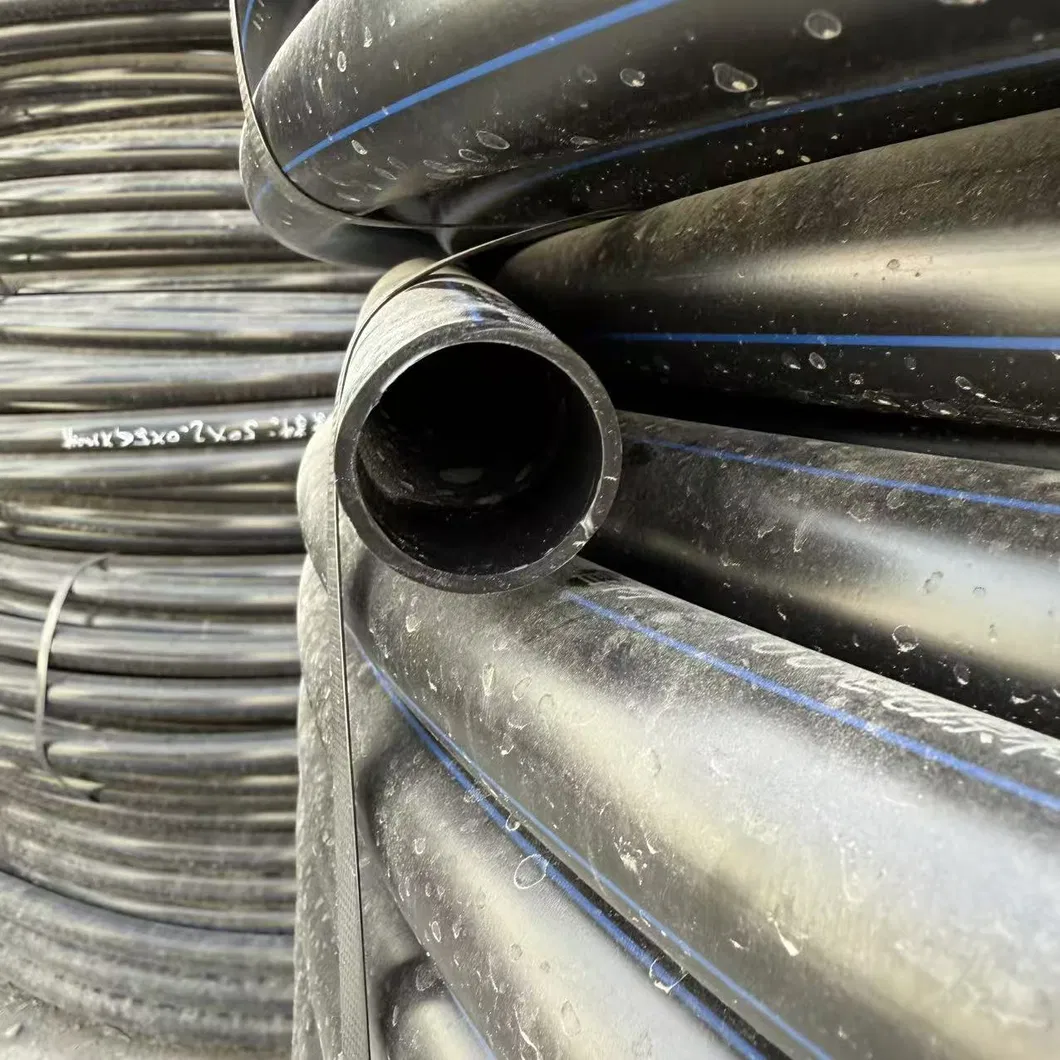

MaterialHigh-Density Polyethylene (PE100) Specificationfrom DN20mm to DN1600mm Pressure Rating0.4Mpa, 0.6MPa, 0.8MPa, 1.0MPa, 1.25MPa, 1.6MPa, 2.0Mpa, 2.5Mpa CertificationCE, SGS, ISO, CNAS, IAF,SASO ConnectionWelding ColorBlack with blue,yellow, red line or Customized

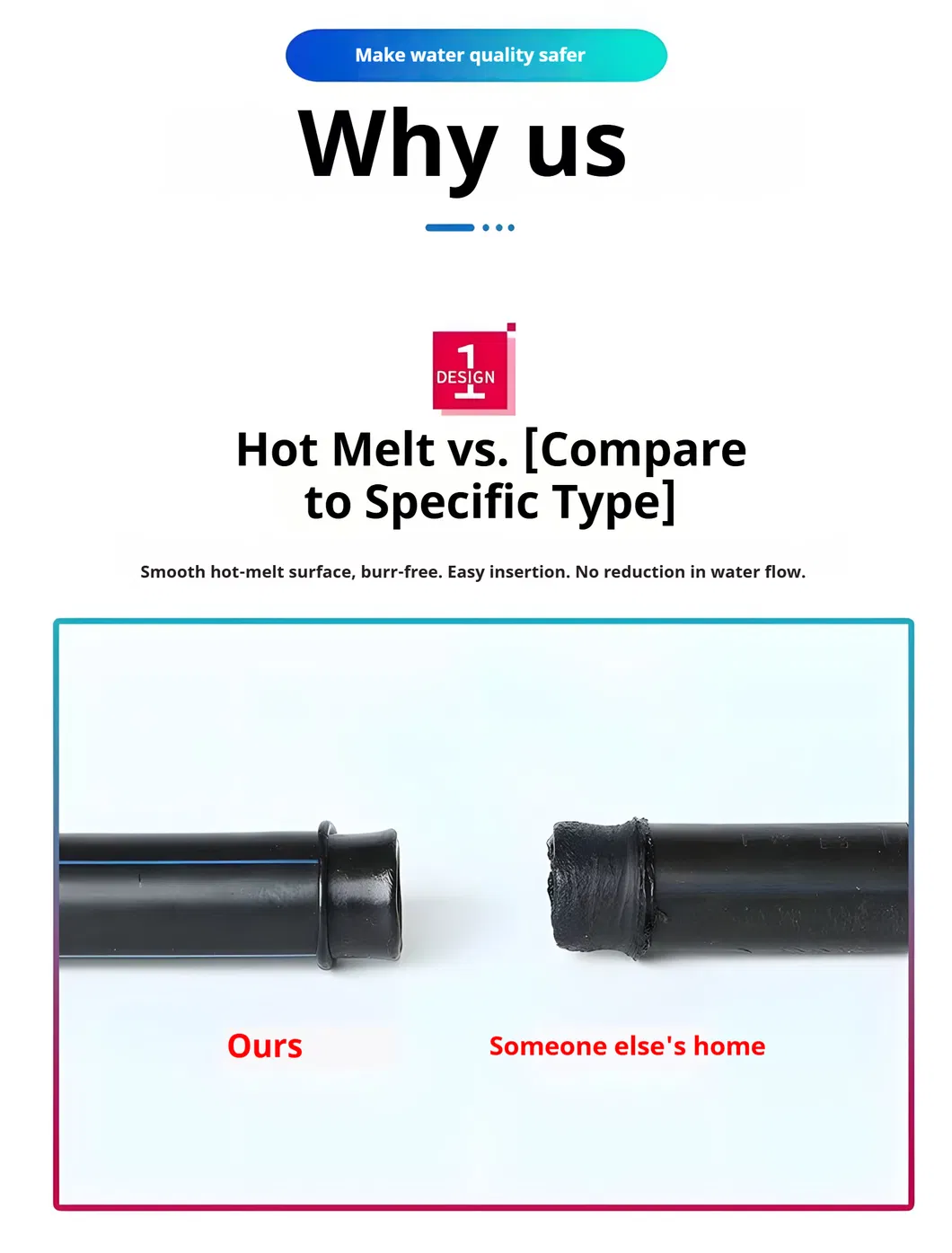

1.Reliable Connections:
HDPE Pipe use heat fusion jointing system with low notch sensitivity; joint strength exceeds pipe body strength.

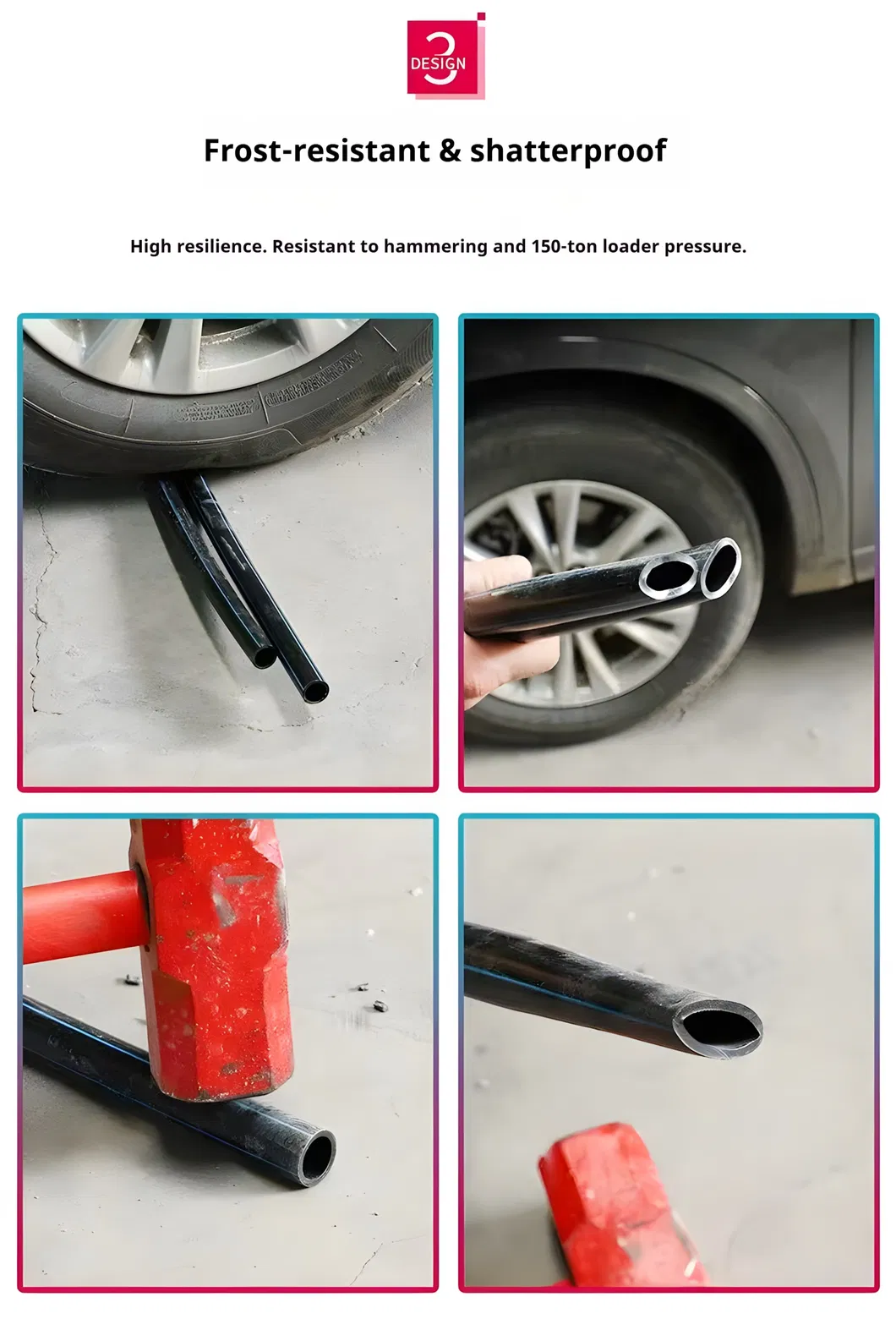

2.Excellent Low-Temperature Impact Resistance:
Brittle point below 0°C; maximum operating temperature 40°C; design pressure 8MPa for various climates.
3.Long Service Life (>50 years):
High crack resistance, superior shear strength and elongation at break.
4.Chemical Corrosion Resistance: Withstands acids, alkalis and chemicals; rust-proof; inhibits bacterial/fungal growth.
5.UV & Weather Resistance:
Black PE pipes provide UV protection for outdoor storage/use.
6.Abrasion Resistance:
4 times more wear-resistant than steel pipes with better cost-efficiency.
7.Flexibility:
Adapts to hilly terrain; can bend around obstacles, reducing fittings and installation costs.

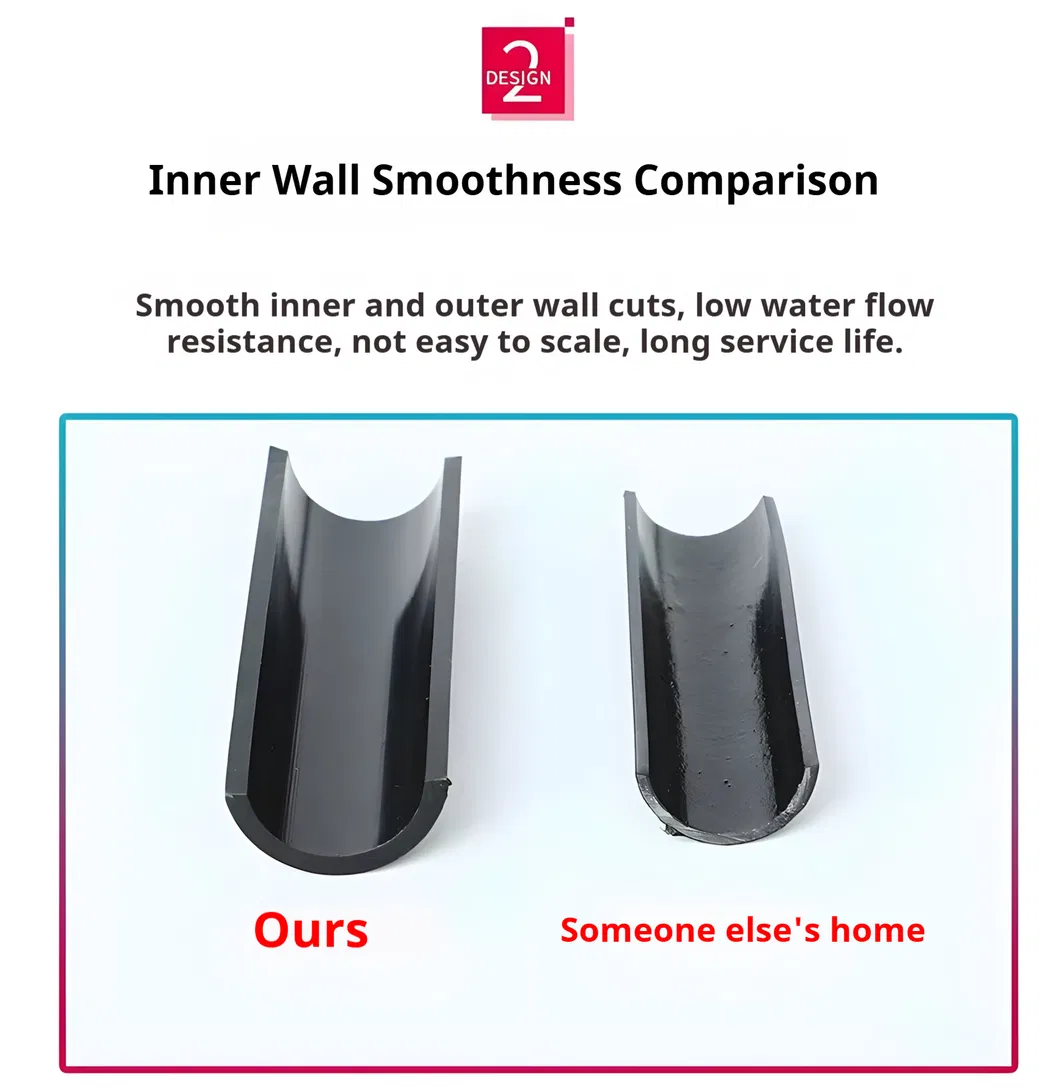

8.Low Flow Resistance:
Smooth interior (roughness coefficient: 0.009); 1/200 friction loss vs steel pipes; minimizes pressure loss and scaling.
9.Easy Handling:
Lightweight and flexible, significantly reducing labor/equipment costs vs concrete/galvanized/steel pipes.
10.Installation Convenience:

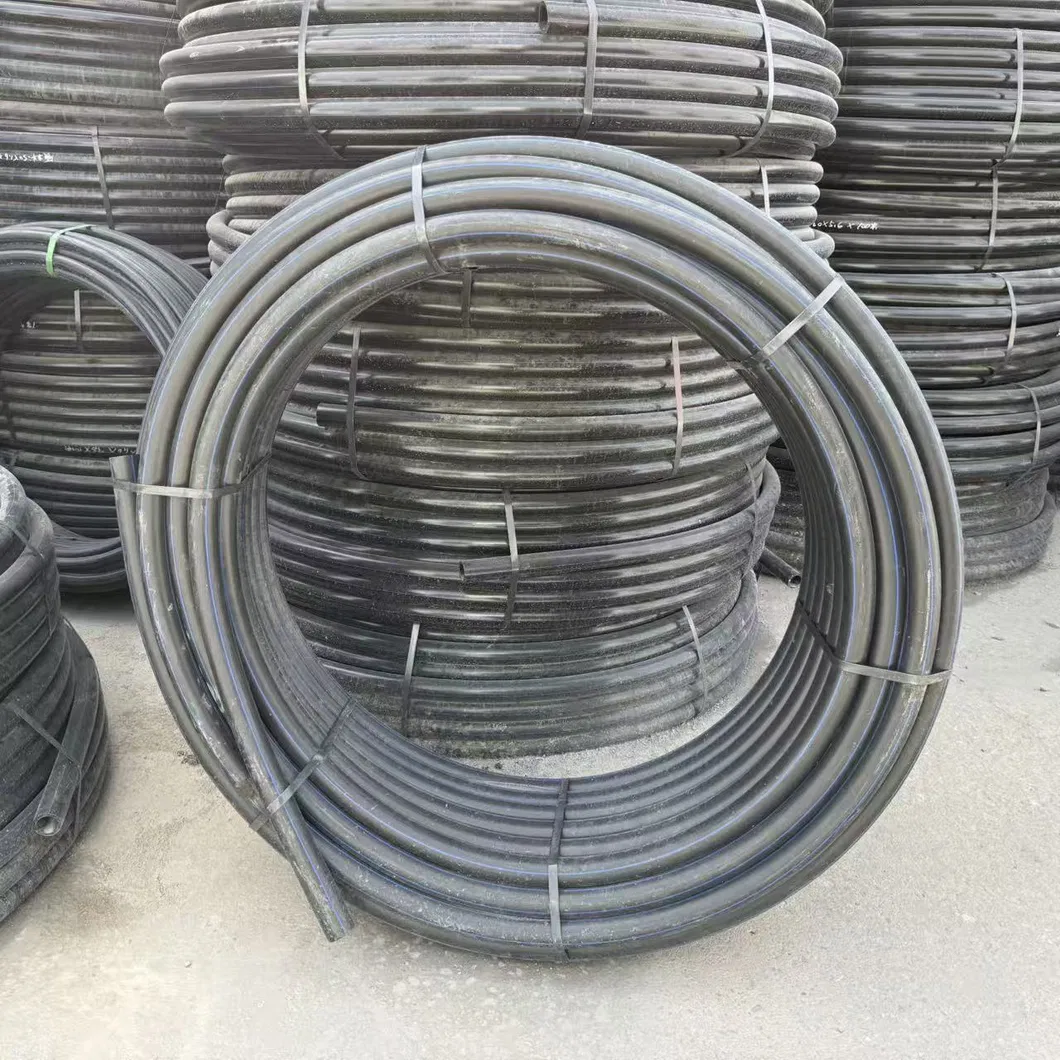

Available in straight/coiled forms; supports trench/trenchless methods (pipe jacking, directional drilling, sliplining, pipe bursting).

DN

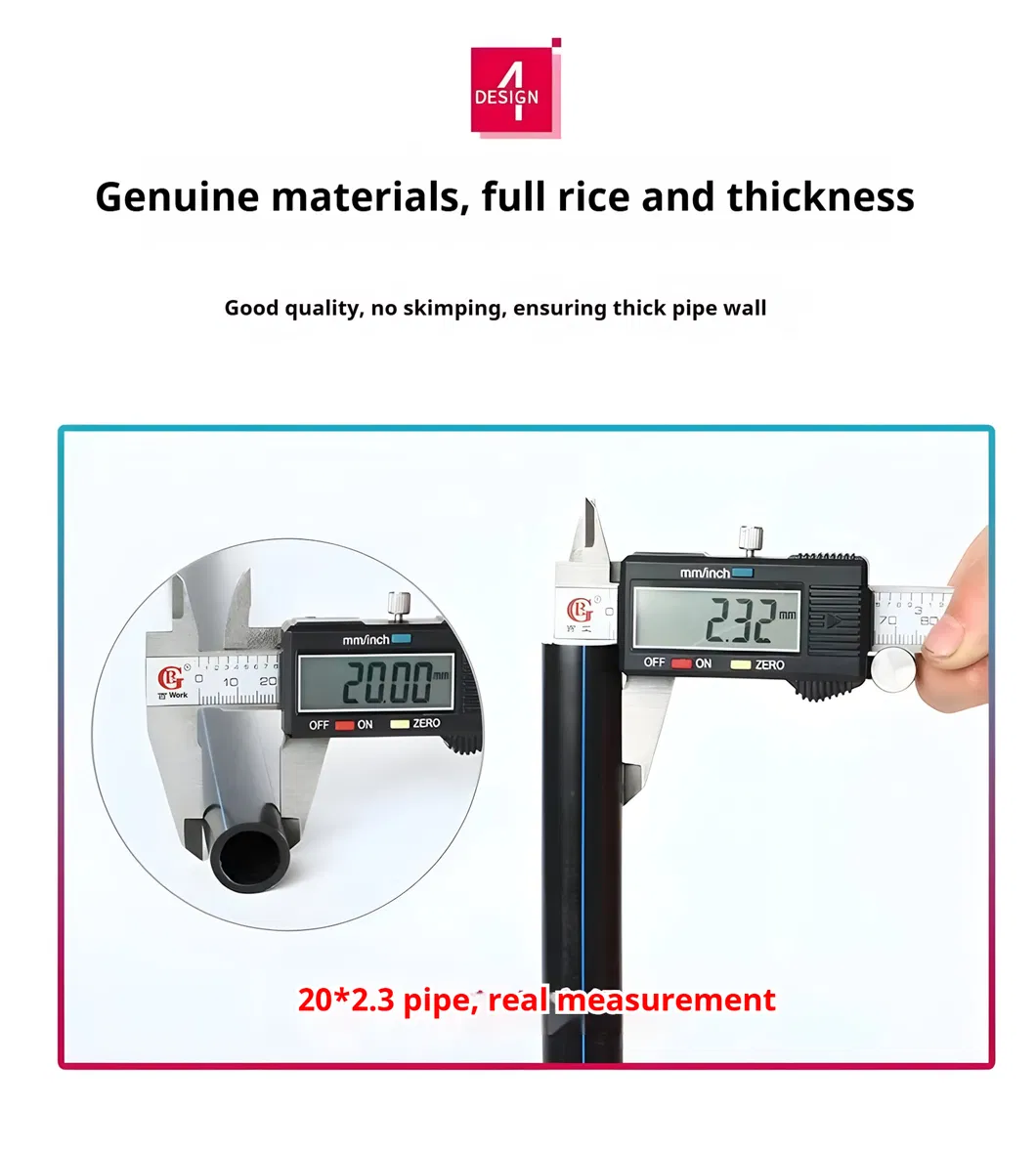

(mm) em/mm SDR41SDR33SDR26SDR21SDR17SDR13.6SDR11SDR9 MPa 0.4MPa0.5MPa0.6MPa0.8MPa1.0MPa1.25MPa1.6MPa2MPa mmmmmmmmmmmmmmmm 20------2.3 2.3  25-----2.3 2.3 3.0  32----2.3 2.4 3.0 3.6  40---2.3 2.4 3.0 3.7 4.5  50--2.3 2.4 3.0 3.7 4.6 5.6  63--2.5 3.0 3.8 4.7 5.8 7.1  75--2.9 3.6 4.5 5.6 6.8 8.4  90--3.5 4.3 5.4 6.7 8.2 10.1  110--4.2 5.3 6.6 8.1 10.0 12.3  125--4.8 6.0 7.4 9.2 11.4 14.0  140--5.4 6.7 8.3 10.3 12.7 15.7  160--6.2 7.7 9.5 11.8 14.6 17.9  180--6.9 8.6 10.7 13.3 16.4 20.1  200--7.7 9.6 11.9 14.7 18.2 22.4  225--8.6 10.8 13.4 16.6 20.5 25.2  250--9.6 11.9 14.8 18.4 22.7 27.9  280--10.7 13.4 16.6 20.6 25.4 31.3  3157.7 9.7 12.1 15.0 18.7 23.2 28.6 35.2  3558.7 10.9 13.6 16.9 21.1 26.1 32.2 39.7  4009.8 12.3 15.3 19.1 23.7 29.4 36.3 44.7  45011.0 13.8 17.2 21.5 26.7 33.1 40.9 50.3  50012.3 15.3 19.1 23.9 29.7 36.8 45.4 55.8  56013.7 17.2 21.4 26.7 33.2 41.2 50.8 62.5  63015.4 19.3 24.1 30.0 37.4 46.3 57.2 70.3  71017.4 21.8 27.2 33.9 42.1 52.2 64.5 79.3  80019.6 24.5 30.6 38.1 47.4 58.8 72.6 89.3  90022.0 27.6 34.4 42.9 53.3 66.2 81.7 - 100024.5 30.6 38.2 47.7 59.3 72.5 90.2 - 120029.4 36.7 45.9 57.2 67.9 88.2 --



Detailed Photos
