| Material | HDPE |
| Kind | Thermosetting Plastics Pipe |
| Water Absorption | ＜0.01% |
| Contraction Percentage | ＜0.4% |
| Tensile Strength | 81~130MPa |
| Standard | En14125 |

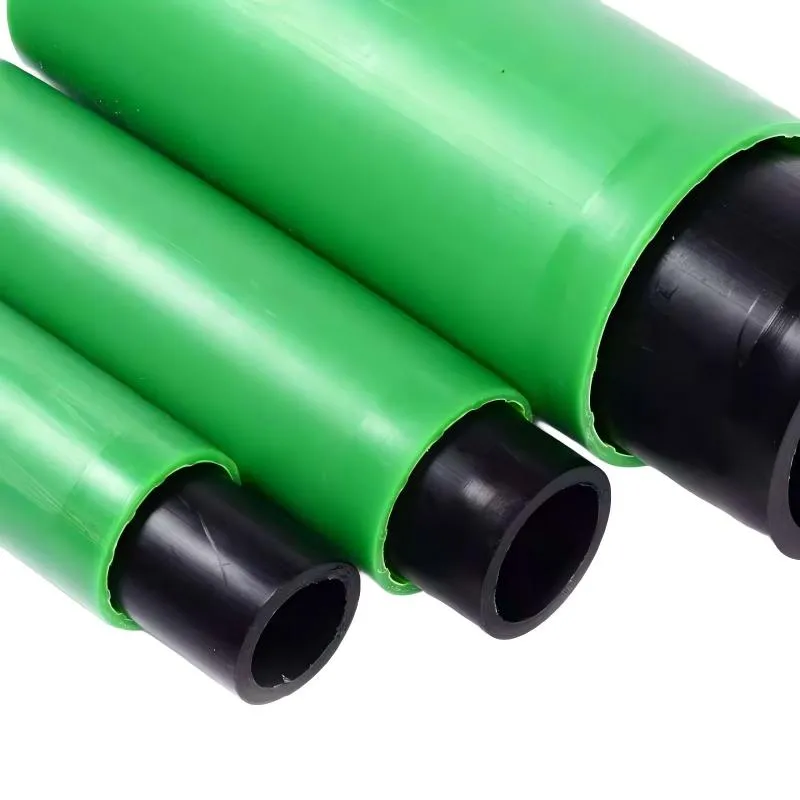

| Name | HDPE Double Wall Petrol Pipe for Gas Station |
| Transport Package | Plastic Bag |
| Specification | 75mm |
| Trademark | Jiasheng |
| Origin | Xuzhou |
| HS Code | 8413110000 |
Advantage of Petroleum Pipeline
Zero leakage efficient environmental protection: Seepage control material without any modification. maintains high barrier property, original material to eliminate medium inside the transportation pipe on soil and water pollution, and leave behind a clean and healthy environment for future generations.
Long service life: oil pipeline with 30 years of quality assurance.
Powerful loading capacity, resiliant and reliable: Pipe strong compressive strength, impact resistance, puncture resistance, tensile, ground shaking resistance. Can effective resistance to stress the role of, not because of the ground shaking influence the compactness of the connection parts, sa as to ensure the safety of gas pipeline system is reliable.
Corrosion material used widely: Pipe have strong corrosion turbidity and never rust, the advantages of more embodied in the soil corrosion turbidity strong sex, the coastal areas of high humidity and high sallinity pipe of oil pipeline can be in the soil temperature was -40ºC,50ºC within the scope of work, for the most part adapted to the region.
Fisrt why: Why PE flexible pipeline not traditional steel pipeline
1. Within -40ºC~50ºC temperature range, the burst pressure of PE flexible pipeline which is over 40 standard atmospheric pressure protect the pipeline to perform durably.
2. The efficient Electro fusion welding techniques connect pipe with its accessories and produce a seamless buried oil-supply pipeline system.
3. The pipeline can eliminate all the leakage from oil tank to fuel dispenser, thus protecting the environment. It prevents the underground water from permeating into the pipe.
4. PE pipeline with polytene composite material can be used for all kinds of fuel, ethanol mixture and additives. According to EN14125 standard testing and proving, the pipe can apply to hydrocarbon, ethanol fuel mixture and biofuel at 10 standard atmospheres of pressure (bar)
5. Excellent static conductivity demonstrates the PE flexible pipeline with high safety performance.
6. No need concrete furrow. It can significantly reduce the construction cost for fuel station.
7. Easy installation with rich choice for accessories provides the flexibility of pipeline direction
Second why: why chooseJiasheng pipeline

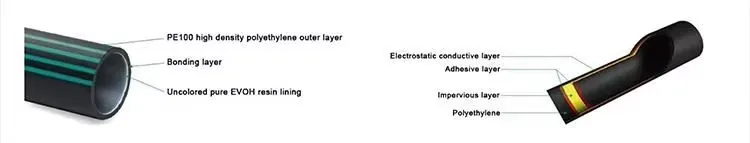

1. Strong Oil and Solvent Resistance
The special EVOH lining has smooth surface and good oil resistance, which not only helps to reduce the frictional loss in fuel transmission but also totally cut off fuel permeation, thus improving fueling efficiency.
2. Strong Static Conductivity
With advantage of EVOH resign lining, PE pipe has less than 104Ω electrical resistance. Comparison to other materials, PE pipe has more safety for fuel transmission.
3. Excellent Mechanical Property
Applying to Multi-layer co-extrusion techniques to guarantee the strength and durability, Eaglestar PE pipe has excellent resistance to curve and fracture. It can also bear a pulling force of 7000N, which efficiently prevents oil leakage casing by land subsidence.
4. Strong Corrosion Resistance
The high density polyethylene outer layer has strong corrosion resistance and it can endure the corrosion of various chemical mediators. It has no electrochemical corrosion and never rusts. Compared with metal pipe, polyethylene composite pipe saves much cost for corrosion prevention and reduce much risks casing by pipe corrosion.
5. Wide Range Temperature Suitability
Eaglestar PE pipeline can work well in -40ºC to +50ºC environment without leakage. Its burst pressure which is over 40 standard atmospheric pressure protects the pipeline to perform durably.
6. Super Long Lifetime
The traditional metal pipe generally needs complicated preservative treatment before laying the underground pipes. Even in neutral and non-corrosion soil, the average life of traditional metal pipe is only 10 years. PE flexible pipeline, with PE100 as its outer layer, has a resistance to backfill material and dynamic traffic load. Therefore its life span can achieve 30 years

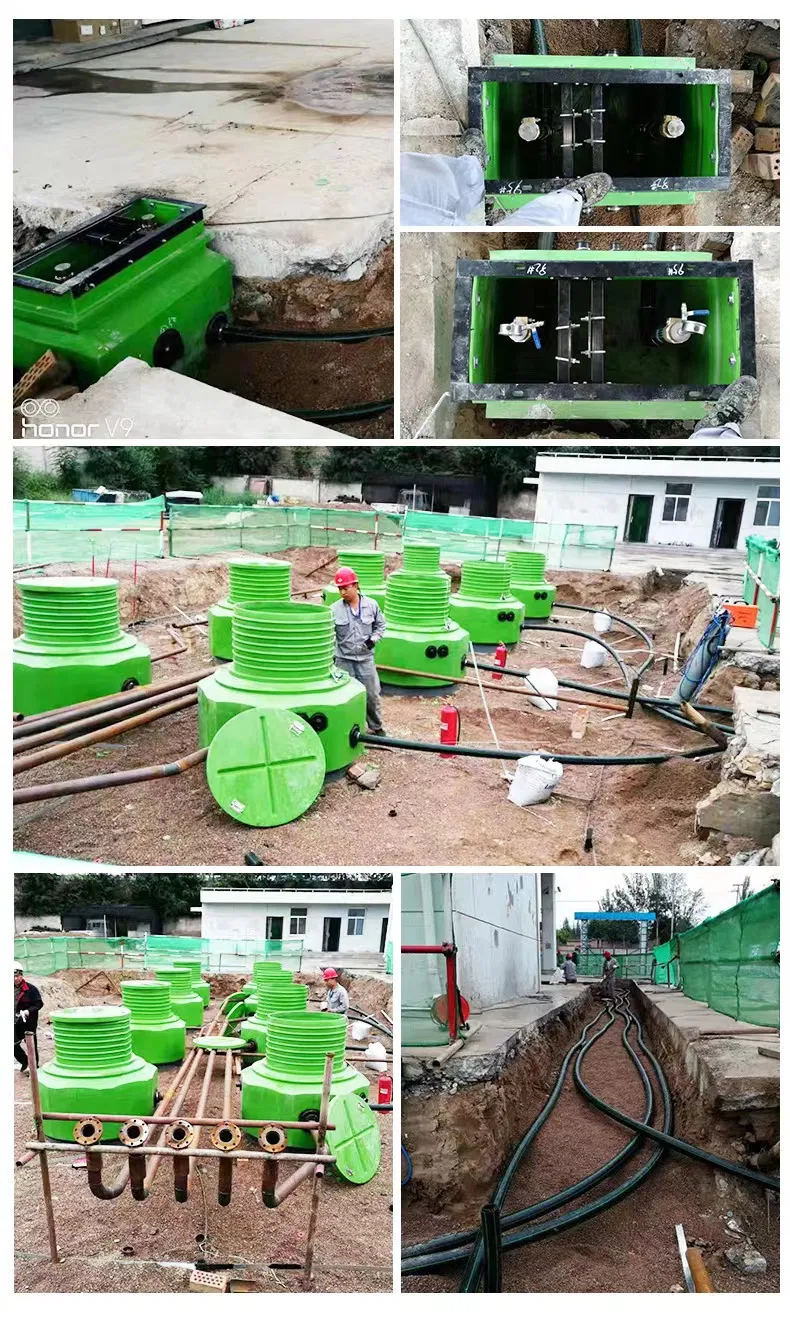

Application

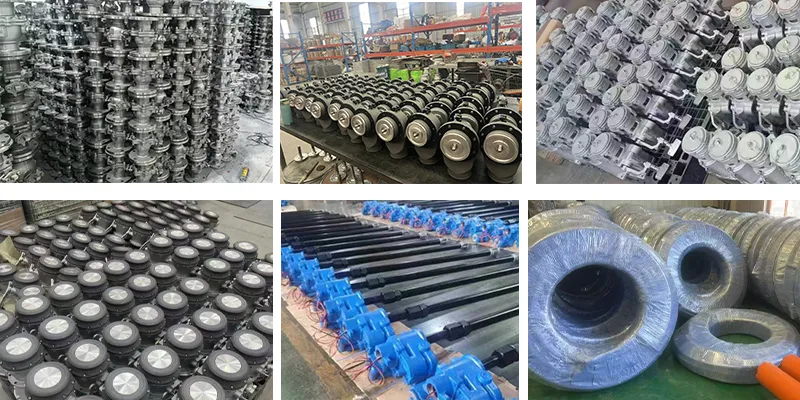

Main product
https://jiangshengpetroleum.en.made-in-china.com/product-list-1.html Inventory advantages

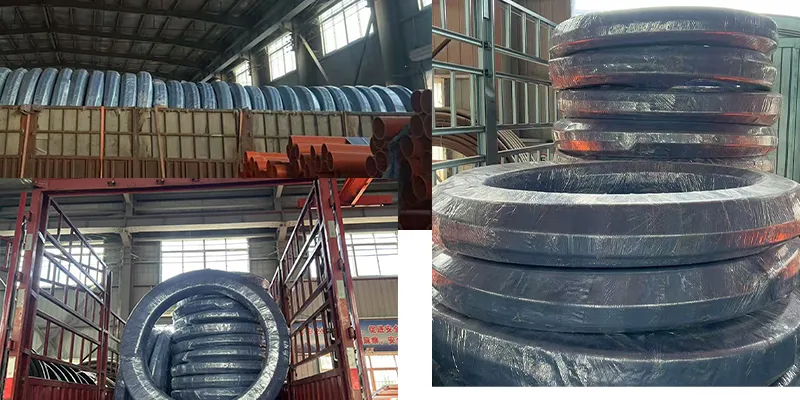

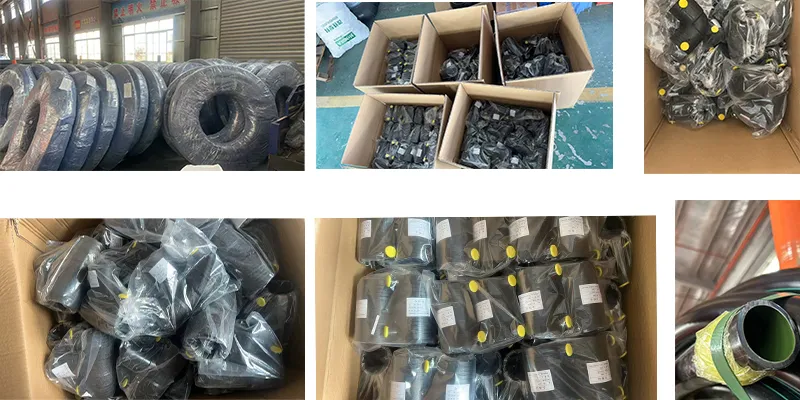

1.Massive spot reserves
Tens of thousands of pieces of inventory of various categories are available, covering mainstream models and customized needs, reducing customer waiting cycles.
Support fast delivery, priority response to urgent orders, and help customers seize market opportunities.
2.Intelligent inventory management
The advanced system is used to monitor inventory dynamics in real time, and the data is accurate and visualized to avoid the risk of out-of-stock or backlog.
The safety stock threshold is dynamically adjusted to ensure stable supply in peak season and cost optimization in off-season.
3.Strict quality control guarantee
The inventory products have passed the ISO 9001 quality inspection process, regular sampling and batch traceability, and the quality is worry-free.
Standardized storage environment (constant temperature/dustproof/partition) to ensure the stable performance of raw materials and finished products.

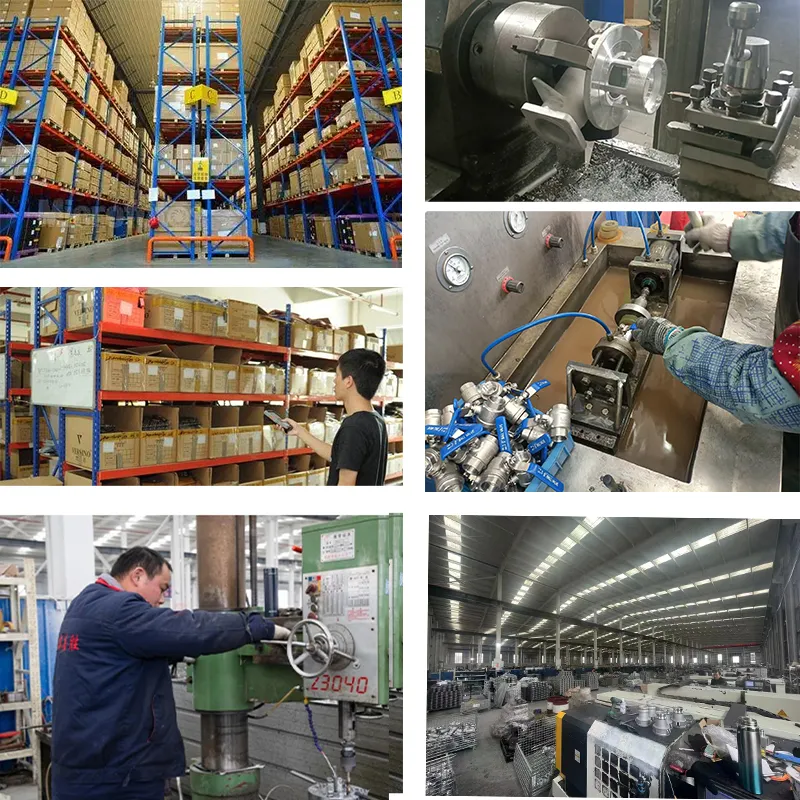

Modern management
1.Digital management, accurate and efficient
Adopt advanced systems to track production progress in real time, optimize scheduling, and reduce downtime.
From order to delivery, supply chain, production, and warehousing data are integrated to improve collaborative efficiency.
Predict market demand through historical data, dynamically adjust production capacity, and reduce inventory risk.

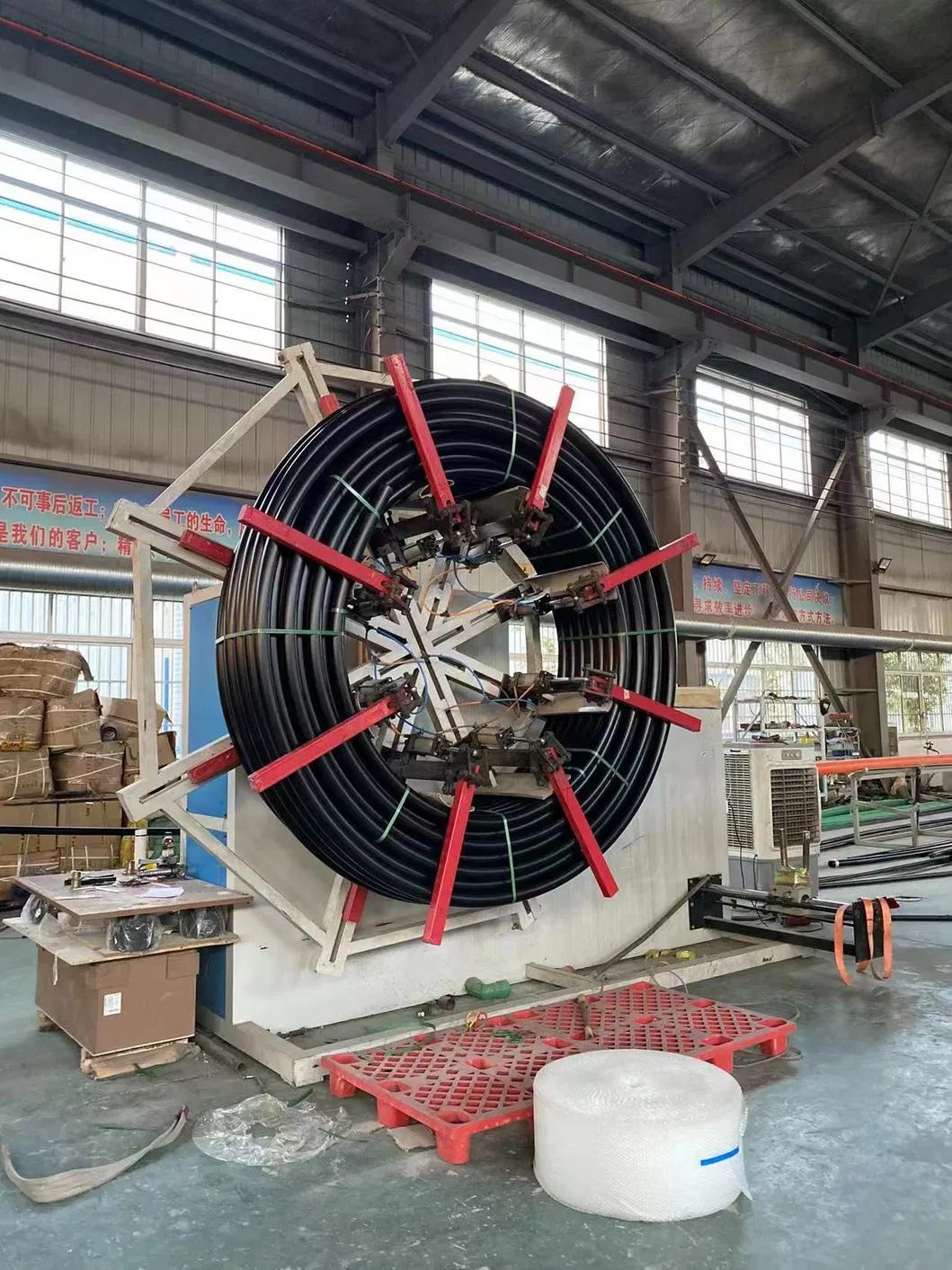

2.Automation and intelligent production
Automated production line to reduce human error and improve consistency.Equipment interconnection, real-time monitoring of operation status, preventive maintenance, and ensuring production stability.
3.Lean and standardized operation
Standardize on-site management, optimize the working environment, and improve efficiency and safety.Continuously optimize processes, reduce waste, and shorten lead times.
Strict compliance with international standards (e.g. ISO 9001, IATF 16949) ensures consistent quality.
4.Green manufacturing and sustainable development
Adopt high-efficiency equipment and photovoltaic energy storage systems to reduce carbon emissions.
Waste recycling and regeneration to achieve efficient use of resources.
Track the environmental impact of products throughout their life cycle to help customers achieve their goals.

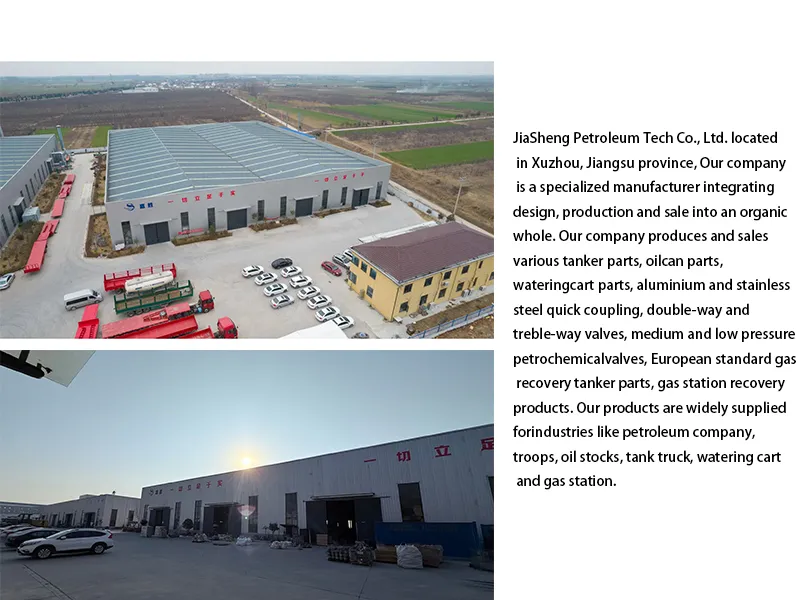

JiaSheng Petroleum Tech Co., Ltd. located in Xuzhou, Jiangsu province, Our company is a specialized manufacturer integrating design ,production and sale into an organic whole. Our company produces and sales various tanker parts, oilcan parts, watering cart parts, aluminium and stainless steel quick coupling, double-way and treble-way valves, medium and low pressure petrochemical valves, European standard gas recovery tanker parts, gas station recovery products. Our products are widely supplied for industries like petroleum company, troops, oil stocks, tank truck, watering cart and gas station.
Our company has engineering experiences for years, we are also specialized in the installment of gas station wire frame, oil tank, asphalt tank, wine storage tank, pipeline and gas station construction, once and twice gas station recovery redevelopment, European standard tank truck refit. Our company provides well-equipped products, advanced technique, strong technical force, and we can undertake the manufacture of other
special parts.
