| Model NO. | ITPD-110 |
| Type | Pipe Extruder |
| Plastic Processed | PE |
| Product Type | Extruder |
| Feeding Mode | One Feed |
| Assembly Structure | Integral Type Extruder |
| Screw | Single-Screw |
| Engagement System | Full Intermeshing |
| Screw Channel Structure | Non Deep Screw |
| Exhaust | Don't Exhaust |
| Automation | Automatic |
| Computerized | Computerized |
| Material | Q235 |
| Color | Customized |
| Reducer | Guomao |
| Transport Package | Wooden Box |
| Specification | 40-110mm |
| Trademark | Interplast Machinery |
| Origin | Qingdao |
| HS Code | 84772090 |
| Production Capacity | 6 Sets Per Month |
Diameters: 40-110MM, 75-200MM(or customized);
Flexible HDPE double-walled corrugated pipe application:
HDPE / PP double wall corrugated pipe is widely used as cable protection pipe, fresh air ventilation pipe,cable ducting and etc.. The company absorbs foreign advanced technology, independent research and development of the HDPE double wall corrugated pipe production line, with a number of patented technologies. Our new high-speed PE double-wall corrugated pipe production line, the use of new high-performance single-screw extruder, forming machine using horizontal structure, shuttle drive, sealed water-cooled, auto recoiling, high degree of automation, stable operation, large output.
Mould block use innovate design that inner can be aluminum to cooling temperature fast. The bank of mould block is 45# steel which is anitcorrosion during running.

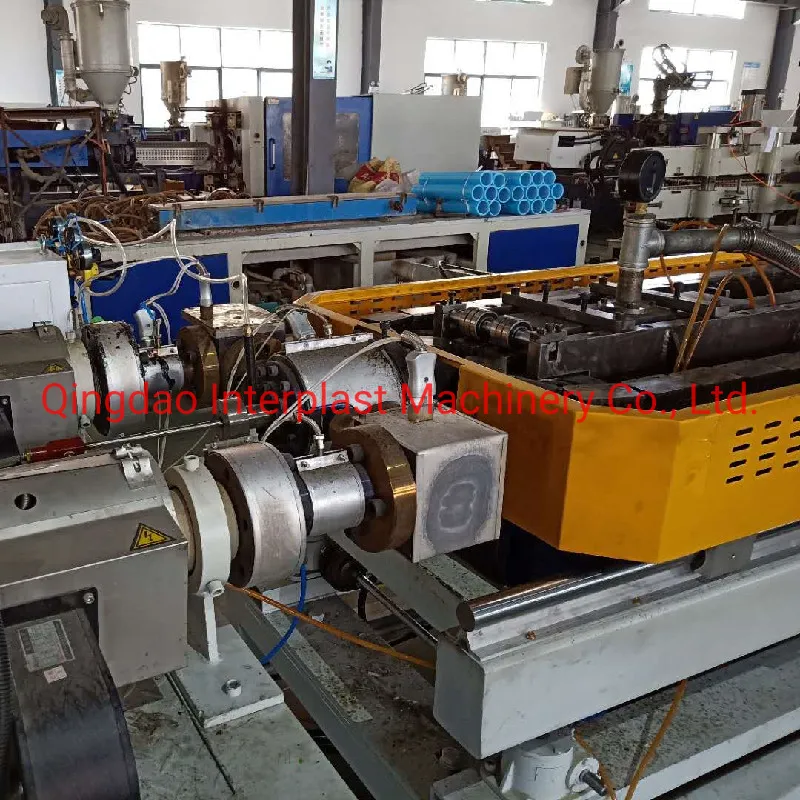

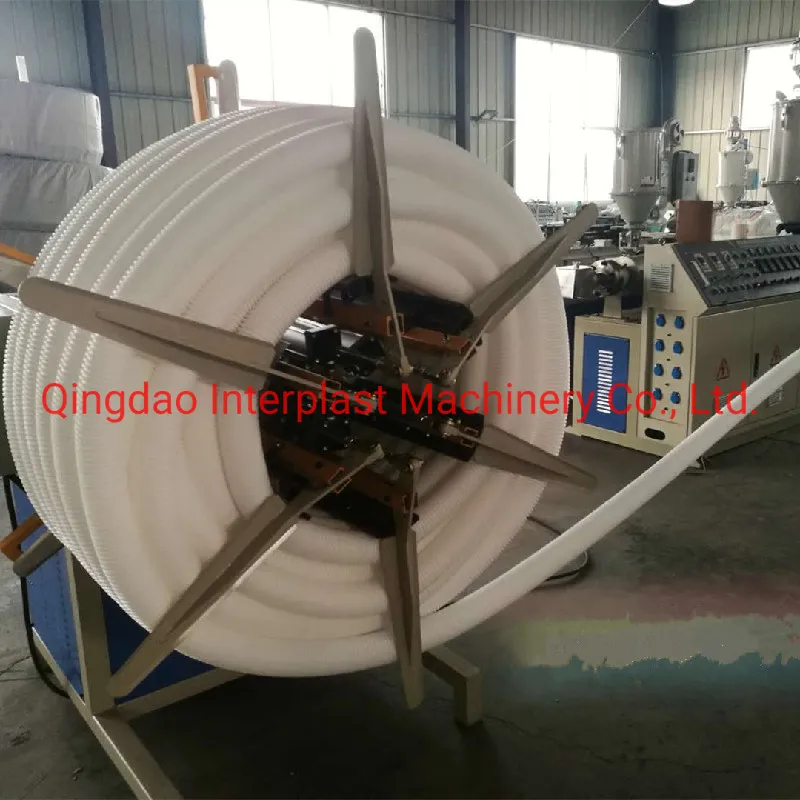

Double wall corrugated flexible pipe machine(Cable Protection and Fresh air ventilation)
