| Model NO. | SJ75 |
| Screw No. | Single-screw |
| Automation | Automatic |
| Computerized | Computerized |
| Certification | CE |
| Customized | Customized |
| Condition | New |
| After-sales Service | 1year |
| Type | Pipe Extruder |
| Plastic Processed | PE |
| Feeding Mode | One Feed |
| Screw | Single-Screw |
| Control | PLC |
| Plastic Type | PE, PP, HDPE, PPR, HDPE/PP, PE/PP |
| Applicable Industries | Farms, Agriculture, Irrigation |
| Processing Type | Exturding Machine |
| Transport Package | Wooden Pallet with Plastic Sealing |
| Specification | 8000kg |
| Trademark | DELTA |
| Origin | China |

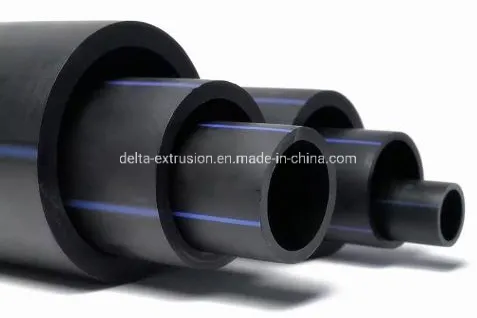

HDPE pipe for water supply pipe extruder making machine
This line is specially used to produce HDPE PPR PE pipes,which have compression Resistance, corrosion resistance, anti-bend, and flex features perfectly to transfer air, powder, liquid. Widely applied to Industrial,agriculture and irrigation ...
working process:

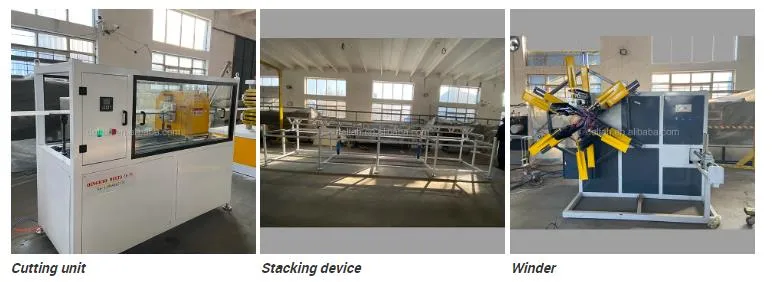

Vacuum feeding-----drying-----melting and extruding-----molding-----vacuum calibration tank -----water tanks---- haul off----winding----warehouse
Main Technical Features
1. Adopt European advanced technology, advanced design, reasonable structure.
2. Accurate temperature control, good plasticization, stable operation.
3. Spiral and basket type die head for choice.
4. Dust-free and saw type cutter for choice.
5. Changing some parts can realize making multi-layer and other material pipe.
Model
Pipe Range
(mm)
Hauling Speed
(m/min)
Total Length
(m)
Output Capacity
(kg/h)
Total Power
(kw)
63
Φ16 - Φ63
1.2-12
35
80-120
110
110
Φ20 - Φ110
1.0-10
38
150-250
163
160
Φ50 - Φ160
0.8-8
40
200-250
169
250
Φ75 - Φ250
0.38-3.8
42
250-350
214
315
Φ90 - Φ315
0.3-3
44
300-350
245
450
Φ110 - Φ450
0.2-2.0
56
350-450
356
Our machine confirm to Euro safety standard.
We have experience of exporting to German, Poland, Ukraine, Belarus, Romania, Portugal, France..... We are also export the machinery to Turkey, Egypt, Tunisia, Dubai, Kuwait, Pakistan, Uzbekistan, Brazil, Argentina, Chile, USA, Russia, U.K. We've been to exhibitions in Turkey, Russia, Dubai, Uzbekistan, Belarus, Kazakhstan , Egypt and other countries.
Our company specializes in producing all kinds of extrusion machines, with a history of 13 years. We professional making EVA PVC PE PP PU plastic spiral hose extrusion machine, plastic soft hose extrusion machine, plastic reinforced hose production line, plastic flexible hose produce machine, PP PE corrugation hose extrusion machinery. We are professional in making PP PET straps machine, Polyester fiber packing belt machine, profile machine and plastic recycle granulator machine. We also produce rubber soaker hose making machine. .......
We sell our machine all over the world. We are exporting to various countries, including : USA , Russia, Ukraine, Uzbekistan, Belarus, Turkey, Romania, UAE, Syria , Egypt, Tunis, Algeria, Bulgaria, Azerbaijan, Brazil, Argentina , Mexico, Peru, Kuwait, India, Bangladesh, Poland, Portugal, and France.....
