| Type | Seamless and Welded |
| Technique | ERW Saw Seamless Ect. |
| Material | Carbon Steel |
| Surface Treatment | Galvanized |
| Usage | Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose |
| Section Shape | Round |
| Category | Galvanized Steel Pipe |
| Thickness | 3mm-50.8mm |
| Od | 1/2"-24" 10-600mm |
| Length | 5.8m,12m or as Customer Request |
| Steel Material | ASTM A53/A106,API 5L,En10216,DN1626 |
| Steel Grade | Grade a,Grade B,Grade C,X42,X52.S235jrh,S355,P265 |
| Special Pipe | API Pipe, EMT Pipe, Thick Wall Pipe, Other |
| Application | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pip |
| Package | Bundles, Bulk |
| Inspection | Hydraulic Testing, Ultrasonic Testing or X-ray |
| Certificate | ISO9001, SGS Mtc |
| Date of Delivery | 8-15 Days According to The Quantity |
| Payment | L/C or T/T |
| Port of Shipment | Qingdao or as Customer Request |
| Tolerance | ±1% |
| Transport Package | According Customer Request |
| Specification | galvanized steel pipe |
| Trademark | JNTG |
| Origin | China |
| HS Code | 73063090 |
| Production Capacity | 4000 Tons Per Month |
Product Description
Galvanized pipe, also known as galvanized steel pipe, is divided into hot-dip galvanizing and electro-galvanizing. The hot-dip galvanizing layer is thick, with uniform plating, strong adhesion and long service life. The cost of electroplating is low, the surface is not very smooth, and its corrosion resistance is much worse than that of hot-dip galvanized pipes.
Product Name

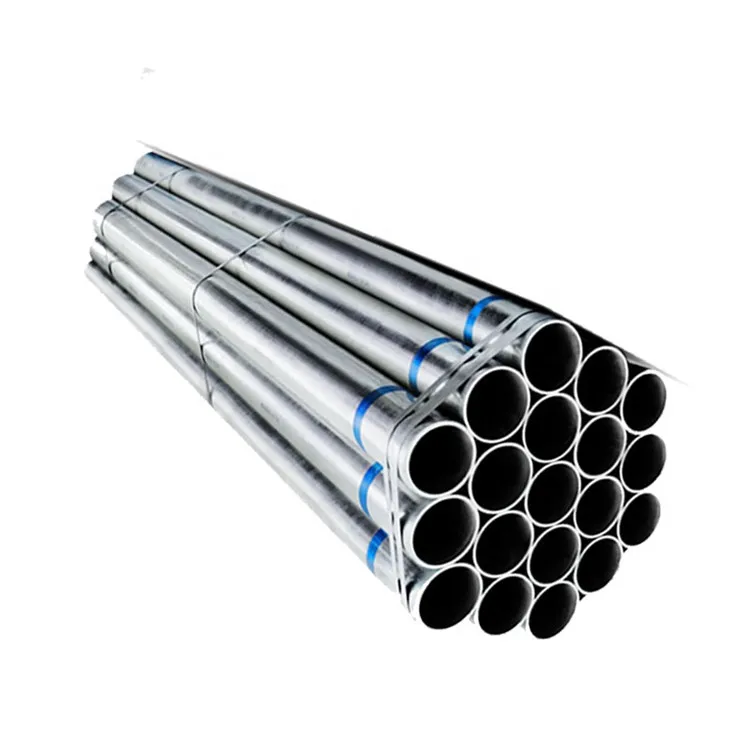

Galvanized Steel Pipe
MOQ
5 tons
Package
standard sea package or as customer required
Regular Sizes of Galvanized Steel Pipe
DN
NB
OD (mm)
WT (mm)
Pcs/Bundle
15
1/2"
19mm-21.3mm
1.5mm-3.0mm
217
20
3/4"
25mm-26.9mm
1.5mm-3.0mm
169
25
1"
32mm-33.7mm
1.5mm-3.0mm
127
32
1.1/4"
40mm-42.4mm
1.5mm-4.0mm
91
40
1.1/2"
47mm-48.3mm
1.5mm-4.0mm
91
50
2"
58mm-60.3mm
1.5mm-4.0mm
61
65
2.1/2"
73mm-76.1mm
1.5mm-4.0mm
37
80
3"
87mm-88.9mm
1.5mm-9.5mm
37
100
4"
113mm-114.3mm
2.0mm-9.5mm
19
125
5"
140mm-141.3mm
3.0mm-9.5mm
19
150
6"
165mm-168.3mm
3.0mm-12.0mm
19
200
8"
219.1
3.2mm-12.0mm
7
250
10"
273.0
3.2mm-12.0mm
5 or 1
300
12"
323.9mm-325mm
6.0mm-15mm
3 or 1
350
14"
355mm-355.6mm
8.0mm-15mm
1
400
16"
406.4mm
8.0mm-20mm
1
450
18"
457mm
9.0mm-23mm
1
500
20"
508mm
9.0mm-23mm
1
550
22"
558.8mm
9.0mm-23mm
1
600
24"
609.6mm
9.0mm-23mm
1
Besides, we can make to order for you according to your requested length.
Hot dip galvanized pipe
The molten metal is reacted with an iron matrix to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is to pickle the steel pipe first, in order to remove the iron oxide on the surface of the steel pipe, after pickling, it is washed by ammonium chloride or zinc chloride aqueous solution or a mixed aqueous solution of ammonium chloride and zinc chloride, and then fed. Hot dip plating tank. Hot-dip galvanizing has the advantages of uniform plating, strong adhesion and long service life. Most of the northern processes use galvanized strips to directly coil the zinc.
Cold galvanized pipe
Cold galvanizing is electrogalvanizing. The amount of galvanizing is very small, only 10-50g/m2, and its corrosion resistance is much worse than that of hot-dip galvanized pipes. Regular galvanized pipe manufacturers, in order to ensure quality, most do not use electro-galvanizing (cold plating). only small companies with small equipment and old equipment use electro-galvanized steel, of course, their prices are relatively cheaper. In newly built houses, the use of cold-galvanized steel pipes as water supply pipes is prohibited.
Hot dip galvanizing process:
Workpiece degreasing → washing → pickling → washing → drying solvent dip fluxing preheated hot dip galvanized → cooling → finishing → rinsing → drying → passivation test
Cold-galvanized process:
Chemical degreasing → washing → hot water hot water electrolysis degreasing → washing → washing → strong corrosive galvanized iron alloy → washing → washing → light → → washing → drying passivation
APPEARANCE OF HOT-DIP GALVANIZING AND COLD GALVANIZING
Cold galvanizing looks more smooth, bright, color passivation process plating layer is yellow-green in color, was colorful. Plating layer was bluish-white or white with white passivation process was green, white coating passivation process and the sun was significant Colorful angle. The complex workpiece angular edges parts prone to "electrical burning" from gloomy, the parts of the zinc layer thick. Yin corner site is easy to form a current dead undercurrent gray area and the area zinc layer is thinner. The workpiece overall zinc tumor, caking phenomenon.
Hot dip galvanized look a little rough compared to the electro-galvanized, silvery white, look prone process waterlines and a few drops of tumor is more obvious, especially in the one end of the workpiece. Hot dip galvanized zinc layer than a few times of the electro-galvanized thick corrosion protection is several times that of the electro-galvanized.

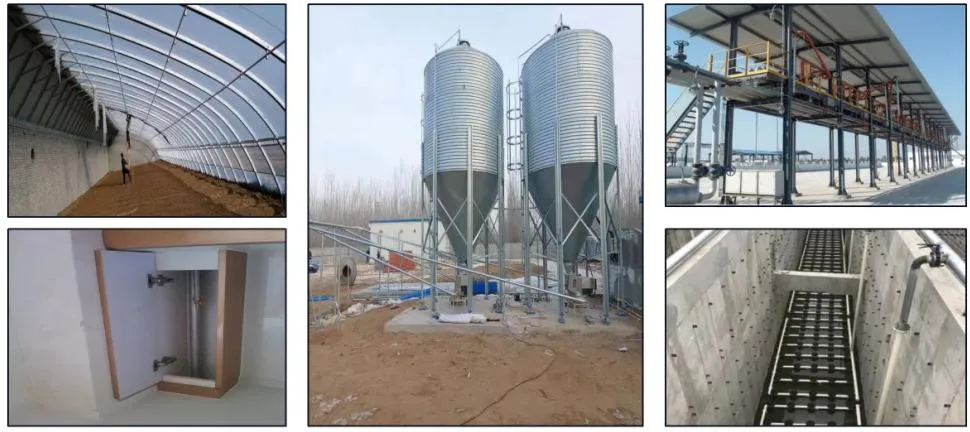

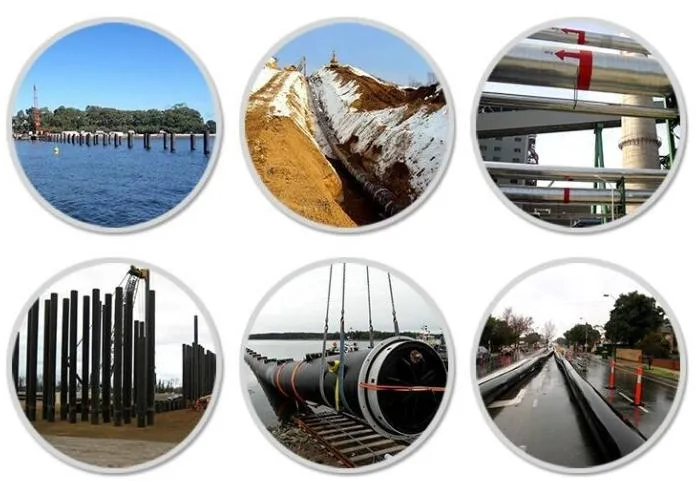

Application
Galvanized Steel Pipe is versatile and useful for a variety of applications. Some of the most common uses of carbon steel piping are:
Building foundations
Transporting natural gases or oil
Boiler and condenser tubes
Transporting wastewater
Chemical Processing
High-pressure applications
Transporting sewage
Bollard construction
Shipbuilding
Shoring
Trash enclosures
Distillers
OEM applications

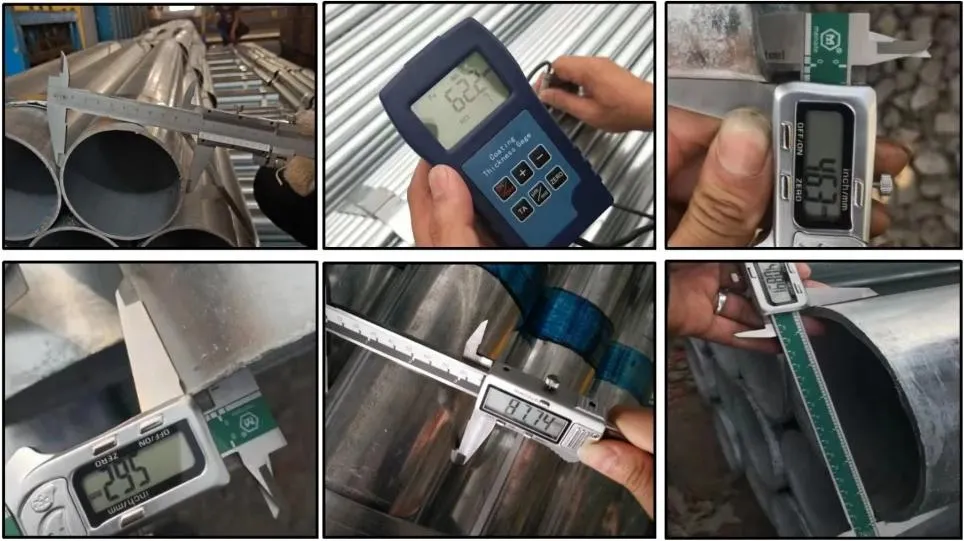

Product Test

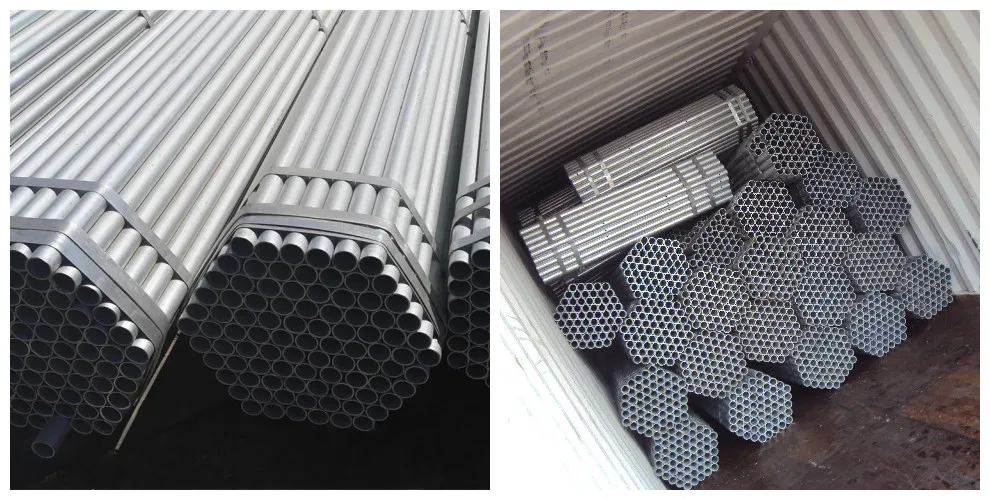

Packaging & Shipping

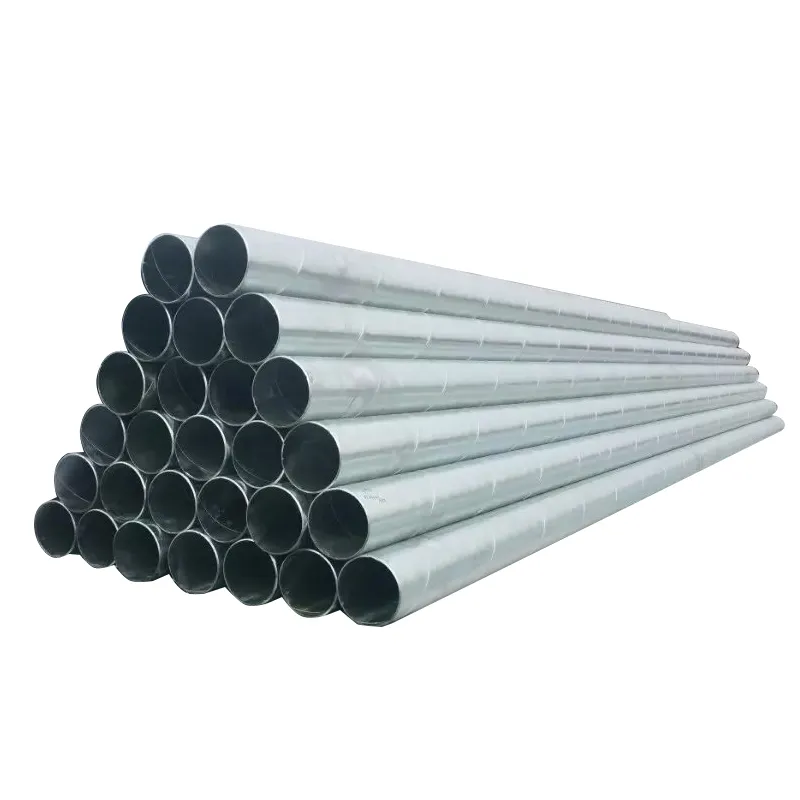

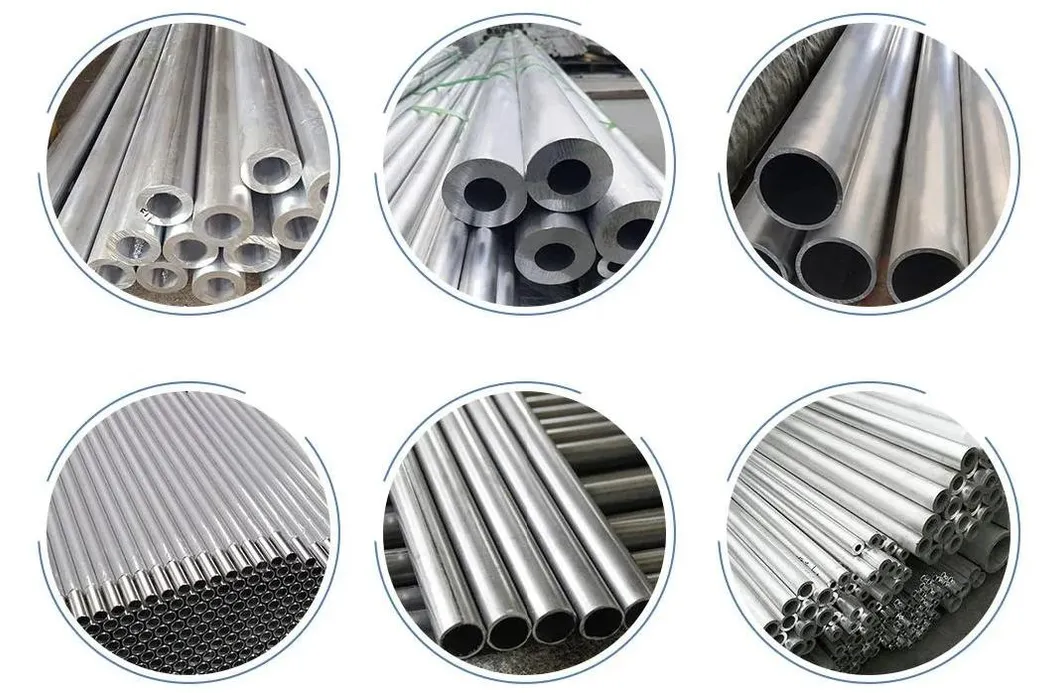

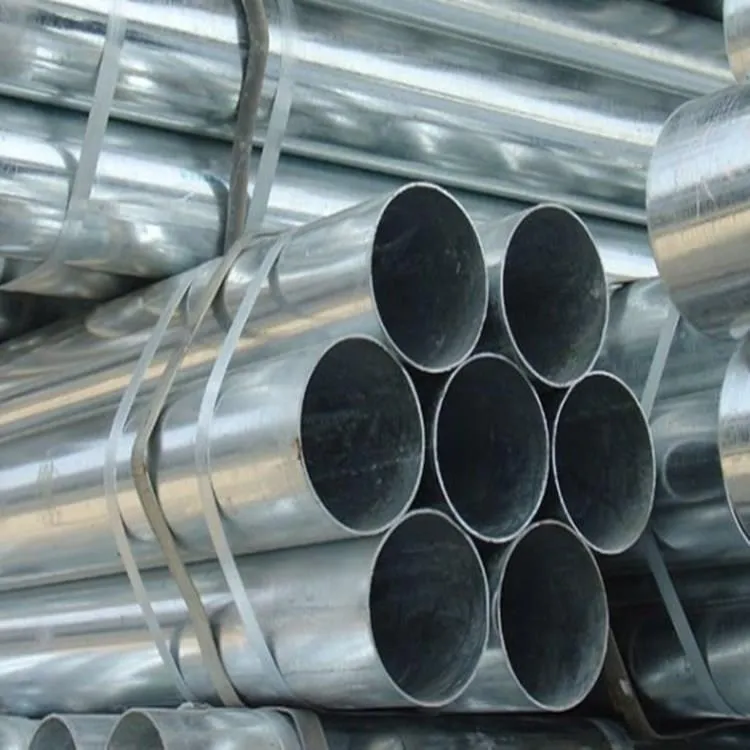

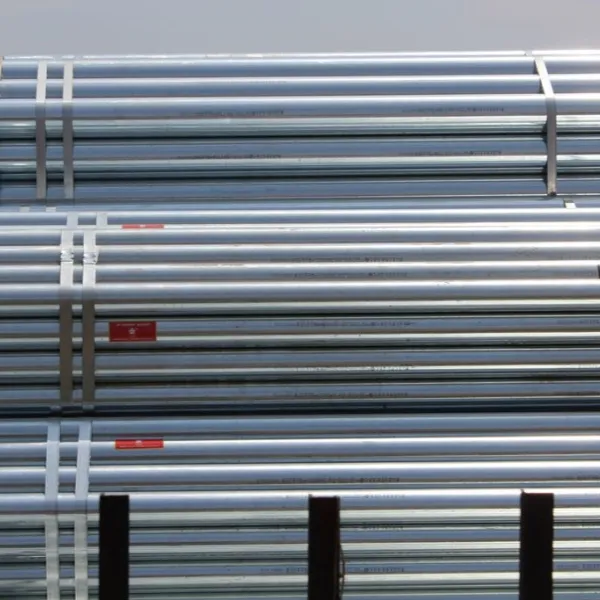

Products Show
