Model NO.	SJ
Type	Pipe Extruder
Plastic Processed	PPR Glass Fiber
Product Type	Plastic Pipe
Feeding Mode	One Feed
Assembly Structure	Integral Type Extruder
Screw	Single-Screw
Engagement System	Full Intermeshing
Screw Channel Structure	Deep Screw
Exhaust	Exhaust
Automation	Automatic
Computerized	Computerized
Temperature Control	Ormon
Voltage	Customized
Weight	2-10t
Capacity	120-150kg/H
Heater	Casting Aluminum Heater
Cooling Way	Fan Cooling
Name	PPR Pipe Making Machinery
Power(W)	11-110kw
Inverter	ABB Brand
Processing Type	Exturding Machine
Color	Customized
Product	PPR Glass Fiber Pipe
Raw Material	PPR
Contactor	Siemens
Transport Package	Standard Shipping Packaging
Specification	23000mm*3000mm*3000mm
Trademark	CAMEL MACHINERY
Origin	Zhangjiagang Jiangsu China
HS Code	84778000

Glass Fiber PPR Pipe Production Line

Glass fiber PPR Pipe Making Machine
1.Application Hot water supply
2.Siemens PLC computer control
3.Pipe diameter: 20mm-63mm
4.Speed:12m/min

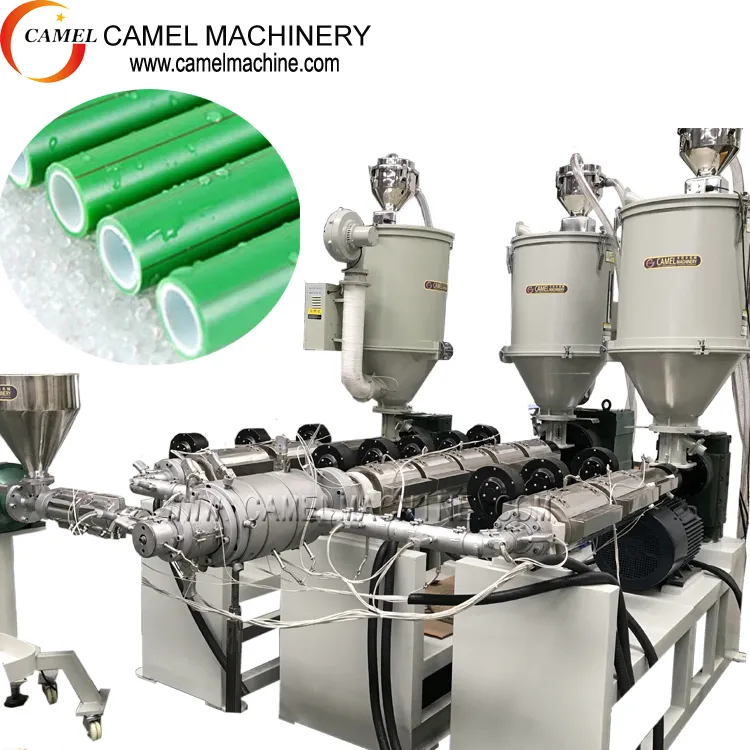

The glass fiber PPR Pipe making machine main components includes :PPR Extruder, Glass fiber Extruder, Marking
line Extruder, Die head mould, Vacuum calibrating tank, Water cooling tank, haul off machine, Cutting machine,
Electrical cabinet.
 Features of Product:
 1)Specialized fiber glass reinforced plastic extruder with double metal screws and barrel ,ensuring both high
speed extrusion and long service life of the extruder.
 2)Composite extrusion head of special design, ensure uniform thickness of  three layers,  and thickness of each
layer can be adjustable.
 3)Compare to common PP-R material, extruded material by this production line has features of high compression
strength, no deformation in high temperature, no bending and very small longitudinal reversion rate. Furthermore,
its cost is about 5%~10% cheaper than other tubes, it eliminated serious fault of common PP-R tubes which will be
deformed while carrying hot water.

Technical Data

1 Production scope     20mm-63mm 2 Production speed      12m/min 3 Inverter         ABB Brand 4  Electric power       380V 50 HZ      5 Water supply temperature            5-15ºC 6 Air pressure required          ≥0.6Mpa 7 Production Line Size        42m×3m×3.5m 8 Low-voltage apparatus           Brand  9 Nominal Power                140KW 10 Actual power               80%



 Line Model Screw Diameter L/D Production scope Production Speed Total Power  CMSJ-65 Φ 65/50mm 33:1 Φ 20-63mm 12m/min 140KW CMSJ-75 Φ 65/50mm 33:1 Φ 75-110mm 6m/min 180KW CMSJ-80 Φ 80/65mm 33:1 Φ 75-160mm 6m/min 200KW
