| Model NO. | DH-FFGG-TSGG |

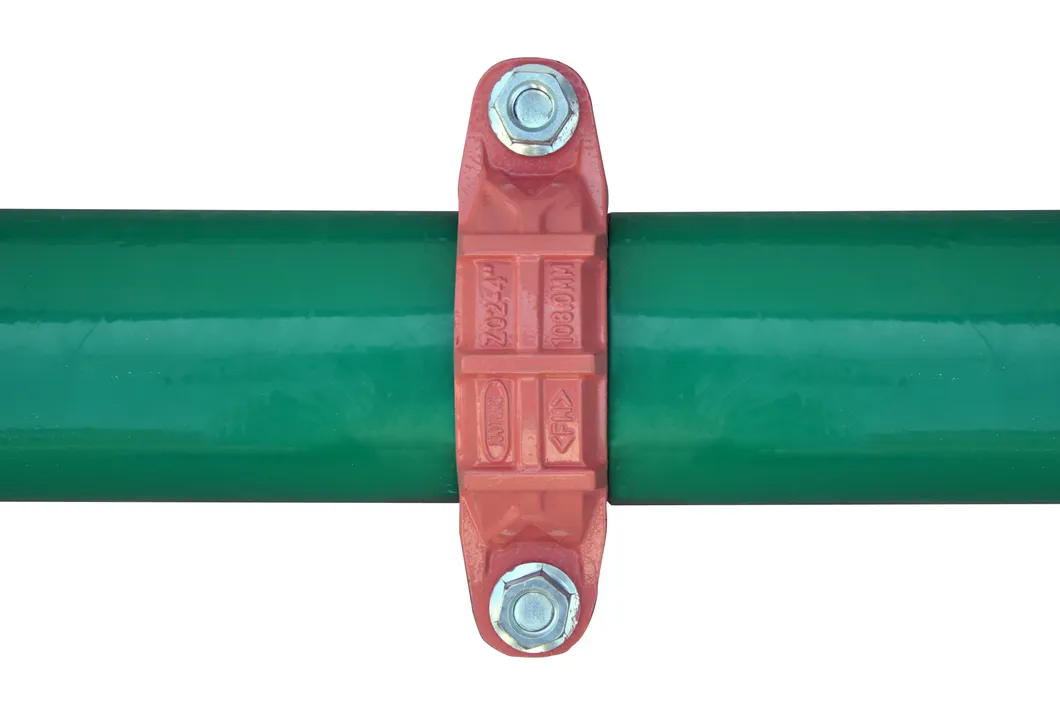

| Installation and Connection | Clamping Type Installation |
| Technology of Plastic Composite Pipe | Internal and External Coating |
| base Pipe of Plastic Composite Pipe | Welded Steel Pipe |
| Internal Coating Materials of Plastic Composite Pipe | Epoxy Resin Coating Steel Pipe |
| Plastic Composite Pipe Coating Form | Inner and Outside Coating |
| Plastic Composite Pipe Model | GS-—SP-T-EP |
| Steel Skeleton PE Pipe Use | Municipal, Chemical, Oil Pipeline |
| Steel Plastic Composite Pipe Model | GS-—SP-T-EP |
| Connection Method | Flexible Socket Connection |
| Composite Process | Inner Expoxy Outsaide Polyethylene Steel Pipe |
| Coating Form | Inner and Outside Coating |
| Cathodic Strippin | (65±3℃,48h,-1.5V) ≤ |
| Bending Resistance | Strengthen Level:1.5°, No Crack |
| Stamping Resistance | Strengthen Level:15j, No Leakage |
| Fracture Surface Interstice | 1-3 Level |
| Adhesion Strength | 1-2 Level |
| Anti-Scratch(20℃±3℃) | Strengthen Level(50kg):≤500μm,No Leakage |
| Transport Package | Standard Package |
| Specification | 6m, 12m or Upon your request |
| Trademark | DHPI |
| Origin | Shandong, China |
| HS Code | 3917330000 |
| Production Capacity | 50000000 Tons /Year |
Internal Epoxy External Double-layer Epoxy Coated Pipe
Discover Shandong Donghong Pipe Industry Co., Ltd.'s Epoxy Coated Carbon Steel Conduit for durable and corrosion-resistant pipelines.
Company Name: Shandong Donghong Pipe Industry Co., Ltd.
Benefits:
- High-quality powder coating for enhanced durability
- Wide range of pipe sizes available
- Various anti-corrosion methods for comprehensive protection
- All-in-one enterprise for convenience and efficiency
- Reliable socket type anti-corrosion steel for safety
Product Description
Internal Epoxy External Double-layer Epoxy Coated Pipe

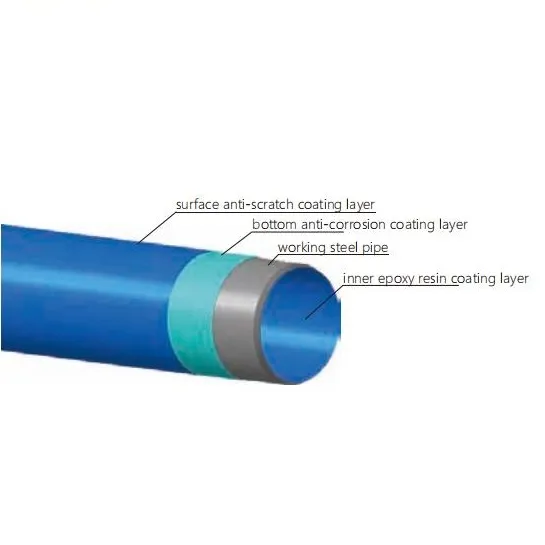

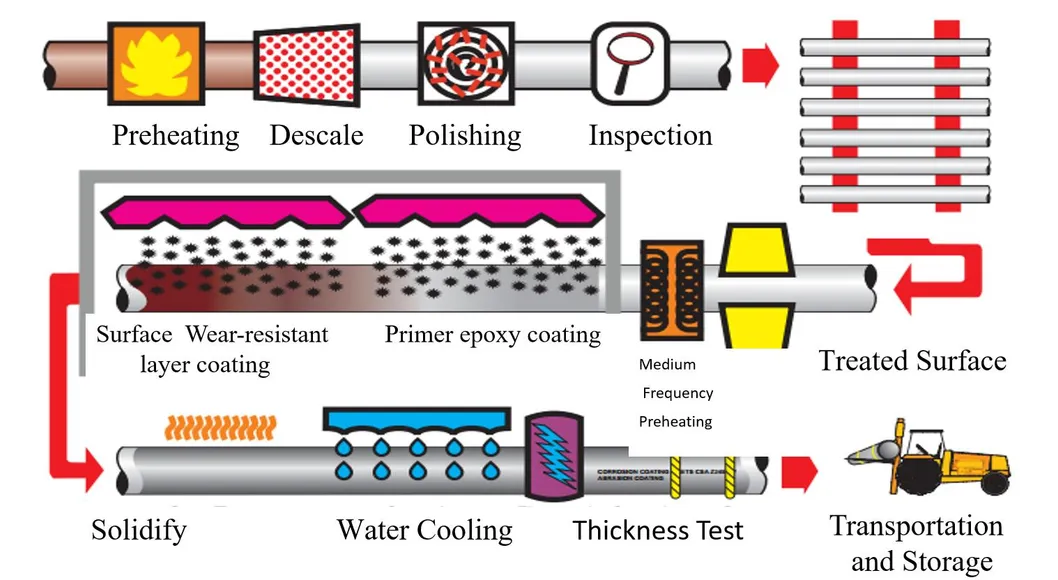

The High-quality steel pipe is used as the base pipe,and a layer of expoxy resin material is coated on the inner and outer surfaces of the pipe through the thermal fusion process.
Product Parameters
Customizable Epoxy Coated Carbon Steel Conduit by Shandong Donghong Pipe Industry Co., Ltd. for versatile needs.
- Caliber range: DN50 ~ DN3600
- Pipe length: 6 - 16m per piece

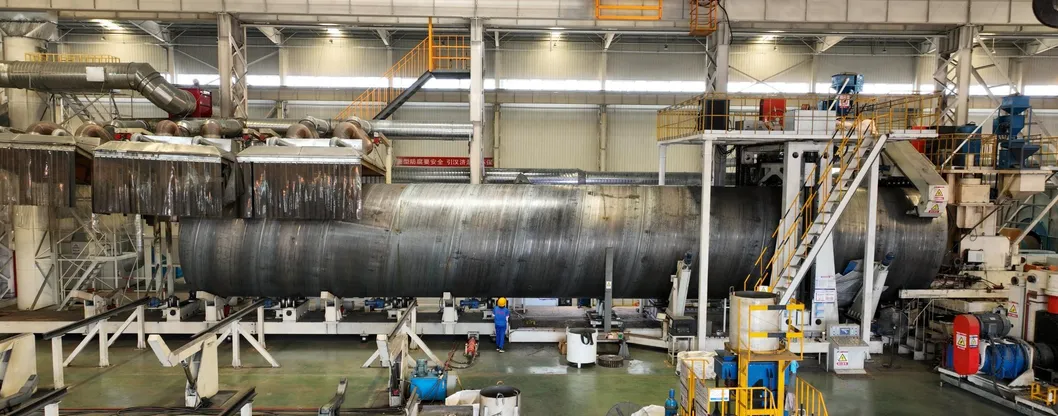

- 2 powder coating production lines
- 12 twin-screw extruders
- Perfect powder coating
- Polyethylene material modification R & D production capacity
- Largest variety of powder anticorrosion process manufacturers

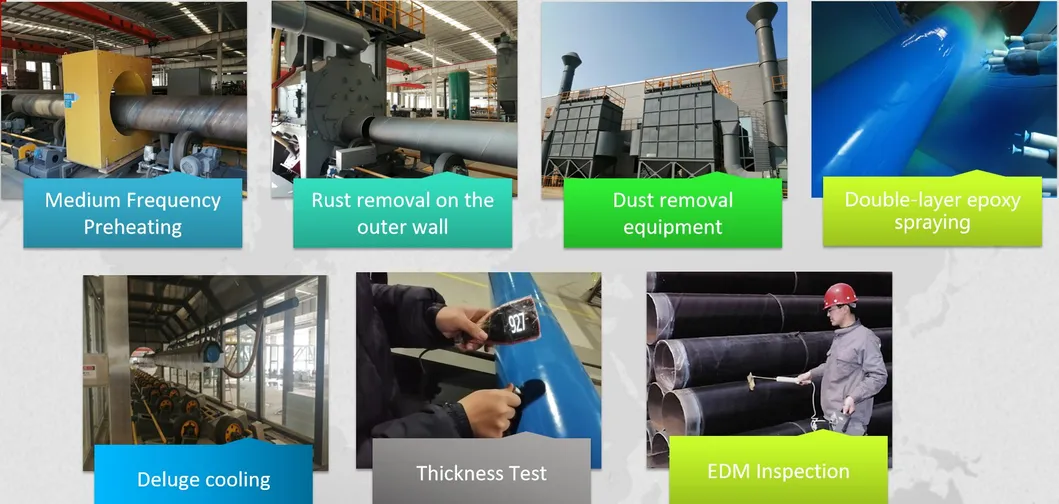

- Methods: suction coating, spraying, rolling coating, dip coating
- Integrated large-caliber steel pipe and anti-corrosion processing
- Safety reliability of socket type anti-corrosion steel
Product Features
Product Description:
Shandong Donghong Pipe Industry Co., Ltd. offers a range of anti-corrosion steel pipes suitable for various working conditions. Our epoxy & plastic coated pipes are ideal for buried, trenchless traction, pipe jacking, and open-air applications. The following anti-corrosion solutions are available:
- Buried: inner epoxy outer PE, inner epoxy outer 3PE, inner epoxy outer 3PP, inner & outer epoxy coated
- Pipe Jacking: inner epoxy outer 3PE, inner epoxy outer 3PP, inner epoxy outer double layer epoxy
- Trenchless Traction: inner epoxy outer 3PE, inner epoxy outer 3PP, inner epoxy outer double layer epoxy
- Open-air Application: inner epoxy outer anti-UV coated
Choose Shandong Donghong Pipe Industry Co., Ltd. for high-quality anti-corrosion steel pipes that meet your specific needs.

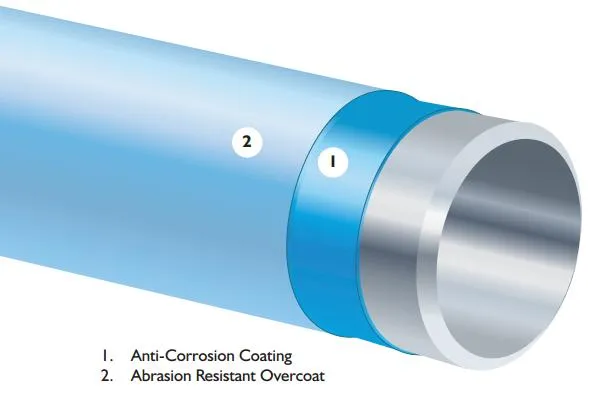

Good compatibility and easy mending
Double-layer epoxy inner and outer layers are both epoxy resin-based resin coating, the two are compatible with each other, patching using solvent-free epoxy coatings, good compatibility.
Good cathodic protection
The double-layer epoxy coating has good compatibility with the cathodic protection and will not shield the cathodic prot.
Good flexibility and resistance to bending
The coating material is made of epoxy resin with high molecular weight, which has good flexibility and excellent bending
Scratch Resistance
The outer layer is modified epoxy coating with special scratch material, which has excellent scratch resistance.
High Temperature Resistant
Double-layer epoxy anticorrosive steel pipe can withstand a maximum temperature of 110ºC.

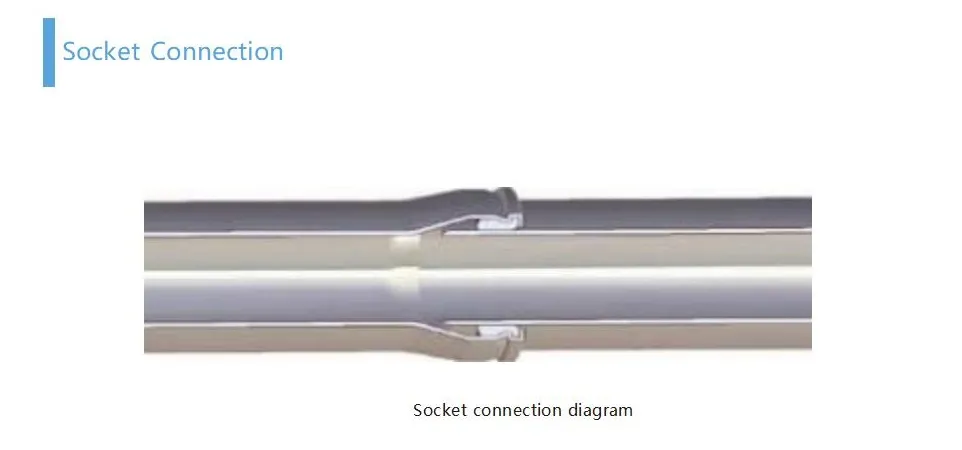

Connection Method
The flexible cap and insert coated plastic steel pipe is based on high-quality steel pipe, one end of the pipe is bevelled, one end is flaring, and then coated with plastic. The T-shaped rubber ring with the same structure as the spherical ink pipe is directly connected with the cap and insert. On the basis of retaining the advantages of coated steel pipe, it inherits the advantages of fast and reliable connection of ductile iron pipe flexible socket and socket, and complements the advantages of the two. And the two advantages complement each other.

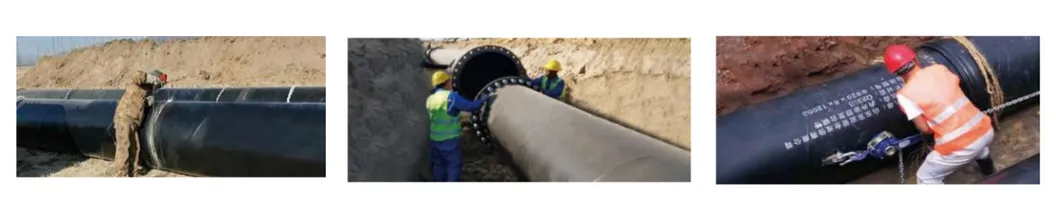

Appliation Cases
