HVAC Air Conditioning Cold Hot Copper Pipe NBR PVC Rubber Foam Pipe

Product Description

Brief Introduction of Rubber Foam

The rubber foam products of our company are produced by imported high-end technology and automatic continuous equipment. We have developed a rubber foam insulation material with excellent performance through in-depth research. The major raw materials we use are NBR/PVC.

The main characteristics are: low density, close and even bubble structure, low thermal conductivity, cold resistance, extremely low water vapor transmissibility, low water absorbtive capacity, great fireproof performance, superior anti-age performance, good flexibility, stronger tear strength, higher elasticity, smooth surface, no formaldehyde, shock absorption, sound absorption, easy to install. The product is suitable for a wide range of temperature from -40ºC to 120ºC.


Our Class0/1 insulation is generally black in color, other colors are available upon request. The product comes in tube, roll and sheet form. The extruded flexible tube are specially designed to fit the standard diameters of copper, steel and PVC piping. Sheets are available in standards precut sizes or in rolls.

Specification of Rubber Foam

Note:
1.The above specifications are commonly used specifications. Special specifications are available according to request of customer.
2. Rubber foam sheet and pipe are normally in black. Other colors are available according to requirements of customer.
3. It is recommended to use sheet when outer diameter of pipe exceeds 89mm.
4. Multiple layers packing is recommended where the thickness of heat insulation materials which you need are greater than 25mm.
5. The width of the sheet can be customized to 1-2 meters according to customer's requirements.

 Brief Introduction of Air Conditioning Pipe

Air conditioning pipe is a kind of rubber foam pipe, it is mainly used in multi-line, central air conditioning and other cold media system of copper pipe insulation, floor heating link pipe, car air conditioning, household water heater insulation.It has its own specifications and is a widely used rubber foam insulation material.

Specification of Air Conditioning Pipe

ITEMUNITSPEC Lengthmm1000/1800/2000 Inner Diametermm6-10, 13-60 Thicknessmm8/9 Note: Other Specifications please contact with HUAYUE Company

· Rubber Foam Technical Performance

Technical Data ItemUnitSpecificationStandard Density rangeKg/m340-85GB/T 6343
ASTM D1667
  FlammabilityOxygen index%≥32GB/T 2406 SDR-≤75GB/T 8627 Fire Rating-Class 0 & Class 1BS 476 Part 6 & Part 7 Conductivity factor
-Average temperature
 -20ºCW/(M·K)≤0.030GB/T 10294
ASTM C518
  0ºC≤0.032 40ºC≤0.036 Water vapor PermeabilityCoefficientg/(m·s·pa)≤2.8 X 10-11GB/T 17146 Factor-≥10000 Water adsorption ratio in vacuum%≤4GB/T 17794 Dimension stability (105ºC±3ºC, 7d)%≤5GB/T 8811
ASTM C534
  Crack resistanceN/cm≥3.0GB/T 10808 Comperssion resilience ratio
(Comperssion ratio 50%, Comperssion time 72h)%≥70GB/T 10808 Anti-ozone
(Ozone pressure 202mpa 200h)-Not crackingGB/T 7762 Aging resistance (150h)-Slightly crumpling, no cracks, no pin holes, not eformingGB/T 16259 Flexibility-ExcellentASTM D1056 TemperatureºC-50 - 120GB/T 17794 Products typePipe & sheet ColorBlack, gray and other colors Regular sizePipe: inner diameter 6-108mm
Sheet: thickness 10-30mm
  PackingPE plastic bags / exported standard carton
Diversified packaging to meet your needs

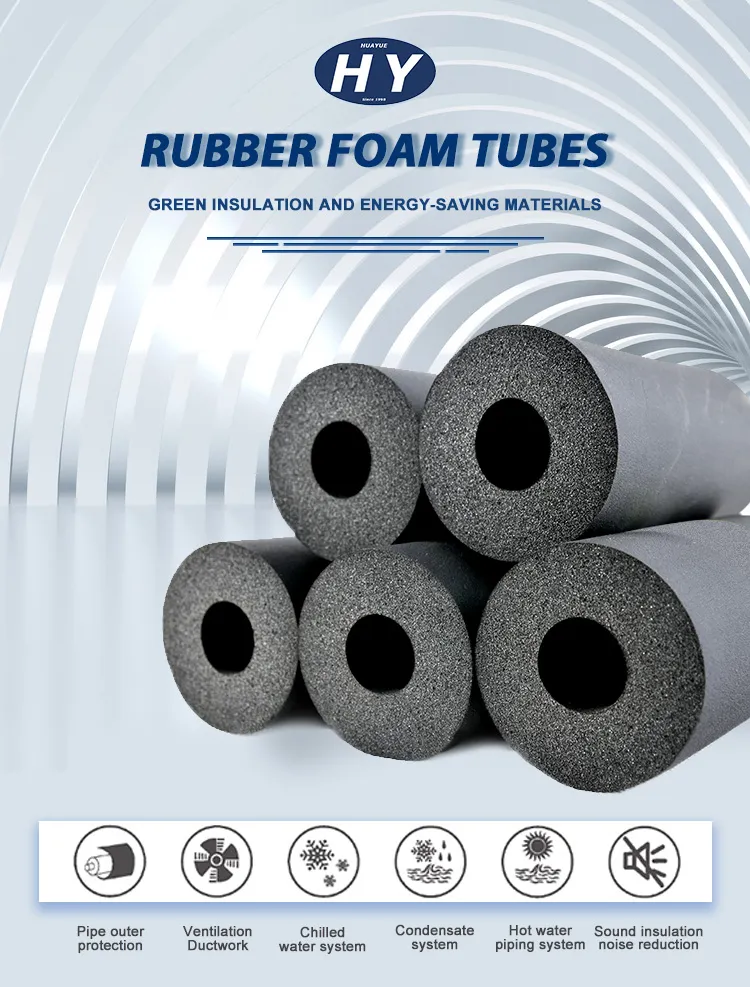

Applications of Rubber Foam Pipe

Rubber foam insulation materials are widely in multiple scenes for thermal insulation and noise reduction, which are used in various pipes and equipment, such as central air conditioning, air conditioning units, construction, chemical, medicine, electrical appliances, aerospace, auto industry, thermal power etc.

HUAYUE Company Profile

Why Choose Us!!!!

1. Full series thermal heat insulation products, inculding cellular glass insulation, rubber foam insulation, glass wool insulation, rock wool insulation, XPS, etc.;
2. Stock sale, place the order and delivery immediately for the regular specification;
3. Top quality in the China thermal heat insulation supplier and manufacturer;
4. Reasonable and competitive price, fast lead time;
5. Deliver customized whole solution package to our customer. Welcome to contact us and visit our company and factories at any time!

Certifications

HUAYUE^® Glass Wool insulation materials has obtained many certifications:

· FM
· ASTM
· BS476 part 6 & part 7
· CE
· ISO14001
· ISO9001
· OHSAS18001

Quality Control

HUAYUE maintains a stringent system of QC, in all its operation by its professional QC staff. We have 6 quality control engineers and test chemists.

We have our own test laboratory. HUAYUE glass wool heat insulation has been inspected by HUAYUE's Professional Quality Inspectors.

From each batch of raw materials, mid-products to end insulation materials, whole process would be validated by Huayue's Quality Assurance system. This will assure our customers that all materials have been tested and meet our high standards of quality assurance.

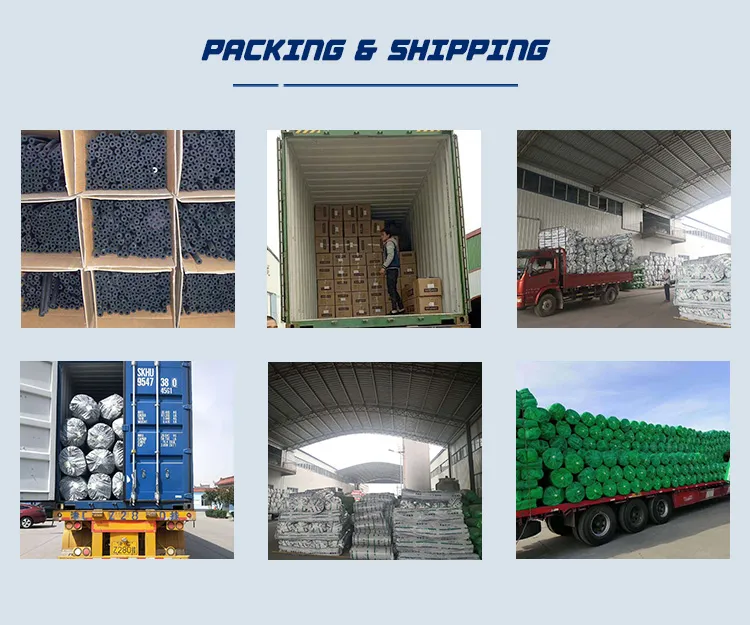

Packaging and Shipping

All products will have been strictly quality checked in house before packing. All products will be well packed before shipping. We accept OEM and ODM.
