| Model NO. | DH-HDPE-KY |
| Material | PE |
| Kind | Thermosetting Plastics Pipe |
| Water Absorption | 0.12%~0.25% |
| Contraction Percentage | 2.0%~5.0% |
| Tensile Strength | 41~50MPa |
| Diameter | DN20-1600 mm or Customized |
| Max Nominal Pressure | 15MPa |
| Oxidation Induction Time | ≥30min |
| Ash Content | ≤0.1% |
| Elongation at Break | ≥500% |
| Short-Term Hydrostatic Test | at 20 °C, Internal Pressure = 2 × Nominal Pressure |
| Burst Pressure | Pressurization for 60-70s, ≥6*Nominal Pressure 20℃ |
| Negative Pressure Resistance | Under -0.097MPa Vacuum for 100h |
| Peel Strength | ≥ 100 N/Cm |
| Melt Mass Flow Rate | 0.50 ± 0.20 G/10 Min (190 °C / 2.16 Kg) |
| Transport Package | by Truck, by Train, by Sea |
| Specification | HDPE/Coppered steel wire |
| Trademark | DHPI |
| Origin | China |
| HS Code | 3917210000 |
| Production Capacity | 500000 Kilometers /Year |
Product Description

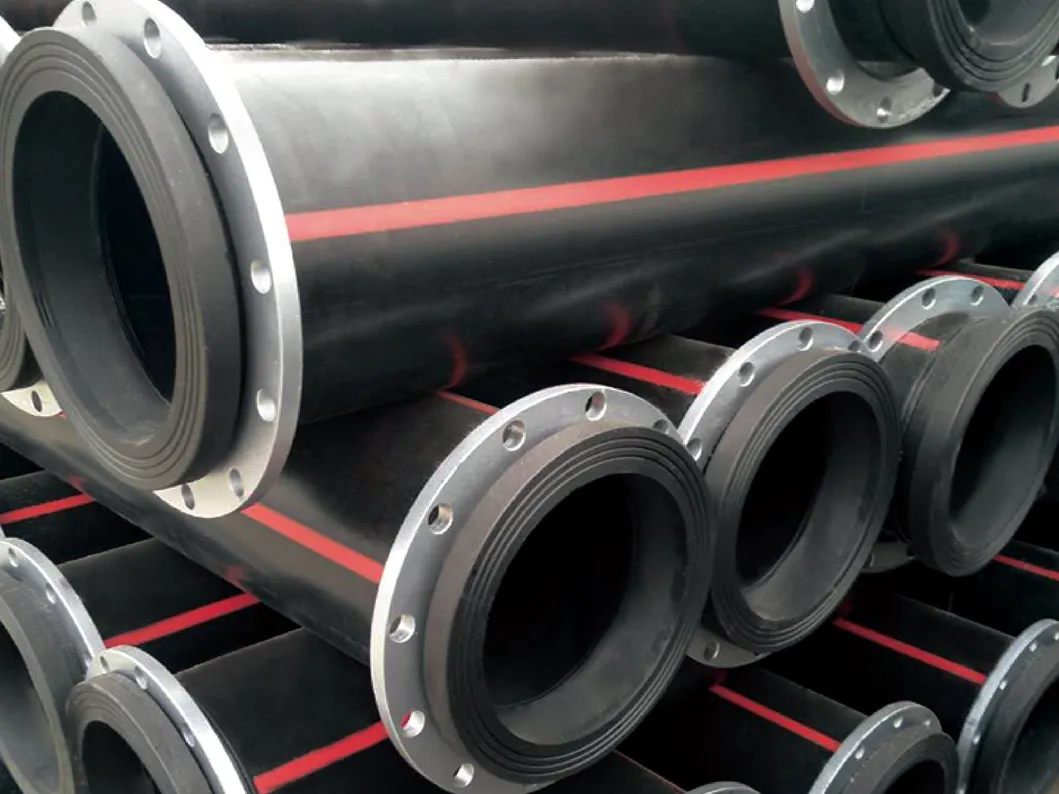

Polyethylene pipe for coal mine is single layer solid wall pipe, using our company self-developed carbon nano tubes (CNT) modified material production, high conductive fiber carbon nano (CNT) instead of traditional carbon black conductive agent added only 30% of the carbon black conductive agent, anti static, flame retardant performance is better than MT181 standard requirements and the performance indexes are higher than the traditional carbon black conductive agent pipeline. In particular, the long-term hydro hydraulic performance of the pipeline is much higher than that of traditional products, and the pipeline system has better safety and long-term use.

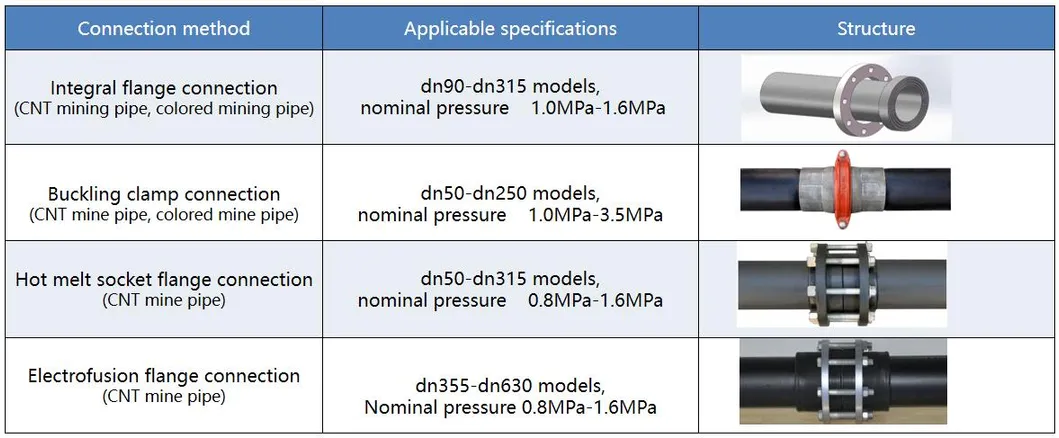

Connection Method
Anti-scaling property
Drawing on the principle of "lotus leaf hydrophobic", organic polymers and special processes are used to raise the water contact Angle on the surface of the pipeline to 111° (standard control ≥105°), far exceeding ordinary polyethylene 88°-92°, which improves the smoothness of the surface of the pipeline, reduces the adsorption capacity of calcium and magnesium ions and other substances in the water to the pipeline, and reduces the energy consumption of the pipeline water. At the same time, the anti-scaling effect and the antibacterial effect of the pipeline cooperate to play the role of the real antibacterial effect of the pipeline, and avoid the problem of non-contact failure between the antibacterial layer and the fluid caused by pipeline scaling. (Water contact Angle: the contact Angle of water droplets on the surface of the material, 90° < water contact Angle < 180° has a hydrophobic effect.)
Hydrophobic patency
Compared with conventional plastic pipes, the inner wall is smoother, the flow resistance is reduced, the water transmission capacity is higher, and the inner wall smoothness is better than that of traditional polyethylene pipes, solving the problem of increased energy consumption in long-term operation of the pipe network, and it is a pipeline type designed for the drinking water industry.
Anti-bacterial Performance
The ionic antibacterial agent was added to the inner wall of the pipe. According to the standard of JC/T939-2004 "Antibacterial performance of antibacterial plastic pipe for Construction" tested by Guangdong Microbiological Analysis and Testing Center, the antibacterial rate of the component was > 99.99% against Escherichia coli and Staphylococcus aureus (standard requirements for testing bacteria); It can eliminate microorganisms attached to the tube wall, avoid the breeding of surface microbial film, and has a permanent antibacterial effect.
Terrain adaptability

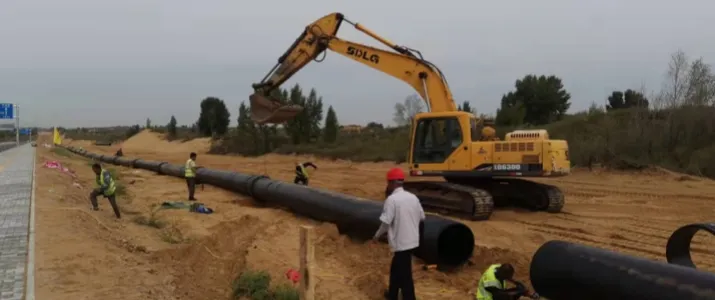

When the pipe is under pressure, the flexibility of the plastic pipe is taken into account. The flexible laying can reduce the application of pipe fittings and change with the terrain when the terrain settles.
Economical and efficient
The pipe is lighter than the concrete pipe, galvanized pipe and steel pipe, easy to handle and install , and the lower manpower and equipment requirements mean that the installation cost of the project is greatly reduced.
Long Service Life
Polyethylene pipe material has a long-term design life, and the extrapolated service life of the pipe under normal working conditions is 50 years.
Product Description:
- High Hydrostatic strength
- Good Oxidation Resistance Performance
- Advanced integrated equipment
- Strict process control
- Precision Meter weight control system
- Self-owned CNAS laboratory

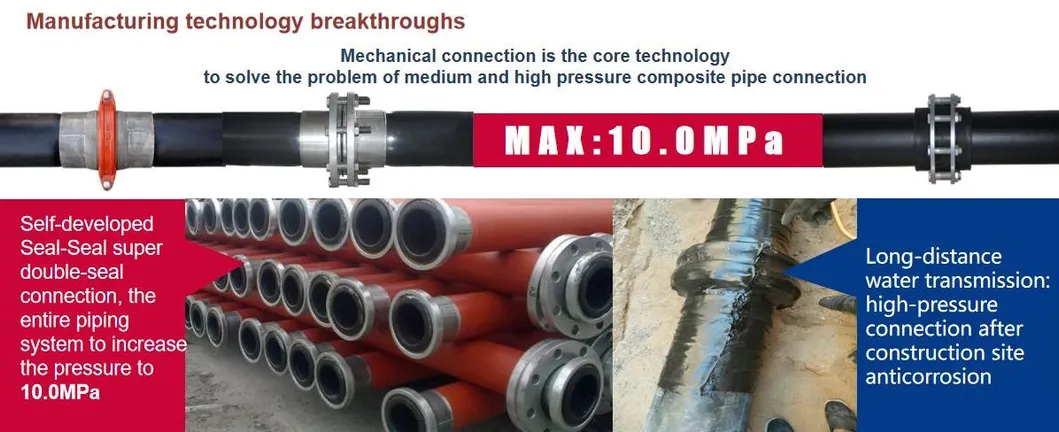

- Sturdy safe connection
Experience top-quality pipe products with Shandong Donghong Pipe Industry Co., Ltd. Our pipes offer high hydrostatic strength, excellent oxidation resistance performance, and advanced integrated equipment. With strict process control, precision meter weight control system, and a self-owned CNAS laboratory, our products ensure reliability and durability. Enjoy a sturdy and safe connection with our pipes, providing peace of mind for your projects.

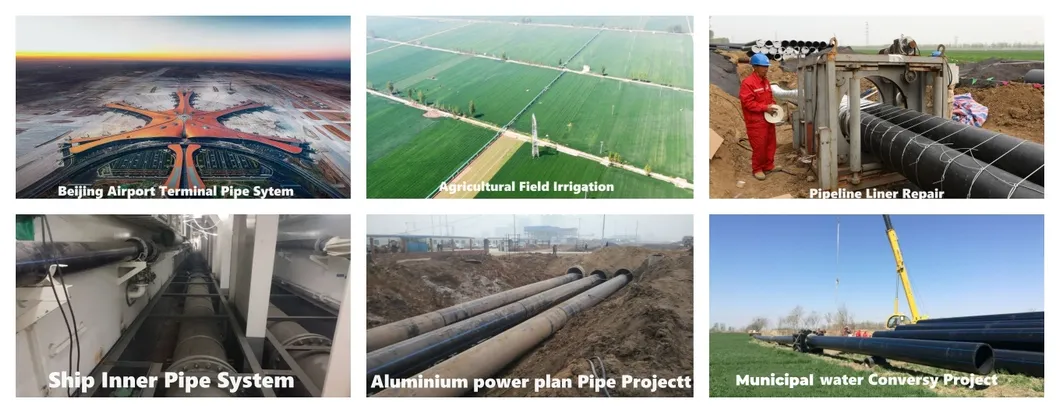

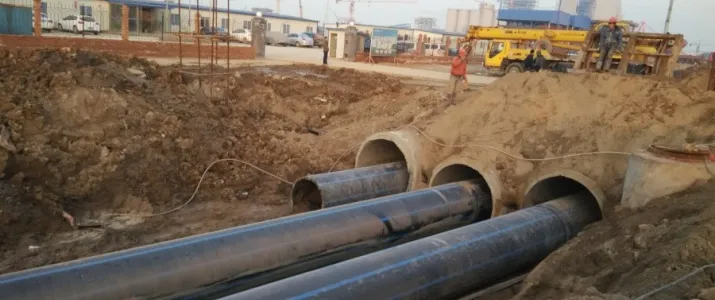

Appliation Cases

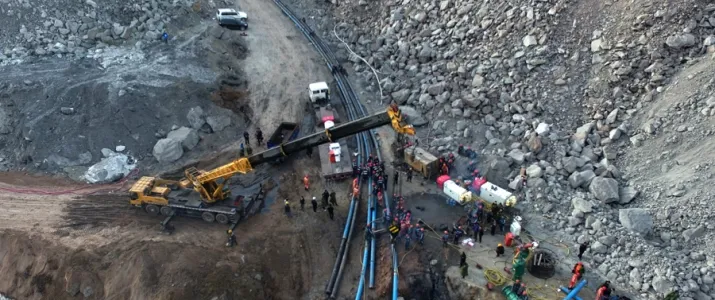

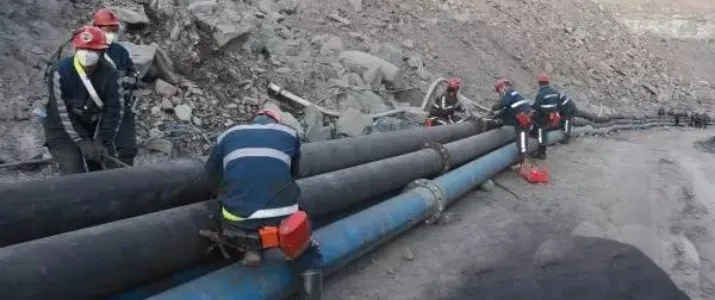

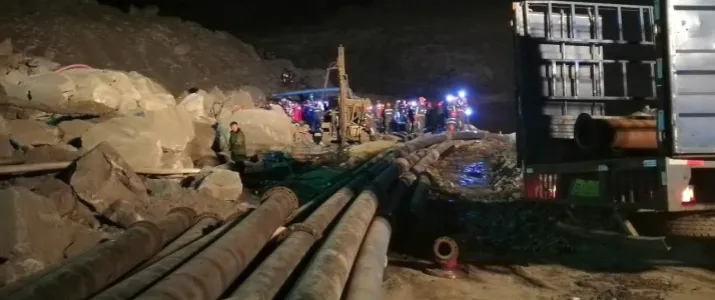

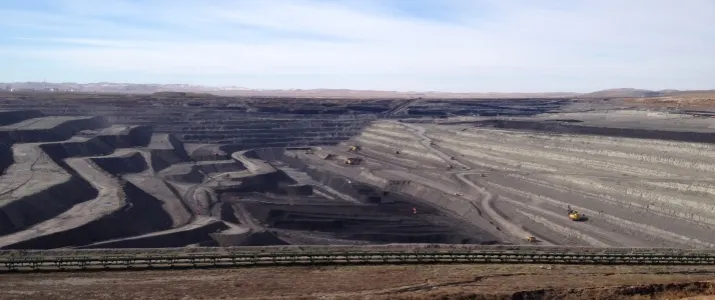

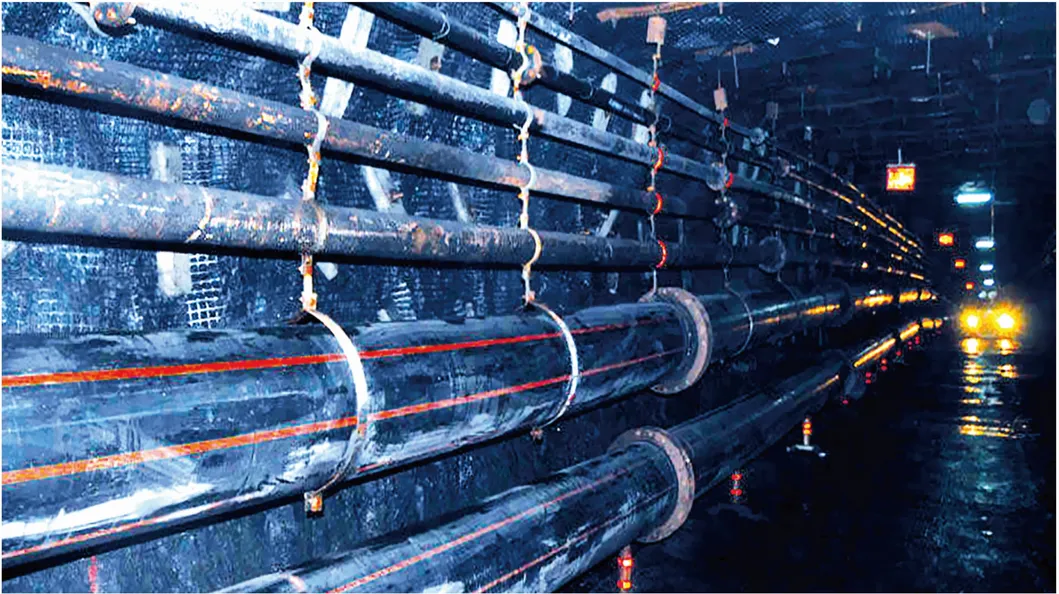

Guoneng Shendong Coal Mine Underground Pipeline System Project.
Guoneng Shendong Coal Group is the core coal production enterprise of the State Energy Group, with 15 mines, and its main indicators such as safety, production, technology, and economy have reached the first domestic and world-class levels.
As a long-term strategic partner of Guoneng Shendong Coal Group, Donghong Pipeline is responsible for the construction and after-sales service guarantee of its underground pipeline system project.
Certifications
