Product Description

Application:
1. Corrugated pipe making machine uses PVC, PP, PE as raw material to produce small dimater single-wall corrugated pipe.

2. Through the corresponding mould and setting machine, the products can be smooth evenly both internal and external.

3. Cable threading pipe, washing machine drain pipe, vacuum tubes, ventilation drain pipe.

Features:
This series single wall corrugated pipe machine can be used to produce corrugated pipes of PVC, PE, PP, EVA continuously, as well as PA corrugated pipes. Plastic single-wall corrugated pipes have features of high temperature resistance, resistant to corrosion and abrasion, high intensity, good flexibility, etc.

The single wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.

Single-wall corrugated pipe machine developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used in wires conduit pipe.

Working process:

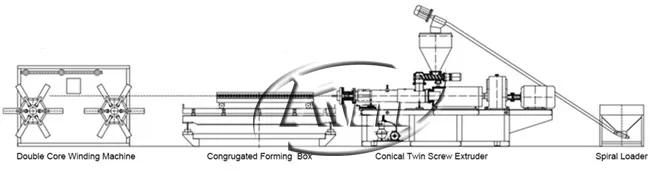

PP/PE/PVC/PA/PB/EVA material→Automatic loader →Single screw extruder→Head die and mould →Mould blocks→Forming machine→Winder

Product Parameters

Main technical parameter:

TypeModel Table Power (KW)Moulds DriveCoolingQuantityMoulds LengthSpeed M/MinExtruderTotal Power
(KW) High SpeedBH-20-32.2GearWater64310-20SJ50 SJ6525 BH-50-34GearWater64410-15SJ6530 BH-50-44GearWater72410-25SJ65 SJ7530-50 Vacuum FormZK-50-34GearAir Cool6436-10SJ5030 Normal Speed
(BN/BB)20-21.5ChainAir4228-10SJ4515 35-22.2ChainAir4227-10SJ45 SJ5020 35-32.2ChainAir6437-10SJ50 SJ6530 35-44ChainAir7247-10SJ6530 55-34ChainAir+Water6435-9SJ6535 55-45.5ChainAir+Water7245-9SJ6536 80-35.5ChainAir+Water6434-7SJ7550

Detailed Photos

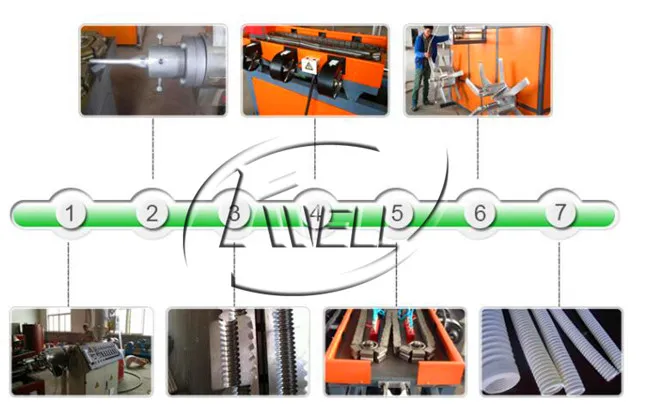

Machine detailed photo as a reference:

Pre-sales service1. Sales person, project manager, accountant staff;
2. Professional responsible team: fastly and exactly sending offers. Online/sale service1. Super and solid quality,
2. Fastly delivery,
3. Standard seaworthy package or as your demand. After-sales service1. Reqairing and maintenance if any problems occur in the warranty term,
2. Any feedback is welcome, and we will try our best to support you. Other cooperation service1. Technology shareing
2. Honest and serve our customers with heart and soul.
