| Model NO. | comflex |
| Surface Treatment | Galvanised |
| Application | Underground |
| Material | Stainless Steel |
| Certification | CE |
| Name | Stainless Steel Flexible Electrical Conduit |
| Max Working Pressure | 10 MPa |
| Outer/Nominal Diameter | 5-110mm |
| PVC Coated Od | 6-112 |
| Material Grade | Stainless Steel 304/316/316L/321/Galvanized Steel |
| Diameter | 3-102 mm |
| Medium | Liquid |
| Standard | ASTM, GB, API, DIN, JIS |
| Coating | PP/PE/PVC |
| Pressure | -10 to 100 Bar |
| Transport Package | Standard Seaworthy Package |
| Specification | ASTM, AISI, DIN, EN, GB, JIS, Other |
| Trademark | Comflex |
| Origin | Jiangsu, China |
| HS Code | 8307900000 |
| Production Capacity | as Requested |

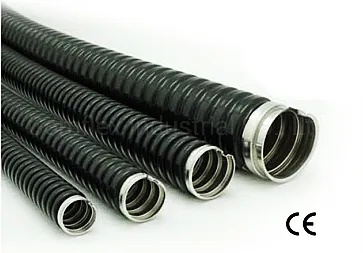

Cable Conduit/антивандальный шланг

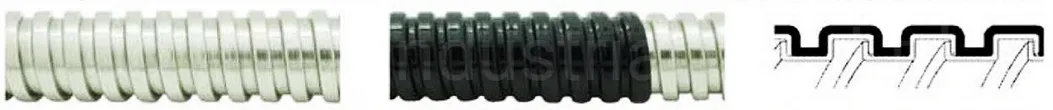

*Structure: Interlock
*Nominal Conduit Size: 1/4"-2-1/2"
*Material: Stainless Steel
*PVC/PU / PE /LSZH Jacket
*UV Resistance: By ordering
*Tensile Resistance>1000N
*RoHS Compliant
*IP 40-IP 68
This"Reinforced Type' product has been reformed to be much tighter on profile. That has enhanced the protective effect of the metal flexible conduit. The upgrade performances of tensile resistance, impact resistance & anti damage fulfill the application requirements for harsh or severe environments.
*Structure: Square-lock
*Nominal Conduit Size: 1/4"-4"
*Material: Stainless Steel
*PVC/PU / PE /LSZH Jacket
*UV Resistance: By ordering
*Tensile Resistance>1000N
*RoHS Compliant
*IP 40-IP 68
Widely used for protection of power, data, and signal cables in/on industrial, commercial, or residential buildings, elevators, machines, automobiles, telecommunication networks, power supply systems and etc.
Delivery Details: 7-15 days, depending on quantity and available in stock
