| Model NO. | DN15 |
| Head Code | Round |
| Connection | Glue Joint |
| Shape | Equal |
| Material | Plastic |
| Technics | Casting |

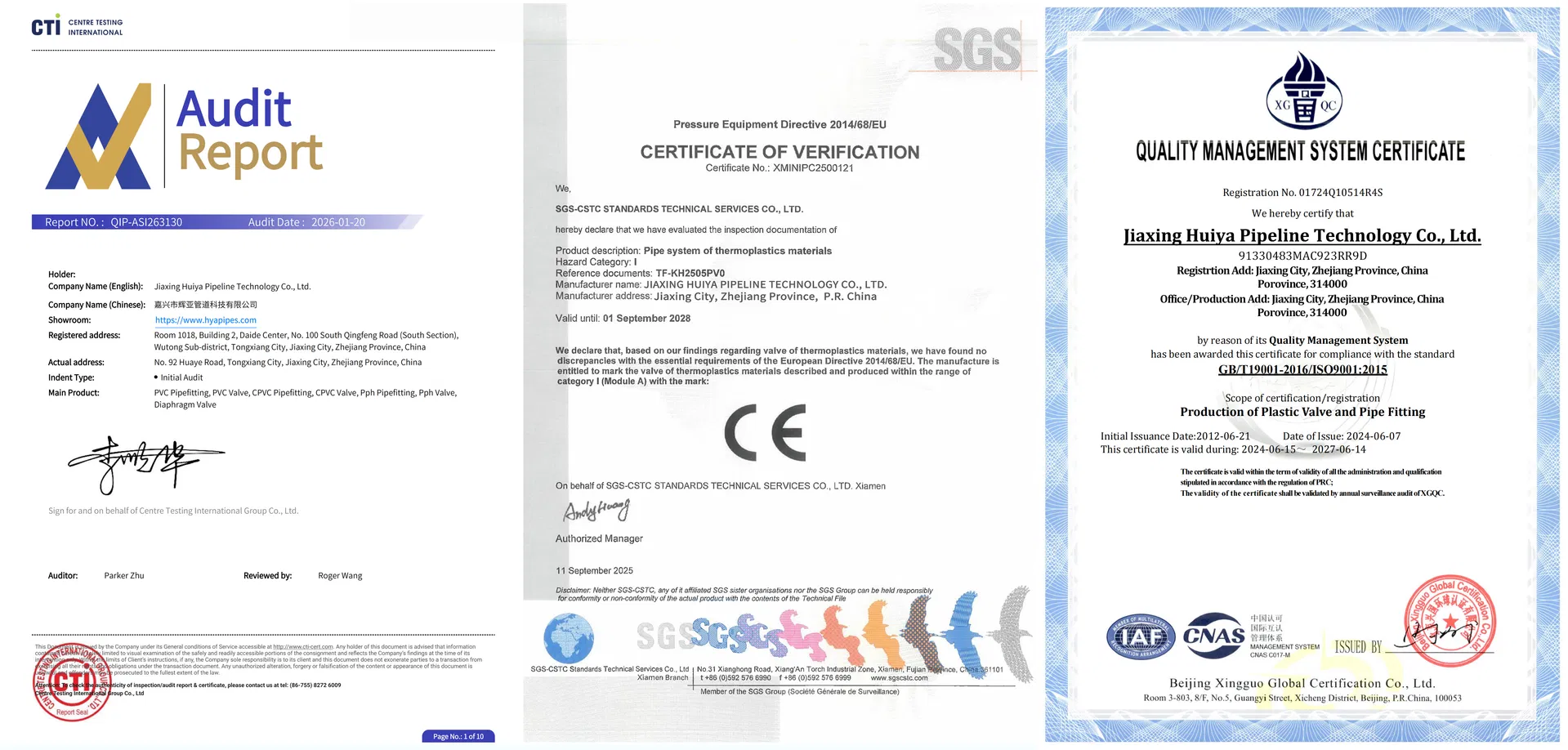

| Certification | ISO, ANSI, DIN, ASME |
| Special Function | Anti Corrosion |
| Application | Buliding |
| Temperature | -15 to 55 Degree Celsius |
| Pressure | 1.6MPa |
| Color | Dark Grey |
| Processing Service | Moulding |
| Transport Package | Cardboard Box |
| Specification | DN15-300 |
| Trademark | HY or Oem |
| Origin | China |
Product Features
-High corrosion resistance, suitable for various water supply and chemical pipeline systems.
-Smooth inner wall, low flow resistance, ensuring efficient fluid transportation.
-Lightweight yet durable structure, easy to install and long service life.
Specification
PN16 PVC cap dimensions chart (Unit: mm)
Nominal
Socket Type
Structural Diameter
SIZE
d1
d2
I
D
L
DN15
20mm PVC cap
20.3
20.0
16.0
27.0
25.0
DN20
25mm PVC cap
25.3
25.0
19.0
33.0
29.5
DN25
32mm PVC cap
32.3
32.0
22.0
40.5
33.5
DN32
40mm PVC cap
40.4
40.0
26.0
52.0
38.5
DN40
50mm PVC cap
50.4
50.0
31.0
61.0
42.0
DN50
63mm PVC cap
63.4
63.0
38.0
75.0
54.5
DN65
75mm PVC cap
75.5
75.0
44.0
89.4
66.5
DN80
90mm PVC cap
90.5
90.0
51.0
107.3
74.5
DN100
110mm PVC cap
110.5
110.1
61.0
131.0
85.5
DN125
140mm PVC cap
140.6
140.1
76.0
167.2
117.0
DN150
160mm PVC cap
160.6
160.1
83.0
185.0
123.0
DN200
225mm PVC cap
200.8
200.1
118.5
257.0
160.0
DN250
280mm PVC cap
281.5
280.1
148.5
323.8
212.5
DN300
315mm PVC cap
317.0
314.9
167.0
364.0
234.5
Quantity per carton
Industry Type PVC CAP DIN PN16 Packing Table
Size
Carton Size (cm)
Qty/Ctn
Price/Piece ($)
DN15
20mm PVC CAP
41*41*34
2400
7.56
0.03
DN20
25mm PVC CAP
52.5*38*37
2000
11.2
0.05
DN25
32mm PVC CAP
46*38*27
700
19.85
0.1
DN32
40mm PVC CAP
52.5*38*37
560
36.5
0.15
DN40
50mm PVC CAP
52.5*38*37
340
55.2
0.25
DN50
63mm PVC CAP
41*41*34
144
106
0.42
DN65
75mm PVC CAP
46*38*27
96
170
0.62
DN80
90mm PVC CAP
52.5*38*37
90
245
0.96
DN100
110mm PVC CAP
52.5*38*37
60
395
1.54
DN125
140mm PVC CAP
52.5*38*37
24
727
3.41
DN150
160mm PVC CAP
52.5*38*37
15
1170
5.16
DN200
225mm PVC CAP
60*56*27
8
2418
11.55
Packing & Delivery
Packaging
Delivery
All UPVC pipe fittings are packed with professional protective materials to avoid scratches, collisions and deformations during transit. Standard export cartons ensure safe and neat packaging. Strict quality inspections are carried out before packing to guarantee product integrity. For bulk orders, stable pallet packaging is provided for easier loading, unloading and transportation. Secure and reliable packaging protects each fitting well, ensuring products arrive in perfect condition for your projects.
We guarantee timely and efficient delivery for all UPVC pipe fitting orders. With sufficient stock, we can arrange shipment quickly to meet your project schedule. We support global delivery by sea, air, and land transportation. Strict quality checks are completed before shipment to ensure flawless products. Professional packaging and stable logistics ensure safe arrival. We strive to provide reliable and cost-effective delivery services to support your business and projects effectively.
