| Model NO. | PE100 pipe |
| Material | HDPE |
| Kind | Thermoplastics Pipes |
| Model Number | DN20~DN1200mm |
| Density | 0.96g/Cm³ |
| Color | Black |
| Temperature Range | ≤40ºC |
| Coefficient of Thermal Expansion | 0.14 mm/M*ºC |
| Trademark | JINGYU |
| Origin | Jiangsu, China |
| HS Code | 3917330000 |

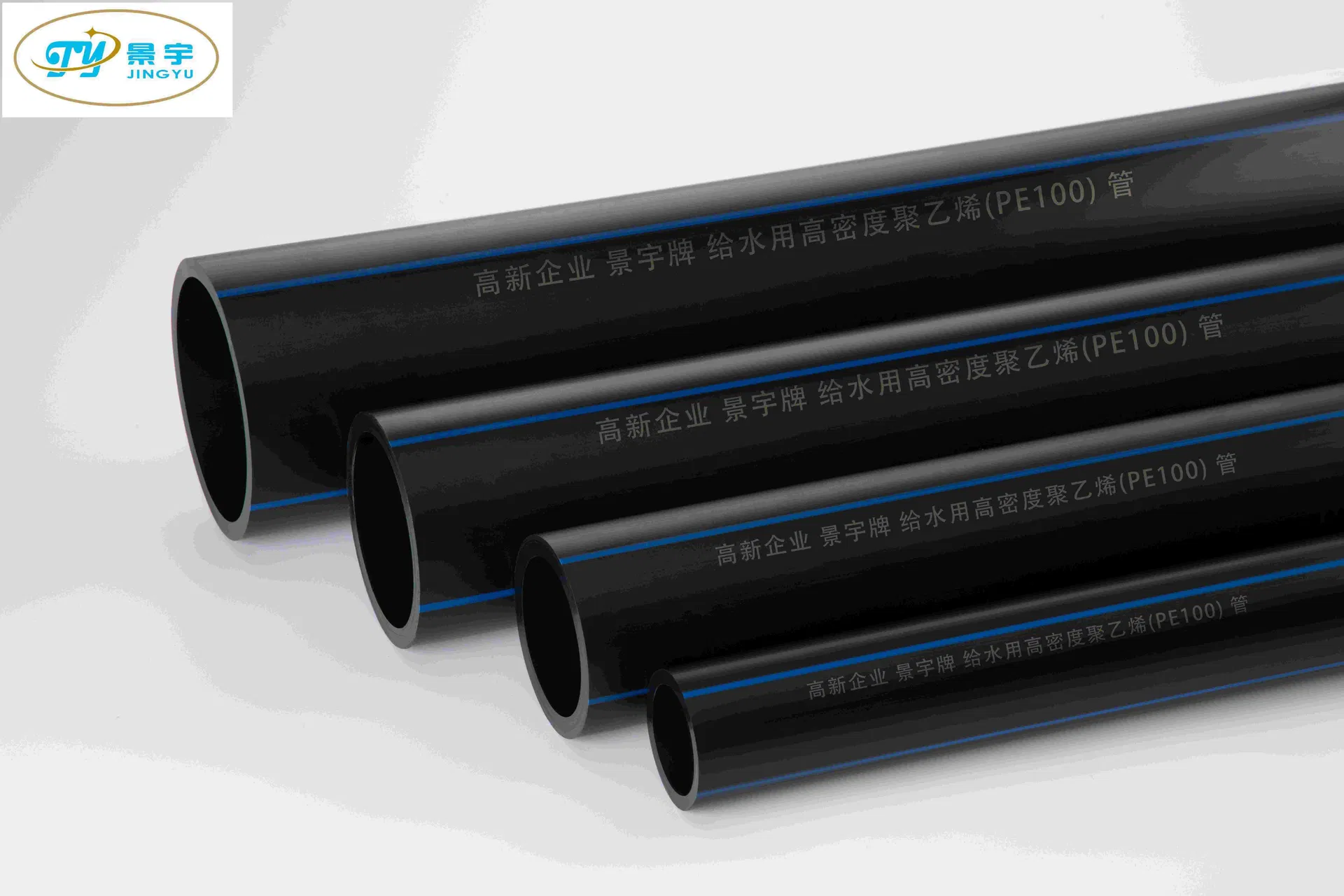

PE100: It belongs to high-density polyethylene (HDPE), referring to the pipe materials and fittings produced from polyethylene particles with a minimum required strength (MRS) of 10 MPa.
Corrosion resistance: The PE100 pipes have excellent corrosion resistance. Apart from strong oxidants, they can withstand the corrosion of various acids, alkalis, and salts at room temperature.
Low-temperature resistance: It has strong low-temperature performance and can be used in an environment of -40°C.
Hygiene: The PE100 pipes are environmentally friendly products. They have no scaling layer and do not breed bacteria.
Flexibility: They can bend along with the direction of the construction nodes and will not crack.
Transportability: The pipe wall of PE100 is smooth, with a low friction coefficient. This reduces pressure loss in the pipeline and water transportation energy consumption.
Constructibility: The PE100 pipe is lightweight, easy to transport and bend. The construction operation is simple, and the connection is safe and reliable.
Longevity: The PE100 pipeline has a long service life. Under normal room temperature conditions, it can be used for 50 years.
Tensile strength: It can ensure continuous tensile strength exceeding 350%.
Connection methods: Heat fusion socket, heat fusion butt welding, electric fusion
Application scope: Freshwater, seawater, ballast water, bilge, cleaning of holds, ventilation, etc., normal temperature systems.
Product
HDPE Pipe(Polyethylene)
Materials
PE100(HDPE)
Model number
dn20~dn1200mm
Density
˜0.96g/cm³
Color
Black
Temperature range
≤40℃
Pipe series
SDR26,SDR21,SDR17,SDR13.6,SDR11
Pipeline pressure
PN6,PN8,PN10,PN12.5,PN16
Qualification Certification
CCS,ABS,DNV,LR,BV,RINA,RS,NK,KR
Transport medium
Fresh water, seawater, wastewater
Coefficient of thermal expansion
0.14 mm/m*℃
Production standards
ISO4427,GB/T13663.2-2018
Connection Ways
Socket Fusion, Butt Fusion
Trademark
JINGYU
Origin
Jiangsu,China
Production Capacity
400,000tYear
Manufacturer
Zhenjiang Jingyu Pipeline Equipment Co.,Ltd.
