| Model NO. | PA |
| Type | Thermosetting Plastic Pipe |
| Color | Color |
| Hollow | Hollow |
| Shape | Round |
| Application | Irrigation |
| MOQ | 1000 Meters |
| Certification | CE ISO SGS RoHS |
| Thickness | 1.75mm |
| Product Name | Air Hose PA Tube |
| Standard | ISO9001 |
| Size | Customized Size |
| Transport Package | Cartons, Coiled Pallet |
| Specification | 46.5*35.6*26.5 |
| Trademark | VPC |
| Origin | China |
| Production Capacity | 10000000/Month |

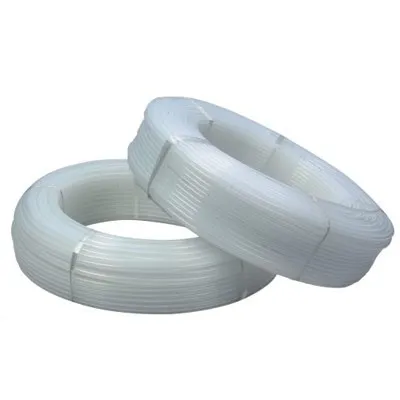

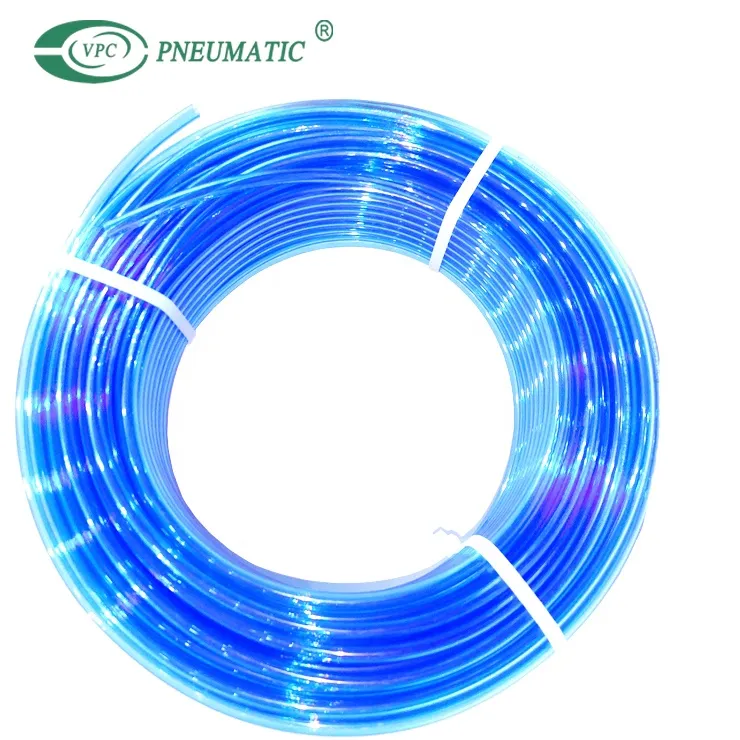

Pneumatic air PA12 PA11 PA6 nylon flexible hose tubing
Applications
Air water, chemicals,lubrication,pneumatic controls,intrumentation systems,hydraulic lines,chemical transfer, air conditioning.
CO2,fuels and oils,irrigation control system,automative and electrostatic insulator etc.
Chemical resistance:Nylon tubing us resistant to most solvents,alkalis,oils,greases,petroleum products,fungi moulds and dilute acids(mineral and organic)
PA12 tube features:
1. Applications:Air water,chemicals,lubrication,pneumatic controls,intrumentation systems,hydraulic lines,chemical transfer,air-conditioning.CO2,fuels and oils,irrigation control system,automative and electrostatic insulator etc.
2. Chemical resistance:Nylon tubing us resistant to most solvents,alkalis,oils,greases,petroleum products,fungi moulds and dilute acids(mineral and organic)
Model
PA6
PA11
PA12
Material
Nylon 6
Nylon 11
Nylon 12
Hardness
64D
60D
60D
Fluid admitted
Air,Water,Oil,Normal Solvents
Environment and fluid temperature
-40-100ºC
-40-100ºC
-40-90ºC

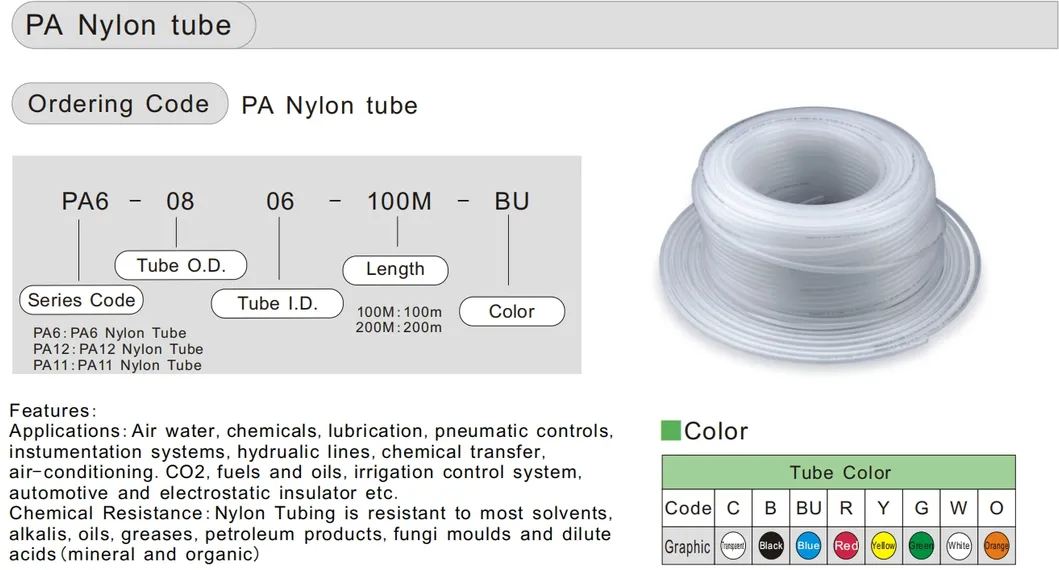

Ordering Code PA Nylon Tube
PA12 - 08 06 - 100M - BU
PA6→Series Code
PA6:PA6 Nylon Tube
PA12:PA12 Nylon Tube
PA11:PA11 Nylon Tube
08→Tube O.D
06→Tube I.D
100M→Length
100M:100mm
200M:200mm
BU→Color

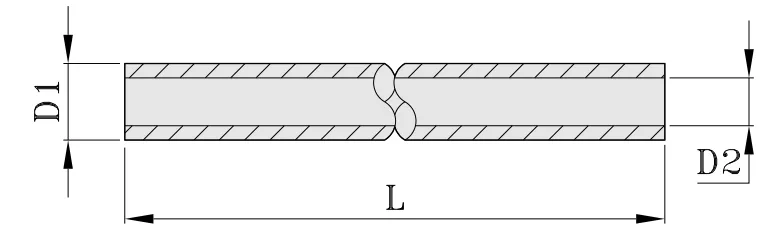

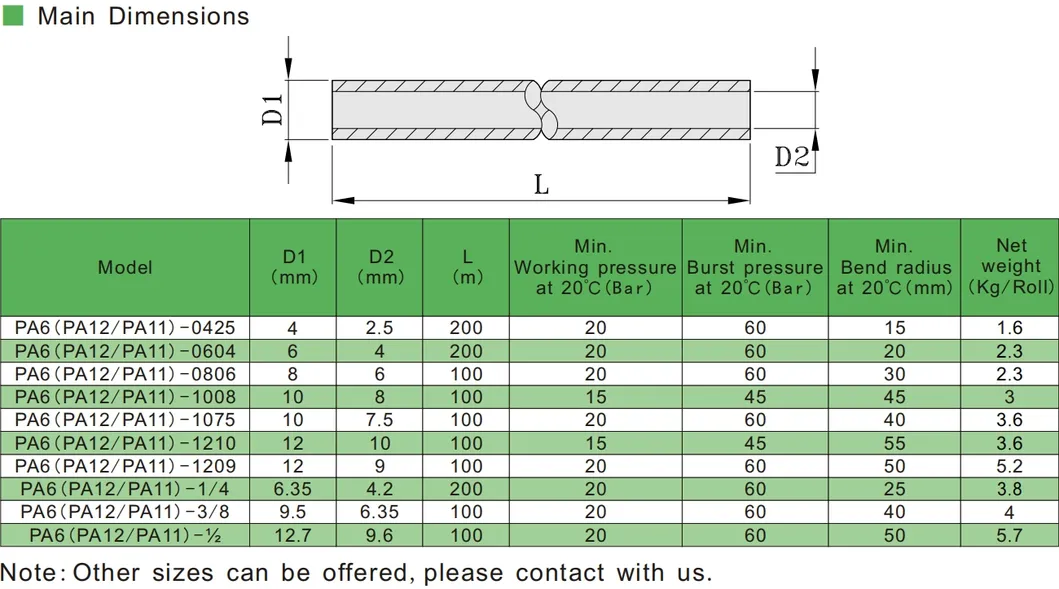

Model
D1(mm)
D2(mm)
L200(mm)
Min.Working pressure at 20°C(Bar)
Min.Burst pressure at 20°C (Bar)
Min.Bend radius at 20°C(mm)
Net weight (Kg/Roll)
PA6(PA12/PA11)-0425
4
2.5
200
20
60
15
1.6
PA6(PA12/PA11)-0604
6
4
200
20
60
20
2.3
PA6(PA12/PA11)-0806
8
6
100
20
60
30
2.3
PA6(PA12/PA11)-1008
10
8
100
15
45
45
3
PA6(PA12/PA11)-1075
10
7.5
100
20
60
40
3.6
PA6(PA12/PA11)-1210
12
10
100
15
45
55
3.6
PA6(PA12/PA11)-1209
12
9
100
20
60
50
5.2
PA6(PA12/PA11)-1/4
6.35
4.2
200
20
60
25
3.8
PA6(PA12/PA11)-3/8
9.5
6.35
100
20
60
40
4
PA6(PA12/PZ11)-1/2
12.7
9.6
100
20
60
50
5.7
