Oil & Gas Pipe Extrusion Line for UPVC, HDPE, and Rtp Materials
Detailed specification for Oil & Gas Pipe Extrusion Line for UPVC, HDPE, and Rtp Materials
Review product features, application details and supporting information below. For pricing, samples or shipping questions, use the inquiry form on this page.
| Model NO. | OD200-500mm |
| Automation | Automatic |
| Computerized | Computerized |
| Certification | CE, ISO9001:2008 |
| Customized | Customized |
| Condition | New |
| After-sales Service | We Will Provide 1 Year Parts Warranty and Technica |
| Equipment Use | Production of Glass Fiber Tape Winding Reinforced |
| Can Produce Pipe Diameter Range | Outer Diameter φ200mm ~ φ500mm |
| Producible Pipe Working Pressure | 1~4MPa |
| Quantity of Winding Machine | 4 Sets |
| Number of Winding Layers | 8 Layers |
| Production Line Speed | 1-2 Meters Per Minute |
| Total Length of Equipment X Total Width | 100m X 10m |
| Total Power of The Equipment | 650kw |
| Transport Package | Standard Packaging |
| Specification | 2-3T |
| Trademark | JMG machinery |
| Origin | Suzhou China |
| Production Capacity | 300-400 Km/Year |
JMG-RTP Pipe Equipment Features
Advantageous features of the equipment:

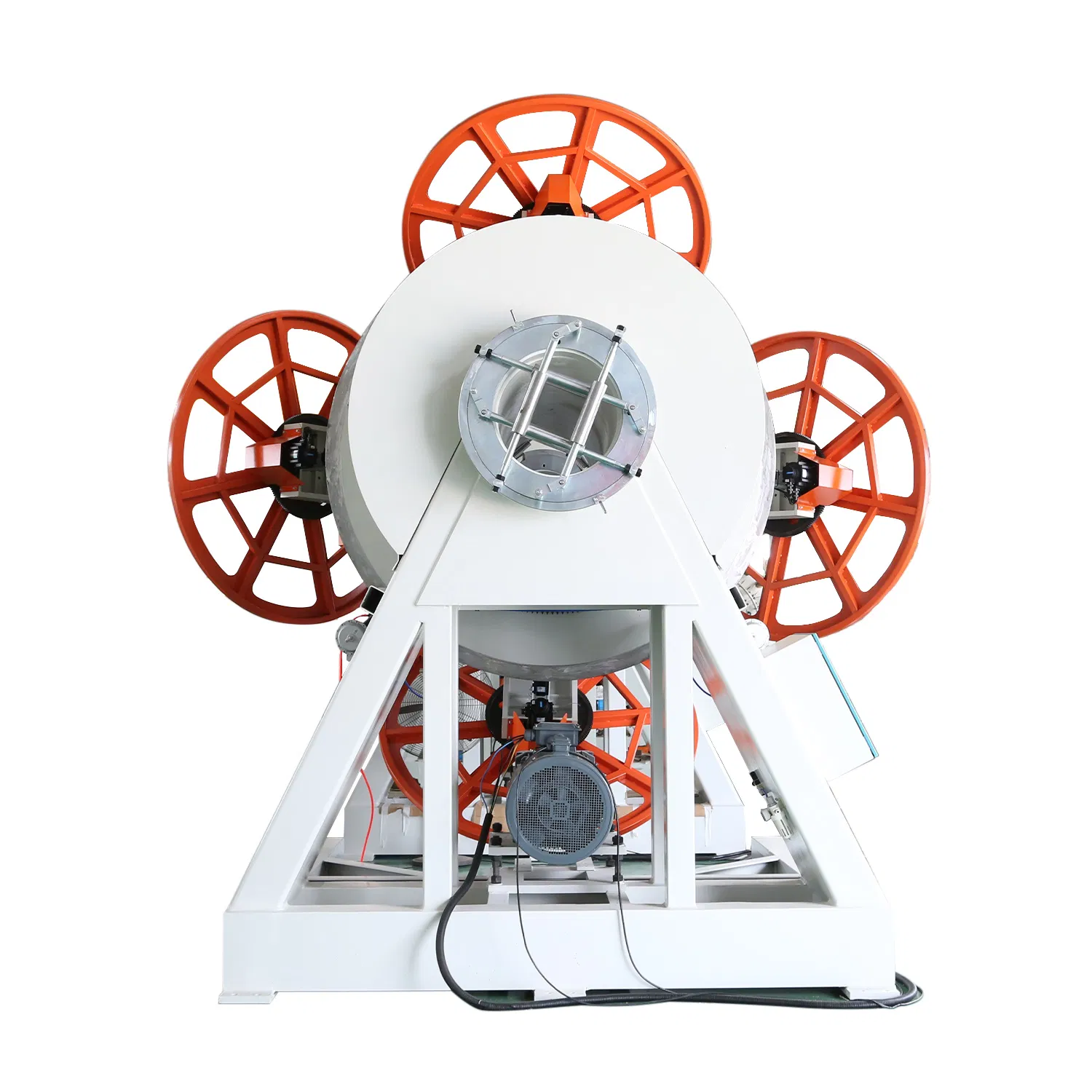

The winding disk of the winding machine is tilted at the same angle as the winding angle of the reinforcement tape, ensuring winding precision and avoiding damage to the performance of the tape caused by corner issues.
The winding machine adopts servo drive and high-precision electric cylinders to ensure uniform winding, minimal tension fluctuations, and stable and efficient production.
Heating mode: infrared and hot air heating combination, heating mode is reasonable, efficient, good heating effect and stable performance.
The whole machine adopts the latest generation of Siemens PLC control system, network structure, one-button operation, high degree of automation, with synchronized speed control function, in the process of production, the size of the winding tape force, the winding angle, the displacement of the winding point can be set at any time;

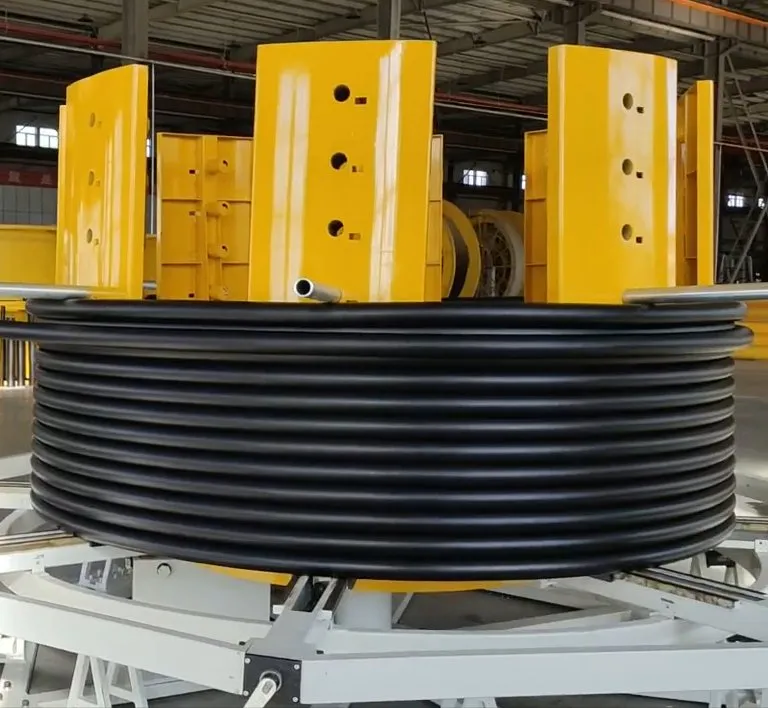

The wire winding and unwinding system adopts a lower sleeve-type gantry structure, automatic walking, reel lifting, dismantling are driven by the motor, easy to operate; take-up different caliber pipes, reel diameter can be adjusted.

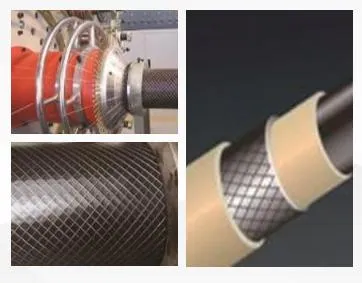

Device use: glass fiber tape winding reinforced pipe, aramid belt winding reinforced pipe, polyester tape winding reinforced pipe, steel tape winding reinforced pipe, etc.
Pipe applications:Mainly used in hot spring water transportation, central heating secondary pipe network, deep geothermal, oilfield oil gathering and gas transportation, etc.
Customized according to customer needs
Kunshan JMG Machinery Manufacturing Co., Ltd. focuses on providing customers with new materials composite pipe equipment research and development, intellectual property and integrated, personalized solutions, covering plastic pipe extrusion, reinforced composite, outer coating, finished product rewinding to the production of pipe joints, buckling and pipeline connections, etc.; according to the customer's different needs for differentiated exclusive customization.
The company's main products are: strip (glass fiber tape, aramid tape, polyester tape, steel tape, polyester tape, steel cord tape, etc.) winding reinforced composite pipe production equipment; non-metallic filaments (polyester wire, aramid wire, glass fiber wire, basalt wire, and twisted, bundled, rope, etc.) winding reinforced composite pipe production equipment; metal wires (steel wire mesh skeleton, etc.) winding reinforced composite pipe production equipment; high-efficiency plastic extrusion production equipment; composite pipe production equipment; ancillary equipment, etc. Equipments, etc.
Strip winding reinforced pipe winding equipment (RTP pipe equipment) is one of our main products, also the company's patented products Patent No.: ZL201721360511.X
Client:
fiberglass winding reinforce pipe line 15 cover,
silk winding reinforce pipe line 16 cover
