Model NO.	YY-2114
Material	Plastic
Connection	Welding
Colour	Black
Working Pressure	0.6MPa ~ 2.0MPa
Temperature Range	- 60 ~ 40degree Celsius
Application	Water Supply, Drainage, Sewerage Treatment, Mine a
Transport Package	50PCS/CTN
Specification	DN50-250mm
Trademark	YOONYEE
Origin	China
HS Code	39269090
Production Capacity	100000sets/Year

Butt Fusion HDPE Pipe Fitting SDR11 PE Tee Reducer for Water Supply

Product Name

Butt Fusion HDPE Pipe Fitting SDR11 PE Tee Reducer for Water Supply

Material PE100, PE80 Color Black Size DN50mm-250mm Working Pressure 0.6MPa ~ 2.0MPa Executive standard ISO 9001, ISO 4427, GB/T13663, EN 12201 Temperature Range '- 60°C ~ 40 °C Application Water Supply, Drainage, Sewerage Treatment, Mine And Slurry Pipelines, Irrigation, etc Guarantee Product Life Up To 50 Years Package Standard Packing Or Customized OEM Available Features Non-toxic, Green Initiaive, Environment Friendly, Corrosion Resistance, Light weight, Easy To Transport And Install, Lower Maintance Costs. Connect Socket Fusion, Butt Fusion Joint, Flanged Joint

Size(mm)  Packaging(PCS/CTN)

Butt Fusion HDPE Pipe Fitting SDR11 PE Tee Reducer for Water Supply

110*50 72 110*75 50

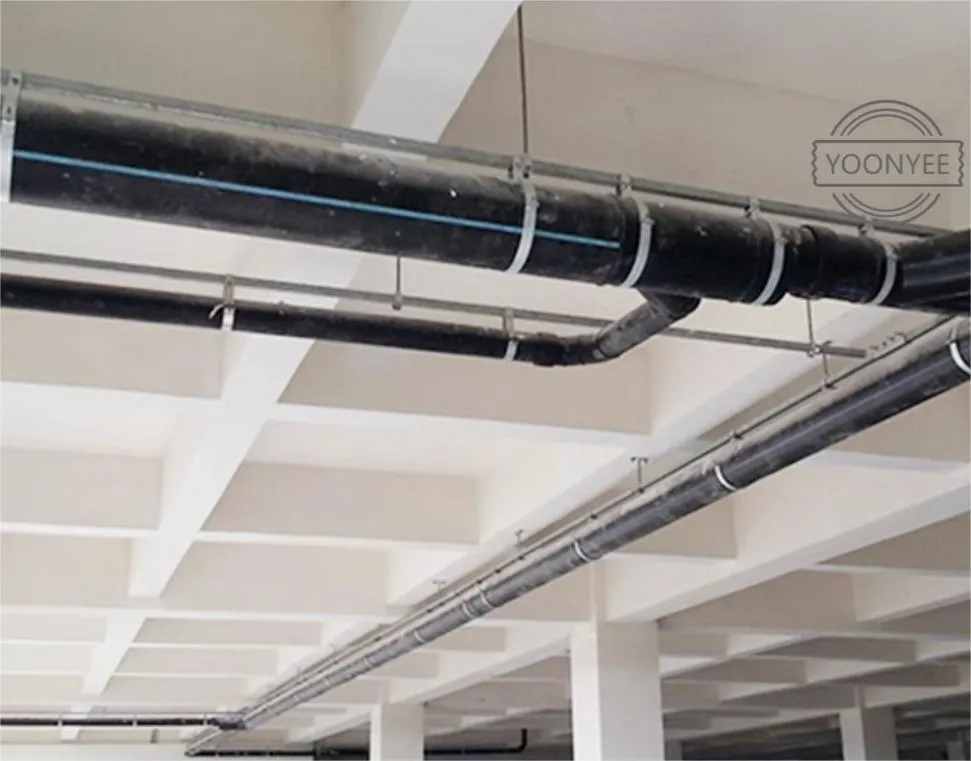

HDPE LAYER SIPHonIC DRAINAGE PIPE FITING MANUFACTURER

WHAT IS SIPHonIC ROOF DRAINAGE AND HOW IT WORKS
Siphonic drainage systems rely on negative pressure to create a vacuum effect and rapidly remove rainwater from rooftops.  In contrast to traditional gravity-based systems, the air does not enter the downpipes, resulting in a higher flow rate, larger volumes of water removed and reduced risks of water accumulation on rooftops.

In addition, siphonic roof drainage systems save space.  Rather than being installed with a slope, the connecting pipes can run parallel to the ceiling, and smaller diameters can be used without sacrificing drainage efficiency.

Siphonic roof drainage systems are the most effective rainwater discharge technology for flat and low-gradient roofs. Compared to gravity systems, siphonic drainage boasts at least twice higher flow rate, offering better protection from leaks and overflows.
