MEETYOU MACHINERY PVC Pipe Extrusion Machine Line Customized PVC 20-63Mm Ppr PE Hdpe Pipe Production Line Factory China PVC Plastic Processed Pipe Production

The PVC Pipe Extrusion Machine Is Used To Produce Pipes With Different Diameters By Replacing Extrusion Dies. It Can Produce Every Size Of Pipe In The Area Of The Agricultural Water Supply System, Architectural Water Supply System, Pavement Of Cables, Etc

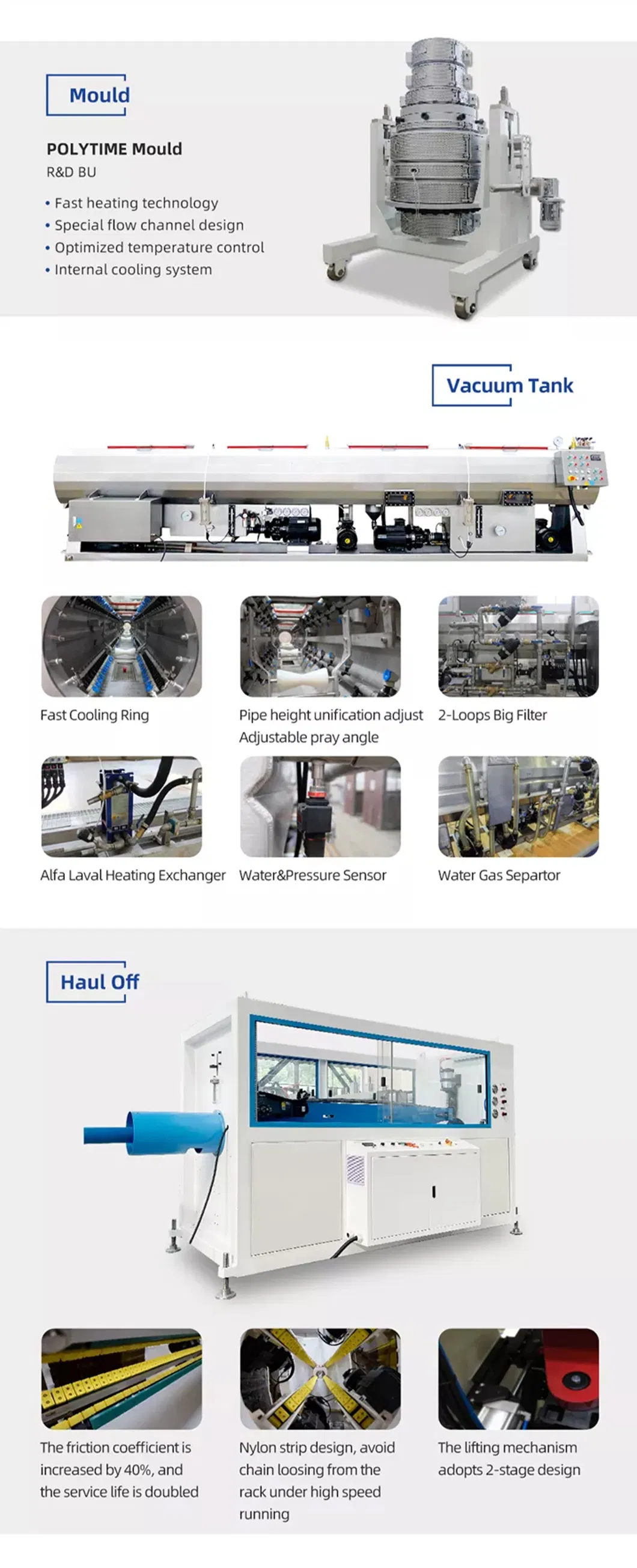

This Machine Group Consists Mainly Of Twin Conical(Paralle ) Screws Extruder, Vacuum Calibrating Tank, Haul-Off Unit, Cutting Unit, Tilter, Etc.

Single Screw Extruder And Haul-Off Unit Have Applied imported A/C Inverter, Both Vacuum Pump And Driving Motor Have Applied Excellent Products The Drawing Machine Includes Two-Claw Type, Three-Claw Type, Four-Claw Type, Six-Claw Type, Eight-Claw Type, Etc.

Saw Cutting Or Planet Cutting Can Be Applied, It Is Additionally Appled With Length Measuring Meter And Thickness Increasing Device,The Property Of Machine Group Is Reliable, The Production Efficiency Is High. With Special Device, It Can Produce Inner Wall Spiral Pipe, Inner Wall Hollow Pipe, And Core Layer Bulo Pipe, Etc, It Can Also Produce PP, PE, ABS,& PPR, PEX, Silicon Core Pipe And Pipe Material Of Other Material.

The Planet-Shaped Cutting Machine Is Fully Automatic Computer Digital Control, It Has Such Advantages Of
Simple Operation, Reliable Property Etc. It Has Reached World Advanced Level.

Mainly Applying In Water-Supply Pipe, Drainage Pipe, Electrical Threading Pipe And Other Area. This Extrusion Line, Equipped With High-Efficient& Energy-Saving Twin Conical Screws Extruder, Produces PVC Pipes Four Outlet At once By Specially Designed Die Mould Which Means High-Efficient Energy-Saving,Increasing Extrusion Speed, Economical Occupied Saving, And Low Human Cost.The Non-Scrap Cutting Unit Controlled By Inverter Independentl Arrangeable Cutting Speed, Compacted By Half To Ensure Long Service Life And Flat And Smooth Cutting Surface Without Dust Trouble. Special Designed Automatic Controlled System With Good Features Of Easy Operation, The Whole Line Linkage, Failure Alarms, High-Efficient Control, And Stable Extrusion.

Main extruderSJ Z 55SJ Z 65SJ Z 80 Pipe Diameter16-4020-6363-110 Down-stream equipmentGFS 40GFS 63GFS 110 Total Power60KW72KW110KW

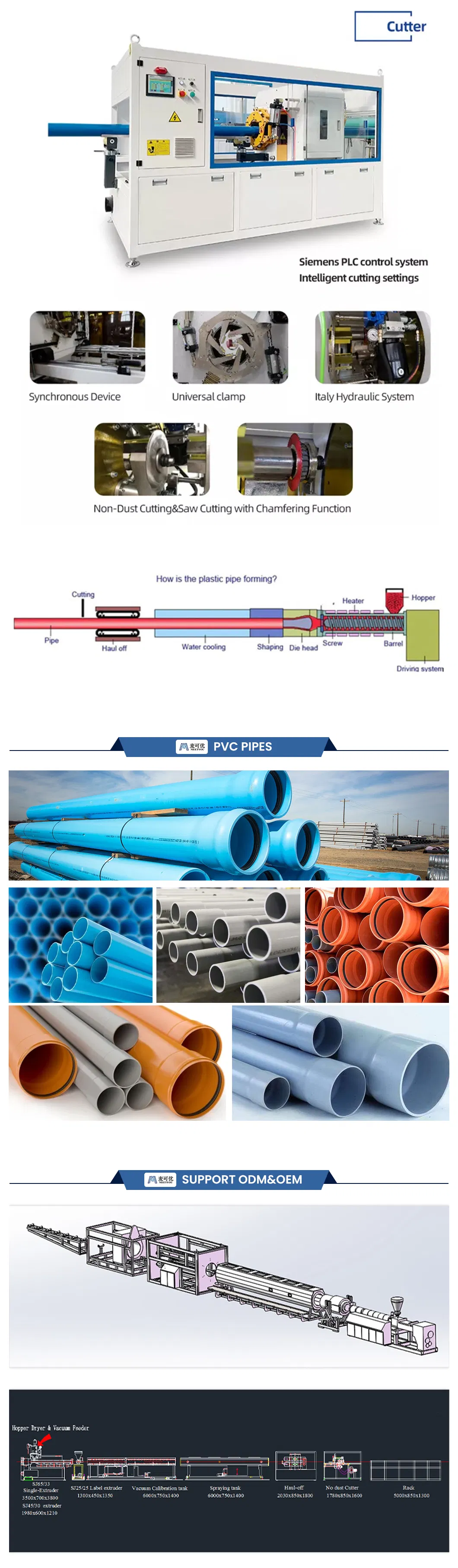

Cutting Machine
After Being Controlled By The Travel Switch According To The Required Length, Automatic Cutting Is Carried Out, And The Stand Is Turned Over With A Delay, And Flow Production Is Implemented. The Cutting Process Is Completed By Electric And Pneumatic Drives. The Cutting Machine Is Equipped With A Dust Suction Device To Suck Out The Cutting Debris In Time And Recycle.

Stirrer (Optional On Request)
Accept Finished Products And Turn Over Automatically

Flaring Machine (Optional Upon Request)
PIPE BELLING MACHINE
The Fully Automatic Pipe Flaring Machine Can Cooperate With The Pipe Production Line To Expand The Pipe online Or Separately. The Action Is Stable And Precise Without Damaging The Pipe Surface. The Flared Pipe Is Heated By An Oven, Omron Temperature Control Is Precise, The Man-Machine Interface Touch Screen, And The Performance Of The Electrical Control System Stable, Reliable And Trustworthy.

We know the quality is the life of our company. Our company insists to manufacture all machine units by ourselves in order to control quality strictly by our quality inspectors. To implement this concept, we have built our own tooling and CNC workshop. Even if some parts from our certified supplier, our quality inspector will check these parts before entering into our warehouse.Warmly welcome to visit our workshop, and sincerely hope we can have long term cooperation in near future!
