| Model NO. | Plastic Pipe Productuion Line |
| Automation | Non-Automatic |
| Computerized | Non-Computerized |
| Certification | CE, ISO9001:2008, QS, GMP |
| Customized | Non-Customized |
| Condition | New |
| Product Name | Plastic Pipe Extrusion Production Line |
| Keywords | PP Pprt PE Pert Pipe Extrusion Line |
| Pipe Diameter Range | 200mm |
| The Types of Pipes That Can Be Produced | PE /PPR /Pprt Pipe |
| Main Accessories 1 | Stainless Steel Vacuum Calibrator |
| Main Accessories 2 | Vacuum Calibration Box |
| Main Accessories 3 | Tractor |
| Main Accessories 4 | Cutting Machine |
| Main Accessories 5 | Stirrer |
| Main Accessories 6 | Automatic Winder |
| Screw Design | Single Screw Extruder |
| Suitable for | Extrusion Production of PE, PPR, Pert Plastic Pipe |
| Transport Package | Customized |
| Specification | Customized |
| Trademark | MEETYOU MACHINERY |
| Origin | Jiangsu, China |
| Production Capacity | 500 Set / Month |
MEETYOU MACHINERY PPR Pipe Machine Plastic Production Line China PVC Pipe Machine Production Line Suppliers Wholesale PVC Pipe Making With Price
PE pipe production line
It is composed of vacuum sizing box, tractor, cutting machine, turning rack and so on. Chipless cutting, saw blade cutting or planetary cutting can be selected, the unit has reliable performance and high production efficiency.
- Customized processing according to customer requirements
- Composite production needs, high degree of specialization
- One year warranty, lifetime service
- High precision screw design
- Frequency conversion control system design
SINGLE SCREW EXTRUDER
Single-screw extruders are simple in design and cheap, so they are widely used. It is suitable for the extrusion production of PE, PPR, PERT plastic pipes, plates and profiles.
EXTRUSION DIE
After compaction, melting, mixing and homogenization of PE, the subsequent materials are pushed to the die head through the screw,
Extrusion die is the key building part of pipe forming.
VACUUM CALIBRATION TANK
For shaping and cooling of pipes, the vacuum setting water tank is equipped with a vacuum system for shaping and cooling
And water circulation system, stainless steel box, circulating water spray cooling, vacuum setting water tank is equipped with front
Rear moving device and left and right, height adjustment manual device.

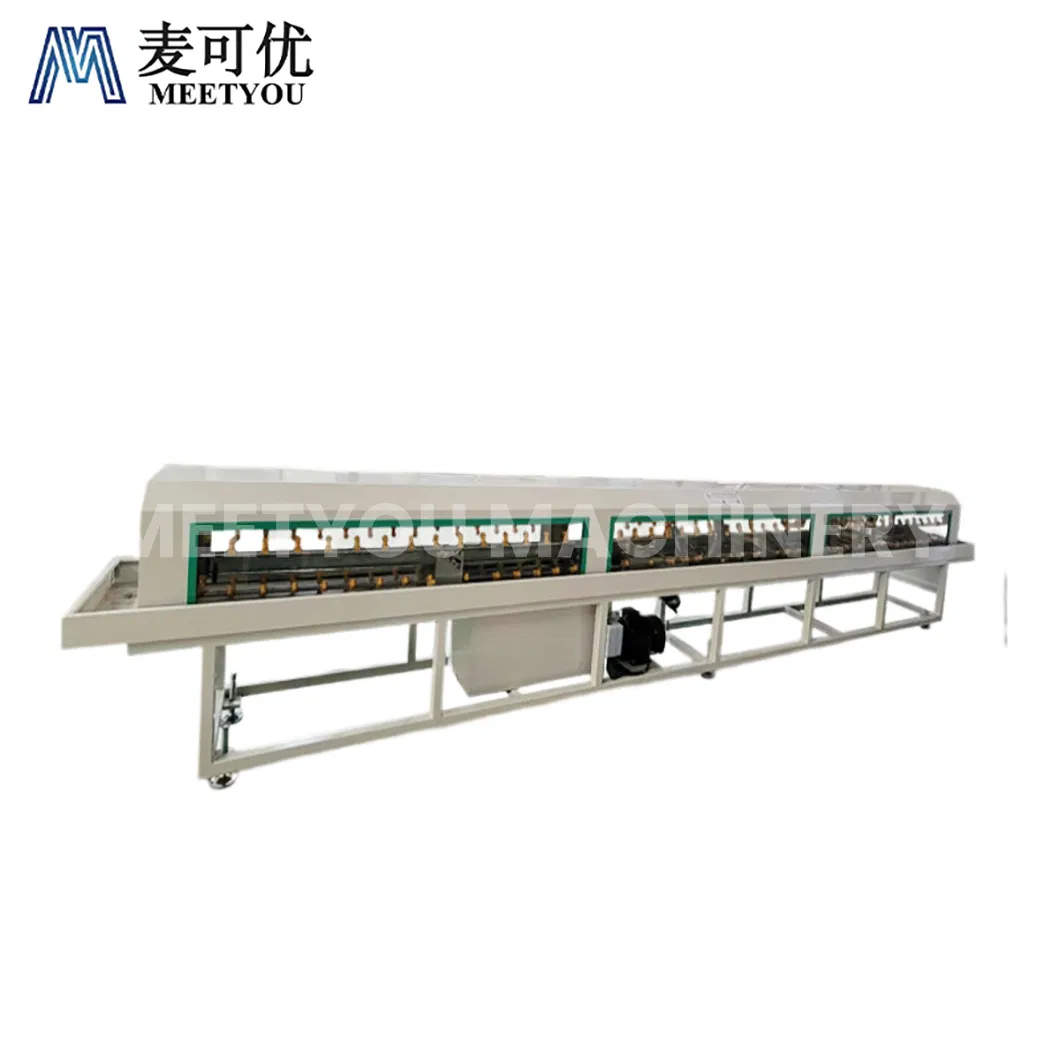

SPRAY COOLING BOX
It is mainly composed of a sink, a rack, an up and down lifting mechanism, and a stainless steel water tank.
The cooling water is atomized and sprayed from the special nozzle through the water pump, so that the product can be obtained
To 360 degrees all-round cooling.
TRACTOR
It is used to continuously and automatically lead the cooled and hardened pipes out of the machine head, and the speed is adjusted by frequency conversion.
CUTTING MACHINE
After being controlled by the travel switch according to the required length, it will automatically cut and turn over with a delay.
Implement flow production and cutting process is completed by electric and pneumatic drive, the cutting machine is equipped with dust suction
The device can suck out the cutting debris in time and recover them.
TURNOVER RACK (optional upon request)
Accept finished products and turn over automatically
AUTOMATIC WINDING MACHINE(optional upon request)
This machine is equipped with two alternate winding discs to ensure the continuity of production, suitable for plastic winding packaging,
Self-winding. Pneumatically open or close the baffle, and equipped with a polished rod cable puller,
Automatic wiring, easy to operate.
