| Model NO. | pipe machine |
| Screw No. | Single-screw |
| Automation | Automatic |
| Computerized | Computerized |
| Certification | ISO9001:2008, QS, SGS |
| Customized | Customized |
| Condition | New |
| After-sales Service | 1 Year |
| PE Pipe Diameter | 20-110mm |
| Pipe Layers | ABC |
| Pipe Layers Percentage | 10% -80%-10% |
| Pipe Name | PPR Pipe Making Machine |
| PPR Pipe | Plastic PE PP Pipe Extrusion Production Line |
| Pipe Speed | Max25m.Min |
| Transport Package | Film Package by Container |
| Specification | 20-110mm |
| Trademark | wangyuan |
| Origin | China |
| HS Code | 8477800000 |
| Production Capacity | 100 Sets |
China High Performance Three Layers HDPE PPRC Pipe Making Machine 20-110mm PPH pipe extrusion line
Three layers composite ppr/pvc pipe making machine extrusion production line
PP PE pipe extruder/PE pipe production line /HDPE pipe making machine
HDPE Water And GasTube PPR Pipe Making Machine
High Efficiency PE PPR HDPE Drip Irrigation Agriculture Water Gas Supply Pipe Single Screw Extruder Extrusion Making Machine
HDPE Plastic Pipe Machine
HDPE Pipe Production Line
PP PPR PE PVC HDPE Tube Extrusion Line Rubber Hose Water Round Pipe Extruder Machine Manufacturer
PVC Pipe Machine
Pipe Processing Machines
PE Pert PPR Hot and Cold Water Pipe Making Machine Production Line Pipe Plastic Extrusion Extruding Extruder Machine
High Speed Automatic Plastic HDPE PE PPR Water Cable Pipes Extruder Extrusion Making Machine
HDPE Pipe Extrusion Line
Equipment for The Production of PE Pipes
HDPE/PPR Plastic Water Supply Pipe Production Machinery
Plastic Extruder
Pipe Extruder
Plastic PPR / Pert PE PVC Pipe Making Extruder Production Line / Extrusion Machine
Plastic Machine
Plastic Pipe Extruder
PPR/Pert Pipe Production Extruder Line HDPE/PE/PP/PVC Water Supply/Drainage Pipe Extruding Machinery
Plastic Single-Layer Multi-Layer Drainage/Sewage/Pressure/Gas/Water/Electrical Protection Pert PP Mpp PP-R PPR PVC HDPE PE Pipe Extrusion Machine
qingdao cuishi plastic machinery make the pipe line since 1999
professional manufacturer for 20-110 PPR PE two layrs/three layers pipe production line making machine
Plastic PPR, HDPE, PE, UPVC Electric Water Conduit Pipe Tube Extrusion LineDurable PE PP PP Pert PPR Plastic Hot Cold Water Pipe Making Machine Extrusion Production Line
PP-R/PE-Rt/PE Pipe Production Line
PP-R/PE-Rt/PE Pipe Plastic Production Line
PE Plastic Carbon Fiber Pipe Production Line
Plastic Carbon Fiber Pipe Line
PE Pipe Production Line
pp pe one layer or two layers or thress layers pipe making machine

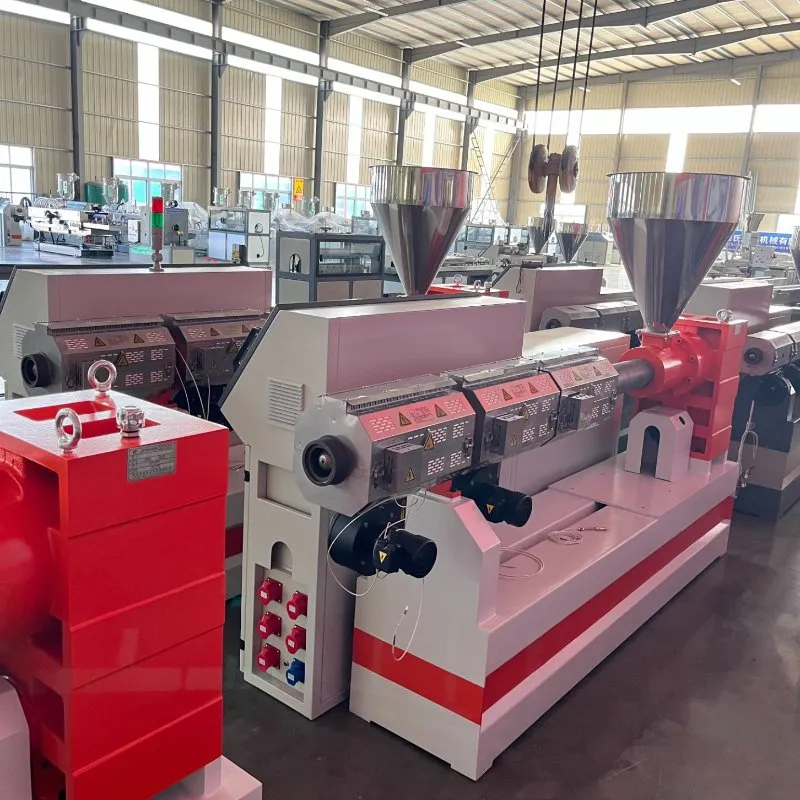

high efficiency single screw extruder advatages:
- The extruder has the following advantages: high plasticization rate, uniform melt and continuous production stability. High performance gearbox reducer. High torque, long life and low noise.
- servo permanent magnet motor saves 25% power
- Siemens PLC control
- Frequency conversion control of vacuum sizing box, saving 30-40% of electricity

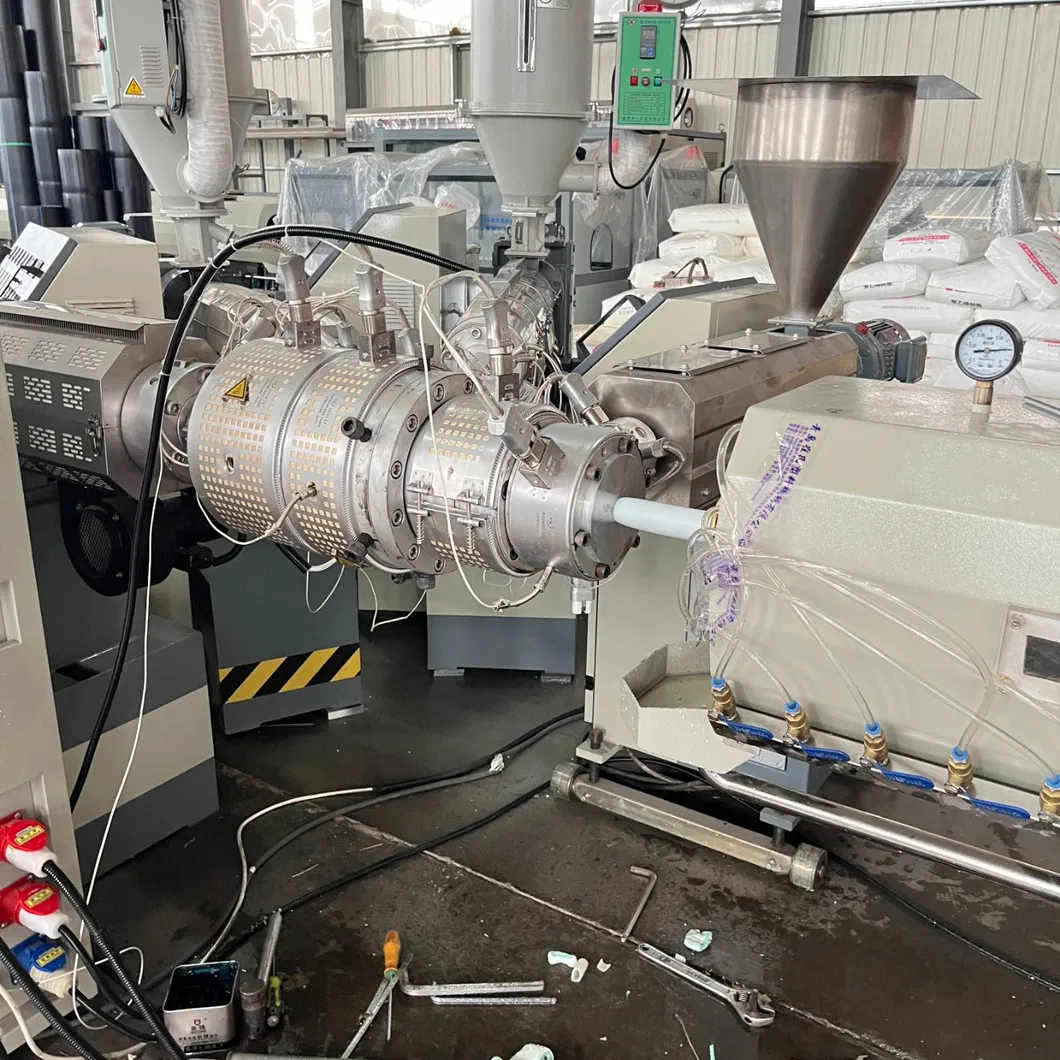

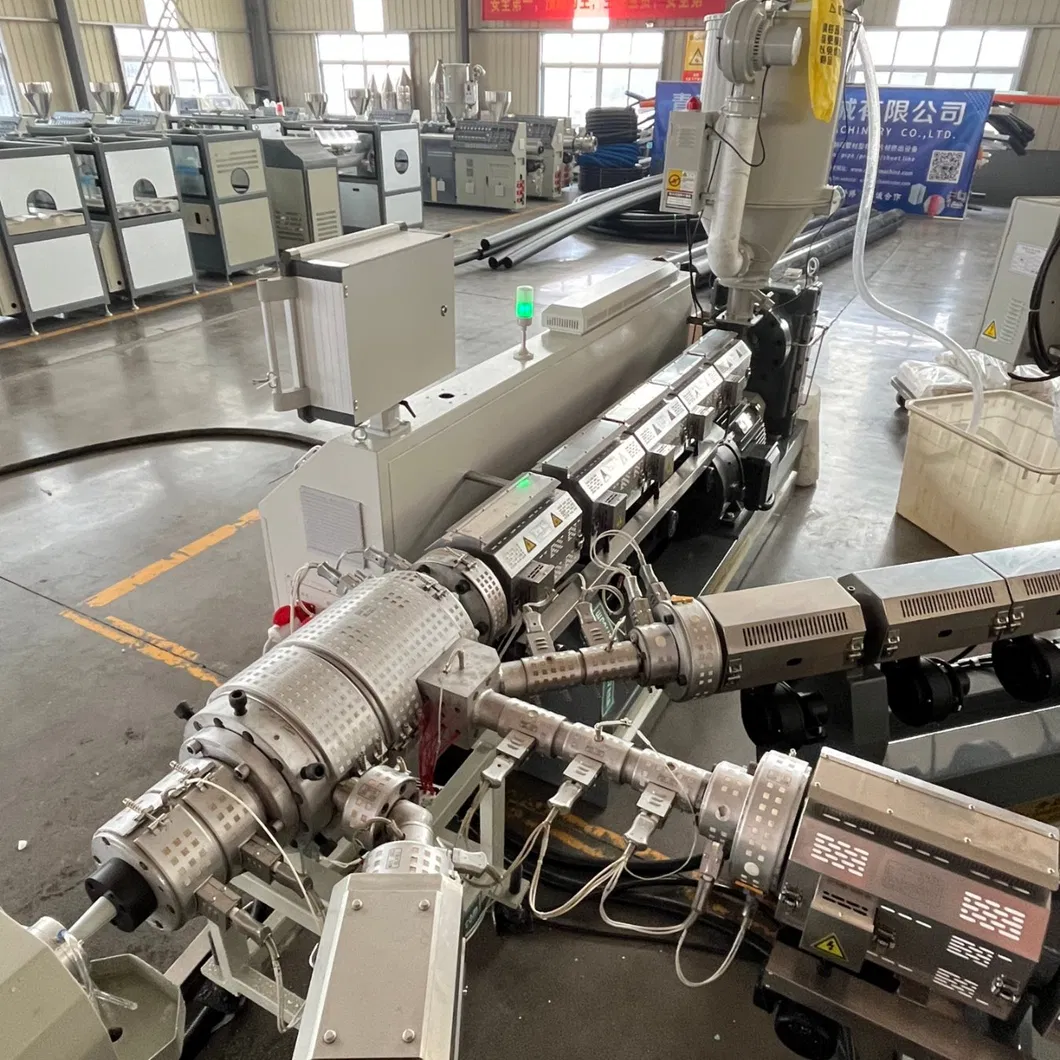

- The inner and outer layers are separated by two 65 extruder, this way can better control the layering. also be used for different purposes, such as three layers of different materials or different colors.
(55KW motor ,ABB/Delta inverter ,siemens contactor ,ORMON /DELTA Temperature control meters with output 200kg/h
air cooling type water chiller with compressor Panasonic
HDPE|PE|PP|PPR|CPVC/LDPE Conduit Tube/ Water Sewage Pipe Extrusion Production Line
PE pipe production line is primarily used in the manufacturing of PE pipes with diameters ranging from 16mm to 1200mm. The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation. This line also excels in the production of anti-flammable and anti-static electricity pipes using a two- or three-layer spiral mold for use in mining industries. Pipes produced feature even wall-thickness and perfect roundness. Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.
China High Quality Factory Single Screw Extruder HDPE/PPR Plastic Pipe Making Machine for Water&Drainage&Electric Conduit Plastic Pipe Making Machine
PVC Pipe Machine
Pipe Machines
HDPE Pert PPR Plastic Pipe Extrusion/Extruder Extruding Line High Speed Extrusion Energy Saving Stable Making Machine
PPR Pipe Making Machine
PPR Pipe Extruder
63mm Welding Machine for PPR Pipe /Heat Gun
PPR Pipe Welding Machine
Tube Welding Machine
PVC/HDPE/PP/PPR/Pert Pipe Extrusion Line /Plastic Extruder Pipe Making Machine /Drip Irrigation/Conduit Cable/Layflat/Sewage Pipe Machine
Plastic Machine
Pipe Extrusion Machine
Plastic PVC UPVC PPR HDPE Pipe Fitting Making Injection Molding Moulding Machine Price for PVC Fitting
Machine
Plastic Injection Machine
pp pe one layer or thress layers pipe making machine
extrusion mold advatages:
- High-speed molds and sizing sleeves
- The inner and outer layers are separated by two 65 extruder, this way can better control the layering. also be used for different purposes, such as three layers of different materials or different colors.
Plastic PE/PP/PPR/HDPE/LDPE Water& Electric Conduit Pipe/Tube Extrusion/Extruding Making Production Line Machine
Plastic PE PP PPR Extruder Machine, Single Screw Extruder ManufacturerQingdao cuishi Plastic machinery Co.,Ltd is a proffesional manufacturer for plastic extruder machinery production.
We could produce various pp pe pvc extruder machine, like plastic pipe extruder, pp meltblow fabric extruder, pp sheet / pp strap extruder etc.

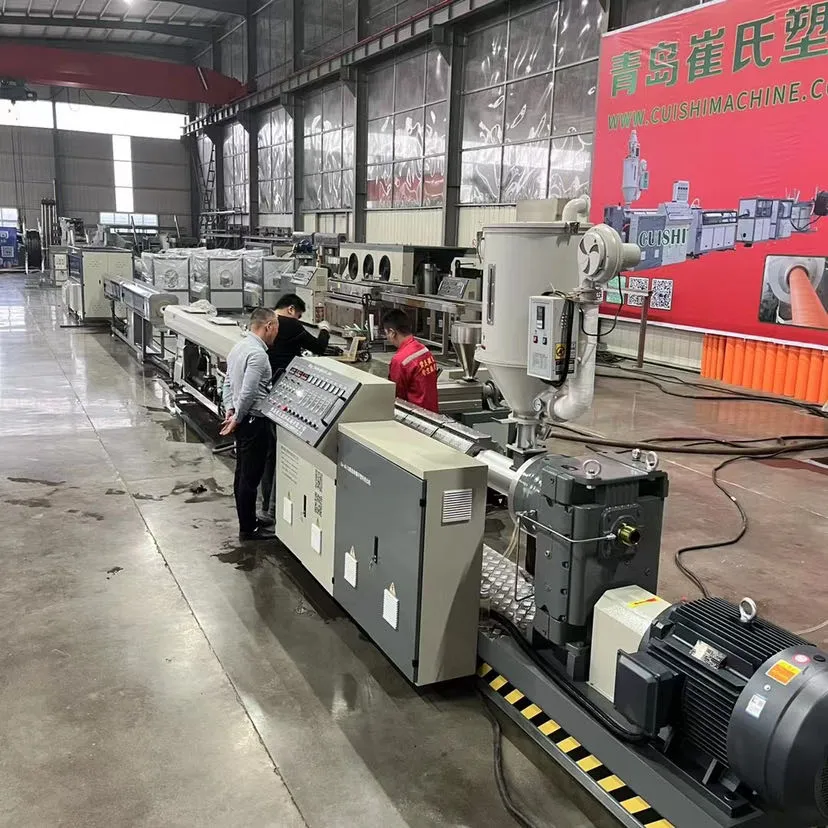

PPR PE pipe production/extrusion line / PPR PE pipe making machinery is used to produce PPR pipes for cold and hot water supply in house. It's composed of vacuum feeding machine, hopper dryer, single screw extruder, mould, make line co-extruder, vacuum calibration and cooling tank, extended spraying cooling tank, haul off machine, printer, cutter and stack bracket.
The optimum spiral structure-feeding throat highly improves the output of extruder;
Accurate temperature control system ensures materials melting performance;
Unique screw design achieves better plasticizing and high-quality products;
Precisely designed gearbox with a high torsion guarantees stable running;
"H" shape frame to decrease vibrating of extruder;

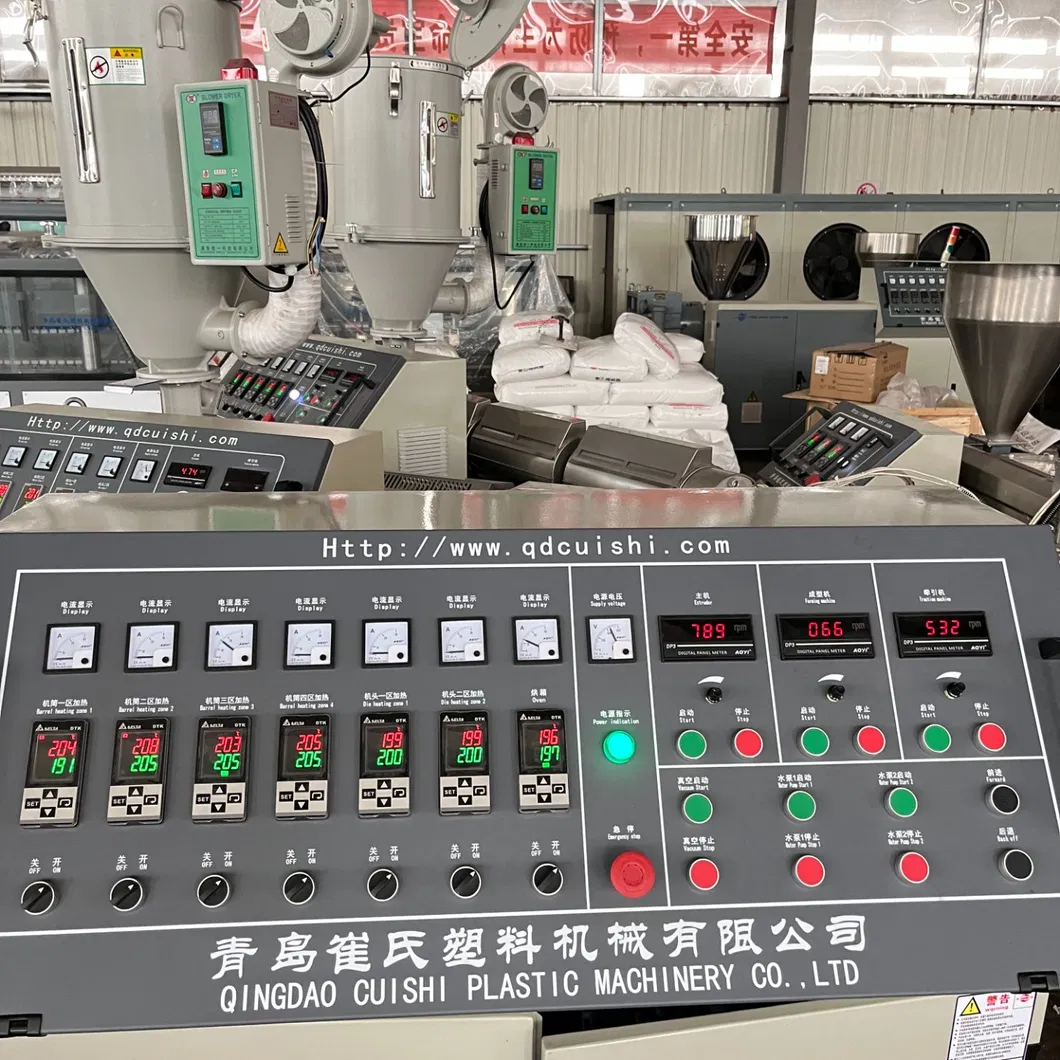

Advanced PLC operation system realizes synchronization and automation;

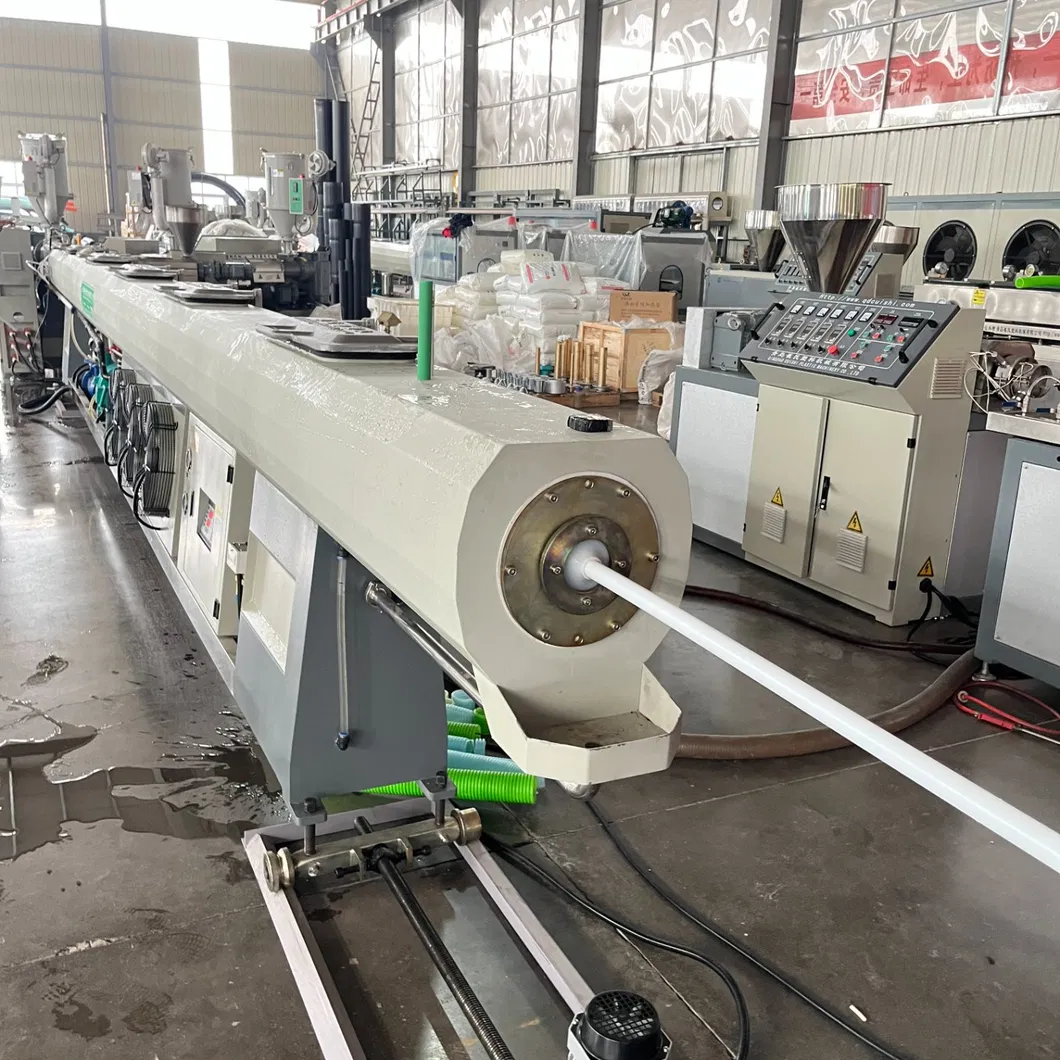

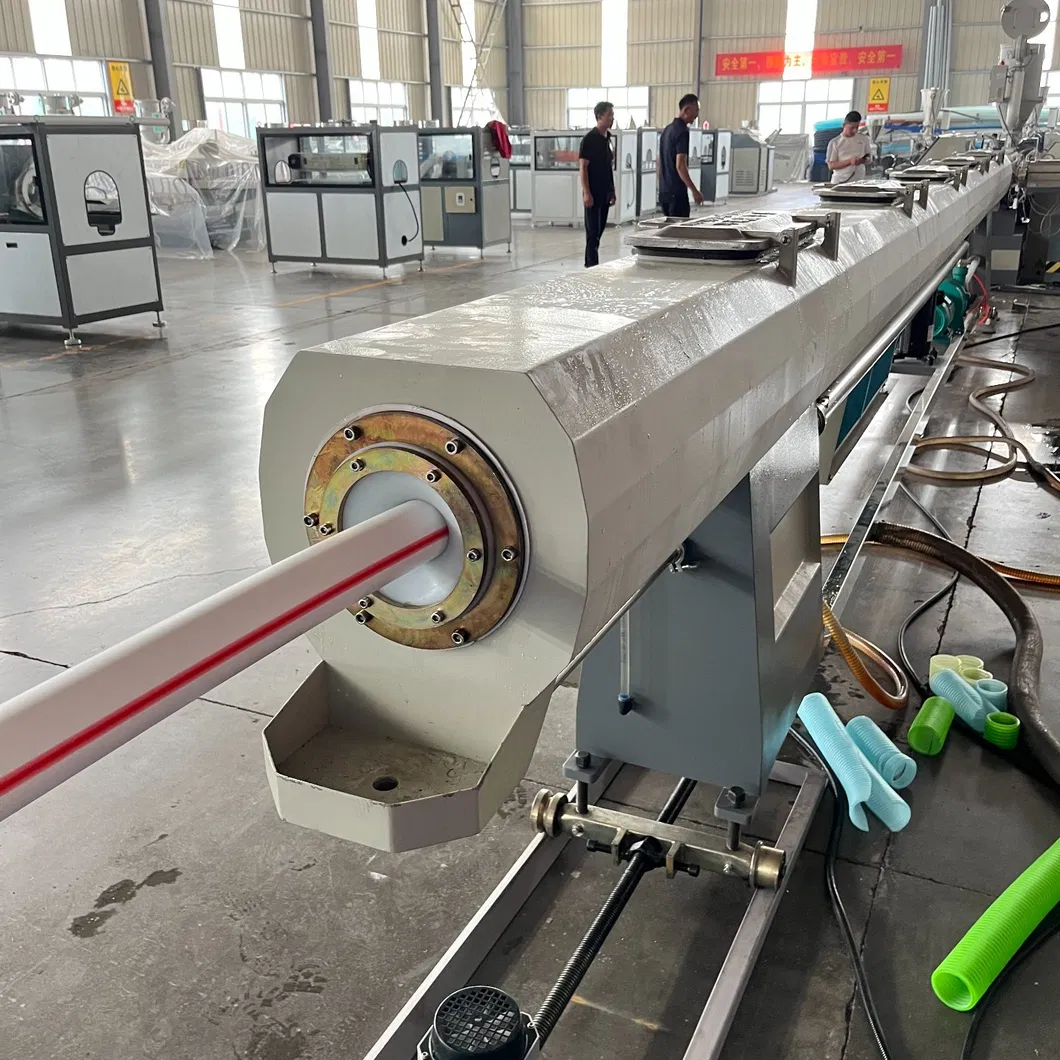

Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks;

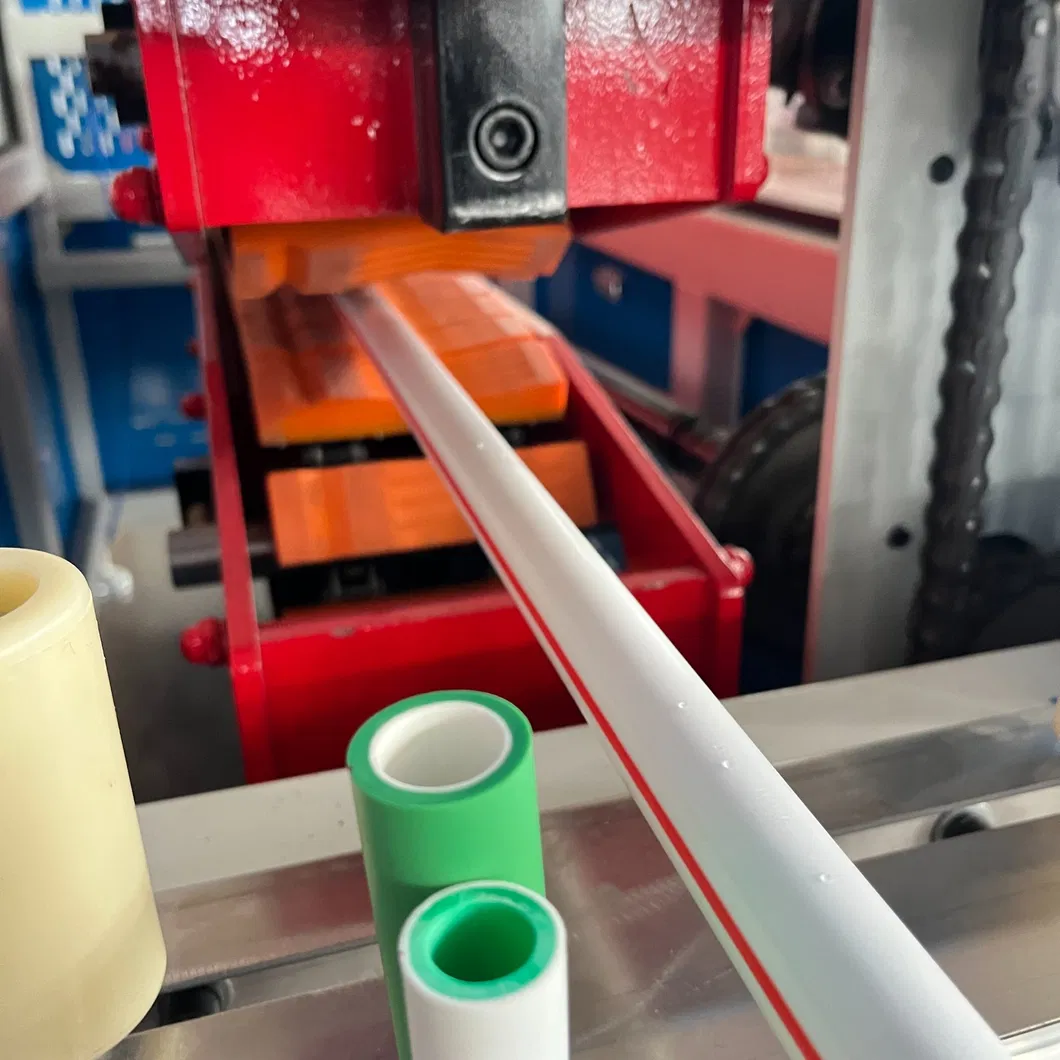

Offer stable haul-off unit with 2-12 caterpillars;
Provide saw & chip-free cutting options;
Low energy consumption, excellent performance, and easy maintenance.
Main advantages:1. Barrier type screw, by which the material can get good plasticizing at low temperature but high extrusion output.
2. Barrel with feeding groove, material is 38CrMoAl and nitrogen treated, surface hardness is HRC 65-68, which can has a long use life.
3. Millipore type mould with suitable inner compression ratio which can guarantee to produce high quality PPR PE pipes.
4. High automatic level. The production line is controlled by PLC(touch screen). All parts, like extruder, haul off unit, cutter
etc can be controlled by touch screen synchronously.
The characteristics:
1. Installed with imported termo controllers, imported inverters or converters.
2. Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
3. For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.
4. Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.
5. We also can provide a variety of exhaust-type extruder.
pp pe one layer or thress layers pipe making machine
extrusion mold advatages:
- High-speed molds and sizing sleeves
- The inner and outer layers are separated by two 65 extruder, this way can better control the layering. also be used for different purposes, such as three layers of different materials or different colors
Model
Pipe Diameter(mm)
Extruders
Capacity(kg/h)
Total Power(kw)
Length(m)
PE-63
16-63
SJ65/30 SJ25/25
100
75
30
PE-110
50-110
SJ90/30 SJ25/25
150
130
30
PE-160
63-160
SJ90/30 SJ25/25
200
150
35
PE-250
110-250
SJ75/33 SJ25/25
450
180
40
PE-315
160-315
SJ75/38 SJ25/25
600
200
45
PE-450
215-450
SJ120/33 SJ30/25
500
300
50
PE-630
315-630
SJ150/30 SJ30/25
600
330
50
PE-800
400-800
SJ150/33 SJ30/25
800
400
56
PE-1200
630-1200
SJ150/33 SJ40/25
1000
550
56
Plastic Twin/Single Extruder/Extrusion PVC PE PPR PP HDPE Pipe Agriculture Water/Gas /Drainage/ Water Supply Pipe Line/extrusion line
HDPE Plastic Water Supply Pipe Making Machinery adopt high speed extruder with high efficient,energy saving. The extruder have water recycled inside with metering material loading device;
The single-screw extruder and the traction machine adopt imported AC frequency conversion speed regulating device, and the vacuum pump and traction motor are all made of high quality products. The tractor is driven by two claws, three claws, four claws, six claws, eight claws, ten claws, and twelve claws. Available with chipless cutting, saw blade cutting or planetary cutting, the unit has reliable performance and high production efficiency.Single Screw Extruder big capacity
There is 45/33,65/30,65/33,75/30,75/33 SJ75/38 ... etc extruders according diameters and ouput.
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality pipe extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel>940, the surface of screw is chromeplated Feeding bush with water cooling system
Pipe Extrusion Die head
The die head is made by 40Cr moulds materials.
Using mica heating way
Water Pipeline HDPE / LDPE Pipe PE HDPE LDPE LLDPE Plastic Pipe Manufacturing Line
Products Features
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient is only 0.009;
6. Long service life, up to 50 years;
7. Good hygiene and environmental performance;
8. Better resistance to slow crack growth (SCG) and rapid crack propagation (RCP).
This Plastic PPR, PE, UPVC Electric Water Pipe Extrusion Making Machine is mainly used to produce agricultural/water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc. This PVC pipe extrusion line adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
PVC pipe making machine production line is consist of SJZ series conical twin screw extruder, mould, vacuum cooling tank, spray cooling tank(for big size pipe), haul-off machine, cutting machine, stacker, etc. It also need some auxiliary machinery. For example, hot&cooling mixer, crusher, milling machine, belling machine, etc. The hot&cooling mixer is necessary, others is optional
Plastic Pert HDPE PPR Hot/Cold Water and Drainage Pipe/Tube Extrusion Making/Machine
Warranty:1 year.
You just tell me what machine you want,let us do the rest work:
1. Design and manufacture suitble machine for you.2. Before delivery, we will test the machine until you are completely satisfied. (You can come to our factory to inspect
the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Field installation and commissioning;
(2) Field training your workers;
(3) Field maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/online technical support.
