PE/PPR pipe three layer co-extrusion production line

630-1200mm High Efficiency Two-Layer or Three-Layer five layers pipe machine /PE/PPR Pipe Extruder Production Line

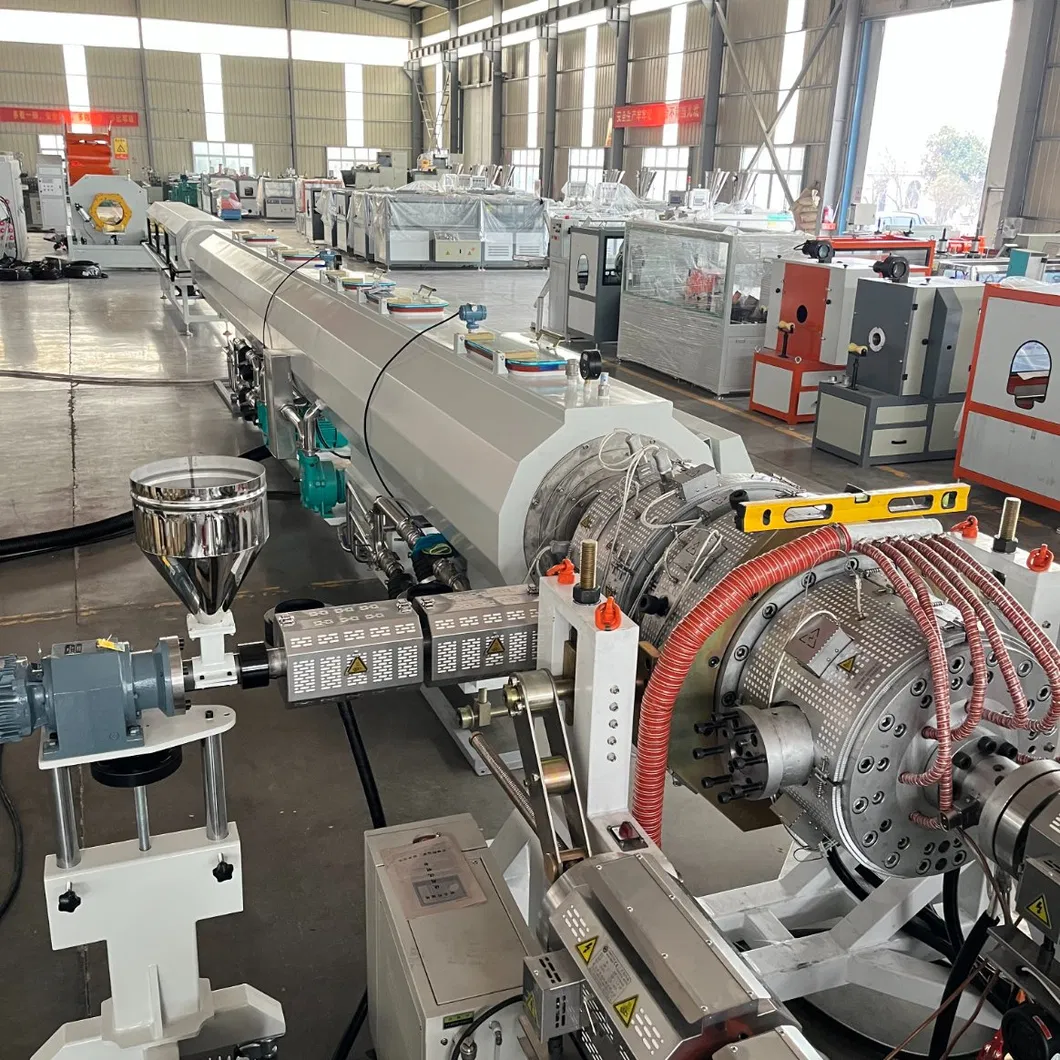

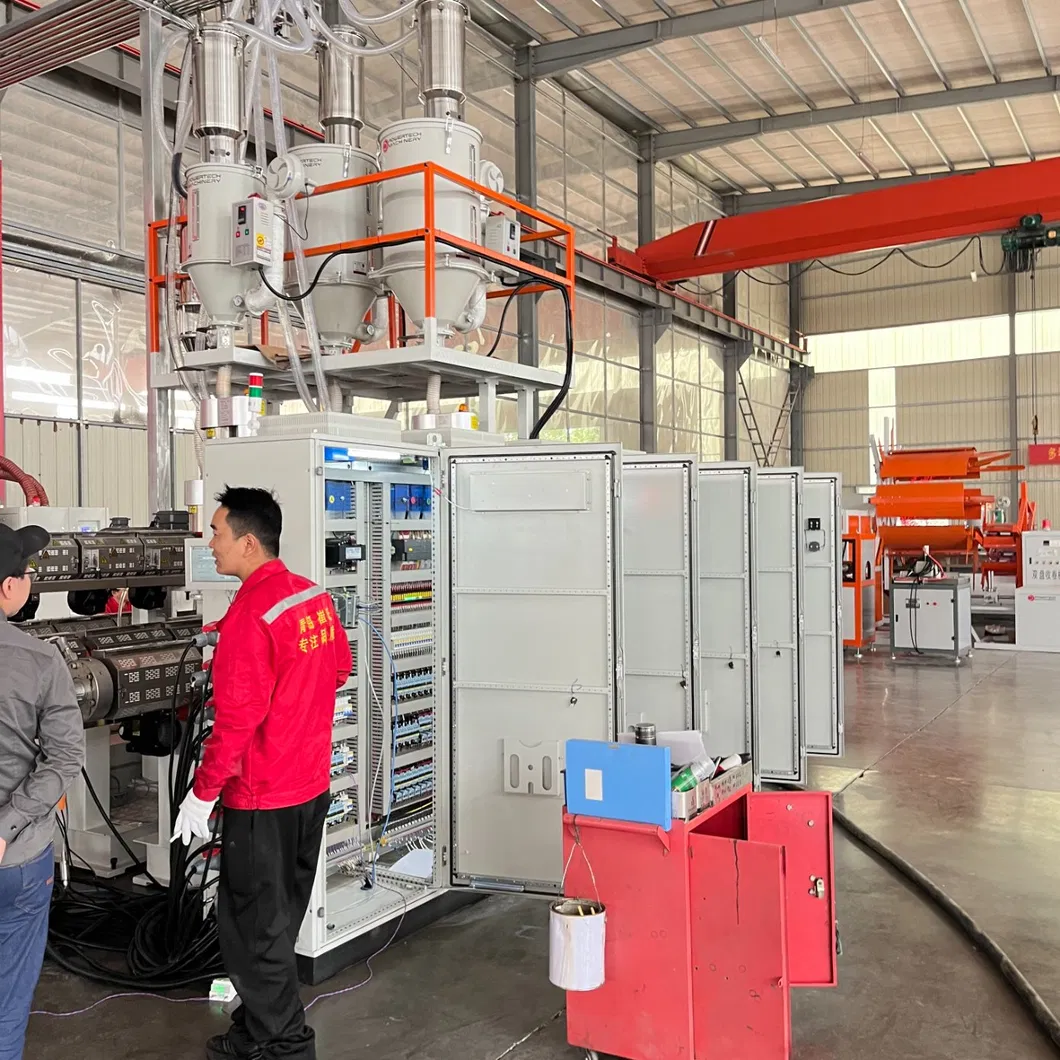

HDPE three-layer co-extrusion gas pipeline extrusion equipment is composed of extruder, die, calibration unit, cooling unit, haul-off unit and cutting unit. The extruder is used to melt and extrude the HDPE resin, and the die is used to shape the pipe. The calibration unit is used to calibrate the diameter and thickness of the pipe, and the cooling unit is used to cool the pipe. The haul-off unit is used to pull the pipe, and the cutting unit is used to cut the pipe into specified lengths.
The advantages of HDPE three-layer co-extrusion gas pipeline extrusion equipment are as follows:
1. High production efficiency: The equipment adopts advanced extrusion technology, which can produce pipes at high speed, thereby improving production efficiency.
2. Good quality: The equipment adopts high-quality extruders and molds, which can ensure the quality of the pipes.
3. Energy saving and environmental protection: The equipment adopts energy-saving motors and frequency converters, which can reduce energy consumption and noise.
4. Easy operation: The equipment adopts PLC control system, which can realize automatic control and easy operation.
5. Wide application range: The equipment can produce pipes of different diameters and thicknesses, which can be widely used in gas, water, and other fields.

This production line adopts the most advance technology of Europe , It is a new research achievement of energy - saving production line . which is suitable for high speed extrusion of HDPE , PP and other polyolefin pipe . compared with cornmon production line , the energy - saving effect reach on 35%, and the product efficiency increase more than 1 times , thus it is not only saving the cost of site and manpower , but also improving efficiency . This production line has nice appearance . higher automatical degree , production reliable and stable .

Pipe Extruder Water Gas Energy Supply Polyethylene Double Triple 3 Layers HDPE LDPE Pipe /PE Tube Production Machine Plastic ExtrudersHDPE pipe Extrusion Line Application: Agricultural Irrigation Water Pipe&Sewage Drainage pipe&Gas supply Pipe Production Flow: Material →Color Mixer →Material Feeding →Single Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → Spray Cooling Tank →Printer → Haul-off Unit →cutter →stacker or Coiler Equipment Features: 1. 25m/min of maximum lineal extrusion speed, big capacity and low power consumption, and achieved multi- layers co extrusion
Unique design with 1-3 layers.
2. Unique design (barrier,shearing and mixing zone) guarantees a uniformed plasticizing effect, and can reduce the pressure on the screw which guarantees a high speed and smart figuration, compact stable output capacity.
3.High torque gear box has a smart figuration, compact construction, low noise, high carrying capacity, high transmission efficiency can assure long-time trouble-free operation.
PP-R pipe extrusion production line making machine is developed based on European advanced technology and R & D experience of the plastic machinery for many years. Advanced design, reasonable structure, high reliability, high degree automation of the complete line.

110-450mm plastic HDPE pipe extrusion production line PE tube making machine

1:This HDPE pipe production line is mainly used for producing water supply pipe and drainage in the field of agriculture and construction, cable etc.

2:The HDPE pipe has the excellent features of good flexibility, corrosion resistance, light weight, aging resistance and so on. It is becoming as a replacement of cement pipe, cast iron pipe and steel pipe, which is widely used in the fields of municipal water supply, city gas delivery and so on. PE pipe is widely used in:
(1). Gas& oil transmission and distribution pipe line
(2). Urban and rural drinking water pipeline
(3).Sewage drain pipe
(4). Liquid material conveying pipeline in chemical industry, food, pharmacy, papermaking
(5).Agricultural irrigation pipe
(6). Post and telecommunication line, electric cable protection casting pipe, etc.

PVC Pipe.

1. It has good tensile and compressive strength: but its flexibility is not as good as other plastic pipes.

2. Low fluid resistance: The wall of PVC-U pipe is very smooth and has little resistance to fluid. Its roughness coefficient is only 0.009. Its water delivery capacity is 20% higher than that of cast iron pipes of the same pipe diameter and 40% higher than that of concrete pipes.

3. Excellent corrosion resistance and chemical resistance: PVC-U pipes have excellent acid resistance, alkali resistance, and corrosion resistance, and are not affected by damp water and soil pH. No anti-corrosion treatment is required when laying pipelines.

4. Anti-bite: PVC-U tube is not a source of nutrition, so it will not be corroded by rodents. According to a test conducted by the National Sanitation Foundation in Michigan, rats will not bite PVC-U pipes.

5. It has good water tightness: the installation of PVC-U pipes, regardless of whether it is connected by bonding or rubber ring, has good water tightness.

6. Performance test: curing time, shrinkage, splitting strength, tensile performance, peeling strength, thermal stability, pot life, storage period, release of harmful substances.1 set of SJ65/33 single screw extruder
ppr pipe extrusion line    ppr pipe making machine price

Model

Pipe Range (mm)

Output Capacity (kg/h)

Main Motor Power (kw)

PE63

16 - 63

150 - 300

45 - 75

PE110

20 - 110

220 - 360

55 - 90

PE160

50 - 160

300 - 440

75 - 110

PE250

75 - 250

360 - 500

90 - 132

PE315

90 - 315

440 - 640

110 - 160

PE450

110 - 450

500 - 800

132 - 200

PE630

250 - 630

640 - 1000

160 - 250

PE800

315 - 800

800 - 1200

200 - 355

PE1000

400 - 1000

1000 - 1500

250 - 355

PE1200

500 - 1200

1200 - 1800

355 - (250×2)

PE1600

710 - 1600

1800 - 2400

(250×2) - (355×2)

PE2000

800 - 2000

2400 - 3000

(355×2) - (355×2+160

Screw,barrel design and manufacturing
Screw and barrel material:38CrMoAlA,nitriding treated
Exclusive screw for PE material make sure good plasticizing effect
adopt original famous electric components with high steady running quality .
Gearbox: high torque, low noise, hard gear tooth face dedicated extruder gear box
Self protective system:
 Over current protective of motor
Over pressure protective of screw

General descriptionMain electric elements     OutputAround 200kg/h Connect type of extruder and mould Bolt connection AdvantagesMain parts adopt top-rank brand
Strict real time quality control Screw Diameter(mm)65mm L/D33/1 Material 38CrMoAlA, Nitrogen treated HeatingCasting aluminum heater with stainless steel outer cover Heating segments 5 zone Heating power30kw
Barrel Barrel type With feeding groove; Water cooling inlet orifice Cooling Cooling by blower,
temperature control accuracy: ±1ºC Cooling segment 5 segments Material 38CrMoAlA, Nitrogen treated Drive and
Transmission systemMain motor power(KW)45kw motor brand  Speed adjusting mode of main motorVariable frequency conversion Rotating speed of main motor (r/min)1500r/min Gear boxHard gear tooth face
Low noise design

Material of gear: 20CrMnTi

ItemDescriptionUnitRemark New type calibrator make sure good cooling effect and high speed extrusion
  1Diameter range(OD)mm20-110mm 2Wall thickness /as per customer's request 3Mould material/40Cr 4Material of the calibration Bushing/Stannum Bronze copper

NODescriptionUnitRemark automatic water level control
electric cabinet with water-proof protection  forceful concentrated spraying water cooling with good cooling effect
vacuum pump and water pump adopts intelligent pump with self protection function
Perfect pipeline design can keep nozzle unblocked Function: calibrate the outer diameters and cooling pipe primarily 1Length of the tankmm6000 2Material of water tank stainless steel, SUS304 3Sizing bushing material Stannum-bronze 4Cooling Mode Spray-pouring cooling 5Pouring areas 4 6Water Pump PowerKW1.5kw×2sets 7Vacuum Pump PowerKW4kw×1set 8Vacuum DegreeMpa-0.03-0.05 9Motion Range of
Forward and backwardmm±600, motor drive 10Up-down Adjusting Rangemm±50, by manual

NODescriptionUnitRemark   1Water tank lengthmm6000 2Material of water tank/Stainless steel, SUS304 3Cooling mode/Spray-pouring cooling 4Water pump powerKw1.5kw×1set 5Height adjusting/±50mm by manual

NODescriptionUnitRemark
Pneumatic clamping, variable frequency speed adjusting adopt famous brand cylinder Function: haul off PE pipe stably and synchronal with extruder speed 1Available pedrail lengthmm1400 2Clamping  Mode Pneumatically 3Speed Adjusting Mode Frequency Conversion 4Hauling Motor PowerKW1.5kw*2set 5Hauling Speedm/min0.5~8

NODescriptionUnitRemark PLC control,automatic dust free cutting, with meter counting function
Saw blade adopts carbide blade
  Function: cut HDPE pipe in fixed length 1Cutter type  Automatic meter counting cutter 2Suitable cutting pipe diameter  20-110mm 3Cutting speed Synchronization, automatic cut in fixed length 4Motor powerKW2.2 5Material of Cutting Saw Alloy steel 6Clamping Mode Pneumatically Drive 7Cutting Control PLC control 8Maximum cutting thickness mm18 9Suitable cutting speed m/min12

ItemDescriptionUnitRemarks 1Length mm6000 2Discharge /Pneumatic Note : if you need PE pipe winder ,then please advise us
