Model NO.	10048-488
Material	HDPE
Kind	Thermosetting Plastics Pipe
Water Absorption	＜0.01%
Contraction Percentage	＜0.4%
Tensile Strength	81~130MPa
Product Name	Series Double-Layer Oil Transmission Pipeline Two
Size	50/63
Color	Black /Green
Temperature	-40ºC~ +50ºC
Package	as Customer Requirement
Transport Package	Plastic Bag
Specification	75mm
Trademark	Jiasheng
Origin	Xuzhou
HS Code	8413110000



single-layer elbow
A single-layer elbow commonly used for connection pipe fitting when installation.
It is used to connect two pipes of the same or different nominal diameters, to make a certain angle turn of the pipe to change the
direction of the pipe. The characteristics of single-layer bent pipe are high temperature resistance, aging resistance, high
strength and good flexibility. In addition its electrical insulation, corrosion resistance, flame retardant are better than other
pipes. The product can protect high-voltage power cables buried underground, and is an ideal protection product for the laying of
urban and municipal construction cables.

Double-layer elbow
Double-layer elbow used high technology which we import from American. It makes the product wall have high-strength (55-63HRC) and
high wear-resistant layer (1.8-2.5mm). while the surface has High resistance to plastic opening ability, so that this product is
the result of technical combination of high strength, high wear resistance and high toughness.
The double-layered elbow have high comparative advantage compare with other similar products. The service life of our product is 3
to 4 times that of the ordinary elbow pipe, thereby greatly saving cost and time for our customers.

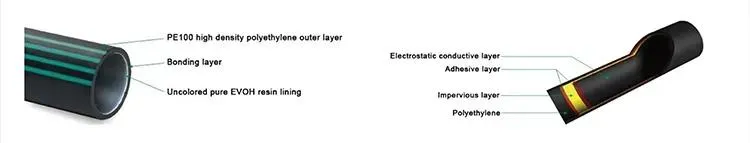

1. Strong Oil and Solvent Resistance
The special EVOH lining has smooth surface and good oil resistance, which not only helps to reduce the frictional loss in fuel transmission but also totally cut off fuel permeation, thus improving fueling efficiency.

2. Strong Static Conductivity
With advantage of EVOH resign lining, PE pipe has less than 104Ω electrical resistance. Comparison to other materials, PE pipe has more safety for fuel transmission.

3. Excellent Mechanical Property
Applying to Multi-layer co-extrusion techniques to guarantee the strength and durability, Eaglestar PE pipe has excellent resistance to curve and fracture. It can also bear a pulling force of 7000N, which efficiently prevents oil leakage casing by land subsidence.

4. Strong Corrosion Resistance
The high density polyethylene outer layer has strong corrosion resistance and it can endure the corrosion of various chemical mediators. It has no electrochemical corrosion and never rusts. Compared with metal pipe, polyethylene composite pipe saves much cost for corrosion prevention and reduce much risks casing by pipe corrosion.

5. Wide Range Temperature Suitability
Eaglestar PE pipeline can work well in -40ºC to +50ºC environment without leakage. Its burst pressure which is over 40 standard atmospheric pressure protects the pipeline to perform durably.

6. Super Long Lifetime
The traditional metal pipe generally needs complicated preservative treatment before laying the underground pipes. Even in neutral and non-corrosion soil, the average life of traditional metal pipe is only 10 years. PE flexible pipeline, with PE100 as its outer layer, has a resistance to backfill material and dynamic traffic load. Therefore its life span can achieve 30 years.





Application

Main products
https://jiangshengpetroleum.en.made-in-china.com/product-list-1.html

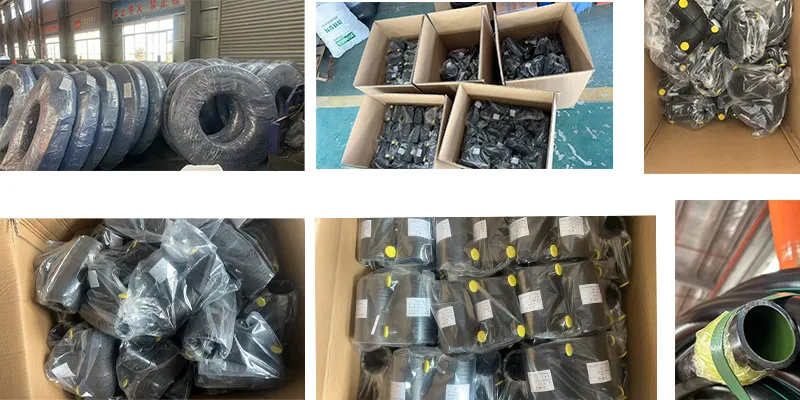

Inventory advantages

1.Massive spot reserves

Tens of thousands of pieces of inventory of various categories are available, covering mainstream models and customized needs, reducing customer waiting cycles.
Support fast delivery, priority response to urgent orders, and help customers seize market opportunities.

2.Intelligent inventory management

The advanced system is used to monitor inventory dynamics in real time, and the data is accurate and visualized to avoid the risk of out-of-stock or backlog.
The safety stock threshold is dynamically adjusted to ensure stable supply in peak season and cost optimization in off-season.

3.Strict quality control guarantee

The inventory products have passed the ISO 9001 quality inspection process, regular sampling and batch traceability, and the quality is worry-free.
Standardized storage environment (constant temperature/dustproof/partition) to ensure the stable performance of raw materials and finished products.

Modern management
1.Digital management, accurate and efficient
Adopt advanced systems to track production progress in real time, optimize scheduling, and reduce downtime.

From order to delivery, supply chain, production, and warehousing data are integrated to improve collaborative efficiency.

Predict market demand through historical data, dynamically adjust production capacity, and reduce inventory risk.

2.Automation and intelligent production

Automated production line to reduce human error and improve consistency.

Equipment interconnection, real-time monitoring of operation status, preventive maintenance, and ensuring production stability.


3.Lean and standardized operation

Standardize on-site management, optimize the working environment, and improve efficiency and safety.

Continuously optimize processes, reduce waste, and shorten lead times.

Strict compliance with international standards (e.g. ISO 9001, IATF 16949) ensures consistent quality.

4.Green manufacturing and sustainable development
Adopt high-efficiency equipment and photovoltaic energy storage systems to reduce carbon emissions.

Waste recycling and regeneration to achieve efficient use of resources.

Track the environmental impact of products throughout their life cycle to help customers achieve their goals.

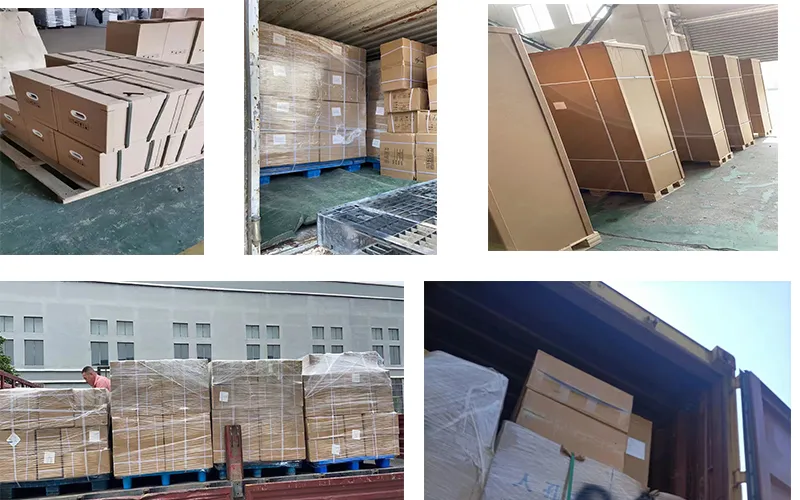

Packaging detailed:1.Carton packing
                                  2. wooden packing
                                  3. as customer 's requirement
Delievey Detailed: 20-35days after receiving deposit,or depends on the order quantity

JiaSheng Petroleum Tech Co., Ltd. located in Xuzhou, Jiangsu province, Our company is a specialized manufacturer integrating design ,production and sale into an organic whole. Our company produces and sales various tanker parts, oilcan parts, watering cart parts,aluminium and stainless steel quick coupling, double-way and treble-way valves, medium and low pressure petrochemical valves,European standard gas recovery tanker parts, gas station recovery products. Our products are widely supplied for industries like petroleum company, troops, oil stocks, tank truck, watering cart and gas station.
Our company has engineering experiences for years, we are also specialized in the installment of gas station wire frame, oil tank, asphalt tank, wine storage tank, pipeline and gas station construction, once and twice gas station recovery redevelopment, European standard tank truck refit.
Our company provides well-equipped products, advanced technique, strong technical force, and we can undertake the manufacture of other special parts.
