HDPE Pipe HDPE Silicon Core Pipe 50mm 40mm 32mm plastic cable conduit

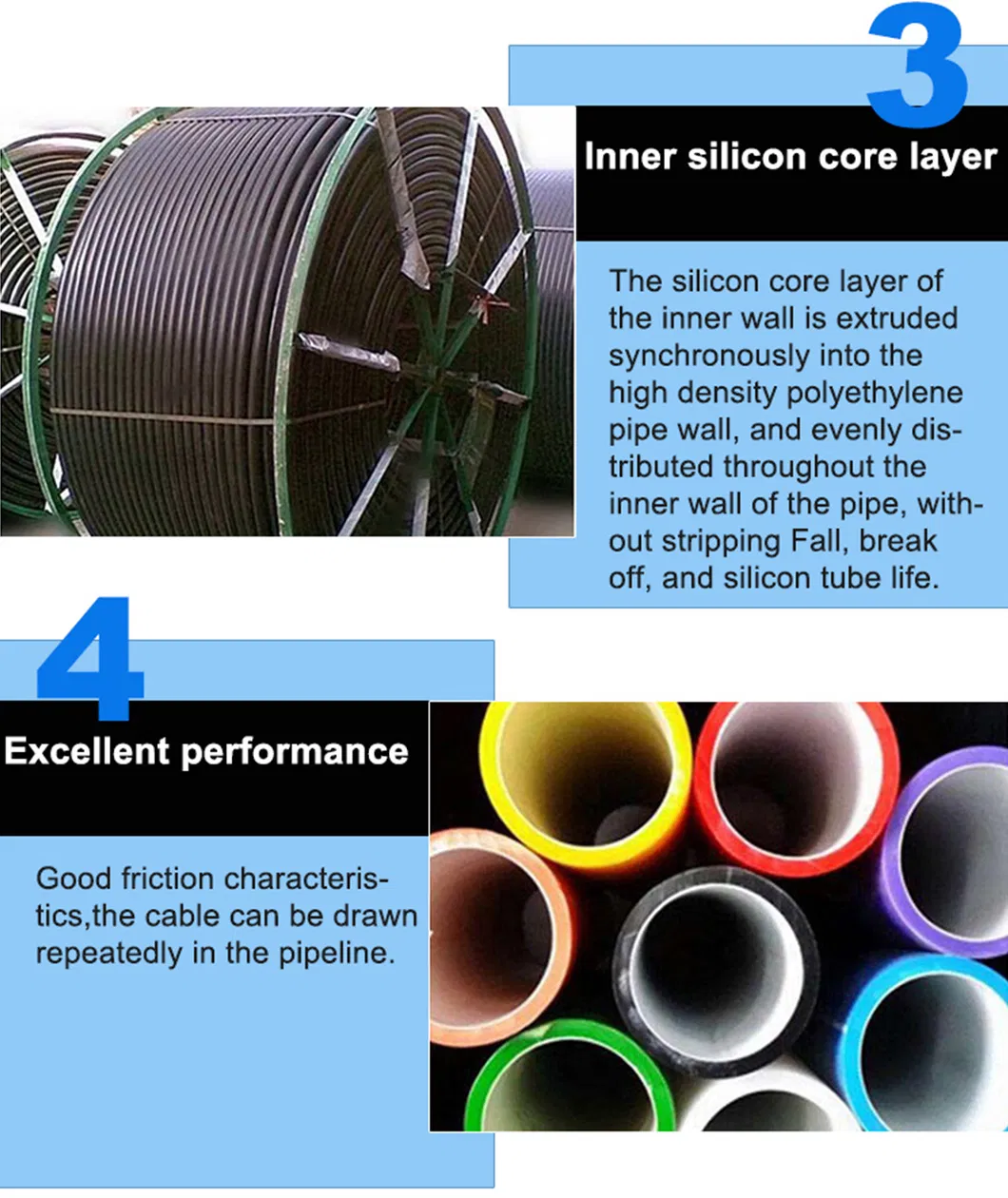

PLB-HDPE Ducts are manufactured using ultra-violet (UV) stabilized grade of HDPE with required Anti Oxidant content and other recommended additives. The inner layer of ducts is duly silicon coated which minimizes the friction between OFC and the duct during the process of blowing the cable into the ducts, thus providing smooth installation of OFC in the duct without damaging the cable fibres.
HDPE PLB Duct are designed and engineered to house the sensitive nerves of Information technology i.e. optical fibers thus enabling information transfer across the globe. Available as per International Standards or Customers requirements,Most Suited for Pulling Optical Fibre Cable (OFC), Telecom, Electrical Lines etc.

Applications:
PLB Duct Pipes are used as underground cable conduits for optical fiber cables, communication cables etc. & are suitable for cable installation by blowing tor pulling by rope techniques.

HDPE Ducts are suitable for installation in the field dirt trenches, under sidewalks, roads, within communication networks, between communication centers and between cities. They can also be used in branch networks between cells, distribution cabinets, poles, in walls and within subterranean networks of homes, allowing the insertion of optical or copper communication cables, as well as TV/cable aluminium co-axial cables. Cables can be inserted in through the pipe by blowing, with an internal air-pressure up to eight bars.

SpecificationOD (mm)Min ID (mm)Tickness (mm)length (m)Elasticity Before coiling 32/2632262.51000, 2000, 3000≤2 34/2834283.01000, 2000, 3000≤2 40/3340333.51000, 2000, 3000≤2.5 46/3846384.01000, 1500≤3 50/4150414.51000, 1500≤3 63/5463545.01000, 1500≤3

1). Adopt multi-machine co-extrusion, the silicon core layer is synchronously embedded in the pipe. It will be permanent lubricated and not be stripped forever
2). The friction coefficient of the inner wall is very small. Optical cable (electric cable) can be repeatedly extracted and tension in the pipe.
3). Waterproof, damp-proof, can avoid the damage by rodent animals.
4). Aging-resistant, anti corrosion of chemicals, long service with 50 years
5). Good weather resistant ability, and its suitable temperature from -40°C to 100°C.
6). Convenient in construction, save time and the project cost

Features:
1. Nontoxic
2. Corrosion resistance
3. No Leakage
4. Higher flow capacity than steel pipes
5. Convenient for construction and installation
6. Lower installation costs than cement and steel pipes
7. Longevity of working life more than 50 years
8. HDPE pipe can be recycled and environment-friendlyApplications:
1. Urban potable water pipeline network system.
2. Replaceable cement pipe, iron pipe and steel pipes.
3. Fire fighting pipeline.
4. Landscaping water supply network.
5. Sewage discharge pipes.
6. Ore and mud transfers.
7. Agricultural irrigation pipe.
