| Screw No. | Single-screw |
| Automation | Automatic |
| Computerized | Computerized |
| Certification | CE, ISO9001:2008 |
| Customized | Customized |
| Condition | New |
| After-sales Service | Life Long Service |
| Electrical Control System | PLC, HMI Control |
| Inverter | ABB, Customized |
| Application | PP PVC PE Pipes |
| Main Motor | Siemens Beide, Weg |
| Transport Package | Wooden Package |
| Specification | 180MM 240MM |
| Trademark | JWELL |
| Origin | Zhejiang, China |
JWELL Plastic UPVC PVC PE HDPE PP Water Drainage Irrigation Electric Conduit Hose Tube 2 layer Corrugated Pipe Extrusion Production Making Manufacturing Machine

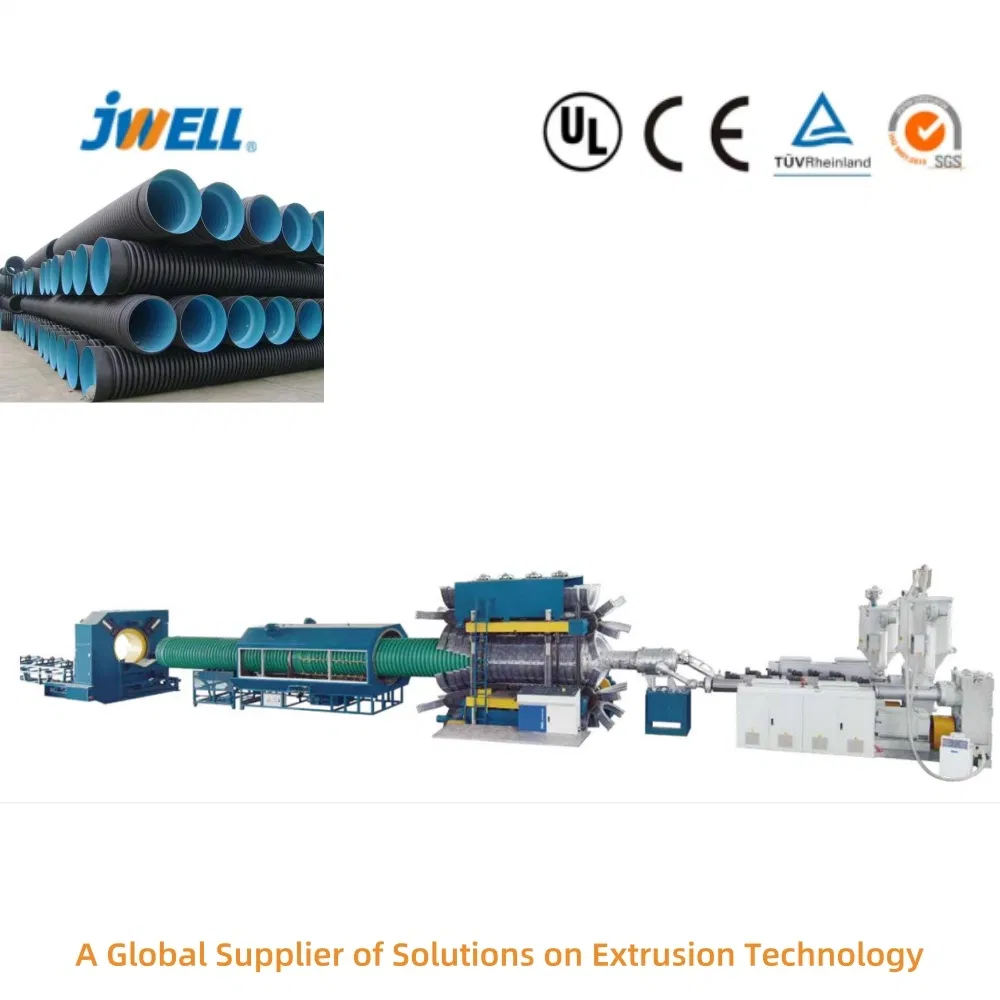

Properties: HDPE/PP/PVC horizontal type DWC pipe extrusion line produced by Jwell has many patents. Full automatic control, running stable, high capacity. HDPE/PP material use high efficient single screw extruder, and PVC material use conical twin screw extruder or parrallel twin screw extruder. Horizontal type corrugator adopt advanced shuttle-type structure, closed water cooling system, on-line belling. Whole line is controlled by PLC computer.
1. The extrusion lines equipped with two extruders for two layer co-extrusion, stable extrusion, excellent plasticization.
2. imported ratio-adjusting valve adjusts forming pressure stable and reliable.
3. Double flow channel spiral composite extrusion die head. the surface is Nitrided and polished.
4. Thickness regulating device for double wall.
5. Double wall belling on line.
6. Working table is three-dimensionally adjustable.
7. Automatic protection system starts and working table comes back when power off.
8. Automatic lubrication station.
9. Mould blocks are made of special aluminium alloy and features right weight, high strength, good wear resistant.
10. Air cooling and water cooling for well cooling corrugated moulds that forming pipe at higher speed.
11. The complete line adopts PLC micro-computer control system which can visually shows melt temperature and pressure, forming speed, error alarm and also has storage capacity of basic process.

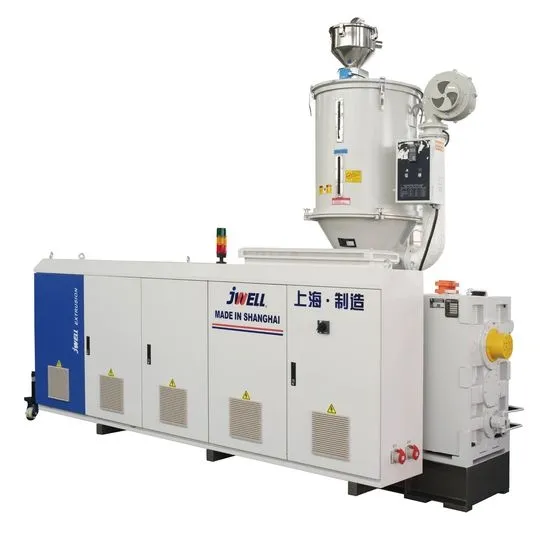

12. High efficiency singe screw extruder (using granule material) and energy- saving twin- screw extruder(using powder
1. Fixed center height
No adjustment required when changing specifications, easy to operate
Changing specifications only requires loosening one screw
The module width, installation dimensions, and operation methods are the same. The modules are completely universal, the equipment investment and maintenance costs are lower, and the production organization is flexible.
2. Double gear drive, independent running track
The driving gear is changed from a single gear drive to a double gear drive, so that the upper and lower sides of the sliding seat are stressed at the same time, which reduces the uneven force during operation and makes the module operation more stable.
The two tracks operate independently, and the equipment can operate stably for a long time in any state.
3. Add a special tractor
The signal control of the tractor comes from the cutting machine, ensuring the synchronization and accuracy of the pipe cutting moment; reducing miscutting;
Provide forward force for the pipe, effectively reduce the load of the molding machine, and prevent the molding machine from over-current shutdown protection;
Prevent the backlog of pipes, effectively avoid the expansion and deformation of the produced pipes, and ensure the stability of production.
4. Cooling water circulation
The module is fully sealed with pressure water cooling, which prevents leakage and rust, extending the service life of the equipment.
The cooling water circulation system is changed from a single-row roller chain to a double-row roller chain, which makes the pipeline circulation more stable and the pipe socket no longer tilts.
5. Stacker weighing system
During the production process, individual pipes are weighed in real time and the meter weight of the pipe is monitored.
Client self-built second floor raw material platform(With specialized mixer)→ single screw/ Conical twin screw extruder( without hopper or loader)→ Mould base(with molds of different sizes)→ Corrugate pipe forming machine→Supporting frame→Stacker→PLC control
Company Information
As the vice unit of CPMIA, Shanghai Jwell Machinery Co., Ltd is one of the biggest manufacturer of plastic extrusion Machinery and chemical fiber spinning equipment in China, its head office is located in thewestern district of Shanghai. There are 5 production bases, which were located in the western districtof Shanghai, Zhoushan of Zhejiang Province, Suzhou of Jiangsu and Changzhou of Jiangsu, Dongguan of Guangdong, totally covering 700, 000 square meters. It has more than 2600 staffs, about 400 technicians and managing staffs. Main products: Various plastic pipes extrusion lines including large diameter PE/PVC double wall corrugated Pipe extrusion line, large diameter PE/PVC solid wall pipe extrusion line, PP-R/PEX/PE-RT cool/hot water pipe Extrusion line, PA/PE/PVC single wall corrugated pipe extrusion line; Various plastic profile extrusion lines; Various plastic plate & sheet extrusion lines; Chemical fiber spinning; Microcomputer controlled automatic blow Molding machines; Plastic auxiliary recycling lines; Various single & twin screw and barrel extruders; T die; Screen exchangers; Rollers and Robots.
Why us
Pioneering Efforts, Unity and Struggle
Seeking for innovative and practical technology, We grow rapidly with the market trend. Every person is a product Person in creating better customer experience. Trust is the corner stone of our corporate. As we truly believe the Staffs are the most precious wealth, if we take care of our employees, so as each person would take care of the Customers. "Be Honest" is the core idea for us to build an everlasting enterprise.
Consistent quality, Brands Building.
We have kept an eye on the quality during all procedures since the birth or our enterprise. Consistent quality would Be the only virtue which we highly uphold. Every product marking JWELL represents safety, stability, reliability.
Cutting edge technology, Added value products
We have professional designing engineer who recognize the market need well. We add value to customers' business By innovative designs and products that will provide competitive advantage over your rivals.
Capable of ultimate one stop solution
There are various of products ranges, flexible order quantity, customized designs. Our products are capable of ultimate One stop solution for different sizes of projects and business. With pre-sale and after-sale assistance, prompt delivery, We care the customers' satisfaction and benefits.
