Model NO.	SJZ51/105, SJZ65/132, SJZ80/156, SJZ92/188
Plastic Processed	PE
Product Type	Extrusion Molding Machine
Feeding Mode	Multiple Feed
Assembly Structure	Separate Type Extruder
Screw	Single-Screw
Engagement System	Intermeshing
Screw Channel Structure	Deep Screw
Exhaust	Exhaust
Automation	Automatic
Computerized	Computerized
Motor	Simens Beide
PLC	Simens
Weight for PE Corrugated Pipe Machine	8-15 Ton
Diameter for Plastic Corrugated Pipe	16-200mm
Other Name	PE Corrugated Pipe Extruder
Other Name1	PE Corrugated Pipe Extrusion Line
Other Name2	PE Corrugated Pipe Production Line
Other Name3	PE Corrugated Pipe Machinery
Other Name4	PE Single Wall Corrugated Pipe Extrusion Line
Other Name5	PE Single Wall Corrugated Pipe Production Line
Screw Material	38crmoala
Power	380V/50Hz/3pH
Raw Material	PE, PP, PVC
After Service	13 Months
Speed	5-15m Per Minute
Transport Package	Packed by Plastic Film
Specification	20m*2m*2.5m
Trademark	Hanhai
Origin	Qingdao, China
HS Code	84772090
Production Capacity	100-400kg

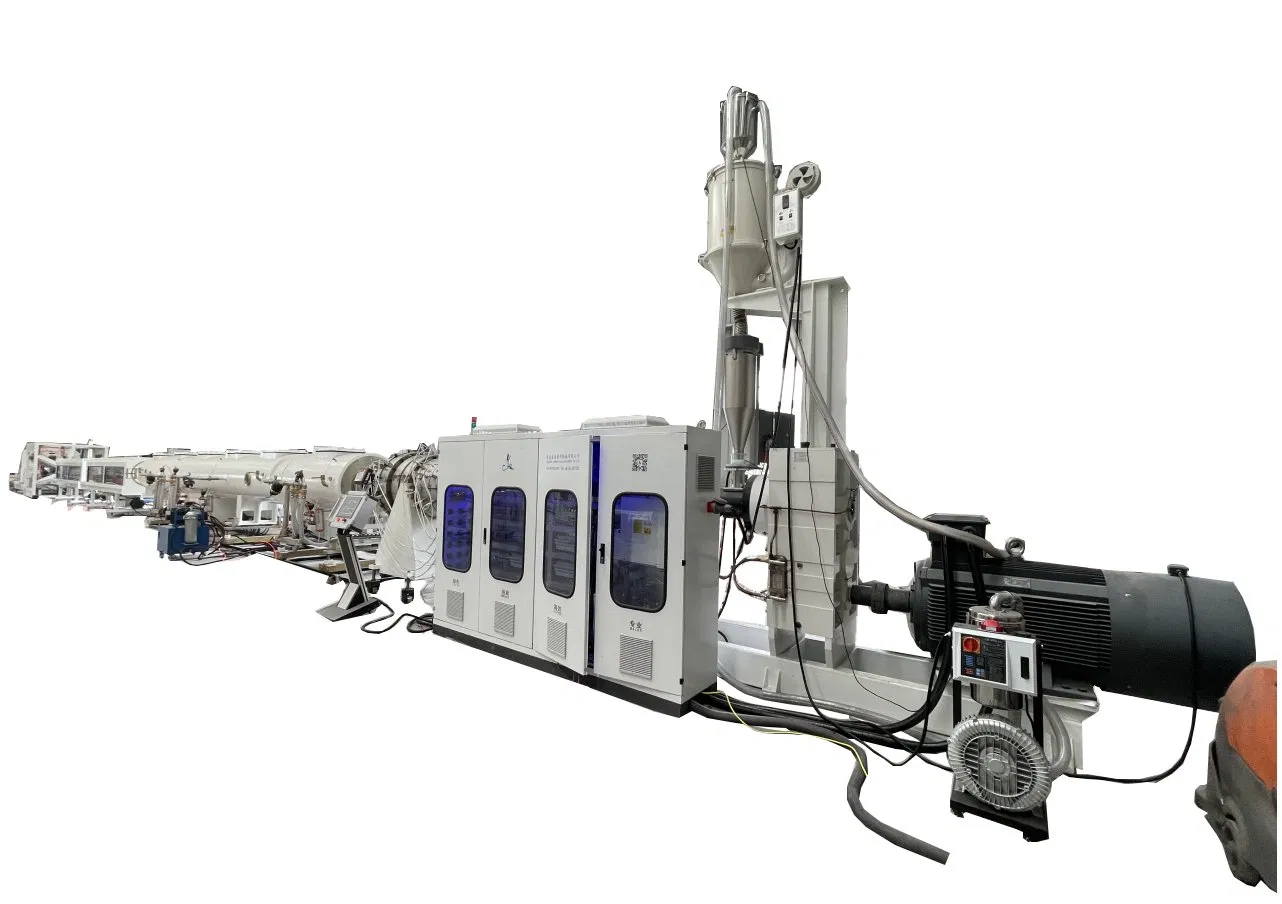

Fully Automatic PVC PE Double Wall Corrugated Wave Pipe With CE Certificate Plastic Extruder Production Line

1.Plastic corrugated pipe (PE, PP) widely used in the wire connection of machine tool machinery and electric box control cabinet, the product is beautiful, light and durable, widely used in automotive wire harness, electronic, mechanical wire harness and other fields.

2.The corrugated pipe extrusion line includes a vacuum feeder and a drying hopper, a SJ65 single-screw extruder, a die, forming modules, a forming machine and a winder.

2.Features:
1. Touch screen control, easy to operate
2.4-32mm without tools, catheter adapter
3.Stepper move, belt traction, high speed and stability
4. Affordable

NO.NameQuality 1Automatic Feeder1 2SJ45/30 single screw extruder with auto vacuum loader1 3Die head8 4modules8 5Corrugater with mold2 6Cutter1 7Winder with meter counting unit1

Specification of HDPE Corrugated Pipe Machine:

Specification of the SJ65/33 Extruder
Performance features:
Screw: Big output & L/D ratio. with low temperature plastication concept.
Barrel: barrel is made of special steel alloy, and is equipped with aluminum thermal foil with air cooling system.
Gearbox: gears are made of steel alloy with heat treatment and are finished with surface precision grinding. By using oil injection cooling system, it reduces noise when operating under high RPM and enhances the life span of gears.
Inventer:ABB   Temperature table:Omron    Contactor:Simens


ModelGSJ-65/33 Extrude central height1100mm High efficiency screw Diameter 65mm L/D 33:1 Material 38CrMoAlA Surface TreatmentNitrided and Polished Barrel Material38CrMoAlA Inner Surface treatmentNitrided, ground Heating methodBy ceramic Heating control zoneszones Heating power KW Cooling systemBy blower fan Cooling zones4zones Cooling power0.2KW/zone Gearbox Material of the houseQT200 Gear type Helical gears Material of the gear20CrMnTi Heat treatment of the gear surfaceQuenching Material of the axes bearings40Cr
imported high quality bearing Main Motor22KW

2.PP PE Corrugation/Corrugated Pipe Extrusion Line:Mold die with modules

1. 1. mold standard:Internal Dia : 1.5" 2 "

2.2Heater Die adopt casting aluminum heater, mica heater for mouth die.
2.3Calibration Unit :The material of sizing unit is high-quality wearing resistance copper
2.4 Mould block: AL
2.5 All the molds inner runner are chrome plated and good mould steel.
2.6 material:40Cr and nitrided
2.7 modules:50 pairs
3. PP PE Corrugation/Corrugated Pipe Extrusion Line:Corrugated style forming machine   one set
3.1Structure Horizontal
3.2Corrugators up/down moving motor 2.2KW
3.3Guide track The material is 40Cr
3.4Block seat Material is 40Cr, nitrided
3.5Back/Forward Track
3.6Hydraulic system Oil pump: 1.1KW
3.7Corrugators motor AC motor 2.2KW x 1 setPP PE Corrugation/Corrugated Pipe Extrusion Line:
3.8Corrugators gear box Helical gears
3.9Corrugators cooling Block is cooled by air, 0.25KW x5set cooling fan
4.  PP PE Corrugation/Corrugated Pipe Extrusion Line:haul off machine and shrink pipe equipment  one set
5. PP PE Corrugation/Corrugated Pipe Extrusion Line:Cutter

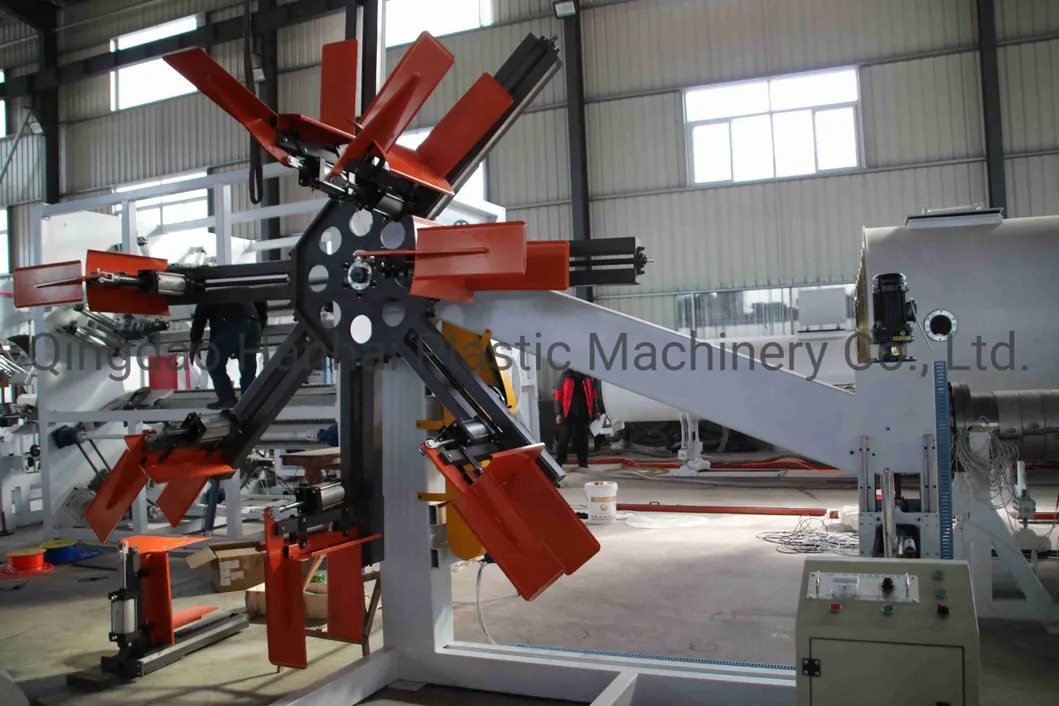

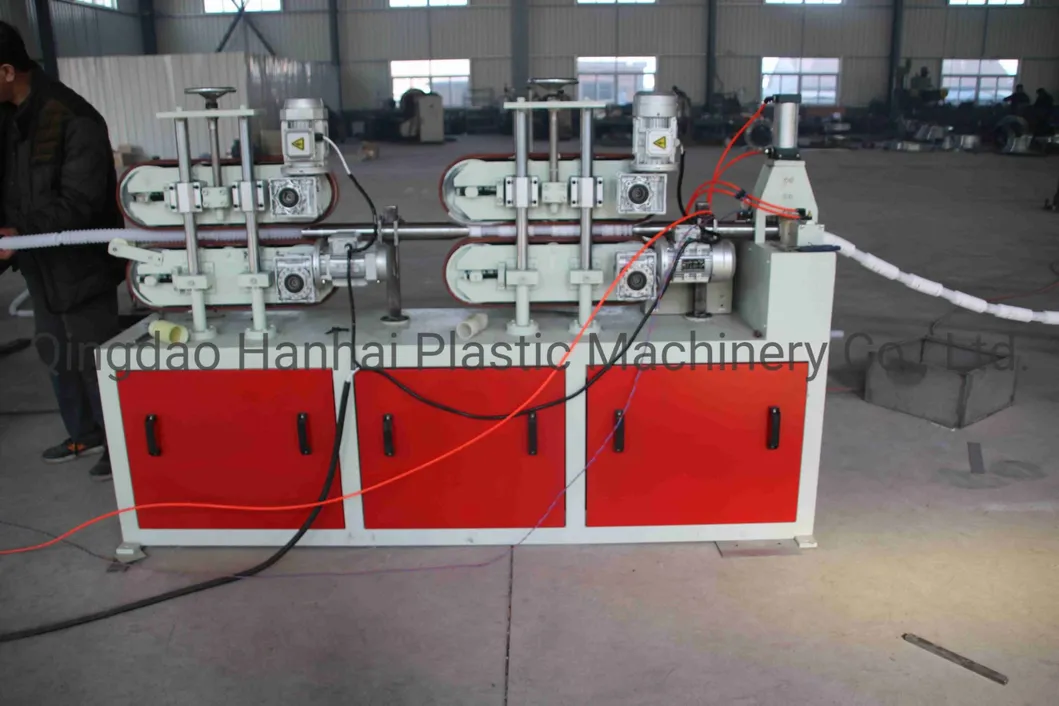

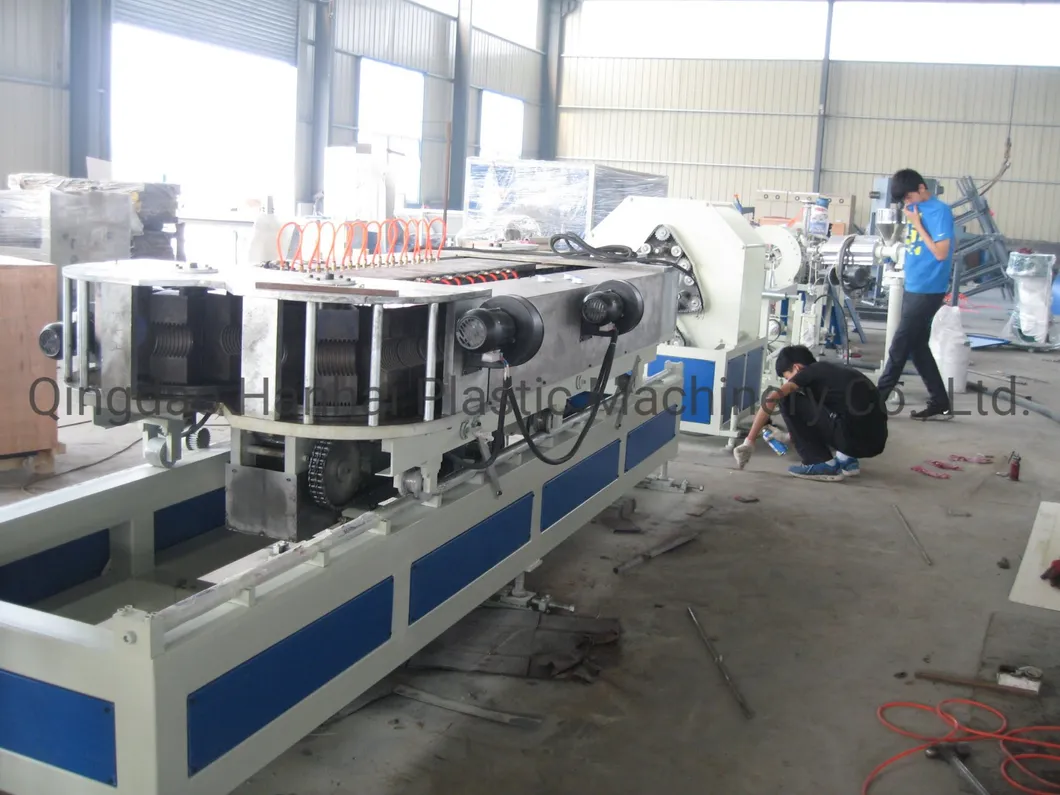

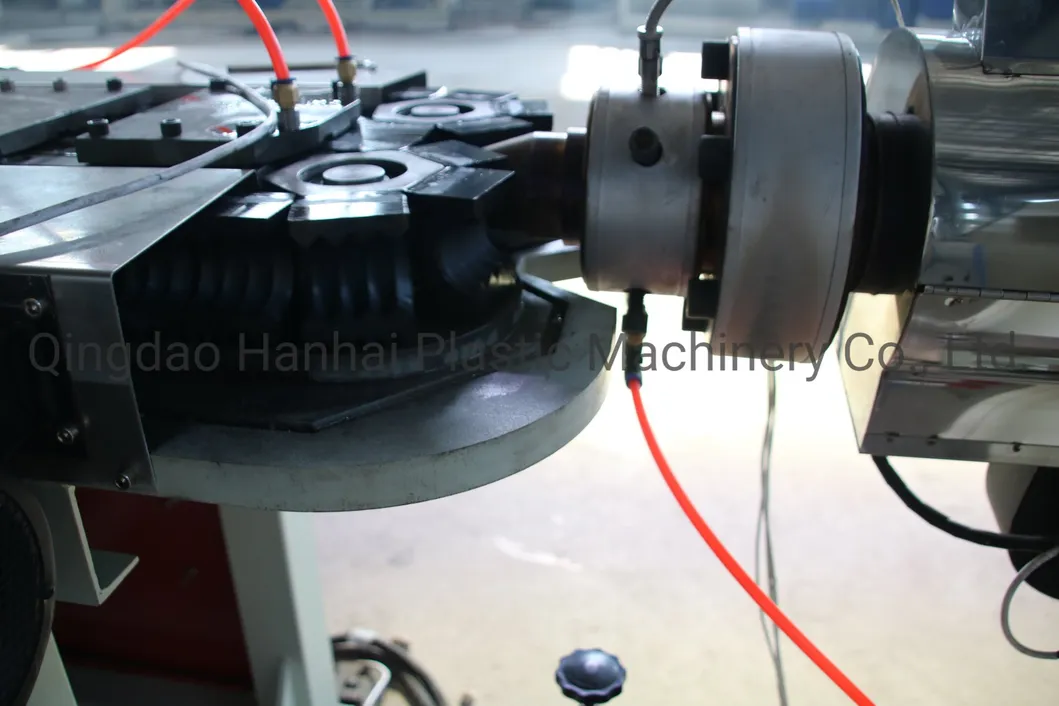

3.PP PE Corrugation/Corrugated Pipe Extrusion Line:Machine pictures:









You just tell me what machine you want,let us do the rest work:

1. Design and manufacture suitble machine for you.
2. Before delivery, we will test the machine until you are completely satisfied. (You can come to   our factory to inspect the running production line.)
3. Delivery.
4. We will provide after-sales service:
(1) Field installation and commissioning;
(2) Field training your workers;
(3) Field maintenance and repair service ;
(4) Free Spare Parts ;
(5) Video/online technical support.
