| Model NO. | SDHT06 |
| Material | PE |
| Kind | Thermoplastics Pipes |
| Water Absorption | ＜0.01% |
| Contraction Percentage | ＜0.4% |
| Tensile Strength | 30~40MPa |
| Shape | Round |
| Colour | Black |
| Transport Package | Packed with Plastic Sheet |
| Specification | 5.8m/piece 11.8m/piece |
| Trademark | HBWFRP |
| Origin | China |
| HS Code | 39172100 |

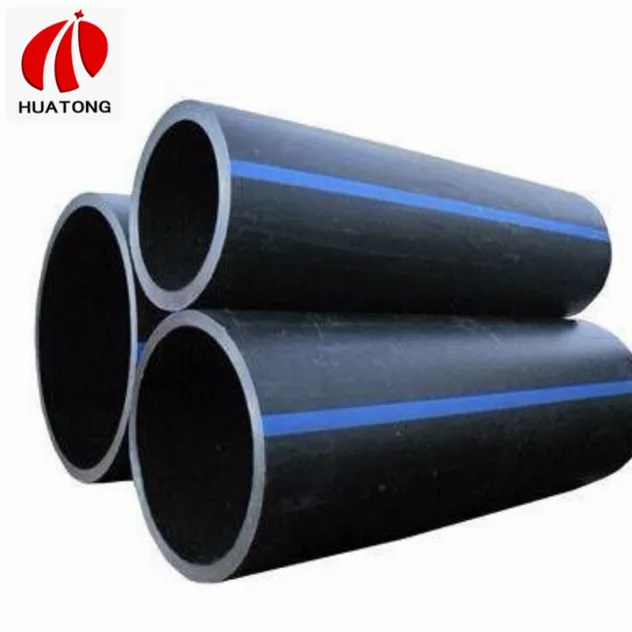

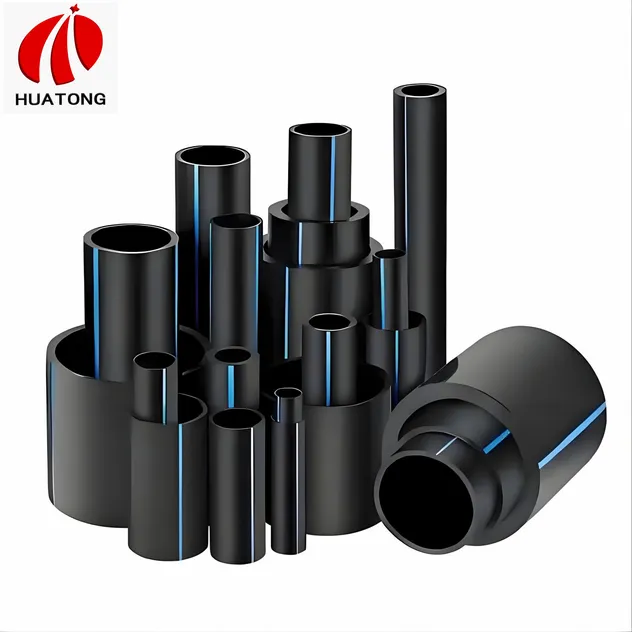

High Quality PE Pipe for water supply/Agriculture
Specification
Applications
1. Long working lifespan as min. 50 years.
2. Excellent performance on shock-resistance and low-temperature resistance, brittle temperature could be -70°C.
3. Good Chemistry stability, corrision resistance of all kinds of acid,alkali and salt.
4. Good toughness, warp and earthquake resistance.
5. Sanitary enough, no secondary pollution to drinking water(pipe for water supply).
6. Light weight, convenient to carry and transport.
7. Easy to construct, simple welding process,low project cost.
8. Heat or electric fusion connection, reliable property, low rate of fracture or leakage.
9. High quality raw material, PE80 or PE100.
Technical Specifications
Nominal outside diameter dn(mm)
Nominal wall thickness(mm)
PE80
PE100
PN0.3
PN0.5
PN0.4
PN0.7
SDR17.6
SDR11
SDR17.6
SDR11
20
2.3
3.0
2.3
3.0
25
2.3
3.0
2.3
32
2.3
3.0
2.3
3.0
40
2.3
3.7
2.3
3.7
50
2.9
4.6
2.9
4.6
10. Reach or above the national standard GB15558.1-2003.63
3.6
5.8
3.6
5.8
75
4.3
6.8
4.3
6.8
90
5.2
8.2
5.2
8.2
110
6.3
10.0
6.3
10.0
125
7.1
11.4
7.1
11.4
140
8.0
12.7
8.0
12.7
160
9.1
14.6
9.1
14.6
180
10.3
16.4
10.3
16.4
200
11.4
18.2
11.4
18.2
225
12.8
20.5
12.8
20.5
250
14.2
22.7
14.2
22.7
280
15.9
25.4
15.9
25.4
315
17.9
28.6
17.9
28.6
355
20.2
32.3
20.2
400
22.8
36.4
22.8
36.4
450
25.6
40.9
25.6
40.9
500
28.4
45.5
28.4
45.5
560
31.9
50.9
31.9
50.9
630
35.8
57.3
35.8
57.3
