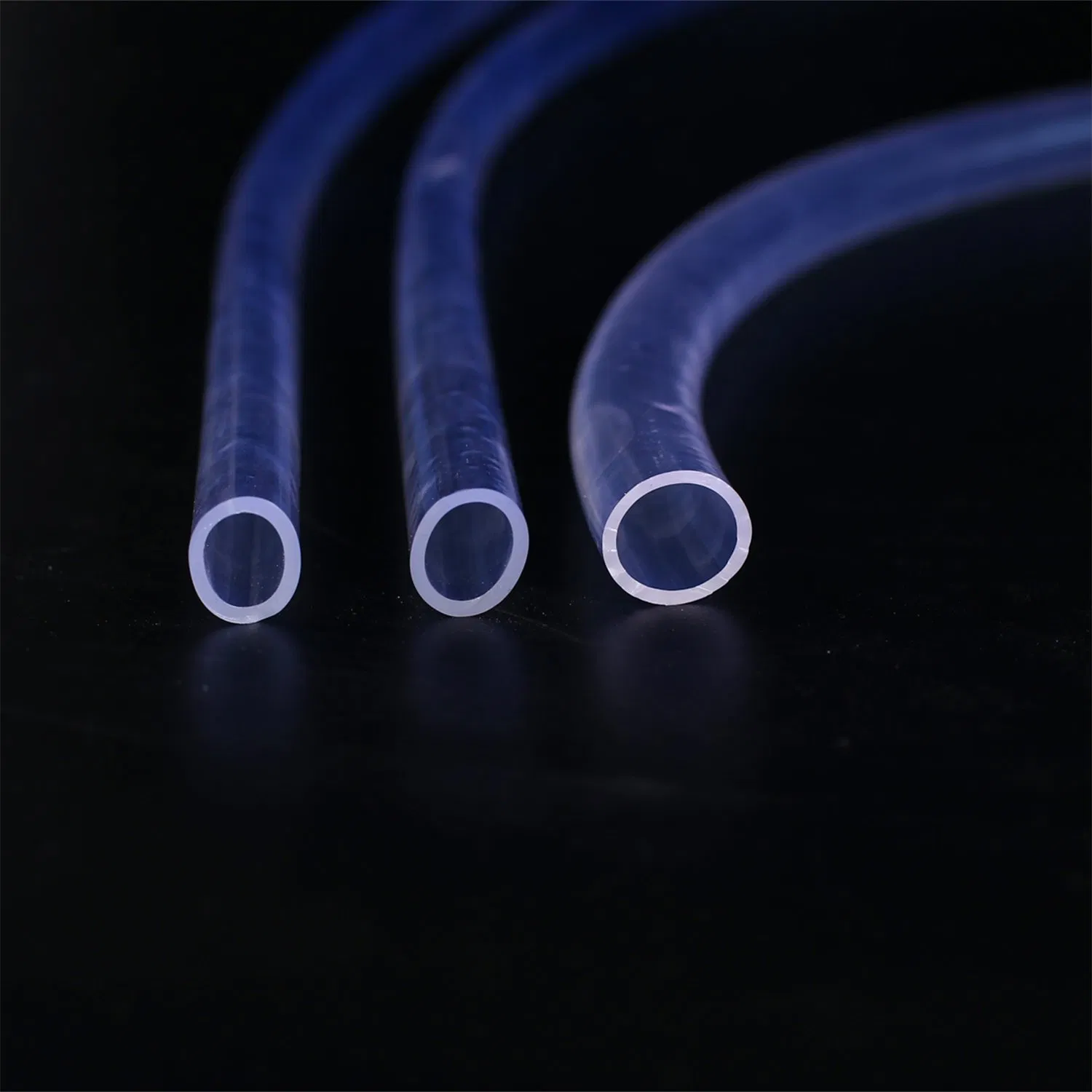

I. General Characteristics

As a kind of high-performance hose, PVC transparent fluid hose is made of polyvinyl chloride (PVC) as the main raw material, and plays an important role in many fields by virtue of its unique material characteristics and exquisite manufacturing technology.

The appearance of PVC transparent fluid hose presents a highly transparent quality, with a smooth and flat hose body, free of bubbles and impurities, providing users with the convenience of clearly observing the fluid state inside the hose. At the same time, it has good flexibility, can be bent to a certain extent without affecting the use, and it is lightweight, easy to handle and install.

II. Structure Design

PVC transparent fluid hose has a single-layer structure, which is manufactured by heating extrusion molding process.

This simple structural design not only ensures the basic performance of the hose, but also reduces the production cost, so that it has a high cost-effective in the market.

In the material formula, in addition to PVC resin, additives such as cold-proof agent and UV-proof agent are also added to further enhance the weather resistance and chemical stability of the hose.

III. The Advantages Of The Introduction

1. High transparency:

Can observe the flow of fluid inside the hose, whether there are impurities, bubbles, etc., which is convenient for timely discovery of problems and taking measures. It is widely used in scenarios that require visual monitoring.

2. Good flexibility:

Small bending radius, easy to arrange and install in complex spatial environments, reducing the difficulty and cost of installation, for example, the advantages are obvious in the equipment inside the pipeline arrangement.

3. Economical cost:

Compared with some high-performance hoses, PVC transparent fluid hose is more cost-effective. Under the premise of meeting the usage requirements, they can effectively control costs for users.

4. Environmental protection and hygiene:

The use of environmentally friendly formulations, in line with relevant health standards, can be used for food, drinking water and other areas of fluid transportation.

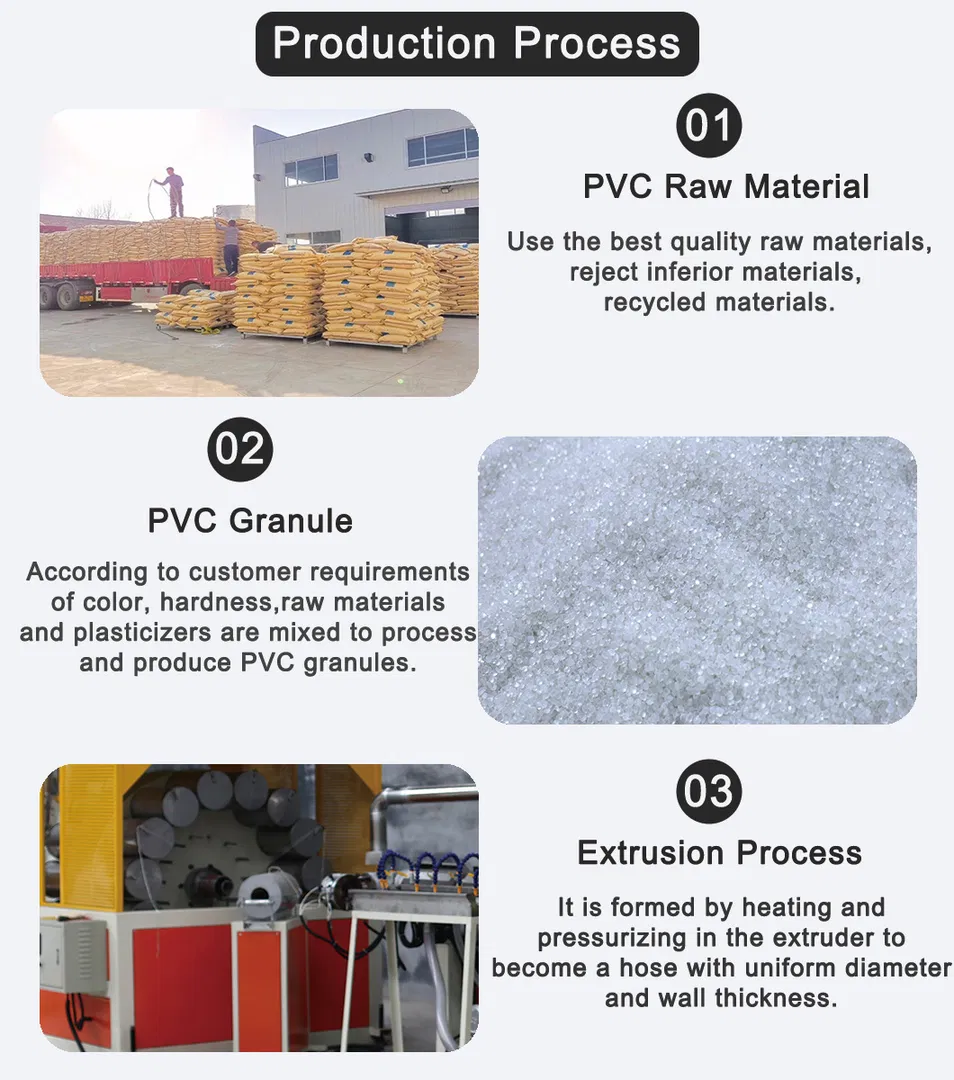

Production Process

Product Parameters

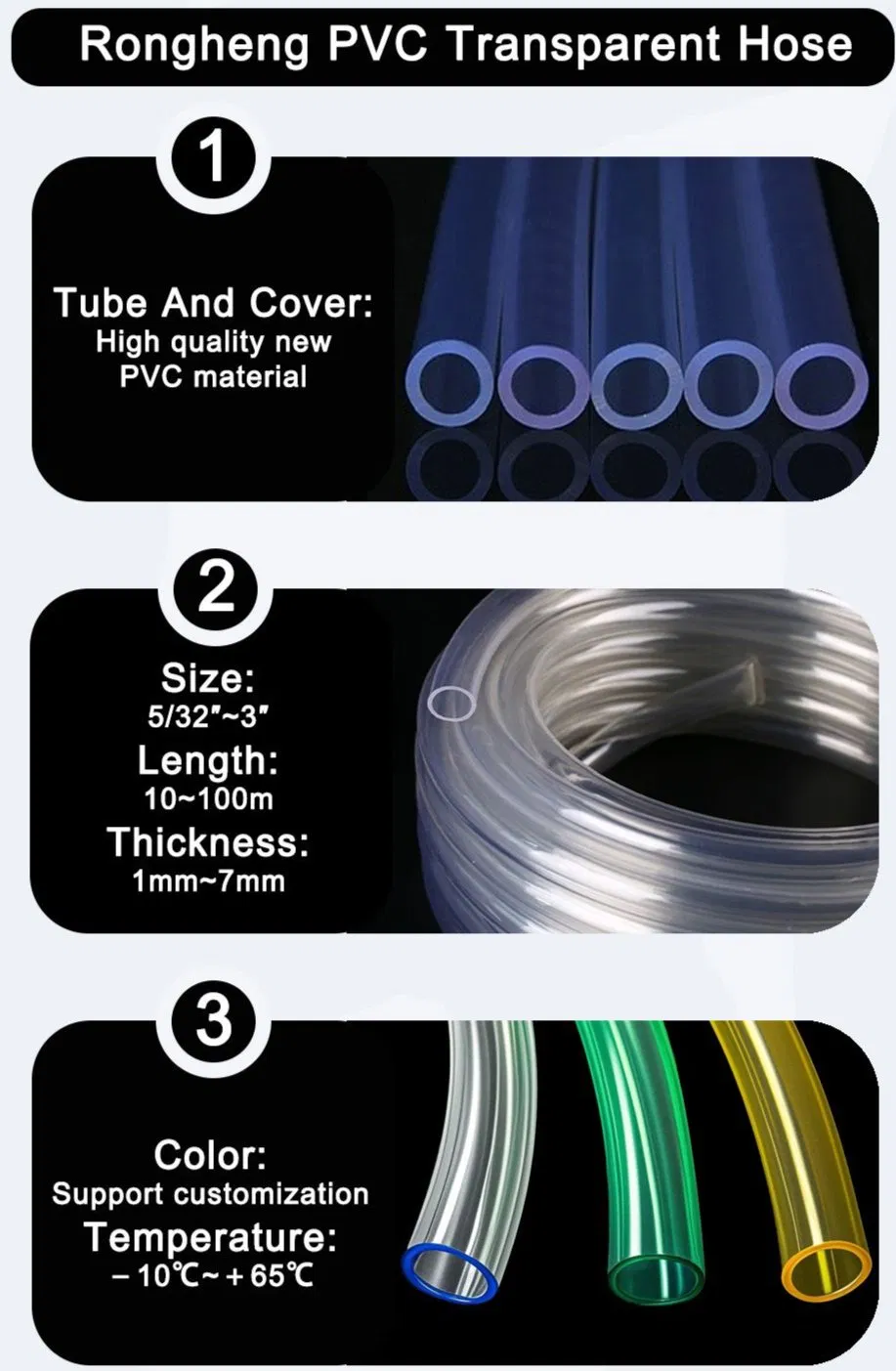

Specification

Provide a wide range of specifications to meet the diverse needs of different users:

- Inner diameter:

Ranging from 4mm to 75mm, common ones are 10mm, 16mm, 20mm, 25mm, 32mm, 75mm, etc.

- Wall thickness:

Ranging from 1.5mm - 8mm, which can be flexibly selected according to the working pressure and usage scenarios.

I.D

O.D

L

W.P

B.P

Weight

inch

mm

mm

m/roll

bar

bar

g/m

5/32"

4

6

100

2

6

20

3/16"

5

7

100

2

6

25

1/4"

6

8

100

1.5

5

29

6

10

100

2

6

67

5/16"

8

10

100

1.5

5

38

8

12

100

2

6

84

3/8"

10

12

100

1.5

4

46

10

14

100

2

6

101

1/2"

12

15

50

1.5

4

85

12

16

50

2

6

118

5/8"

16

19

50

1

3

111

16

20

50

2

6

152

3/4"

19

22

50

1

3

130

19

23

50

1

3

178

1"

25

29

50

1

3

220

25

30

50

1

3

290

1-1/4"

32

38

50

1

3

440

1-1/2"

38

44

50

1

3

520

38

46

50

1

3

712

2"

50

58

50

1

2.5

910

2.5"

64

78

23

1

2.5

2170

3

75

91

20

1

2

3000

Application

Application Fields

1. Industrial field:

Used in chemical production for conveying weakly corrosive liquids and gases; in the pharmaceutical industry, to meet the demand for fluid transportation in the process of drug production.

2. Agriculture:

Widely used in irrigation system, can clearly observe the water flow, to ensure uniform irrigation; also used for delivery of pesticide, fertilizer solution.

3. Aquaculture:

Used as inlet and outlet hoses for fish tanks, fish ponds, etc. It is convenient for observing the water flow and water quality, and safeguarding the living environment of aquatic organisms.

4. Laboratory:

Used for fluid connection between experimental equipments, which is convenient for experimenters to observe the fluid changes during the experiment.

Packing & Delivery

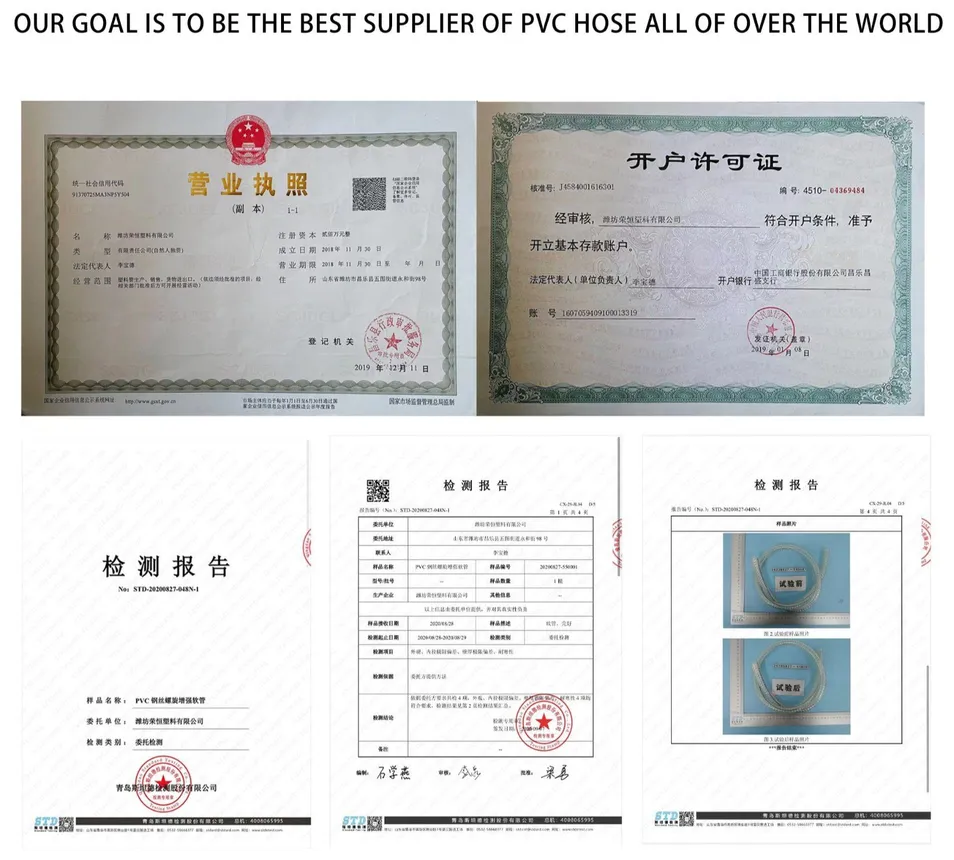

Certifications
