Soundproof, triple layer, push-fit system made of pipes and fittings for soil and waste discharge, at low and high temperatures, both within the building structure (application area code "B") as well as buried in the ground (application area "BD"). Pipes have a three-layer wall structure with external and internal layers of polypropylene (PP) and a middle layer of special soundproof material.

Brand

APEX

Specification

50-160MM

Packing

4m/stick 5.8m/stick

Noise

≤45dB

Standard:

EN1451.1

Tmax

95ºC

Application

drainage water

OEM service

We're factory ,OEM service is welcome

The advantages:

Excellent acoustic performance: 15dB(A) at a flow rate of 2 l/s, in compliance with EN 14366 using Huliot clamps
High impact resistance even at low temperature -25°C
Excellent resistance to high temperatures: 95°C continuous, 98°C discontinuous
High chemical resistance
Increased socket depth for stable assembly
Branches with swept angle and optimized design for smoother and increased flow
High UV resistance due to black color of external layer
10-year guarantee

Product Introduction

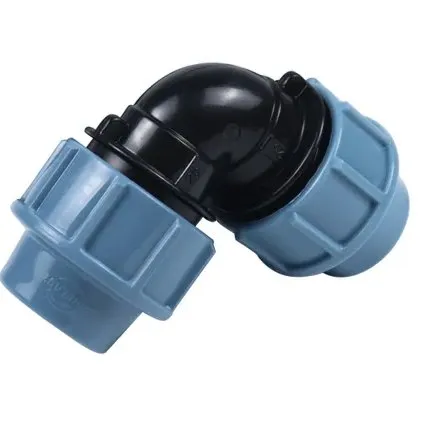

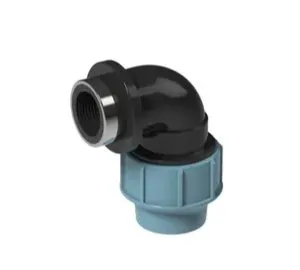

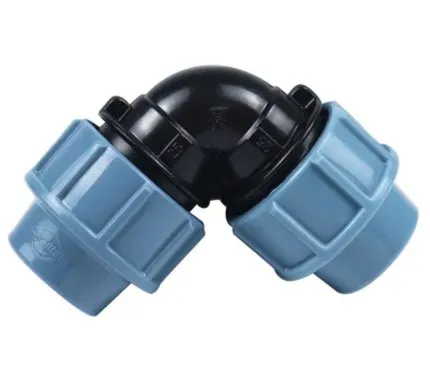

A PP elbow, or Polypropylene elbow, is a type of pipe fitting designed to change the direction of flow in a pipeline system manufactured from polypropylene plastic. These fittings are integral components in a wide array of industrial, chemical, and residential plumbing applications. They are engineered to create precise angle deviations, with the most common standard angles being 90 degrees and 45 degrees, though other custom angles are also available to meet specific system layout requirements.

Product advantages

1. PP elbows are manufactured through an injection molding process, which ensures a consistent, high-quality product with smooth internal surfaces (excellent bore finish) to minimize pressure drop and prevent scaling or clogging. The material itself, polypropylene, is a thermoplastic polymer known for its exceptional chemical resistance, high rigidity, and good mechanical properties. To enhance performance for specific uses, PP elbows are often made from copolymer variants, such as PP-R (Polypropylene Random Copolymer) or PP-H (Polypropylene Homopolymer), which offer improved impact resistance and thermal stability..

2.These fittings are designed for use with compatible PP pipes and are primarily joined using the heat fusion welding method. This technique involves heating the pipe and elbow simultaneously with a specialized tool and then pressing them together. As the material cools, it fuses into a single, monolithic, leak-proof joint that is as strong as the pipe itself, eliminating the need for mechanical seals or adhesives.

Product Display

Jinan Apex lmport and Export Trading Co., Ltd is engaged in manufacturing, supplying and exporting an unparalleled range of PEX pipes, PB pipes, EVOH PEX/PERT/PB oxygen barrier pipe, PPR pipes, HDPE pipes, PVc pipes and the corresponding pipe fittings.

APEX was founded in 2005.We has been developing into a market leader in both the production and export of quality plumbing solutions in Asia. Within our manufacturing plant, we have implemented a quality management system which ensures zero defects. Our extremely strict quality control system is performed so that the entire production process, from the supply of raw materials to the delivery of finished products, is completely monitored. The test results are all recorded and fuly compliant with 1SO9001 standard. With the support of strong technical expertise and modern business management systems, the company has been awarded a vast aray of worldwide industry-recognized certifications, such as American NSF, UPC certification, American, Canadian certification, British WRAS, INTERTEK certification, Australia WATERMARK, StandardsMark certification, French ACS, BV certification, Swiss SGS certification, German KYW, TÙ V certification, . the European Union' S CE, ROHS, REACH certi.fication, etc.

APEX use only the finest raw materials which are imported from the top international suppliers. This ensures the quality of plastic pipes from the onset. Our raw material suppliers are well-known companies, including Mitsui Chemicals, Kuraray,CONSTAB, Dow, Hyundai, Hyosung, LG, SK, etc.

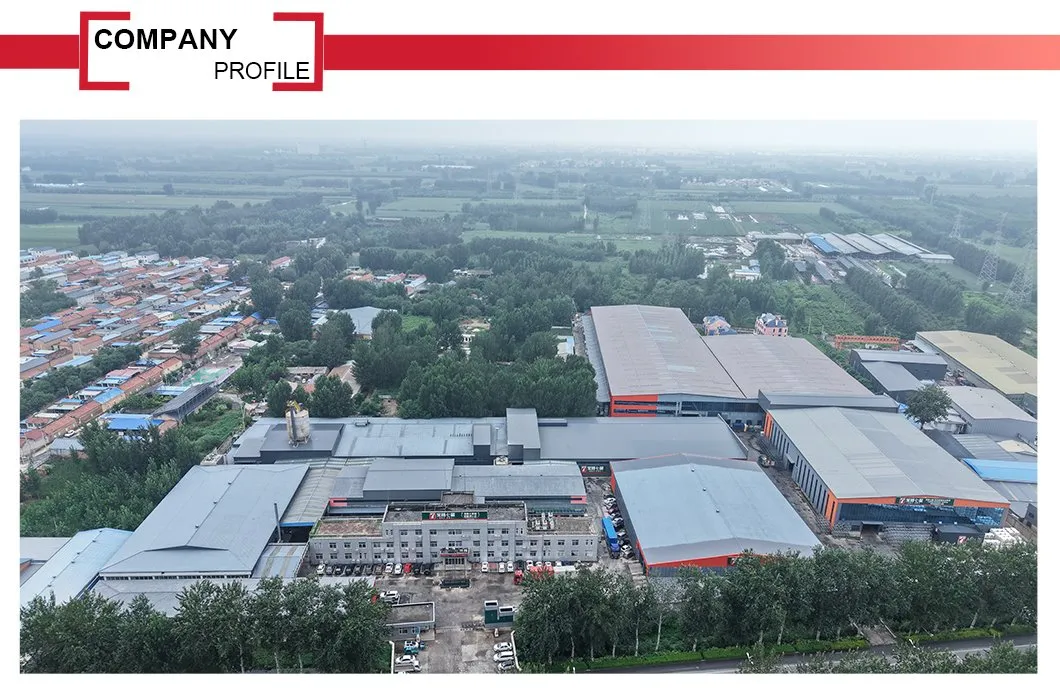

At APEX, our production capacity reaches 35000 tons of plastic products each year. All our production lines have been outfitted with the most advanced high-speed pipe extrusion machines. The entire production line is controlled by a Barton PLC system. lt comes with a high-precision, lost-in-weight feed system.Iin addition, the production lines are all equipped with cutting-edge test facilities. This ensures we can produce high-quality pipes efficiently.

If you require a reliable, high-efficiency and cost-effective plumbing system, APEX is your optimal choice! APEX is verv eader to earn vour business and become vour lond-standind blumbind solutions provider

Q1:Can l get a sample?
Yes, we can provide you with free samples.

Q2: Can l use my own logo or design on the products?
Yes, we offer OEM/ODM services; your logo and design can be made on the products.

Q3: Do you have a factory?
Yes, we have a factory in Weifang, Shandong Province. You are welcome to visit our company and factory.We can provide OEM/ODM services to our customers.

Q4: What is your factory's production capacity?
We can produce 5,000 tons per month. You can rest assured when placing your order with us.

Q5:When will the goods be shipped?
In-stock products can be shipped within one week. Customized products will be shipped according to customer requirements. We will inform you of the specific shipping time before confirming the order.
