Product Description

We provide all kinds of bronze bar such as Phosphor Bronze, Aluminum bronze, Tin bronze and Beryllium copper.

Phosphor bronze It combines very good cold workability with high strength and hardness. The alloy is corrosion resistant and can be well soldered and brazed, yet it still has good electrical conductivity.

Aluminum bronze is a pale gold-colored alloy composed of copper and usually five to ten percent aluminum,usually especially for corrosion-resistant parts, for wear-resistant bearings, bushings, gears.

Tin Bronze is a versatile material family known for corrosion resistance with higher strength.

Beryllium copper  is an age-hardening alloy that attains the highest strength of any copper base alloy. It may be age hardened after forming into springs, intricate forms, or complex shapes. It is valued for its elasticity, corrosion resistance, stability, conductivity, and low creep.

Technical parameters MaterialC70600 copper pipe SizeDiameter:5mm-1000mm Length:3000mm-6000mm Origin placeMade In China Delivery ConditionHot rolled,cold drawn,forged Surface requireBlack,grinding,bright,polish,turn,peel Heat treatmentQuenched,Tempered,annealed Packingseaworthy packing,wooden case,carton,woven bag or at client's requires Delivery timeIn 20-30 days Trade TermEXW,FOB,CIF PaymentsT/T or L/C at sight PortChina main Port,such as shanghai, Dalian, shenzhen port.

Chemical Composition

Grade

Cu

Pb

Fe

Zn

Ni

Mn

Cu-Ni 90/10

88.6 min

0.05 Max

1.8 max

1 max

9-11 max

1.0 max

Element

Density

Melting Point

Tensile Strength

Yield Strength (0.2%Offset)

Elongation

Cu-Ni 90/10

0.323 lb/in3 at 68 F

2100 F

38

15

30 %

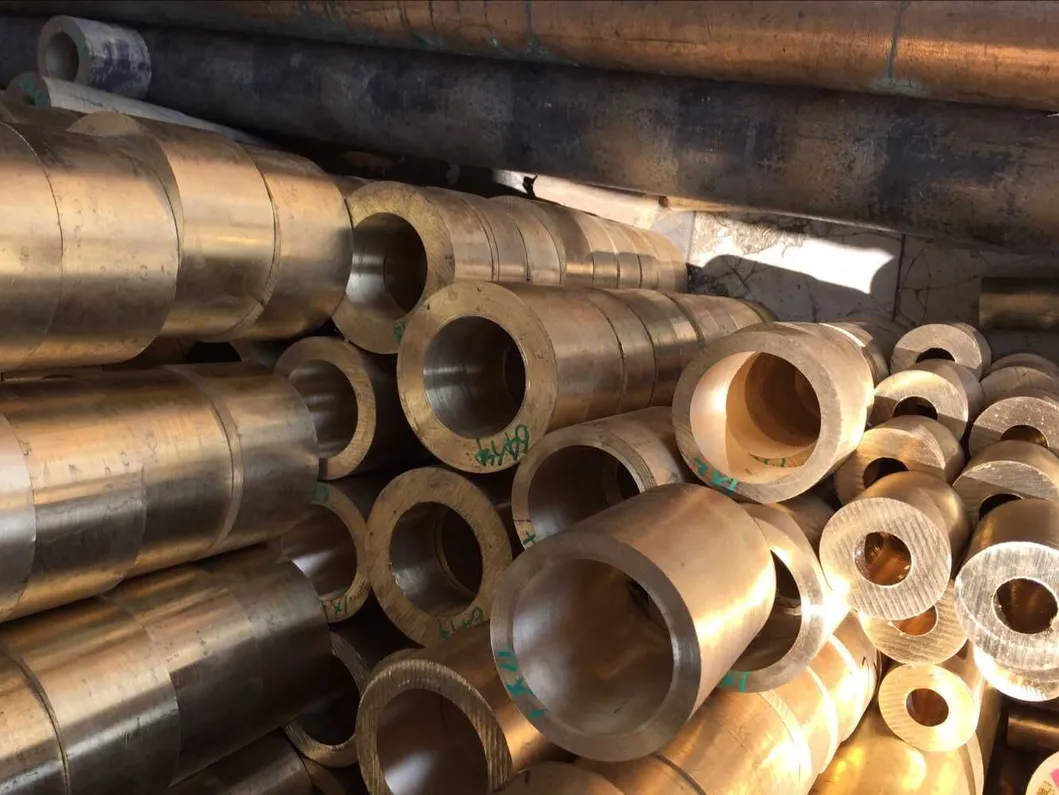

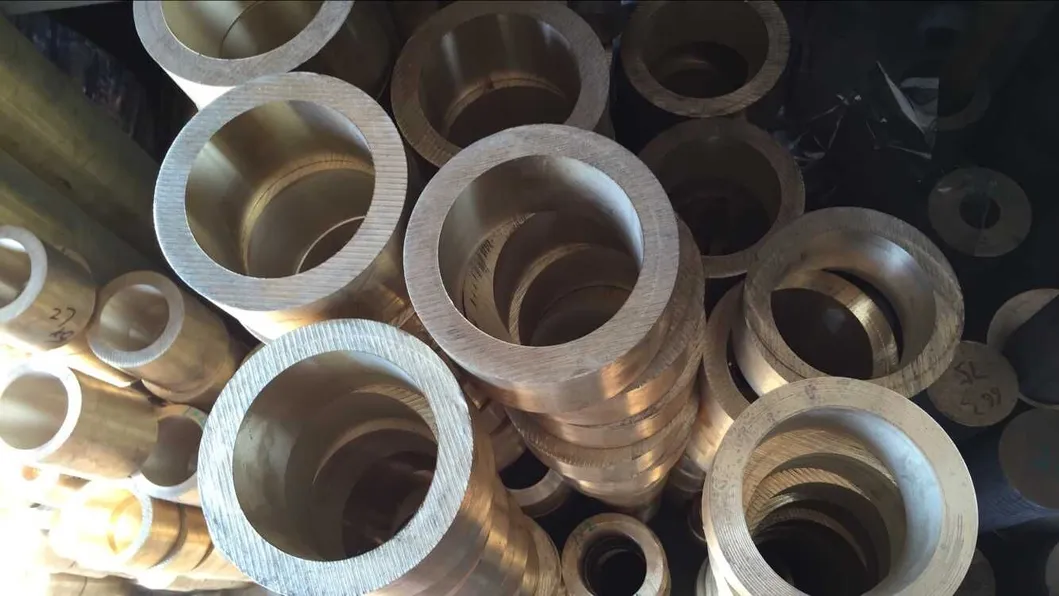

Detailed Photos
