| Model NO. | PE electrical conduit tube pipe-10 |
| Type | Thermoplastic Pipe |
| Color | Color |
| Hollow | Hollow |
| Shape | Round |
| Usage | Drainpipe, Water Supply Pipe, Threading Pipe, Wire and Cable Pipe, Agricultural Irrigation Pipe, Corrugated Pipe |
| Product Name | HDPE Water Supply Pipe / HDPE Gas Pipe / HDPE Drai |
| Raw Material Grade | PE100 / PE80 |
| Nominal Outside Diameter (DN) | DN20 ~ DN1200 |
| Appearance | Smooth Surface, No Blisters, Cracks, Impurities or |
| Transport Package | Plastic Paper |
| Specification | 16-60MM |
| Trademark | fosite |
| Origin | China |
| HS Code | 3917210000 |
Material: HDPE
Color: Black or customized
Application: Cable protection
Operating temperature range: -60ºC~60ºC
Standard:GB/T 24456-2009
Product Description

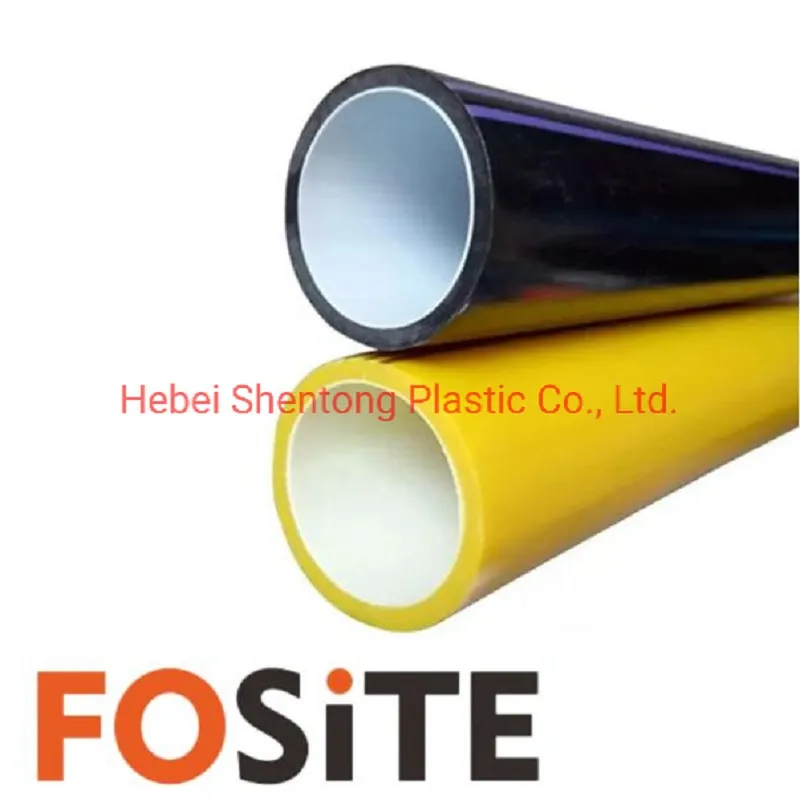

HDPE silicon core pipe is a special low friction coefficient silicon core material synchronously extruded on the inner side of high-density polyethylene pipe for communication optical (electric) cable sheath.
Smooth inner wall provides low friction coefficient and a permanent solid lubrication channel that is convenient for cable laying.
The radius of curvature is 10 times its outer diameter. It is not easily deformed under external force, and can be bent appropriately according to the terrain without any special treatment.

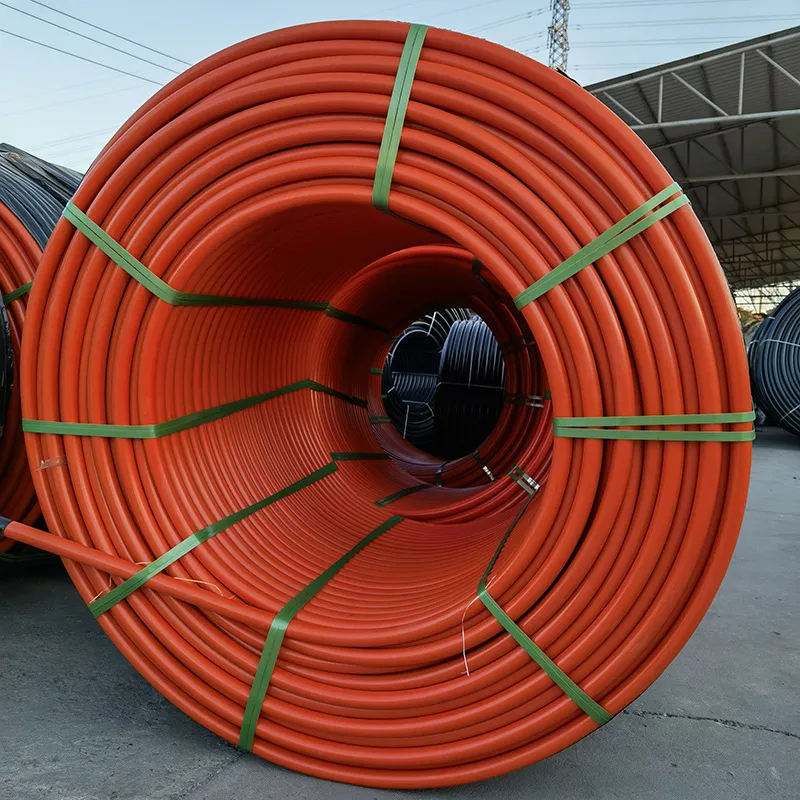

To prevent cable damage due to stretching, Silicon core pipe can be continuously 2000 meters long, which solves the phenomenon of signal attenuation caused by mechanical traction damage and joints.
2000 meters pipe length make the fast construction speed, less number of manholes, large percent cost saving possible.
Specification
Application
Optical communication network system
Features
1. With Silicone solid lubricant in inner wall, it is widely used in optical communication network system of highway, railway, etc.2. Adopt the mode of multi-machine co-extrusion, silicon core layer is synchronizely embedded in the pipe. It is lubricated and will not be stripped forever.
3. Low friction coefficient of the inner wall. Optical cable (electric cable) can be repeatedly extracted and tensioned in the pipe. By using cable blowing machine, one time blowing length can be 1000 to 2000 meter under normal conditions.
4. Waterproof, damp-proof, can avoid the damage by rodent animals.
5. With great ring stiffness and toughness. its bending radius should not be less than 10 times of the external diameter of the pipe.
6. Aging-resistant, anticorrosion of chemicals, with 50 years service life.
7. Good weather resistant ability, and its suitable temperature scope is from -60°C to 60°C.
8. Convenient in construction. Compared with PVC electric pipe. HDPE Silicon-Core Pipe can save 70% of installation time and project cost.
