50bar Johnson Type Wire Screen Pipes (Galvanized Carbon Steel) Bevel Plain Ends

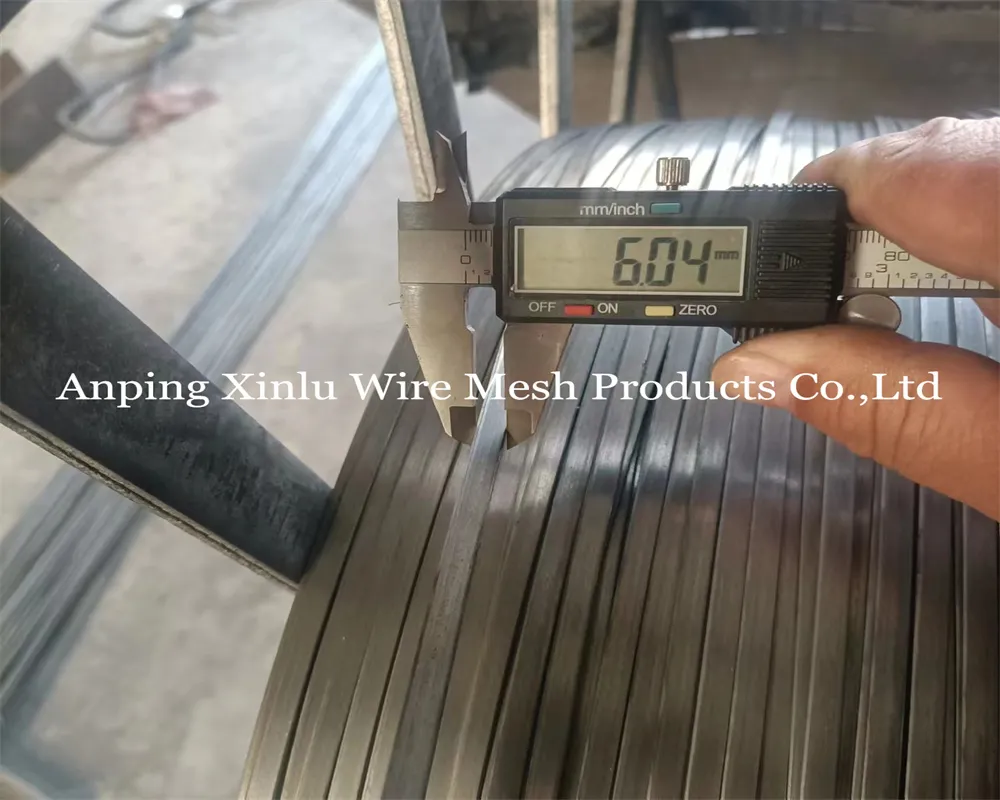

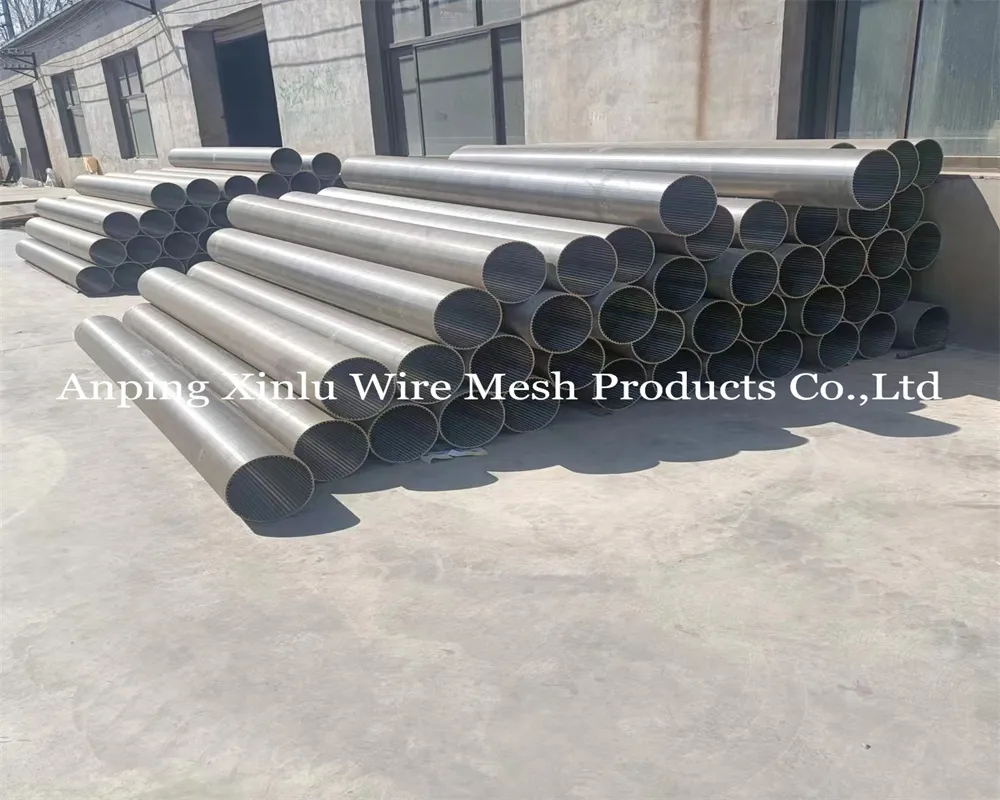

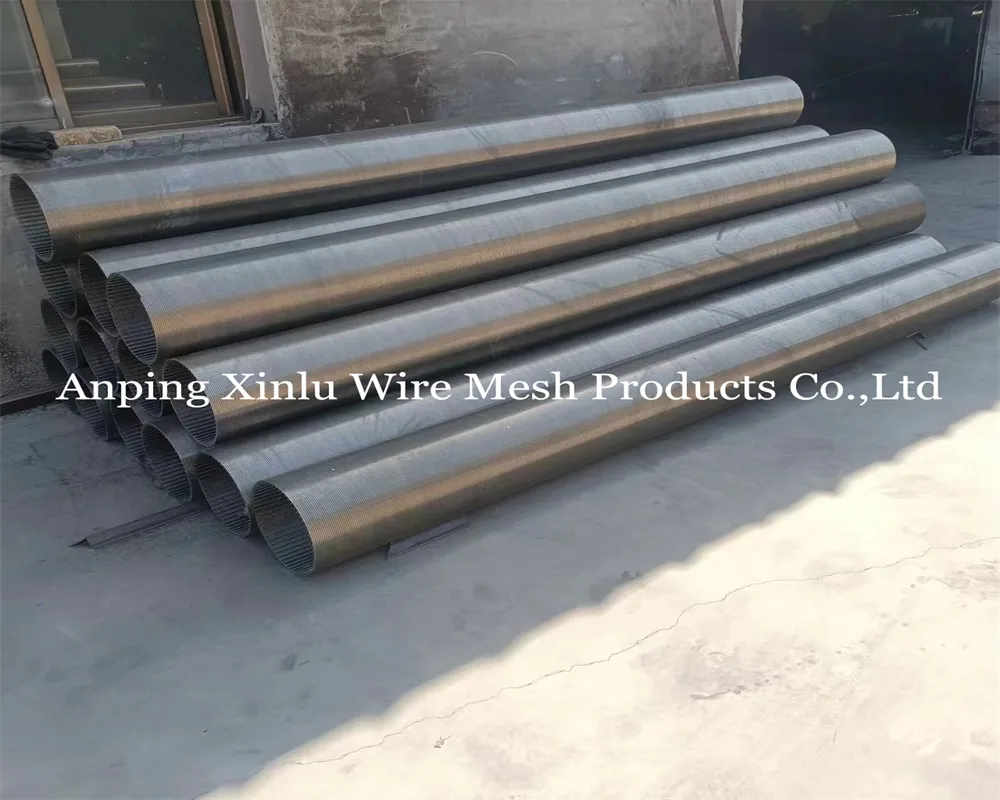

We offer a high-quality stainless steel wire wrapped filter screen pipe with a diameter of 203mm. This pipe is designed to provide efficient filtration and is equipped with 60 slots for optimal performance.


Our wire wrapped filter screen pipe is available in various designs, including:

• Rod based Continuous Slot Welded Wedge Wire Screen
• Looped Wedge Wire Screen
• Welded Profile Wire Screen

Product Name: V wire water well screens, wire wrapped screens pipe, Johnson Screen, spiral screen tube, welded wedge wire screen, reversed slot screen, continuous slot pre-pack, water filter, screen cylinders, stainless steel slot tube, reverse rolled screen, strainer pipe, continuous slot wire wrap well screens, pipe base well screen, ribbed-type wire wrapped screen, stainless steel or low carbon galvanized or mild steel wire screen, wire wrapped liner, woven wedge wire screen, slot wire screen tube, conical well screen, Suction strainers, strainer screens, wide slit screens, well point screens, PPS screen, oil screen tube.

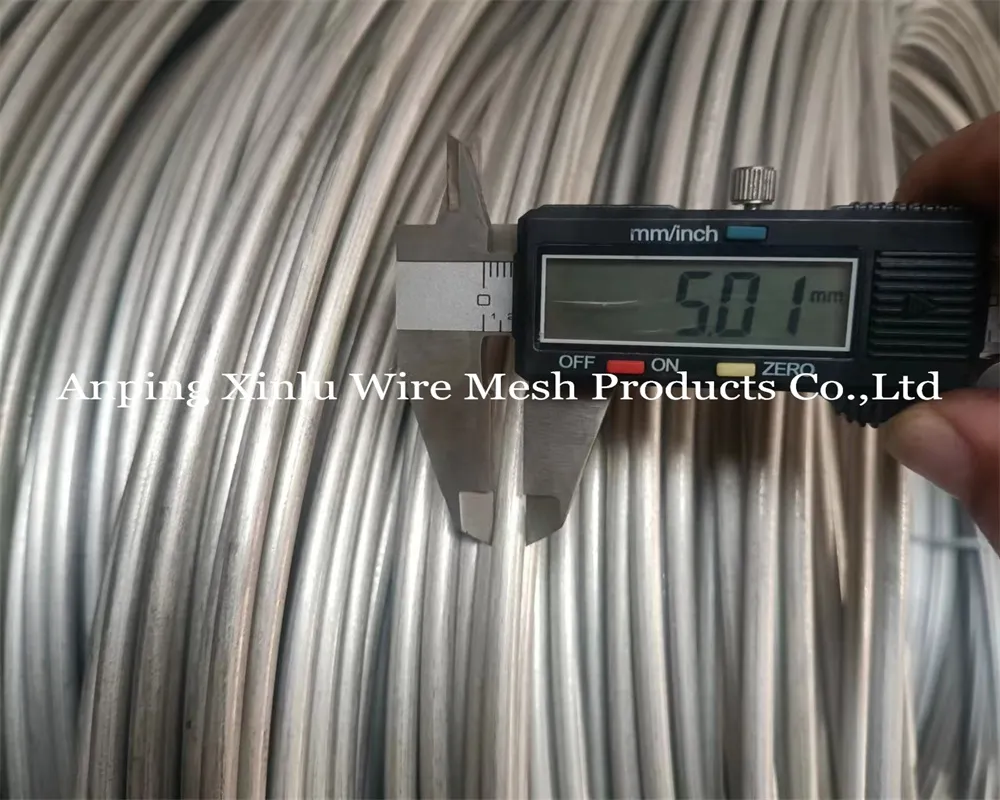

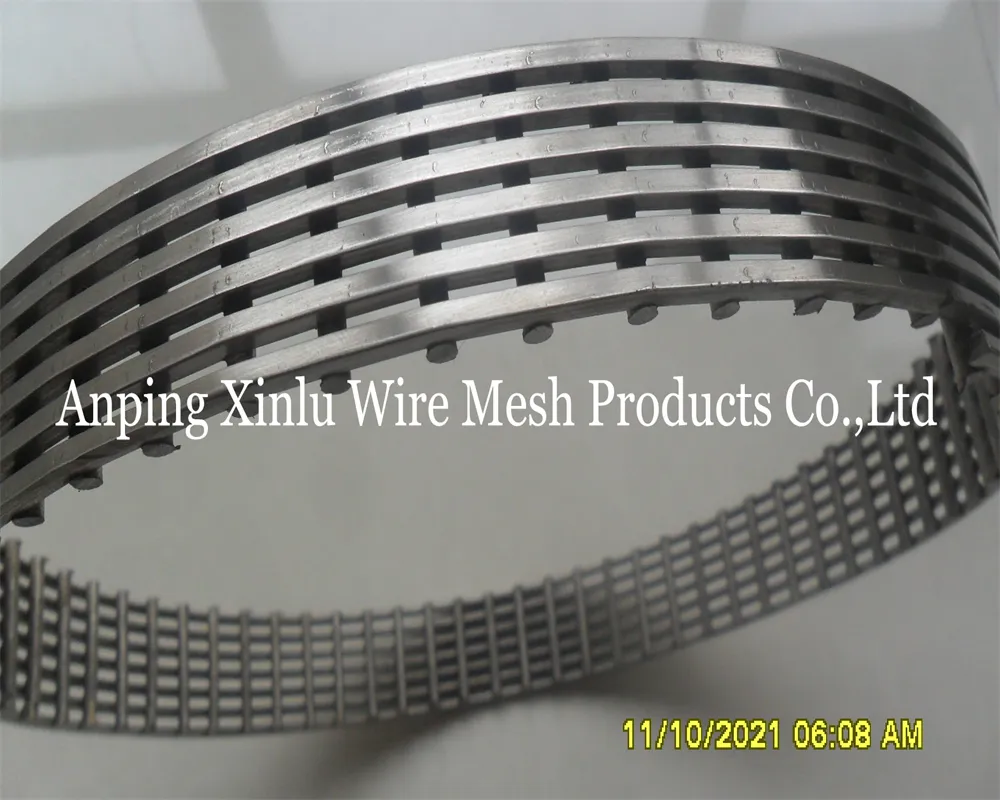

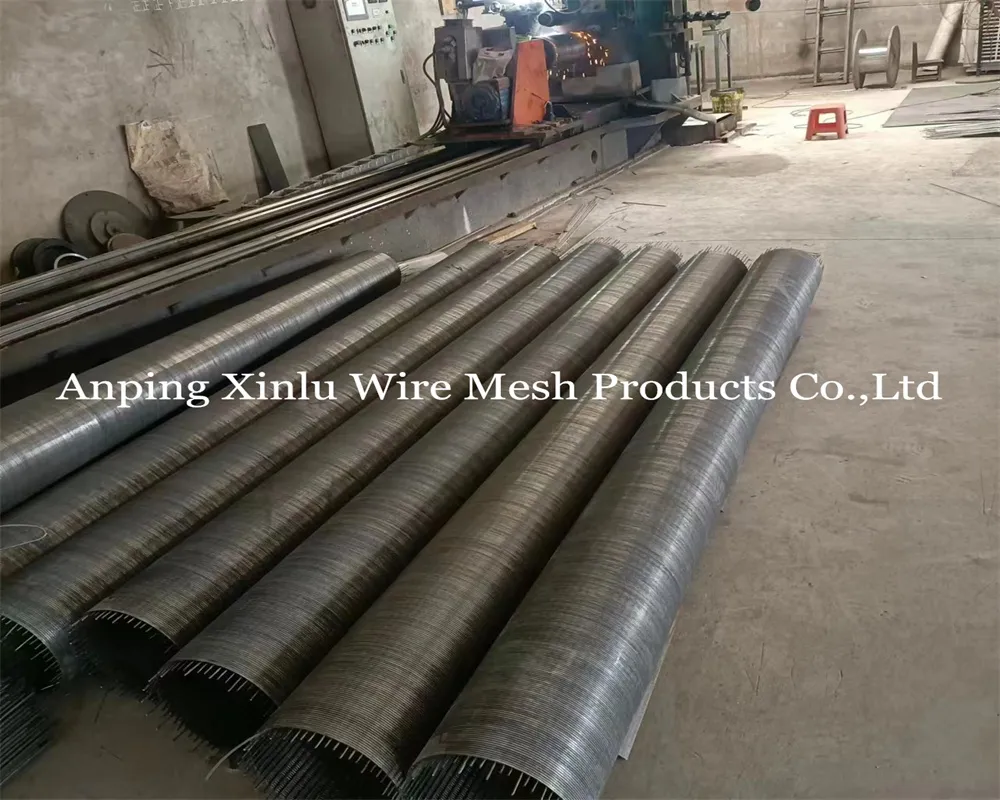

Our wedge wire screen cylinders can be designed with slot openings and wires running radially on the outside surface of the screen cylinder or axially on the inside of the cylinder. These screen cylinders are available in various diameters, ranging from 1/2" pipe size to 35" diameter. For larger diameters, screen cylinders can be fabricated accordingly. Each intersection of wedge wire and support rod is welded for enhanced strength and durability. We offer different combinations of wedge wire and support rods to create the best screen design. Rotary screens commonly utilize wedgewire for the screening media. For example, our externally fed unit features a spiral wound wedgewire screen drum measuring 36" OD x 120" long.


Technical Specification:

• NB (Nominal Bore) Sizes: 1.5", 2", 3", 4", 6", 8", 10", 12", 14"
• Slot Openings: 0.15mm, 0.25mm, 0.50mm, 0.75mm, 1.00mm, 1.50mm, 2.00mm, 3.00mm
• Lengths: 6 meters and 3 meters
• Grades: Suitable for tube well depths up to 300 ft., 600 ft., 900 ft., and 1500 ft.
• Material: Low Carbon Galvanized Steel (LCG) and Stainless Steel (SS-304)
• End Connection: Plain beveled ends for butt welding or threaded connections

At Anping County Xinlu Wire Mesh Products Co., Ltd, we are committed to providing high-quality stainless steel wire wrapped filter screen pipes. If you have any inquiries or require further information, please feel free to contact us. We look forward to serving you.

sizes
(inch) OD
(mm) slot
(mm) Length
(m) Tensile
strength collapse
Strength wrap wire
vee-shaped wire
(Width x height:mm) support rod
Round wire (mm) 3-1/2 88.9 1 2.9 >22 10.2 2.3 x 3.5 3.0MMx22 4-1/2 114.3 1 2.9 >28 11.5 2.3 x 3.5 3.0MM×22 6-5/8 168.3 0.75 5.8 >40 12.8 2.3 x 3.5 3.8MM×32 6-5/8 168.3 1 5.8 >33 12.8 2.3 x 3.5 3.8MM×32 6-5/8 168.3 0.63 5.8 >83 45 3.0 x 6.0 5.OMM×32 8-5/8 219.1 1 5.8 >34 21.9 2.3 x 3.5 3.8MMx48 8-5/8 219.1 1 5.8 >50 38.2 3.0 x 4.6 4.0MMx48 8-5/8 219.1 1 5.8 >60 46 3.05 x 6.35 5.0MMx48 10-3/4 273.1 0.75 5.8 >50 9 2.5 x 4 .0 3.8MM×55 10-3/4 273.1 1 5.8 >60 39.5 3.0 x 4.6 4.5MMx55 10-3/4 273.1 1 5.8 >100 48 3.2 x 6.0 5.0MM×55 12-3/4 323.9 1 5.8 >120 37.2 3.0 x 6.0 4.0MMx56 14 355.6 1 2.9 >80 37.8 3.0 x 5.0 4.0MMx59 16 426 1 2.9 >80 37.5 3.0 x 5.0 4.OMM×64

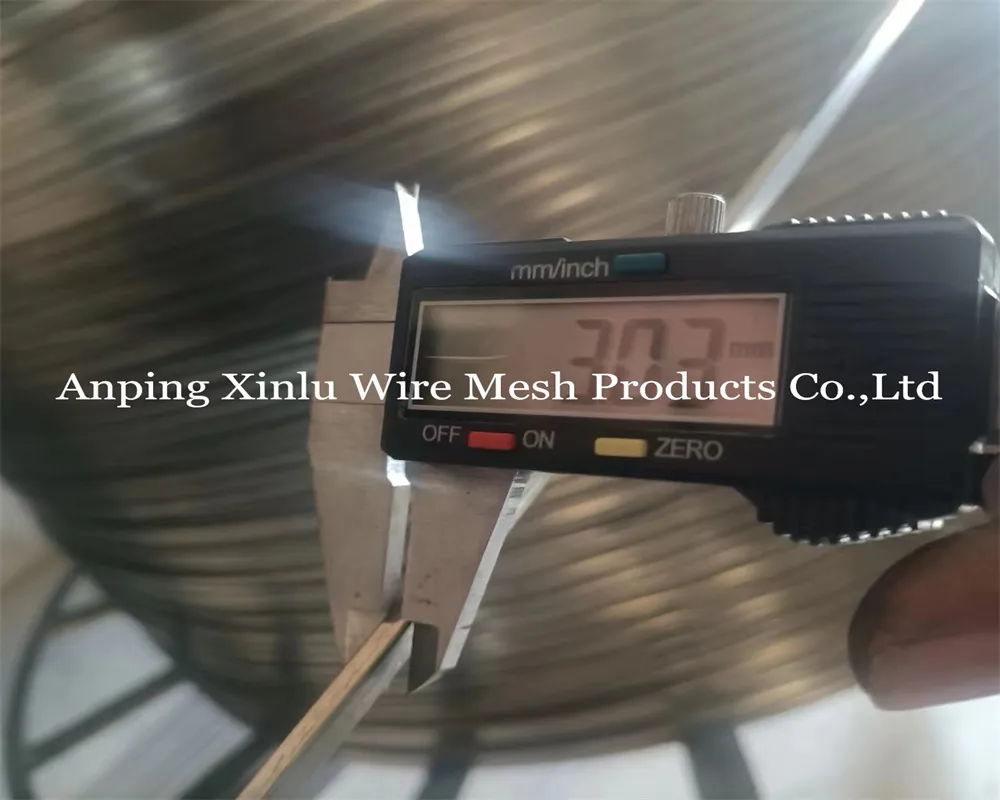

OD Range 19mm-2000mm   ID Range 13mm-1981mm   Length Range Up to 6000 mm   Slot Range 20 micron to 3000 micron (Tolerance:+-5 micron)   Wedge Wire 0.5x1.5 0.75x1.5 1x2 1.5x2 2x3 2.3x3.5 2.5x4 3x4.6 3x5   Support Rod 1.5x2.5
2x3 1.5x2.5
2x3 1.5x2.5
2x3 1.8x2.5
2x3 2x3
3x5
3x6
3x10
4x7 2.3x3.5
2.5x4
3x4.6
  2.5x4
3x5
3x6
3x10
4x7
5x6 3x4.6
3x6
  3x5
3x6
3x10
4x7
5x6
5x8   End Finishing Thread fitting, Flange, Closed Plated, Resistance welded closed plate, Metal Ring, etc   Note Customized According To Requirement   Diameter (mm) Wall Thickness (mm) Couple
Outside Diameter (mm)   4 6 8   Ø 127 √     Ø 127 Ø 159 √ √   Ø 159 Ø 168 √ √   Ø 168 Ø 219 √ √   Ø 219 Ø 273 √ √   Ø 273 Ø 325   √ √ Ø 325 Ø 426   √ √ Ø 426 Ø 529   √ √ Ø 529 Ø 630   √ √ Ø 630 Wall Thickness
(mm) 4 6 8   Slot size(mm) 1 1.5 2 3 1 1.5 2 3 1 1.5 2 3   Percent Open Area (%) 8.8 13.9 18.8 30.4 6.3 9.5 12.7 20 5.6 8.6 11.4 16.9
