| Model NO. | 5/16"5/8"3/4"1"inches |
| Type | Thermoplastic Pipe |
| Color | Transparent |
| Hollow | Hollow |
| Shape | Round |
| Usage | Drainpipe, Water Supply Pipe, Threading Pipe, Agricultural Irrigation Pipe, High-Pressure Spray Paint Compresses Gas |
| Working Temperature | -5℃ to+65℃ |
| Length | 10-50meters Can Be Customized |
| Wall Thickness | 2mm-8mm |
| Working Pressure | 2bar-6bar |
| Feature | Withstand Pressure, Explosion-Proof |
| Transport Package | Export Standard or as Customer Request |
| Specification | Can be customized |
| Trademark | Rongheng |
| Origin | China |
| HS Code | 3917390000 |

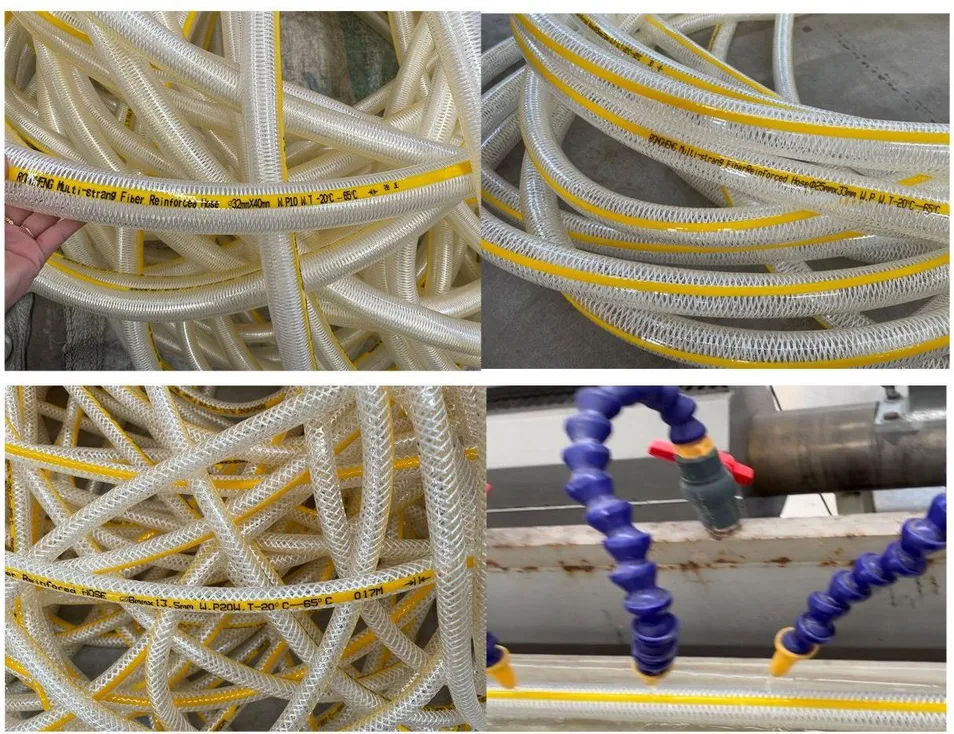

I. General Characteristics
PVC double strand fiber reinforced hose builds a high-strength composite structure by virtue of double strand fibre cross-reinforcement technology, with PVC as the inner and outer base material, embedded with a precision woven fibre skeleton in the middle, specially designed for high-pressure, high-frequency pulsation and complex environments. The product has the characteristics of anti-twisting, wear-resisting and long life, which meets the severe fluid transmission requirements in industry, engineering, agriculture and other fields.
II. Structure Analysis
1. Inner layer of hose:
Weather-resistant PVC material, smooth inner wall, strong chemical stability, can be customized to resist oil, weak acid and weak alkali formulations, suitable for a variety of media.
2. Reinforcement layer:
double strands of high-strength fiber (polyester) to form a tight reinforcement by weaving process, high fibre density, high tensile strength, effectively resist high-pressure impact and mechanical stress.
3. Outer layer of hose:
thickened PVC protective layer containing anti-aging, anti-ultraviolet additives, not easy to discoloration, which have strong weather resistance, can be used under normal working conditions for 3-5 years.
III. Core advantages
III. Core advantages
- Excellent pressure-bearing performance:
working pressure 8-15bar (0.8-1.5MPa), burst pressure ≥ 24bar, support for continuous high-pressure conditions (can be 10bar pressure continuous operation).
- Anti-twisting and anti-fatigue:
the double strand fiber reinforced structure makes the hose 40% more resistant to spiral deformation, the bending radius is ≤4 times the diameter of the hose, and there is no crack after frequent bending test, suitable for high-frequency mobile scenarios.
- Strong environmental adaptability:
the temperature resistance range is -15℃ to +65℃ (the ultimate short-term temperature resistance is 80℃), with a high UV resistance index. The performance retention rate after 5 years of outdoor open-air use is ≥90%.
- Low maintenance cost:
the inner and outer layers are corrosion-resistant and non-scaling, reducing the cleaning frequency; the overall weight is light (60% less than that of rubber hose), reducing the energy consumption for handling and installation.
Production Process
Product Parameters
Specification
- Diameter:
φ84mm ~ φ32mm (5/32''~1-1/4''), φ12mm ~ φ32mm always in stock, support for non-standard hose diameter customization.
- Length:
Standard specification 50m/roll, 100m/roll, large length can be customized or cut by metre (minimum customized length 10m).
- Pressure grading:
- Regular high pressure: 7-8bar (for cleaning equipment, air compressor);
- Ultra-high pressure: 10bar (applicable to mine grouting, high-pressure system on ship).
I.D
O.D
L
W.P
B.P
Weight
inch
mm
mm
m/roll
bar
bar
g/m
5/32"
4
8
100
8
24
49
13/64"
5
9
100
7
21
57
5
10
100
8
24
76
1/4"
6
10
100
7
21
65
6
11
100
8
24
90
5/16"
8
12
100
7
21
84
8
13
100
8
24
112
3/8"
10
14
100
6
18
101
10
15
100
7
21
132
1/2"
12
16
50
5
15
118
12
17
50
6
18
153
12
18
100
7
21
190
13
17
50
4
12
131
5/8"
15
19
50
5
15
144
16
20
50
3.4
10
152
16
21
50
4
12
196
16
22
50
5
15
260
3/4"
19
23
50
4
12
178
19
24
50
3
9
227
19
25
50
4
12
279
20
24
50
3
10
186
7/8"
22
27
50
3
10
250
22
28
50
4
12
318
1"
25
29
50
3
9
220
25
30
50
4
12
291
25
31
50
4
12
356
1-1/4″
32
40
40
4
12
625
Application
Application areas
- Industrial equipment:
High-pressure water jet cleaning machines, hydraulic hose for injection molding machines, cooling systems for steel mills, and centralized gas supply hoses for workshops.
- Engineering infrastructure:
Leak sealing and grouting for subway tunnels, temporary water conveyance for water conservancy project, airport runway deicing liquid spraying system.
- Agricultural upgrading:
Intelligent greenhouse high-pressure fogging irrigation, hoses for milking equipment in large farm, high-pressure transportation of pesticide concentrate.
- Special scenarios:
Non-corrosive liquid transmission in the chemical industry (such as ethanol, detergents), food machinery condensate hose (sanitary inner hoses need to be customized).
