Screw No.	Single-screw
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
After-sales Service	online Aftersales
High Capacity	400kg/Hr
Transport Package	Wood
Specification	sgs
Trademark	middle tech
Origin	Zhangjiagang City
HS Code	84772090
Production Capacity	300kg/Hr

HDPE/PPR/LDPE
Plastic Pipe extrusion and production line

PART 1 INTRODUCTION:

Through technology combination and continuous innovation, Midtech pleased to provide energy saving (15% down), high capacity (exceed 25% ), high standard (PLC Intelligence), reliable quality (SKF bearing) PE/LDPE/PPR Extruder and pipe extrusion and production line.





Pipe Diameter16-6332-12575-250110-450315-630315-800 Extruder45/3365/3375/3390/33120/33150/33 Cavitysingle strandsingle strandsingle strandsingle strandsingle strandsingle strand DownstreamLG63LG125LG250LG450LG630 LG800  Total power(kw)70150230380550800

PART 2 Working flown of the pipe production line


Feeder• To feed material into extruder; Extruder• High torque gearbox with adopts NSK/SKF bearing;
• Siemens/WEG original motor achieved global after service;
• Up to 30m/min of maximum lineal extrusion speed for small pipes
• Suitable for multi-layers co extrusion from 1-5 layers;
• Intelligent PLC controlling system with operation-friendly interface.  Die head• PCA increased extrusion speed and decrease the cooling length,  quality inner wall surface;

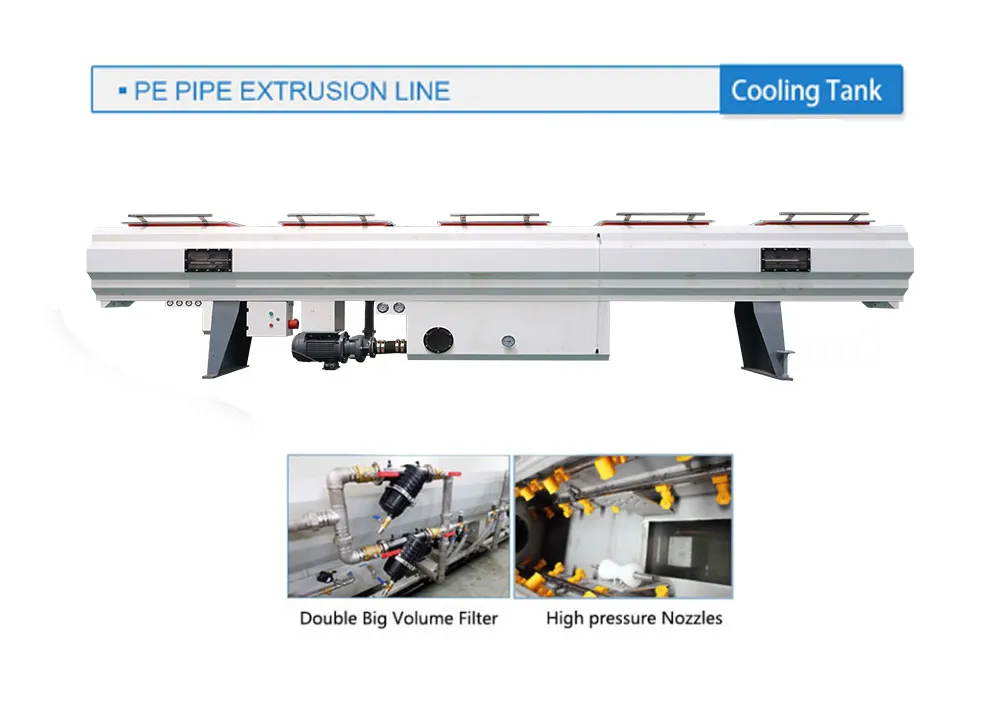

• The Bronze bush is wear-resisting and efficiency cooling of pipe surface. Calibration Tank
Spray tank• Big water flown filtration system
• Mechanical Water level and temperature control system Haul off• Variant 2-16 claws based on different pipe diameters,
• Equipped with servo control system for wide diameter range. Cutter• Chip-free cutter ensuing flat and smooth cutting surface of pipe. Stacker• Discharge driving by air cylinder Winder• Suitable for diameter from  5mm-110mm

PART 3 Why choose us


If you do need any support, please don't hesitate to contact us.
