| Model NO. | Corrugated Copper Pipe |
| ventilation mode | mechanical ventilation |
| Certification | TUV, ISO9001, ROHS |
| Product Name | PE Corrugated Copper Pipe |
| MOQ | 10sets |
| Payment | T/T 30% Deposit |
| Delivery | 15-30days |
| Material | Copper |
| Color | White/Customer Specified |
| Length | Customer Specified |
| Transport Package | Carton Box |
| Specification | 1/8" 1/4" 3/8" 1/2" 5/8" 3/4" 7/8" |
| Trademark | Jiahao |
| Origin | Jiangsu |
| HS Code | 7411290000 |

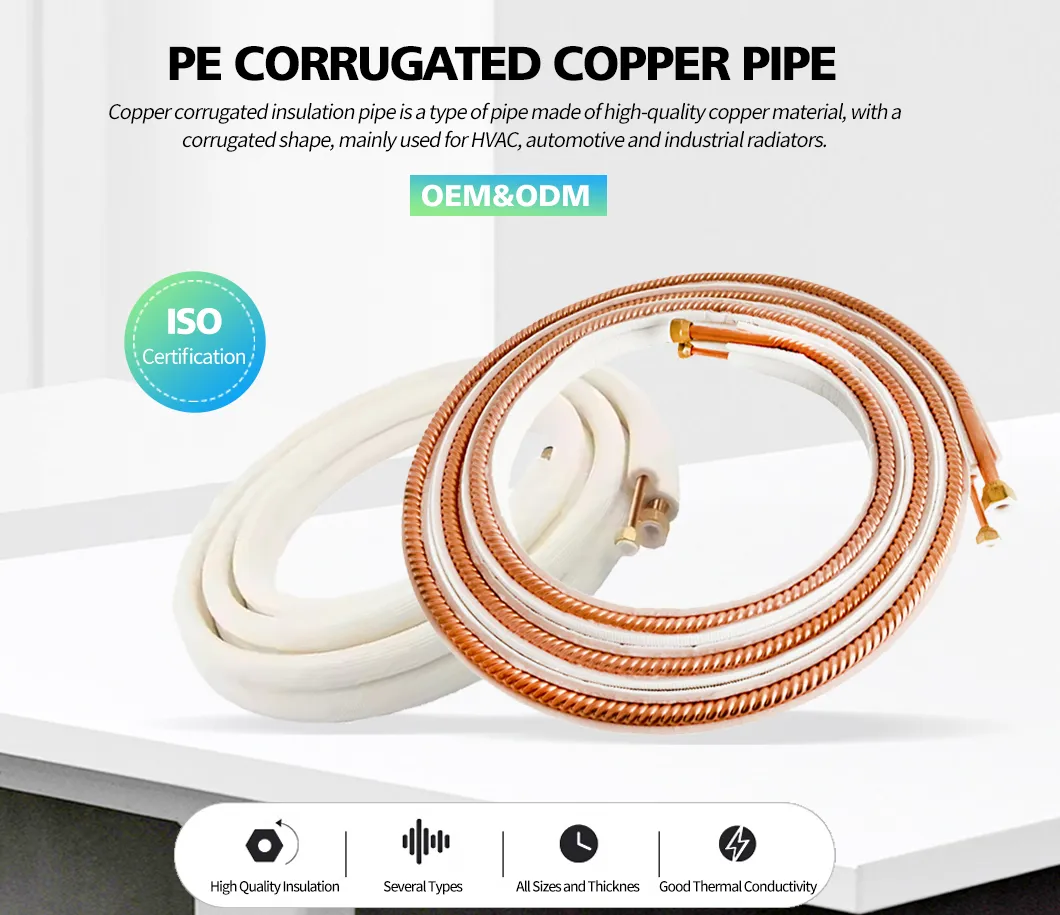

• High quality insulation pipe:
- Several types: PE /XPE/Titan/Rubber, two layers / single layer, etc.
- Thickness 8mm~20mm.
- Anti-UV, Low water absorption, Low thermal conductivity
- Surface can be printed with words.
- Standards comply with EN13501, M1.ASTM E84.AS1530.RoHS, etc.
• All sizes and thicknes of high quality copper tubes, as your requirements. Standards comply with EN12735,IS H3300,ASTM B280, AS1571.RoHs, etc.
• Type: single or pair types.
• With or without fared nuts
• Length: 1~50 meters.
• Suitable for any gas: R22, R407C, R410A, R404A, R507C, etc.
• Light weight, good thermal conductivity
• Easy and quick installation, saving time and money, easy transport
• Seamlessness prevents from moisture entry or dripping.
• Can be with accessories: Nut, Drain pipe Tape, PVC wall-fix tape, Joint insuation pipe PC wallhole sleeve and cap, Electrical tape, Seal plaster, etc.
SPECIFICATION
SIZE OF COPPER TUBE
COPPER TUBE THINKNESS
1/4" WHITE PE
6.35MM
0.37/0.38/0.55/0.62/0.65/0.7/0.72/0.8MM
3/8" WHITE PE
9.52MM
0.37/0.38/0.55/0.65/0.68/0.72/0.75MM
1/2" WHITE PE
12.7MM
0.72/0.74/0.75MM
5/8" WHITE PE
15.88MM
0.85/0.9/1MM
3/4" WHITE PE
19.05MM
0.85/0.93MM
7/8" WHITE PE
22.22MM
1.1/0.95MM
SIZE OF INSULATION TUBE(INNER DIAMETER)
WALL THINKNESS OF INSULATION TUBE
LENGTH (M)
8MM
8MM/9MM/10MM/13MM/19MM/25.4MM
3/4/5/6/7.6/8/10/15/25/30/50
10MM
8MM/9MM/10MM/13MM/19MM/25.4MM
3/4/5/6/7.6/8/10/15/25/30/50
13MM
8MM/9MM/10MM/13MM/19MM/25.4MM
3/4/5/6/7.6/8/10/15/25/30/50
16-17MM
8MM/9MM/10MM/13MM/19MM/25.4MM
3/4/5/6/7.6/8/10/15/25/30/50
20-22MM
8MM/9MM/10MM/13MM/19MM/25.4MM
10/15/25/50

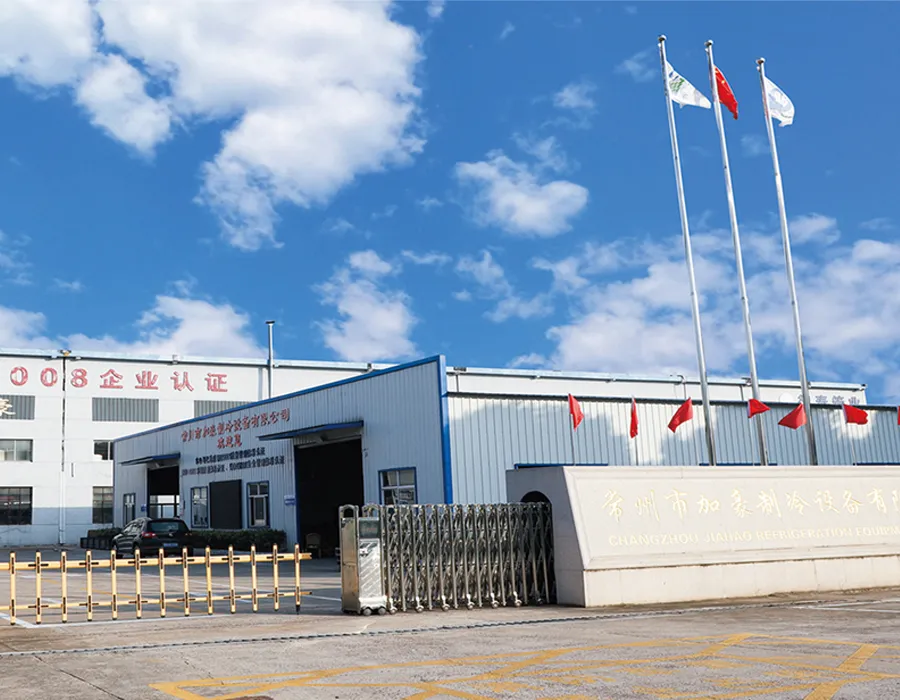

Changzhou Jiahao Refrigeration Equipment Co., Ltd.
Company founded in 2013, is located in Changzhou City, Jiangsu Province, which is only one hour to Shanghai or Nanjing by train. It is a diversified manufacturing enterprise integrating professional design, research, development, manufacturing and sales service of refrigeration.
With an area spanning over 20,000 square meters and a workforce of over 200 employees, the company's annual output value has exceeded 400 million yuan. The main business includes a wide range of products such as copper connection pipes, copper-aluminum connection pipes, insulated copper pipes, filters, mufflers, plastic bases for air conditioners and more.
We warmly welcome domestic and international customers to engage in discussions and exchanges. Looking forward to cooperating with you.
