Screw No.	Single-screw
Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
After-sales Service	Technical Service with Free, Training The Workers
Application	Producing Pre-Insulated Pipe Jacket
Cutting Method	Dust-Free Planetary Cutting
Calibration Method	Vacuum and Water Spraying Cooling
Package Size	3500.00cm * 320.00cm * 500.00cm
Package Gross Weight	4000.000kg
Transport Package	Standard Package
Specification	110-2200mm
Trademark	huashida
Origin	Ingdao, China
HS Code	8477209000

    Vacuum feeding PE granule-->hot air dry material-->extrusion plasticizing-->mold shaping-->Vacuum sizing-->water cooling-->Pulling out-->cutting pipe-->carrier laying-off pipe

    Composition of Equipments:

          1.hopper dryer 2. Single Screw Extruder 3.extrusion mould die 4. Head bracket 5.Vacuum calibration device 8.Water cooling tank  9.haul-off  10. Planetary cutting machine  11.Pipe bracket 12.Loader 13. PLC

PU Foaming Pre-insulated Pipe Production process Flow:

The production process of "pipe in pipe" (PU Foaming Pre-insulated Pipe) mainly includes three steps: surface pretreatment of steel pipe, production of HDPE outer protective pipe and production of insulation layer.

The production steps of insulation layer are as follows: firstly, the steel pipe is penetrated into the high-density polyethylene outer protection pipe to form a casing structure, and the supports are evenly arranged in the annular space between the steel pipe and the high-density polyethylene outer protection pipe, and the two ends are sealed by flanges; secondly, the casing is hoisted on the foaming platform, and the polyurethane foaming material is injected into the casing by high-pressure foaming machine; finally, the polyurethane material is foamed After curing, the sealing structure at both ends is removed to complete the production process of the insulation layer.



Main machine for HDPE Jacket pipe extrusion line

  Main Extruder Efficient single screw extruder with water-cooling force feeding system, and barrel with grooving in the feeding zone are designed to save power of main motor; Long L/D ratio and mixing head are designed to get perfect jellification and high output.







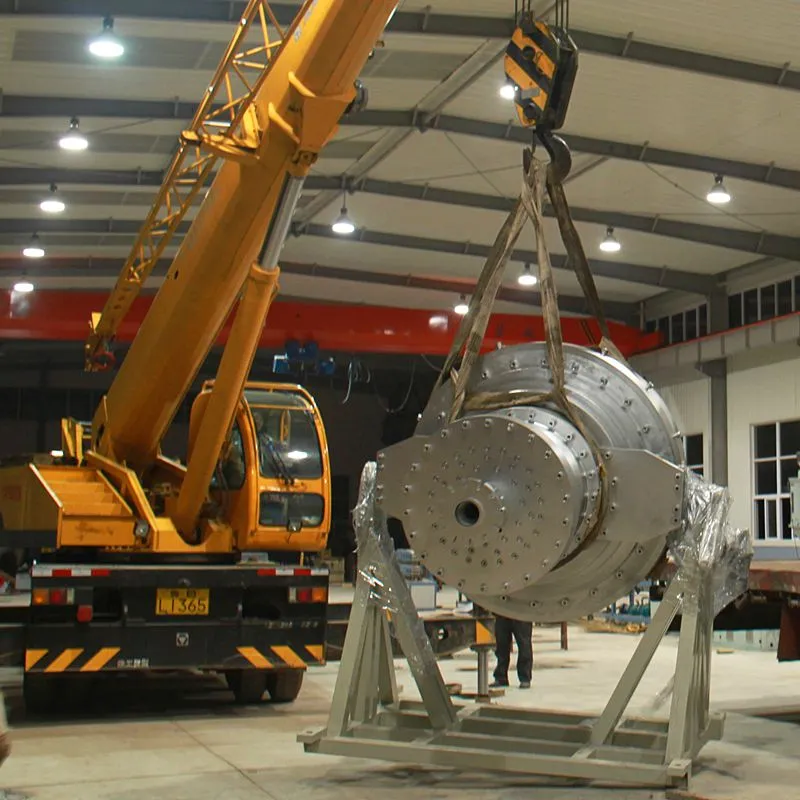

Die head Die-head is mainly composed of mandril, neck mold, spiral body, cover, die-head body, bolts, and heating rings. The inside surface touching with plastic materials is polished and chrome plated to ensure plastic materials flow smoothly and to ensure no rusting. The uniformity of pipe wall thickness can be adjusted by bolts.





 Vacuum Calibration Tank It adopts bronze or stainless steel calibrators;The calibrating sleeve fixed in die-head is mainly used to cool down the fresh pipe and to calibrate the pipe outer diameter. High-efficiency water-spraying cooling to ensure quality of pipes.





Hauling machine High qualified rubber block is with longer life, we dont accept blocks made by recycled materials. Hauling speed is synchronized with extruder.





Chipless Planetary cutter      High qualified alloy steel blade; planetary cutting to get smooth edge without plastic scrap; High precision cutting; PLC control.





PE110-600

PE655-1380

PE960-1680

PE1155-2000



Main extruder



SJ-75/33

SJ-120/33

SJ-150/33

SJ-150/33

Pipe dia.(mm)

110-550

655-1380

960-1680

1155-2000



Capability(kg/h)

250-350

800-950

1200

1350



Installed power(kw)

160

480

560

600



Length (m)

24

36

45

45





Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
