Model NO.	PP Corrugated pipe
Usage	Electric Wire
Material	PP
Type	Corrugated Pipe
Working Temperature	-40℃ ~ 105℃
Transport Package	Bag/Box
Trademark	ZHonghe
Origin	China
HS Code	391732
Production Capacity	80000000meter/Year

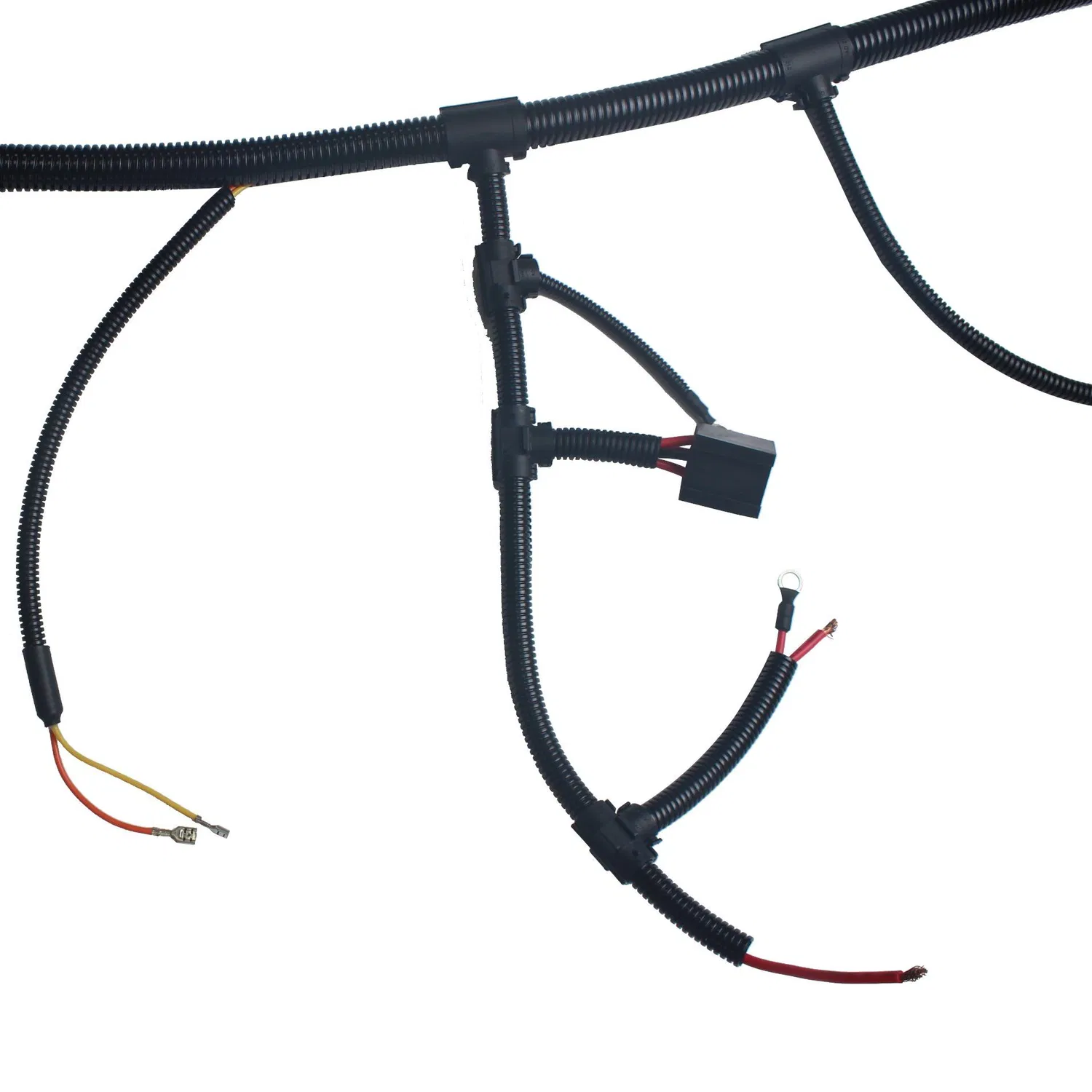

Flexible flame retardant wire loom PP polypropylene Corrugated conduit pipe
Features:

Product material : PP( Polypropylene)
Working temperature: -40~105ºC
Color: black, orange, gray, white, red, blue, yellow, etc.
Flammability rating: UL94-V0 GB/T2408-V0 GB/T2408-HB Product Standards:QC/T29106-2014
Certification: RoHS,REACH,5510 (odor test,TVOC optional)
Property: Flame retardant, high mechanical strength, resistance to twisting, abrasion, oil, acid, alkali, ultraviolet
Application: Mainly used for automotive wiring, machine tool machinery, automatic instrumentation, motor, railway locomotive, electrical equipment, protection cable and wire from external wear and insulation.

Product NamePP polypropylene Corrugated conduit pipe BrandZHonghe MaterialPP Outer Diameter4.5 to 91MM Working Temperature-40ºC~105ºC Lead Time7~15 days Packaging DetailsBag/box, Stickers can be customized.

SpecInner diameter d(mm) Outside diameter D (mm) Wall thickness H(mm) wave spacing A (mm) Pulse width a (mm) Packing Spec (M/roll) Φ 4.5*75.0±0.37.1±0.30.27±0.05 (2.1)(1.45)400 Φ6*9 6.0±0.39.0±0.3 0.27±0.05(2.5)(1.75)400 Φ7*107.0±0.310.0±0.3 0.27±0.05(2.7)(1.95)200 Φ10*1310.2±0.3 13.0±0.30.30±0.06 (2.7)(1.95) 200 Φ20*2520.5±0.525.0±0.50.40±0.08(3.1)(2.35)100 Φ32*36.8 36.0±0.6 42.5±0.60.50±0.12 (4.15)(3.0)50

01 : why choose us?
A:1.We have more than 12 years of experience in this industry!2.Research and development capacity- We have one of technical teamwho can develop and design the product according to the requirementsof customers!
3.We have a professional sales team to provide excellent service for you!
O2 : what's the MoQ for your production?
A: We accept both large and small order, please contact us for details.
3: Can l expect to get the sample?
How long can l expect to get it?
A: Sure, Free samples can sent to you for test. About 4-6 days.
Shipment according to distance and courier company.
O4 : can you do the design for us?
A: Yes, We are a professional manufacturer who can design for you.
O5 : what's your payment term?
A: 30% T/T Deposit +Balance before Shipment.
O6 : what's the list of certificates you hold?
A:IATF16949, RoHS, CE, EN45545 Test Report, ELV Test report.
