Model NO.	PP drainage corrugated pipe
Usage	Optical Cable, Lighting Decoration, Electric Wire, Cable Protection,Golf Courses, Lawns, Farms, Green
Material	PP
Type	Corrugated Pipe
Usage Scenarios	Golf Courses, Lawns, Farms, Green Belts
Flame Retardant Grade	GB/T2408-V0, GB/T2408-Hb
Product Standards	QC/T29106-2014
Temperature Resistance	-40~105℃
Transport Package	Woven Bag/Carton
Specification	Polypropylene
Trademark	ZH
Origin	China
HS Code	3917320000

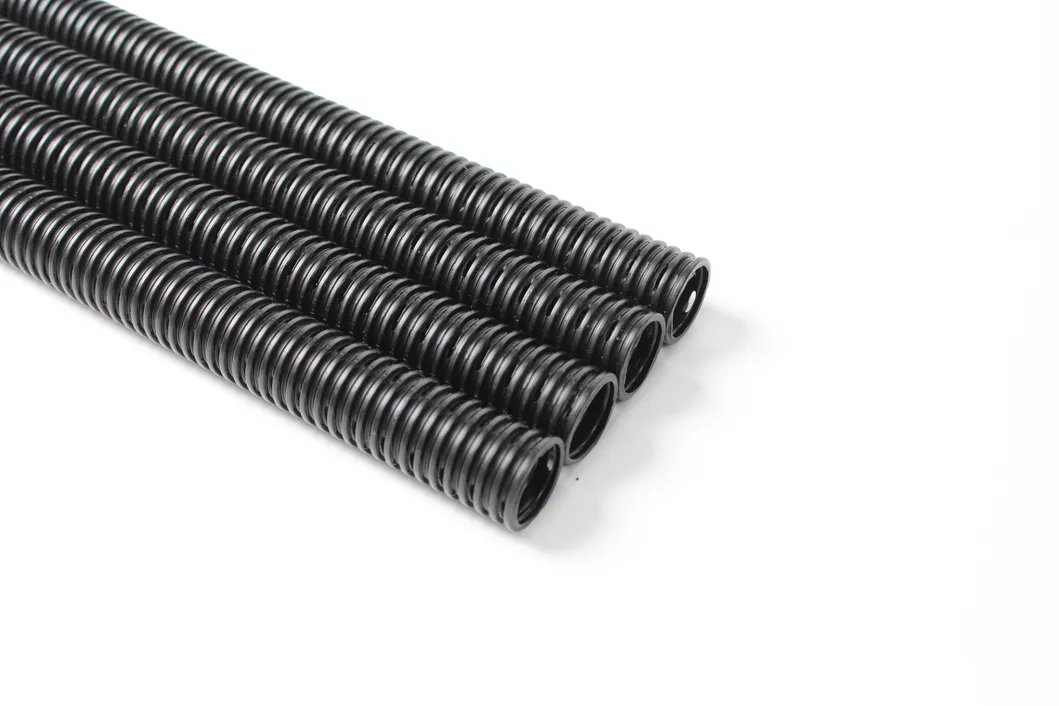

PP Corrugated Pipe



Product: PP Corrugated Pipe
Product Material: PP (Polypropylene)
Working Time I: -40~105ºC (130ºC for 240 hours and 110ºC for 3000 hours)
Working Time II: -40~125ºC (150ºC for 240 hours and 125ºC for 3000 hours)
Working Time III: -40~135ºC (150ºC for 500 hours and 135ºC for 3000 hours)
Structure: Designed with corrugations both inside and outside for enhanced durability.
Color: Available in Black, Orange, Grey, White, Red, Blue, Yellow, etc. Custom colors are available based on requirements, and pipes can be split as needed.
Flame Retardant Grade: Complies with UL94-V0, GB/T2408-V0, and GB/T2408-HB for superior safety.
Product Standards: Crafted to meet QC/T29106-2014 standards.
Certification: Our pipes are certified by RoHS, REACH, and offer 5510 (Odor test, TVOC optional) compliance.
Features: Boasting flame retardancy, high mechanical strength, resistance to twisting, wear, oil, acids, alkalis, and UV radiation.
Application Areas: Primarily utilized for efficient drainage in golf courses, grasslands, farms, and green belts.

Customization: Tailor the opening and closing ports to your unique specifications.

Customization Services: Supporting a wide array of specifications and colors to deliver an impeccable service experience to our valued customers.

Size(mm)

Inter Diameter d(mm)

Outer Diameter D(mm)Wall Thickness H(mm)

Wave Spacing A(mm)

Waviness Width a(mm)

Package (M/roll)

Φ4.2*7

4.2±0.3

7.1±0.3

0.27±0.05

(2.0)

(1.3)

400

Φ4.5*7

5.0±0.3

7.1±0.3

0.27±0.05

(2.1)

(1.45)

400

Φ5.2*7.2

5.2±0.3

7.4±0.3

0.27±0.05

(2.1)

(1.45)

400

Φ5.5*8

5.5±0.3

8.0±0.3

0.27±0.05

(2.1)

(1.45)

400

Φ6*9

6.0±0.3

9.0±0.3

0.27±0.05

(2.5)

(1.75)

200

Φ6.5*10

6.5±0.3

10.0±0.3

0.27±0.05

(2.85)

(1.95)

200

Φ7*10

7.0±0.3

10.2±0.3

0.27±0.05

(2.85)

(1.95)

200

Φ7.5*10.5

7.7±0.3

10.7±0.3

0.27±0.05

(2.7)

(1.8)

200

Φ8.5*11.5

8.5±0.3

11.7±0.3

0.30±0.06

(2.7)

(1.95)

200

Φ9*12

9.2±0.3

12.2±0.3

0.30±0.06

(2.7)

(1.95)

200

Φ9.3*12.7

9.3±0.3

12.7±0.3

0.30±0.06

(2.65)

(1.9)

200

Φ10*13

10.2±0.3

13.0±0.3

0.30±0.06

(2.7)

(1.95)

200

Φ11*14

11.2±0.3

14.0±0.3

0.30±0.06

(2.7)

(1.95)

200

Φ12*15.8

12.0±0.3

15.8±0.3

0.30±0.06

(3.2)

(2.3)

200

Φ12.6*16.1

12.6±0.3

16.1±0.3

0.30±0.06

(3.5)

(2.1)

200

Φ12.9*15.9

12.9±0.3

15.9±0.3

0.30±0.06

(3.2)

(2.15)

200

Φ13*17

13.2±0.3

17.0±0.3

0.35±0.08

(3.2)

(2.3)

200

Φ14*18

14.0±0.4

18.0±0.4

0.35±0.08

(3.1)

(2.1)

200

Φ14.3*18.5

14.5±0.4

18.5±0.4

0.35±0.08

(3.2)

(2.3)

200

Φ15.1*19.7

15.1±0.4

19.7±0.4

0.35±0.08

(3.2)

(2.3)

200

Φ15.2*18.7

15.2±0.4

18.7±0.4

0.35±0.08

(3.2)

(2.25)

200

Φ16*20

16.0±0.4

20.0±0.4

0.35±0.08

(3.2)

(2.3)

200

Φ17*21.2

17.0±0.5

21.2±0.5

0.35±0.08

(3.6)

(2.45)

200

Φ18*22

18.1±0.5

21.8±0.5

0.40±0.08

(3.2)

(2.15)

200

Φ19*23.5

19.0±0.5

23.5±0.5

0.40±0.08

(3.35)

(2.3)

200

Φ19.5*24.3

19.5±0.5

24.3±0.5

0.40±0.08

(3.5)

(2.3)

200

Φ20*25

20.5±0.5

25.0±0.5

0.40±0.08

(3.1)

(2.35)

100

Φ21*25

21.5±0.5

25.0±0.5

0.40±0.08

(3.3)

(2.3)

100

Φ22*26

22.0±0.5

26.0±0.5

0.40±0.08

(3.4)

(2.3)

100

Φ22*26.8

22.0±0.5

26.8±0.5

0.40±0.08

(3.1)

(2.3)

100

Φ23*28.5

23.2±0.5

28.5±0.5

0.40±0.08

(3.2)

(2.3)

100

Φ25*30

25.0±0.5

30.0±0.5

0.40±0.08

(3.9)

(2.75)

100

Φ25*32

25.5±0.5

32.0±0.5

0.40±0.08

(4.5)

(2.75)

100

Φ26*31

26.0±0.5

31.0±0.5

0.45±0.10

(3.1)

(2.3)

50

Φ27*32

27.3±0.5

32.0±0.5

0.45±0.10

(4.7)

(3.1)

100

Φ29*34.5

29.0±0.6

34.5±0.6

0.45±0.10

(3.5)

(2.35)

50

Φ32*37

32.0±0.6

36.8±0.6

0.45±0.10

(3.4)

(2.4)

50

Φ36*42.5

36.0±0.6

42.5±0.6

0.50±0.12

(4.15)

(2.8)

50

Φ40*45

39.8±0.6

44.5±0.6

0.50±0.12

(4.15)

(2.85)

50

Φ48*54.5

48.0±0.8

54.5±0.8

0.50±0.12

(4.3)

(3.0)

25

Φ56*67

56.0±1.0

67.0±1.0

0.60±0.15

(6.7)

(4.0)

20

Φ66*80

67.0±1.0

80.0±1.0

0.65±0.15

(8.5)

(5.0)

15

Φ91*106

91.0±1.0

106.0±1.0

0.70±0.20

(8.5)

(5.2)

10

Note: (I) Wave pitch A and wave width a are reference values.

(II) Yellow specifications are produced at Suzhou Zhonghe facility.
