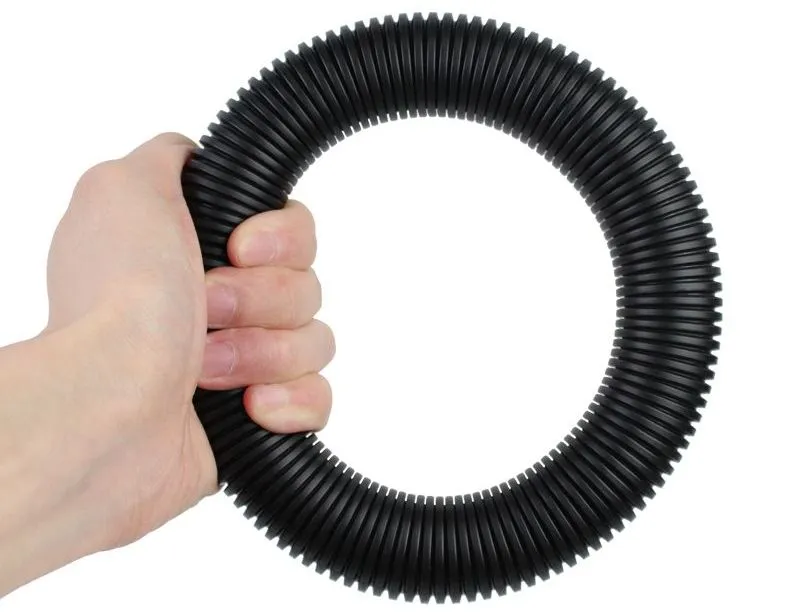

PP Corrugated conduit pipe

Material: PP(polypropylene)
Working temperature: -40ºC~105ºC; -40ºC~125ºC; -40ºC~135ºC
Color: Black, Orange (other color can be customized)
Product Standards: QC/T29106 - 2014
Product Certification: RoHS, REACH, 5510 (odor test, TVOC optional)
Property: Flame retardant, high mechanical strength, resistance to twisting, abrasion, oil, acid, alkali, ultraviolet
Feature: Lightweight, Corrosion Resistant, Flexible, Durable, Chemical Resistant. PP plastic Corrugated conduit pipe Made from high-quality polypropylene, it is resistant to corrosion and a wide range of chemicals, making it ideal for use in harsh environments, including industrial and chemical processing applications.
Application: Mainly used for automotive wiring, but also for machine tool machinery, automatic instrumentation, motor, railway locomotive, electrical equipment, protection cable and wire from external wear and insulation.

SpecID d(mm)OD D (mm)Wall thickness H(mm)wave spacing A (mm)Pulse width a (mm)Packing (M/roll) Φ 4.5*75.0±0.37.1±0.30.27±0.05-2.1-1.45400 Φ 6*96.0±0.39.0±0.30.27±0.05-2.5-1.75400 Φ9*129.2±0.312.2±0.30.30±0.06-2.7-1.95200 Φ10*1310.2±0.313.0±0.30.30±0.06-2.7-1.95200 Φ13*1713.2±0.317.0±0.30.35±0.08-3.2-2.3200 Φ16*2016.0±0.420.0±0.40.35±0.08-3.2-2.3200 Φ20*2520.5±0.525.0±0.50.40±0.08-3.1-2.35100 Φ27*3227.3±0.532.0±0.50.45±0.10-4.7-3.1100 Φ36*42.536.0±0.642.5±0.60.50±0.12-4.15-2.850 Φ40*4539.8±0.644.5±0.60.50±0.12-4.15-2.8550 Φ48*54.548.0±0.854.5±0.80.50±0.12-4.3-325 Φ56*6756.0±1.067.0±1.00.60±0.15-6.7-420

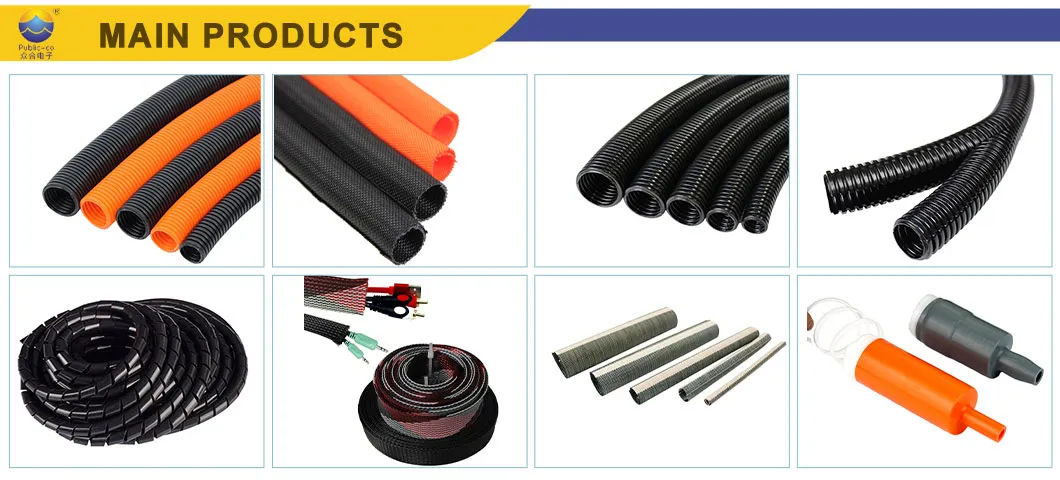

The company′s main products include functional protective sleeves and supporting products such as corrugated tubes, braided sleeves, aluminum foil tubes, heat shrink tubes, double-wall tubes, cold shrink tubes, fiber glass sleeving, etc. Widely used in multiple fields such as automobiles, aerospace, engineering machinery, automation equipment, rail transit, communications electronics, photovoltaics, energy storage, etc. With its excellent performance, the company′s products provide safety protection such as wear resistance, heat insulation, shielding, fire resistance, impact resistance, UV resistance, explosion resistance, noise reduction, etc. For wiring harnesses and fluid pipelines in various fields

Dongguan Zhonghe Electronics Co., Ltd. is a specialized and innovative technology-based enterprise that specializes in the development, production and sales of polymer modified protective materials and provides one-stop solutions. It was founded in 2010 and is headquartered in Qingxi Town, Dongguan City.In 2020, a branch factory was established in Jiangsu with a construction area of more than 15, 000 square meters.
The company′s business philosophy is just like the company′s name: Unity and win-win cooperation. All employees adhere to the mission of "escorting the Internet of Things" and strive to create value and happiness for customers. Welcome domestic and foreign customers to visit our company for negotiation!

Currently, the company serves customers in 102 countries across the country and overseas, serving more than 3, 000 customers. The protective sleeves produced each year can circle the earth three times, of which more than 60 million meters are used in the automotive field. It is a long-term supplier of many automobile OEMs and world-renowned companies.
