| Model NO. | SJ25 30 45 65 75 90 120 150 180 |
| Automation | Automatic |
| Computerized | Computerized |
| Certification | CE, ISO9001:2008, TUV |
| Customized | Customized |
| Condition | New, Under The Order |
| After-sales Service | Send Engineers Install and Test Machine |
| Pert Pipe Application | Floor Heating Pipe, Hot Water Pipe |
| Delivery Conditions | Fob CIF CIP |
| Processing Period | 40-60 Days |
| Delivery Period | 30days |
| Technical Support | Permanent |
| Pert Die Mould | Normal Speed and High-Speed Mould |

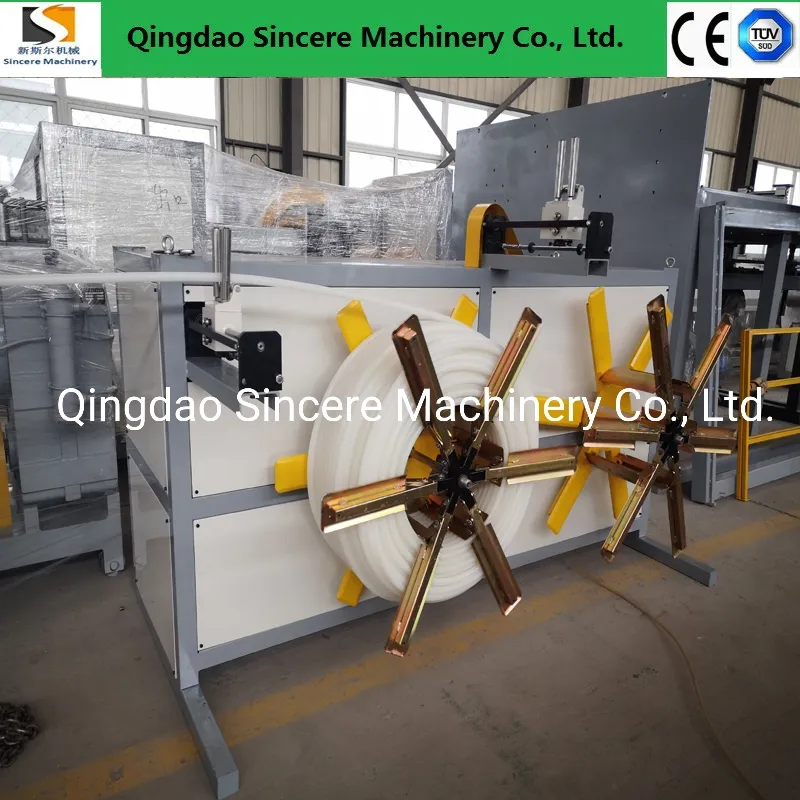

| Pert Winding Coiler Machine | Double-Station |
| Pert Pipe Machine Type | Single-Layer, Double-Layer, Thiple Layer Pert Pipe |
| Max Speed of Pert Pipe Production | 30m/Min |
| Monolayer Pert Pipe Line Extruder | Pert Extruder Sj65, Sj75, Sj90 |
| Three Layers Pert Pipe Line Extruder | Sj65+Sj75 |
| Pert Pipe Production Line Advantage | Energy Saving, High-Speed Pert Pipe Production Lin |
| Transport Package | Stretch Film and Wooden Pallet, Wooden Packing |
| Specification | Pipe Diameter 16, 25, 32, 40, 63, 75, 110mm |
| Trademark | Sincere Machinery |
| Origin | Qingdao, China |
| HS Code | 8477209000 |
| Production Capacity | 50 SetsYear |

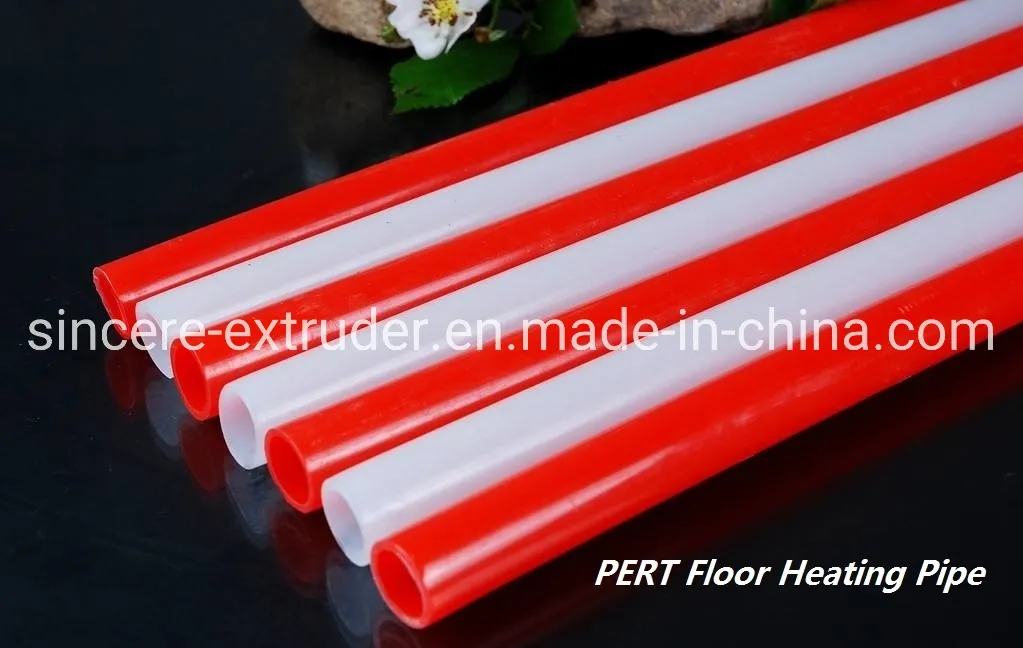

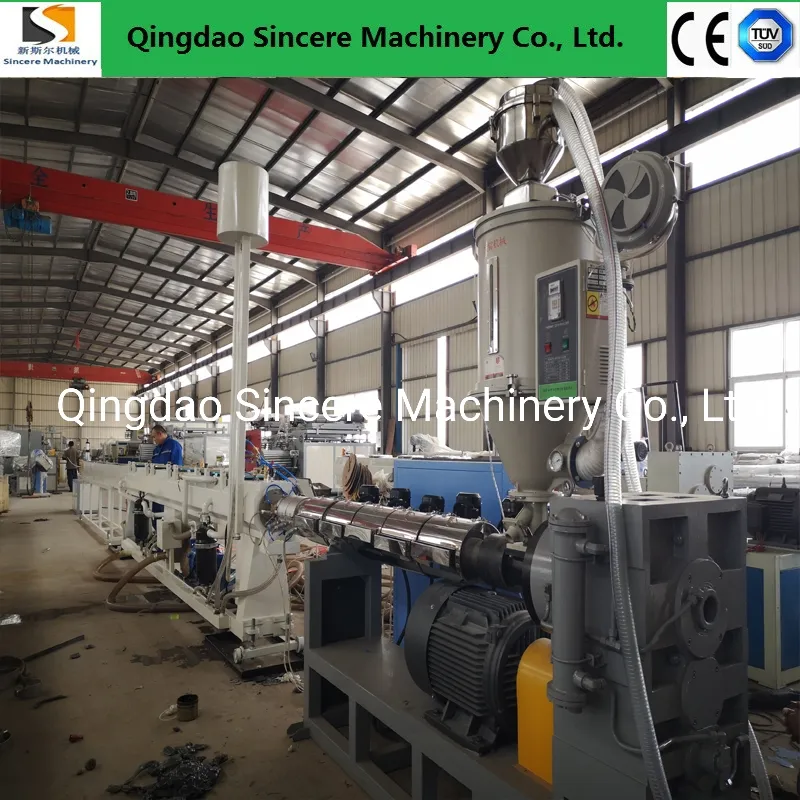

PERT floor heating pipe production line Cold/Hot Water Pipe Extruding Machinery.
PERT floor heating pipe production line Cold/Hot Water Pipe Extruding Machinery.
PERT floor heating pipe production line Cold/Hot Water Pipe Extruding Machinery.

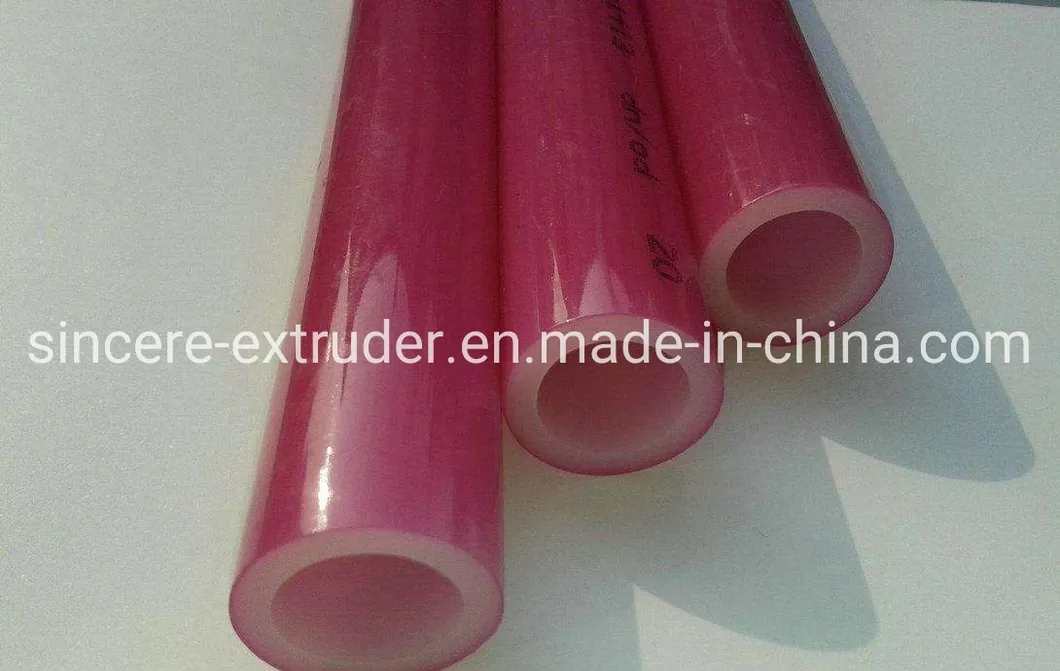

PERT pipes applications:
Pert pipe is a family of polyethylene, with all the logistics properties of polyethylene pe pipes, such as pressure resistance, acid and alkali salt resistance, frost resistance, cracking stress, and toughness. It also has high heat resistance. The PE-RT pipe adopts imported raw materials, which can be used for a long time within 70ºC, and can be constructed normally in a low temperature environment of -40ºC.
This PERT Cold/Hot Water Pipe line is mainly used for producing PERT cold/hot water pipe or PE, PP, PERT, ABS pipe.
Production line features:

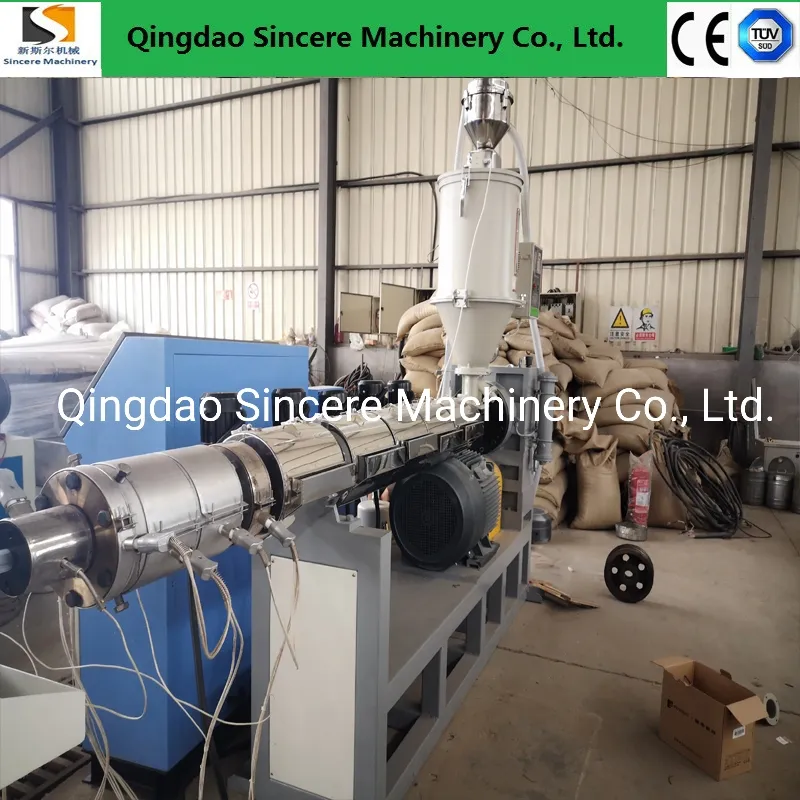

High efficiency extruder is designed for PPR pipe, equipped with reducer which is high speed and low noise, feeding section with cooling unit and reversing spiral groove, varying pitch undulant screw which allows great output, lower melting temperature, and lower energy consumption.

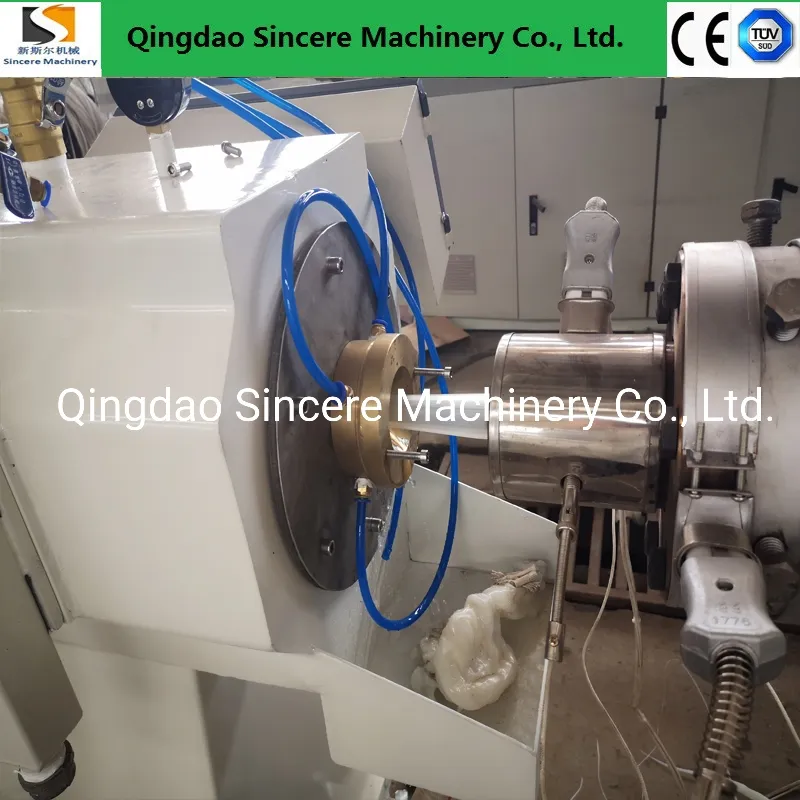

Distributed spiral composite extrusion die-head ensures the melting pressure and flux even and stable, the surface of pipe smooth and glossy.

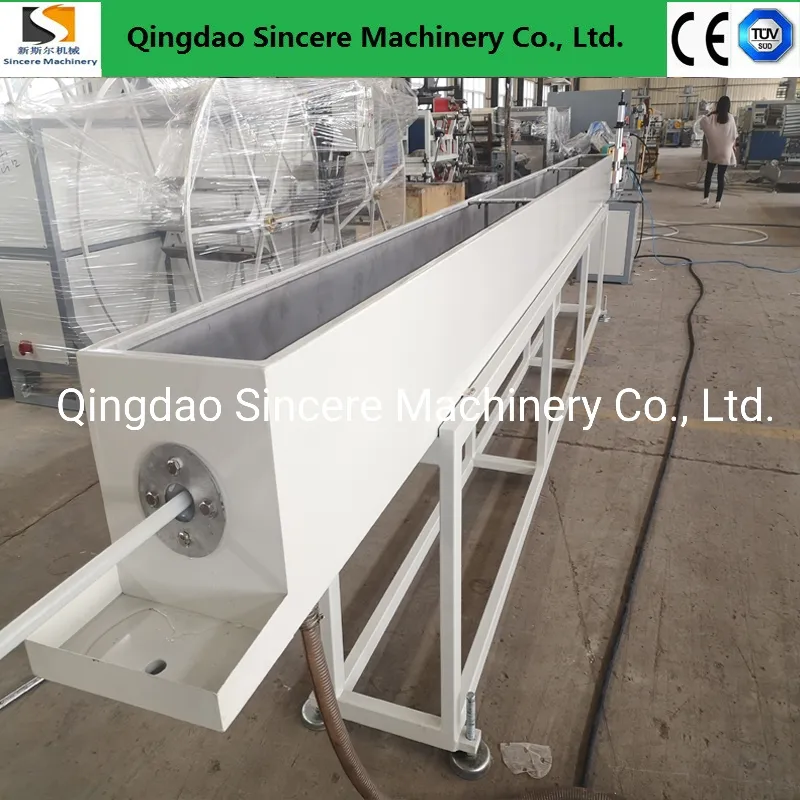

Vacuum calibration and spray water cooling tank made of stainless steel ensures precise calibration and fast cooling.

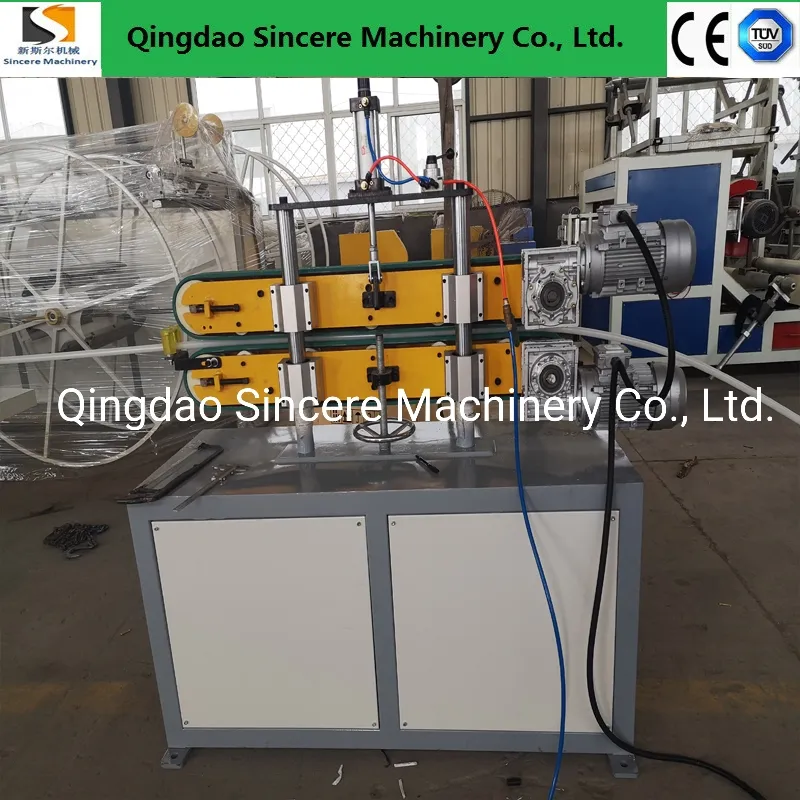

Adopts multi claws haul-off unit, speed adjusted by frequency inverter.
Equipped with planetary cutter. Be able to cut large diameter and thick wall pipe.
Main Technical Specifications:
