| Model NO. | 16-110mm |
| Automation | Automatic |
| Computerized | Computerized |
| Certification | CE, ISO9001:2008, TUV |
| Customized | Customized |
| Condition | New, Under The Order |
| Pipe Types | 1-Layer Normal PPR Pipe, 3-Layers with Glassfiber |
| Delivery Conditions | Fob CIF CIP |
| Processing Period | 40-60 Days |
| Delivery Period | 30days |
| Technical Support | Permanent |
| Dimension | 20*3.0*2.5 (M) |
| Weight | 15t |
| Output | 100-350kg/H |
| Transport Package | Stretch Film and Wooden Pallet, Wooden Packing |
| Specification | Pipe Diameter 16, 25, 32, 40, 63, 75, 110, 160mm |
| Trademark | Sincere Machinery |
| Origin | Qingdao, China |
| HS Code | 8477209000 |
| Production Capacity | 50 SetsYear |
PE/HDPE/PP/PPR 2-layers or 3-layers Water Supply pipe production line.
Plastic hot/cold water supply pipe extrusion line.
PP PPR 3-layer glassfiber reinforced composite Pipe making machine.
PP PPR 3-layer heating plumbing pipe extrusion line.
pp ppr pipe extruder machine.
1. Pipe extrusion line for production of three-layer pipes reinforced with fiberglass.
"Fiber PPR" PPR-GF (Glass Fiber) is a mixture of polypropylene randomly copolymer and glass-filled polypropylene.
Field of application: Pipes for pressure water supply. (For hot or cold water supply, for heating)
Pipe diameters: F16-63mm F75-110mm
Pressure up to 25 atm. At 40 ° C.
Operating temperature - up to 95 ºС.
Unfazed bundle;
Absence of swellings and blisters;
Fully compatible with polypropylene and combined fittings.
High speed of installation, as there is no need for sweeping.
Low coefficient of linear thermal expansion with respect to PPR pipes (by 75%).
2. Technical specifications:
1. Recyclable material: Polypropylene, fiberglass.
2. Diameters of the produced pipe: 20, 25, 32. 40. 50. 63, 75, 90, 110 mm.
3. The ratio of the layers (PP / glass fiber / PP): 40% -20% -40%
4. Productivity: 1.6-15m / min
5. The maximum productivity: 250kgh
6. Installed power: 150kw
7. Line dimensions: 35,000 * 1400 * 2750(mm)
Sale, commissioning, warranty and post-warranty service.
3. Process Flow of PPR Pipe machine line:
Raw material +master batches → mixing→vacuum feeding → material dryness → single screw extruder → single screw extruder → single screw extruder → color string co-extruder → co-extrusion pipe mould → calibrator → spray vacuum calibration tank → spray cooling water tank → Inkjet printer →haul-off machine → no-dust cutting machine → pipe stacker→finished product inspecting &packing
4. Technical Parameters.

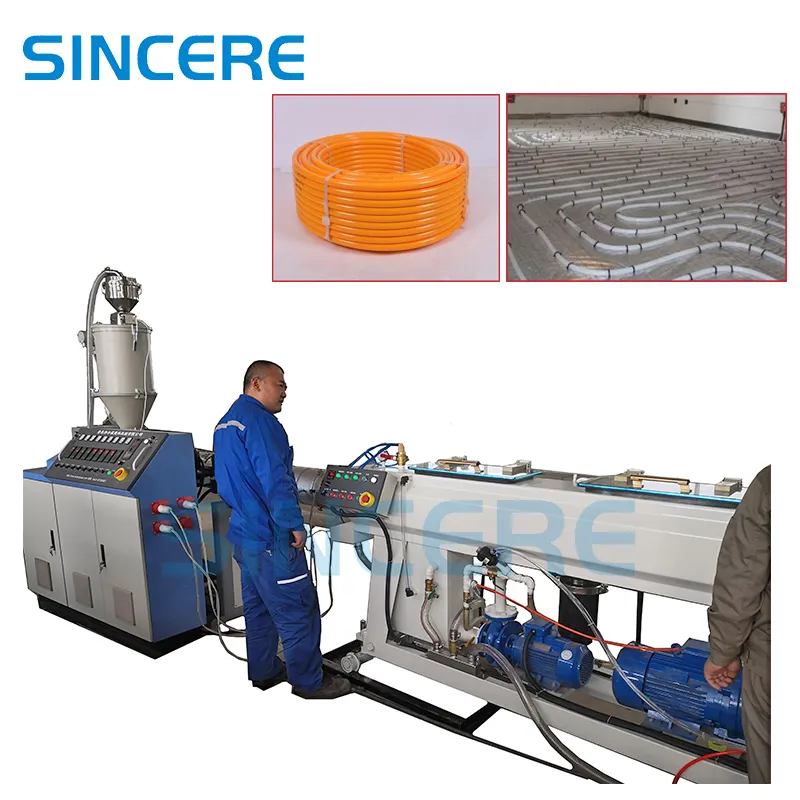

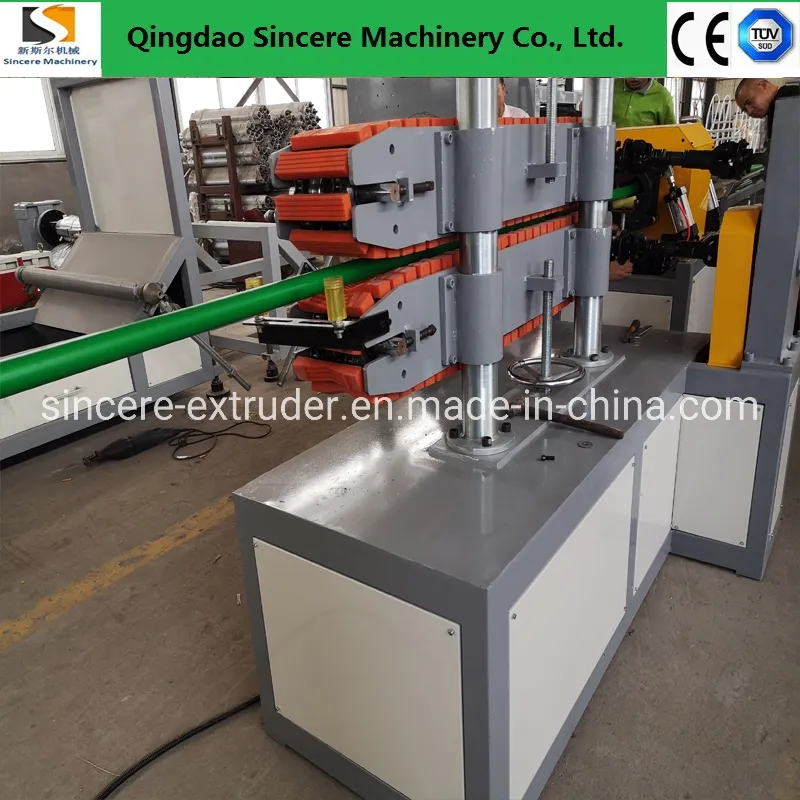

PPR,PE single-screw extruders Pipextrusion die head and die moulds Haul-off machine
of three layers co-extrusion mould

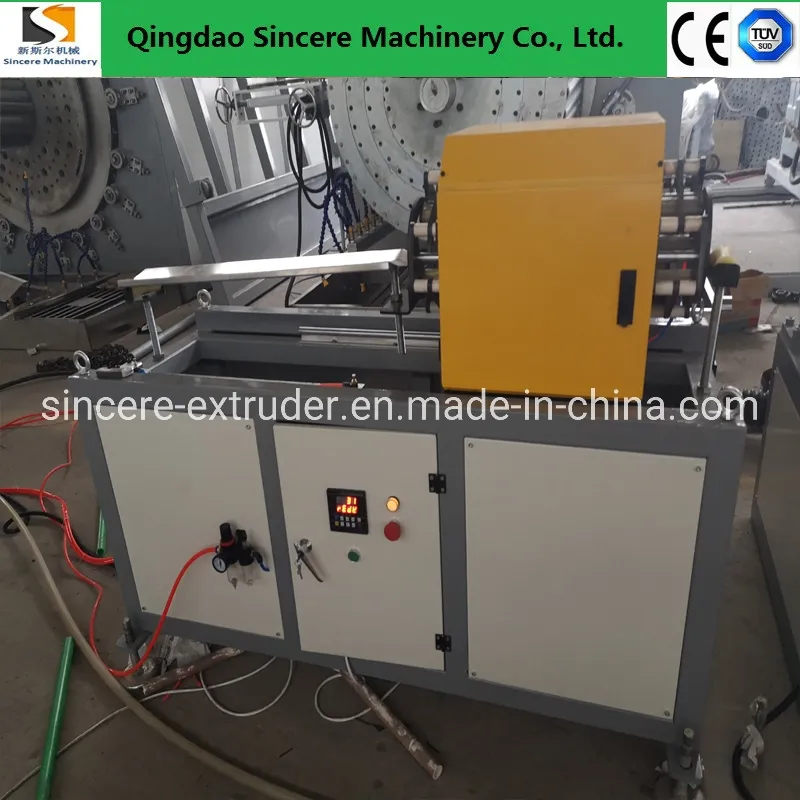

Pipe chipless cutting machine. Vacuum water water cooling tank, Electrical control cabinet with Simens
spraying water tanks PLC touch screen control.
Brand of electrica elements: Siemens,
,ABB, Delta, OMRON
