| Model NO. | GYTS |
| Connection Structure | Other |
| Material Shape | Round Wire |
| Allowed Lateral Pressure | 100(N/100mm)<1000(N/100mm) |
| Allowed Tensile Strength | 1000N<10000N |
| Core | 2-288 |
| Certification | RoHS, CE, ISO9001, VDE, CCC |
| Brand | Efon |
| Sheath Material | HDPE/LSZH Sheath/Flame Retardant Sheath/Anti-Roden |
| Cable Structure | Multi-Loose Tube Cst Armor |
| Fiber Options | Itu G652D ,G657A,Om1,Om2,Om3,Om4 |
| Fiber Count | 2-288 Cores |
| Installation Tensile | 1500n |
| Bend Radius (Under Installation) | 20 X External Diameter of Cable |
| Material of Jacket | Black Polyethylene (PE) |
| Strength Member | Central Steel Wire or Fiberglass Reinforced Plasti |
| Applications | Outdoor Duct and Direct Burial Installation That N |
| Certificate | ISO9001 RoHS Tlc |
| Warranty (Year) | 2 |
| Transport Package | Wooden Drum Iron-Wooden Drum with Fumigated or Not |
| Specification | CE |
| Trademark | OEM |
| Origin | China |
| HS Code | 85447000 |
| Production Capacity | 300km/Week |
Anti-Rodent Steel Armored Underground Duct 6 Core Optical Fiber Cable
Product Description

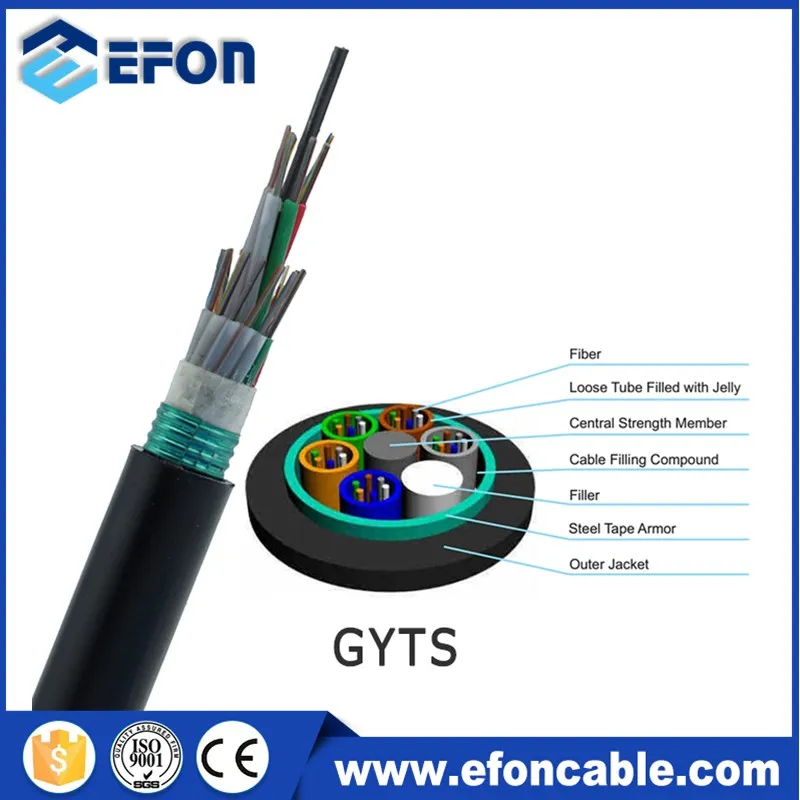

GYTS Multi-Loose Tube Corrugated Steel Armored 48 Core 96 Core fiber optic cable Armored Loose Tube Single Jacket/SingleArmor fiber optic cable with fibers placed in loose buffertube stranded around central strength member.The cable core is protected with jelly to prevent water intrusion and migration,with a corrugated steel tape armorwhich provides rigid protection, rodent resistance and cover with a black Polyethylene out jacket.
Product Construction
Fiber:
2-288 fibers
Loose tube gel-filled
Armor:
Corrugated steel tape
Central Strength Member:
FRP or Steel Wire
Outer Jacket:
Black UV-and moisture-resistant polyethylene(PE)
Features
Up to288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Corrugated steel tape armorto protect cable from mechanical damage and rodent protection.
UV and moisture-resistant design.
Applications
Backbones and Access.
Installed in ducts, underground conduits.
Option
Dry core structure is available, usd"-DC" suffix.
OpticaL Charateristics
Fiber Type
G.652
G.655
50/125^m
62.5/125^m
Attenuation
(+20X)
850 nm
<3.0 dB/km
<3.3 dB/km
1300 nm
<1.0 dB/km
<1.0 dB/km
1310 nm
<0.36 dB/km
<0.40 dB/km
1550 nm
<0.22 dB/km
<0.23 dB/km
Bandwidth
850 nm
>500 MHz-km
>200 Mhz-km
1300 nm
>500 MHz-km
>500 Mhz-km
Numerical Aperture
0.200±0.015 NA
0.275±0.015 NA
Cable Cut-off Wavelength cc
<1260 nm
<1450 nm
Structure and Technical Specifications
Fiber
Count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Max Fiber
Per Tube
Max No. of
(Tubes+fillers)
Allowable Tensile Load
(N)
Allowable Crush Resistance
(N/100mm)
Short Term
Long Term
Short Term
Long Term
2~30
9.7
96
6
5
1500
600
1800
800
32~48
10.7
111
8
6
1500
600
1800
800
50~72
11.6
136
12
8
2000
600
1800
800
74~96
13.0
166
12
10
2000
600
1800
800
98~144
15.1
228
12
12
2500
600
1800
800
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
We produce and test cable comply with following standard
Mechanical Performance
Max Tension Performance
IEC 60794-1-2-E
Max. Operation Tension
IEC 60794-1-2-E1
Crush Test
IEC 6079 -1-2-E3
Impact Test
IEC 60794-1-2-E4
Repeated Bending
IEC 60794-1-2-E6
Torsion Test
IEC 60794-1-2-E7
Cable bend
IEC 60794-1-2-E11A
Attenuation Coefficient
ITU-T G.652
Structural Test
IEC-60793-1-20
Environmental Performance
Temperature Cycling
IEC 60794-1-2-F1
Water Penetration
IEC 60794-1-2-F5B
Filing Compound Flow
IEC 60794-1-E14
