| Model NO. | YZ002 |
| Length | 1 inch |
| Temperature Resistance | 1500℃ |
| Shape | Tubular, Pipe, Tubing, Sleeve, Bush |
| Use | Thermocouples or Polycrystalline Furnace, Ingot F |
| Temperature | 1000c |
| Application 2 | Precision Shafts and Axles in High Wear |
| Material | Zirconia Ceramic |
| Purity | Zro2 + Hfo2 86.0% Y2o3 13.5% |
| Type | Ceramic Tubes |
| Transport Package | Carton |
| Specification | CUSTOMIZED |
| Trademark | Yunnuo |
| Origin | China |
| HS Code | 8547100000 |

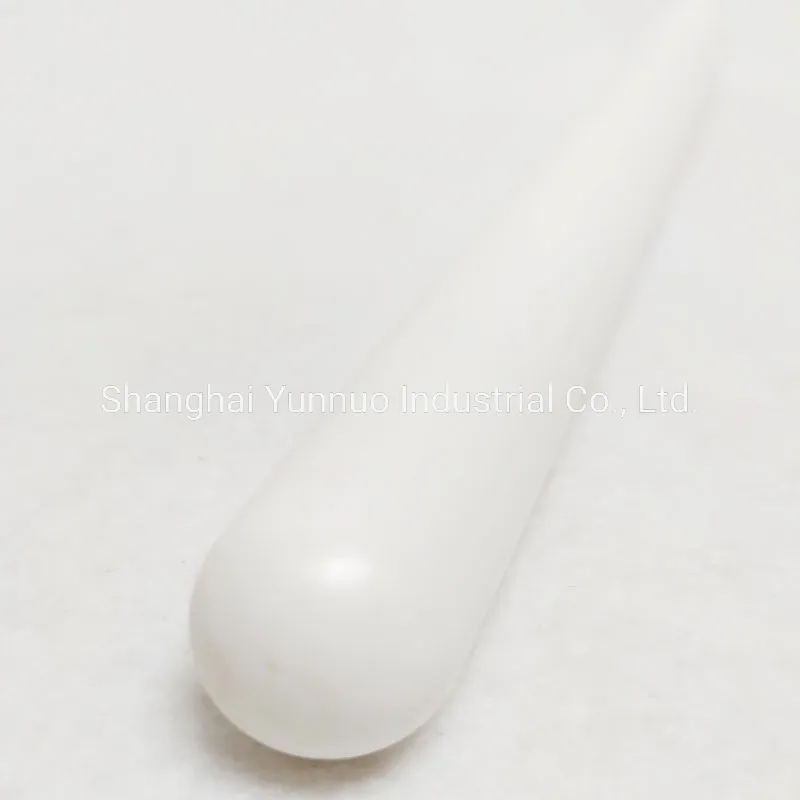

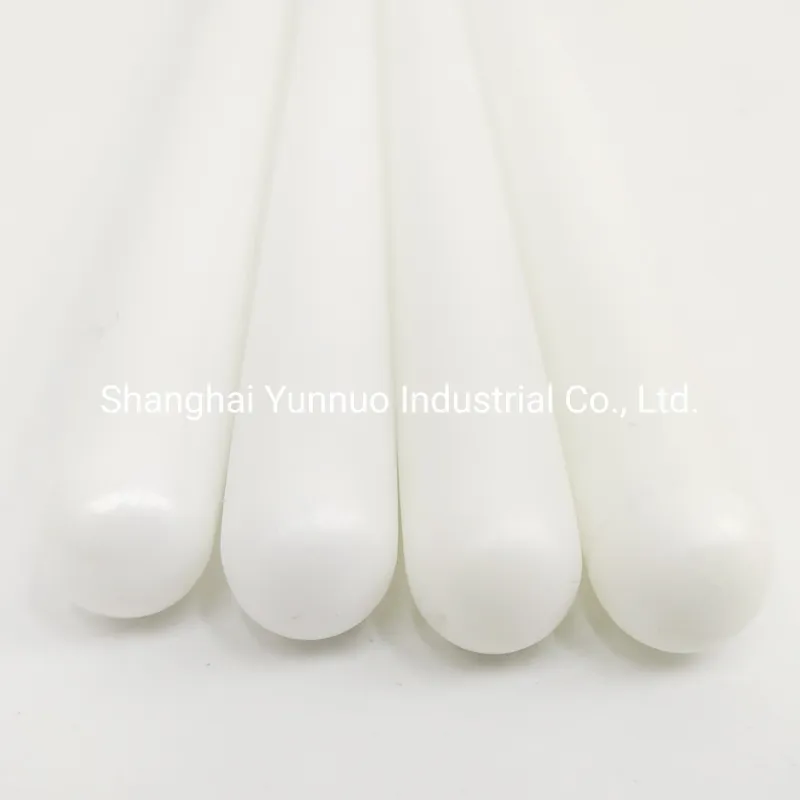

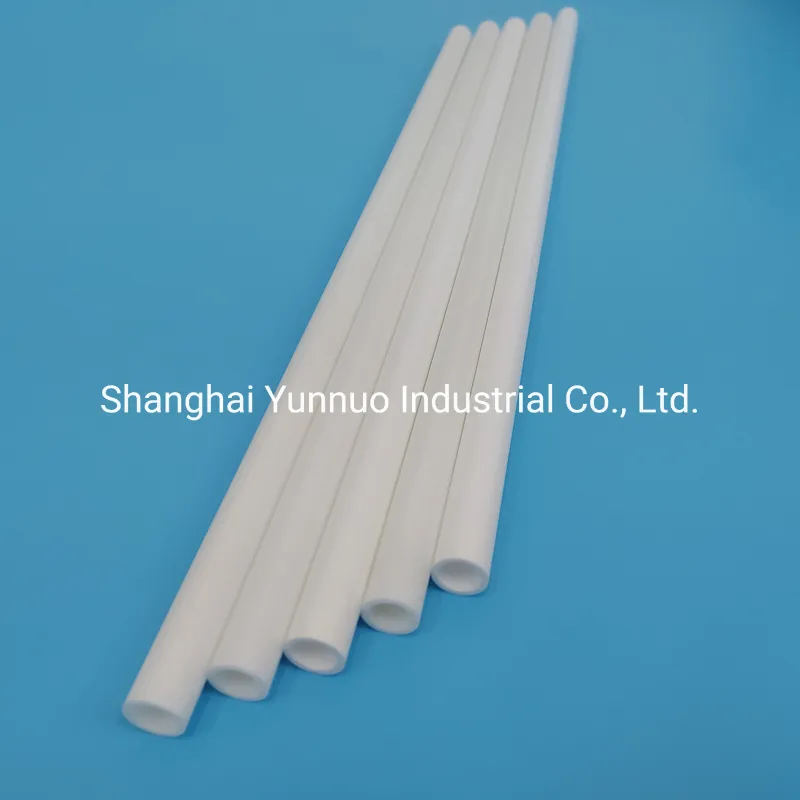

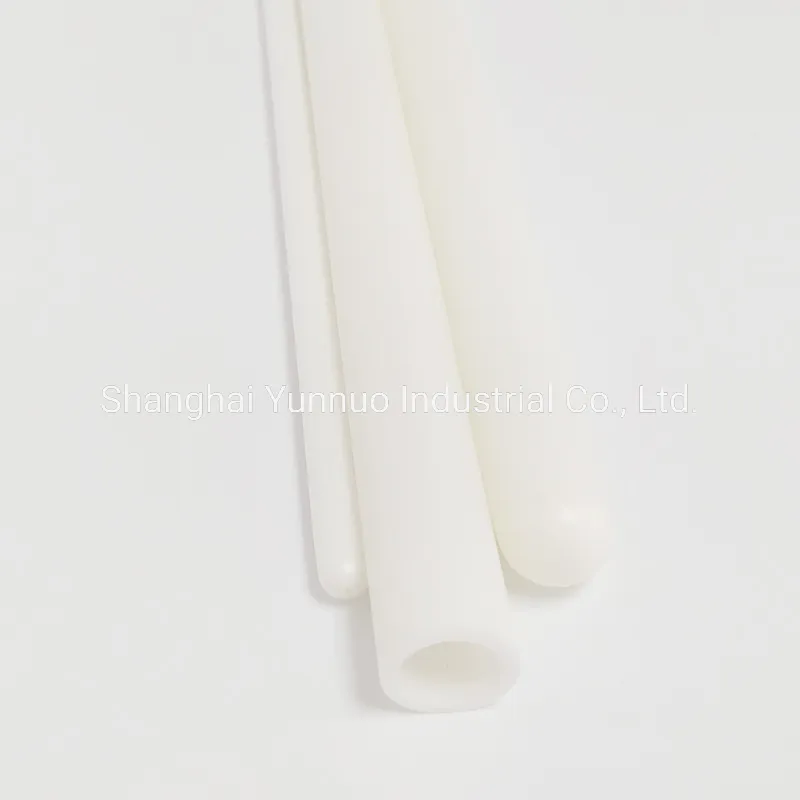

YSZ Zirconia ceramic protection tube
Material
Zirconia (ZrO2 + HfO2 86.0% Y2O3 13.5%)
Shape
one round closed end
Process
isostatic pressing
Structure
Fully stable zirconia
Temperature resistance
1800 ~ 2300 ºC
Applicable places
polycrystalline furnace, ingot furnace
Item no
Size in OD x ID x Length in mm
Remarks
ZT-001
6x3x250
One end closed
ZT-002
6x4x120
One end closed
ZT-003
8x5x250
One end closed
ZT-004
8x5x300
One end closed
ZT-005
8x5x350
One end closed
ZT-006
9x5x550
One end closed
ZT-007
9.5x6x400
One end closed
ZT-008
10x6x200
With thread
ZT-009
10x6x300
One end closed
ZT-010
10x6x500
One end closed
ZT-011
10x6x600
One end closed
ZT-012
11.1x8x365
One end closed
ZT-013
12x8x300
One end closed
ZT-014
12.7x9.53x230
Both ends open
ZT-015
12.7x9.53x327
One end closed
ZT-016
12.7x9.5x365
One end closed
ZT-017
12.7x9.5x370
One end closed
ZT-018
12.7x9.53x375
One end closed
ZT-019
12.7x9.53x380
One end closed
ZT-020
12.7x9.53x385
One end closed
ZT-021
12.7x9.53x390
One end closed
ZT-022
12.7x9.53x395
One end closed
ZT-023
12.7x9.53x397
One end closed
ZT-024
12.7x9.5x400
One end closed
ZT-025
12.7x9.53x415
One end closed
ZT-026
12.7x9.53x430
One end closed
ZT-027
12.7x9.53x435
One end closed
ZT-028
13x8.5x700
One end closed
ZT-023
12.7x9.53x397
One end closed
ZT-024
12.7x9.5x400
One end closed
ZT-025
12.7x9.53x415
One end closed
ZT-026
12.7x9.53x430
One end closed
ZT-027
12.7x9.53x435
One end closed
ZT-028
13x8.5x700
One end closed
