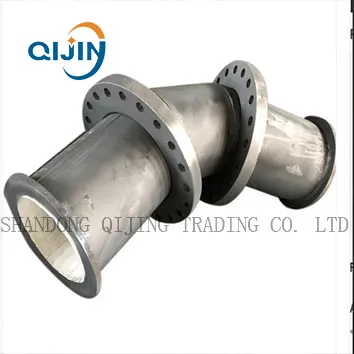

Model NO.	ceramic lined
Installation Method	Flange Connection
Material	Alumina Ceramic
Shape	Custom Shape
Surface Finish	Smooth
Thickness	5-30mm
Type	Straight, Bends, Tee, Reducer
Lining Hardness	900-1200hv
Transport Package	Wooden Box
Specification	2"-12"
Trademark	QIJING
Origin	Shandong
HS Code	6909120000

    Qijing Trading Co., Ltd. main business: industrial ceramics, refractory materials, corundum wear-resistant ceramics, papermaking equipment and accessories, pulping equipment and accessories, papermaking dewatering equipment and accessories, pulping equipment and accessories, papermaking dewatering equipment and accessories, slag removal Equipment and accessories, wear-resistant pipes, mining equipment and accessories, alumina ceramic parts, thermocouple protection tubes, special-shaped fittings, pipe liner patch, pipe liner pipe, wear-resistant refractory ceramic parts, elbows, tees , Production and sales of electronic insulation materials.

      Customer first, quality first! Your satisfaction is our unremitting pursuit! As long as you request, we will complete the rest. Qi Jing Trading goes hand in hand with you to create brilliant!

Basic Info.

Thickness3~50mm or as Your RequestContent92% Alumina, 95% Alumina,T95,Zta Density3.6, 3.65,3.7,3.83,4.10, 5.9 g/cm3Compressive StrengthMore Than 1050 MPa... MOQ1tonSamplesFree Samples Can Be Provided Delivery Time25-40 Days as Your RequestPaymentT/T or L/C MarketIndia, Mumbai, Pakistan, Iran, etc.LabWe Have Our Own Lab ServiceReply Within 1 HoursCapacity15000 Tons PortQingdaoTrademarkUltraming Transport PackageSafe Carton with PalletSpecification150*100*25 and so on. OriginChina, Zibo CityHS Code6909120000

Application

IndustryEquipment systemEquipment parts CementPre-blending system for crashing limestone and crude fuelChute, bunker, pulley lagging, discharge cone Raw mill systemFeed chute, retaining ring, scraper plate, seal ring, pipeline, bucket guard, cyclone, powder concentrator body, bunker Cement mill systemChute, bunker, fan vane wheel, fan casing, cyclone, circular duct, conveyer Ball mill systemPulverizer exhauster's body and vane wheel, powder concentrator's body, pulverized coal's pipeline, hot air duct Sintering systemInlet/outlet bend, wind value plate, cyclone, chute, dust collector's pipe Afterheat systemSeparator's pipeline and wall SteelRaw material feeding systemHopper, silo Batching systemMixing bunker, mixing barrel, mixing disk, disk pelletizer Sintered material transport systemHopper, silo Dedusting and Ash discharge systemDedusting pipeline, bend, y-piece Coking systemCoke hopper Medium-speed millCone, separation buffles, outlet pipe, pulverized coal's pipeline, burner cone Ball millClassifier, cyclone separator, bend, powder concentrator's inner shell Thermal powerCoal handling systemBucket wheel machine, coal hopper, coal feeder, orifice Ball mill systemSeparator's pipe, elbow and cone, coal mill's elbow and straight tube Medium-speed millcoal mill body, separation buffles, cone, pipeline, elbow Fall millPulverized coal's pipeline and elbow Dedusting systemDedusting's pipeline and elbow Ash discharge systemFan duster's shell, pipeline PortTransporting material systemBucket wheel machine's disk and hopper, transfer point's hopper, unloader's hopper, SmeltingTransporting material systemMeasuring hopper, coke hopper, vibrating screen's chute, head valve, Intermediate bin, tail bin Batching systembatch hopper, mixing machine Burning systemAsh bucket, pump calcine tube, hopper Dedusting systemDedusting's pipeline and elbow ChemicalTransporting material systemHopper, silo Dedusting systemDedusting's pipeline and elbow Processing equipmentVibromill liner CoalCoal handling systemBucket wheel machine, coal hopper, coal feeder Coal washing systemHydrocyclone MiningTransporting material systemHopper, silo

Transport and installation precautions:

Matters needing attention for transportation and installation of ceramic pipe
1. The ceramic composite pipe has high hardness and good toughness, but it should be put gently in the process of transportation and installation to avoid serious collision, especially to avoid direct contact with metal instruments or impact on the ceramic layer on the end surface.

2. The qijing bending pipe is installed with directivity. When the bending pipe is installed, the direction indicated by the arrow on the surface of the bending pipe should be consistent with the flow direction of the conveying medium.

3. When installing the pipe, the pipe should be aligned with the center line and level should be adjusted to make sure that both ends meet accurately.The displacement of both ends should be controlled within 1.0mm.

4. When the flexible pipe joint is used to connect and install the pipe, the inserted lengths of both ends of the flexible pipe joint shall be adjusted symmetrically.Since the thermal expansion coefficient of the composite pipe is about 1/3 of that of steel, the expansion clearance can be reduced by 3-5mm.

5. When using flange connection, the flange end shall be flush with the end of the composite pipe.

6. Due to the excellent welding performance of the composite pipe, the pipe connection can be conducted by welding. However, when welding, 45o-60o "V" type slope Angle is 2-4mm and gap is 0.8-1.2mm.
