Polyurethane insulated steel pipe

Polyurethane insulated pipe: composite of working steel pipe, polyurethane insulation and outer sheath, for medium thermal insulation and pipe protection.It reduces transportation heat loss via polyurethane foam's low thermal conductivity.

Outer sheath protects insulation from moisture, air, UV, etc., extending life and ensuring safe, efficient operation.

Insulation thickness: 30-150mm (per medium/ambient temperature, insulation needs).

Standards: API 5L; EN 253/448/488/489; ASTM A53/A106/A333.etc

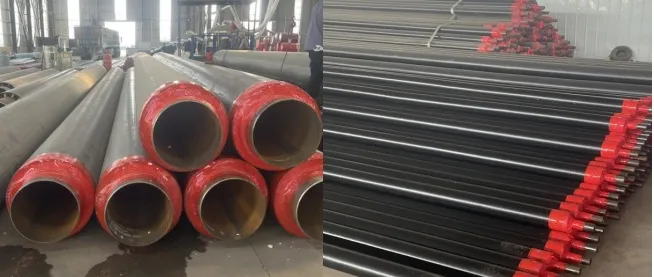

Steel jacketed  insulated pipe                                  Steam insulation steel pipe

Steel-jacketed insulated pipe: insulated/cold-preserving for heating, cooling, hot oil transport, chemicals, etc.

Components: working steel pipe (medium), glass wool insulation, aluminum foil reflective layer, stainless steel fastening belt, sliding guide bracket, air insulation layer, outer protective steel pipe, outer anti-corrosion layer.

Outer protective pipe: larger diameter (for insulation/other layers), multiple specs; OD DN100-DN1800, wall thickness ~3-10mm.

Insulation: polyurethane 15-100mm (per medium temp, insulation needs, environment).

Standards: EN 253:2007; ASTM C1056-18. etc

Prefabricated insulated steel pipe

 prefabricated direct buried insulation pipe: good insulation materials need low thermal conductivity, damp/heat resistance, no metal corrosion, light weight, voids, mechanical strength (anti-external force), easy processing, low cost.

Common materials: expanded perlite, glass wool, rock wool, microporous calcium silicate, aluminum silicate fiber, foam plastics, foam asbestos. Insulation thickness: varies by material/usage (e.g., polyurethane 15-100mm; rock wool 30-100mm).

Outer sheath: steel (larger than working pipe, OD DN100-DN1800, wall 3-10mm); polyethylene/others (specs per design, e.g., polyethylene wall 2-10mm).

Standards: EN 253:2007; ASTM C1056-18; ISO 4427:2017.etc

Rockwool insulation steel pipe

Rock wool insulated steel pipe: steel-based with rock wool insulation layer (wrapped outside) and outer protective layer, for insulated fluid transport. It reduces medium heat loss/absorption via rock wool's low thermal conductivity, saving energy and stabilizing medium temperature. The outer layer protects insulation from environmental damage, extending service life.

Insulation thickness: 30-100mm (per medium temp, insulation needs, environment).

Outer protective steel pipe: larger diameter than working pipe (for insulation/other layers), multiple specs; OD DN100-DN1800, wall thickness ~3-10mm.

Standards: EN 13162; ASTM C547/C335/C692.etc

Specification

Product

Type

Key Dimesions

International Standards

Insulated stell pipes

Polyurethane Insulated pipe

Insualtion layer thikness:30-150mm
outer sheath(steel/other):diameter lager than working pipe ,common OD:DN100-DN1800 ; Wall thickness(steel sheath):3-10mm

API5L
EN253/448/488/489
ASTMA53/A106/A33
etc

Steel-Jacketed Insulated Pipe

Insulation layer (polyurethane) thickness: 15-100mm
Outer protective steel pipe: OD DN100-DN1800, wall thickness ~3-10mm

EN 253:2007; ASTM C1056-18
etc

HDPE Sheath Polyurethane Foam Prefabricated Pipe

Insulation layer thickness: 15-100mm (polyurethane), 30-100mm (rock wool)
HDPE sheath wall thickness: 2-10mm

EN 253:2007; ASTM C1056-18; ISO 4427:2017
etc

Rock Wool Insulated Steel Pipe

Insulation layer thickness: 30-100mm
Outer protective steel pipe: OD DN100-DN1800, wall thickness ~3-10mm

EN 13162; ASTM C547/C335/C692
etc
