Automation	Automatic
Computerized	Computerized
Certification	CE, ISO9001:2008
Customized	Customized
Condition	New
After-sales Service	Overseas Imachine Installation and Debugging
Pipe Layer	3 Layer, 5 Layer
Pipe Structure	Pb-Glue-EVOH-Glue-Pb
Machine Capacity	30m/Min
Producing Scope	16-32mm
Plastic Layer	Pb, Pex-a, Pex-B, PE-Rt
Machine Control	PLC Intergrated Control
Low Voltage Electric Component	Schneider
Frequency Inverter	ABB
Pipe Length/Coil	6m Per Piece
Transport Package	Soft Film Packaged
Specification	35m*4m*2.5m
Trademark	KAIDEMAC
Origin	China
HS Code	8477209000
Production Capacity	150sets/Year

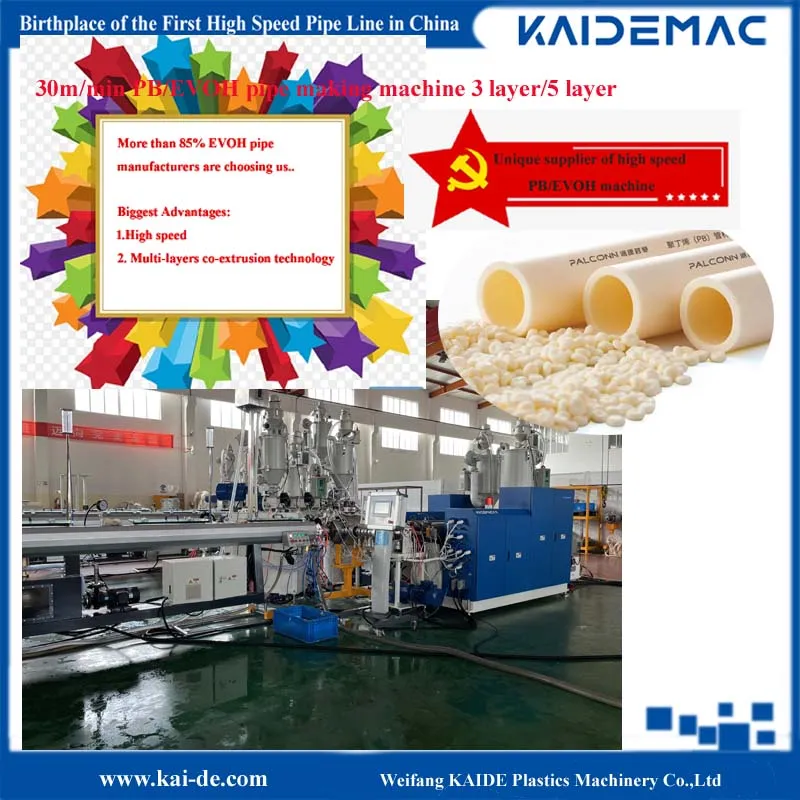

This pipe production line is used to produce five layers Oxygen Barrier EVOH/PB (Polybutene) pipe, for plumbing system. It is equipped five separate Extruder for each layer. Basing on the upgrade of calibrator design, the production line speed can reach up to 30m/min,  which is the breakthrough technology presently in China.
Five Layers' (PB-GLUE-EVOH-GLUE-PB) thickness evenly distributed, and the pipe inner/outer surface are smooth and elegant.

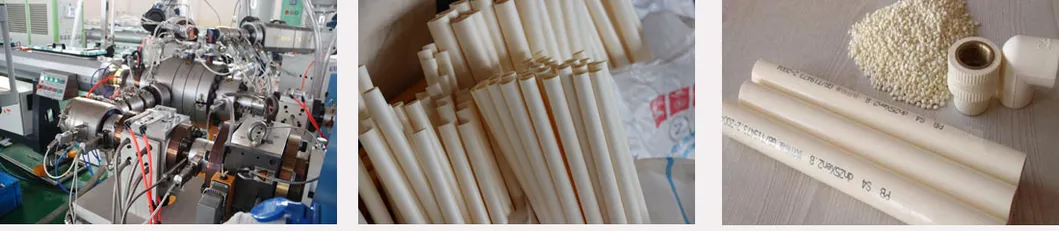

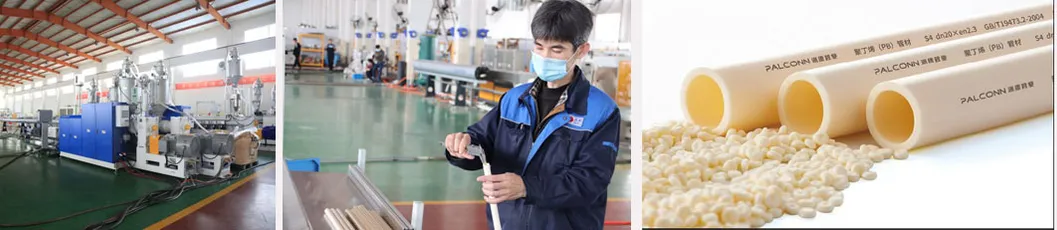

Below are produced pipes:


Parameter20*2.020*2.320*2.825*2.325*2.825*3.532*2.932*3.6 OD mm20.0-20.320.0-20.320.0-20.325.0-25.320.0-25.325.0-25.332.0-32.332.0-32.3 Total Thickness mm2.2-2.32.5-2.73.0-3.22.5-2.73.0-3.23.7-4.03.1-3.33.8-4.1 Outer Layer Thickness mm1.331.531.871.531.872.331.932.4 Outer Glue Thickness mm0.05-0.10 Middle Layer EVOH mm0.10-0.15 Inner Glue Thickness mm0.05-0.10 Inner Layer Thickness mm0.670.770.930.770.931.170.971.2

The EVOH/PB pipe is widely used in water supply (sanitary pipe) and hot water pipe system: in terms of tap water and hot water pipes, PB pipe is recognized as a non-toxic, tasteless and best durable pipe material.
The temperature application range is - 30°C to 100°C. It has cold resistance, heat resistance, pressure resistance, rust, corrosion, scaling and long service life (up to 50-100 years), It has the characteristics of long-term aging resistance and is one of the most cutting-edge chemical materials in the world; It has been widely used in many countries in the world and has the reputation of "gold in plastic".


1.High Efficiency Extruders:


Each layer has separate extruder for better plasticizing effect and easily thickness adjustment. The Screw and Barrel of Inner/outer layer Extruder are specially designed according to the property of PB (Polybutene) raw materials. The EVOH materials is processed by the Specialized extruder, which screw/barrel is patently designed by KAIDE R&D teams, effectively solved the difficulty of the features of high viscosity of EVOH raw materials during extruding process. imported gearbox adopted with lower noise and stable running features. ABB Brand Inveter are equipped for the Exruder, to ensure the reliable quality and stable running. Schneider brand for low voltage electric elements like AC contactor, circuit breaker etc;

2. High Precise Melting Pump (Maag Brand)
imported melting pump is adopted to pressurize and stabilize the high-temperature PB melting from the extruder, and keep the flow is stably sent to the Die head. Its ability to stabilize melting pressure and flow is optimal.

3. Five Layers Co-extrusion Die Head

Our latest multi-layer composite die adopts a modular building block structure, and a multi-stage melt pressure buffer zone is designed in the middle of the flow channel of each layer of melt, which can effectively reduce the pulsation of the extrusion pressure of each layer of extruder, so that the thickness of each layer can be evenly distributed and firmly bonded. The design purpose of this structure is mainly aimed at the characteristics that plastic raw materials (EVOH / adhesive) are easy to degrade and the die of the machine head needs to be cleaned. The core of each layer of the mold with this structure is designed with accurate positioning snap ring to prevent the damage caused by manual adjustment in the process of disassembly and cleaning, which is convenient for disassembly and assembly, and greatly reduces the cleaning frequency of the die and the difficulty of disassembly and adjustment. The surface of the runner is plated with hard chromium and polished, which is anti-corrosion, non stick material and easy to clean. Laser marked sizes information for convenience of daily operation

4. Haul-off machine

The Haul-off Machine adopts the clamping mode of free hanging roller link, The clamping force of each clamping point can be adjusted freely, so that the force on the pipe is very balanced and the elliptical deformation of the pipe is avoided; Driven Motor: Bosch Rexroth Brand; Synchronous Controlled with Extruder Screw rpm.

PB/EVOH barrier pipe extrusion line configuration:

1Special designed extruder for PB  raw materials 2Special designed extruder for EVOH 3Extruder for Adhestive layer 45 layer co-extrusion die head mould 5High precision melting pump 6Vacuum tank 7Cooling flume 8Servo haul-off machine 9Flying knife cutting machine 10Siemens PLC control system 11Remote control system
