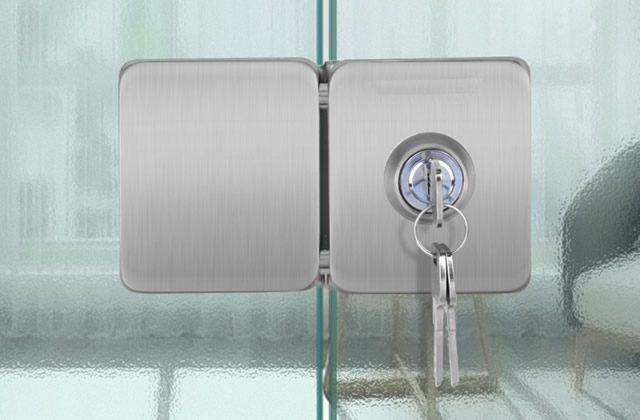

One, the typical dimensions of glass door locks are
1、6068 Locking System
6068 lock body is a universal lock body, and most doors currently manufactured use this type of lock body. The lock tongue is available in both cylindrical and rectangular designs.
2、King Lock Body
This is a locking device derived from the 6068 universal type, with two additional "dead tongues" that create a reverse locking mechanism. The locking device has a larger size due to the addition of the reverse locking tongues.
3、Wang Li Locking System
This typically refers to the lock body specifically manufactured by Wangli Company for their anti-theft doors. We commonly refer to it as the Wangli Special Lock.
4、Bodean locking system
Bode'an is a well-known manufacturer of anti-theft locks, and due to its extensive use in door factories, a separate model called Bode'an lock body was developed. This mainly includes models such as Xiao Shua (Small Handsome), Eleven Type, Thirteen Type, Twelve Type, and Universal Type, similar to the 6068 lock body.
5、European standard locking system / American standard locking system
These two types of locks are primarily used in commercial settings within China, although American standard locks are also increasingly common in residential applications.
European standard locks and domestic locks look the same, but have different dimensions. European standard locks have more uniform dimensions. Domestic European standard locks generally do not have uniform dimensions, such as 55*72, 60*72, etc., which are not consistent with European standards. They are simply called European standard locks and are typically used on interior doors. American standard locks mainly refer to American-style locks, which generally come in two types: lever handles (single-action) and American-style large handle locks, typically used in high-end homes.
Two. How to measure the dimensions of a glass door lock.
1、Simple measurement method
Measure the distance from the center of the fixing screw on the lock to the edge of the interior door using a straight ruler, and record the data A.
Use a straight ruler to measure the distance from the center of the fixing screw on the lock to the outer edge of the door, and record the data.
Measure the thickness of the handle (door handle) panel near the keyhole using a straight ruler and record the data.
Interior = A+C, Exterior = B+C.
2、Measurement method using lock cylinder removal
First, use a Phillips head screwdriver to remove the two mounting screws from the interior door handle.
Remove the handle panels from both the interior and exterior sides, and organize the related accessories to prevent loss.
Use a screwdriver to remove the lock cylinder cover screws and detach the cover.
Use a cross-head screwdriver to remove the fixing screws in the center of the lock body plate, and place them separately.
Insert the key and gently rotate it to remove the lock cylinder. Keep the key on the cylinder for easy identification between indoor and outdoor locks.
Use a straightedge or measuring tape to measure from the center of the fixed lock screw hole to both sides, determining the corresponding indoor and outdoor lengths. Record the measurements accurately. Then, select the appropriate lock based on the obtained data.
